#include <IfcTextLiteralAutoImpl.h>

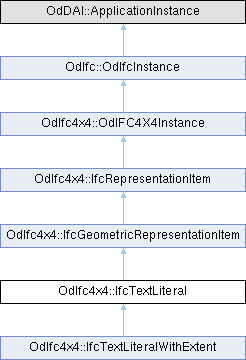

Inheritance diagram for OdIfc4x4::IfcTextLiteral:

Public Member Functions
const OdAnsiString &	getLiteral () const

void	setLiteral (const OdAnsiString &Literal)

IfcAxis2Placement	placement ()

IfcTextPath	getPath () const

void	setPath (IfcTextPath Path)

	IfcTextLiteral ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Literal

OdDAI::Select	m_Placement

OdDAI::Enum	m_Path

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The text literal is a geometric representation item which describes a text string using a string literal and additional position and path information. The text size and appearance is determined by the IfcTextStyle that is associated to the IfcTextLiteral through an IfcStyledItem. The text string is placed within the planar extent (the box) defined within the subtype IfcTextLiteralWithExtent.

Definition at line 42 of file IFC4X4/IfcTextLiteralAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTextLiteral()

OdIfc4x4::IfcTextLiteral::IfcTextLiteral ( )

Default constructor for the IfcTextLiteral class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcTextLiteral::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcTextLiteral::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcTextLiteral::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcTextLiteral::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ getLiteral()

const OdAnsiString & OdIfc4x4::IfcTextLiteral::getLiteral ( ) const

Returns the value of Literal attribute. This attribute represents the text literal to be presented.

Returns: Returns the value of Literal attribute.

◆ getPath()

IfcTextPath OdIfc4x4::IfcTextLiteral::getPath ( ) const

Returns the value of Path attribute. This attribute represents the writing direction of the text literal.

Returns: Returns the value of Path attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcTextLiteral::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ isKindOf()

virtual bool OdIfc4x4::IfcTextLiteral::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ outFields()

virtual OdResult OdIfc4x4::IfcTextLiteral::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ placement()

IfcAxis2Placement OdIfc4x4::IfcTextLiteral::placement ( )

Returns the value of Placement attribute. This attribute represents an IfcAxis2Placement that determines the placement and orientation of the presented string.

Returns: Returns the value of Placement attribute.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcTextLiteral::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcTextLiteral::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ setLiteral()

void OdIfc4x4::IfcTextLiteral::setLiteral ( const OdAnsiString & Literal )

Sets the value of Literal attribute. This attribute represents the text literal to be presented.

Parameters

Literal [in] Literal to set.

◆ setPath()

void OdIfc4x4::IfcTextLiteral::setPath ( IfcTextPath Path )

Sets the value of Path attribute. This attribute represents the writing direction of the text literal.

Parameters

Path	[in] Path to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcTextLiteral::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcTextLiteral::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcTextLiteral::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x4::IfcTextLiteralWithExtent.
