OdIfc4x4::IfcGeometricRepresentationItem Class Reference

#include <IfcGeometricRepresentationItemAutoImpl.h>

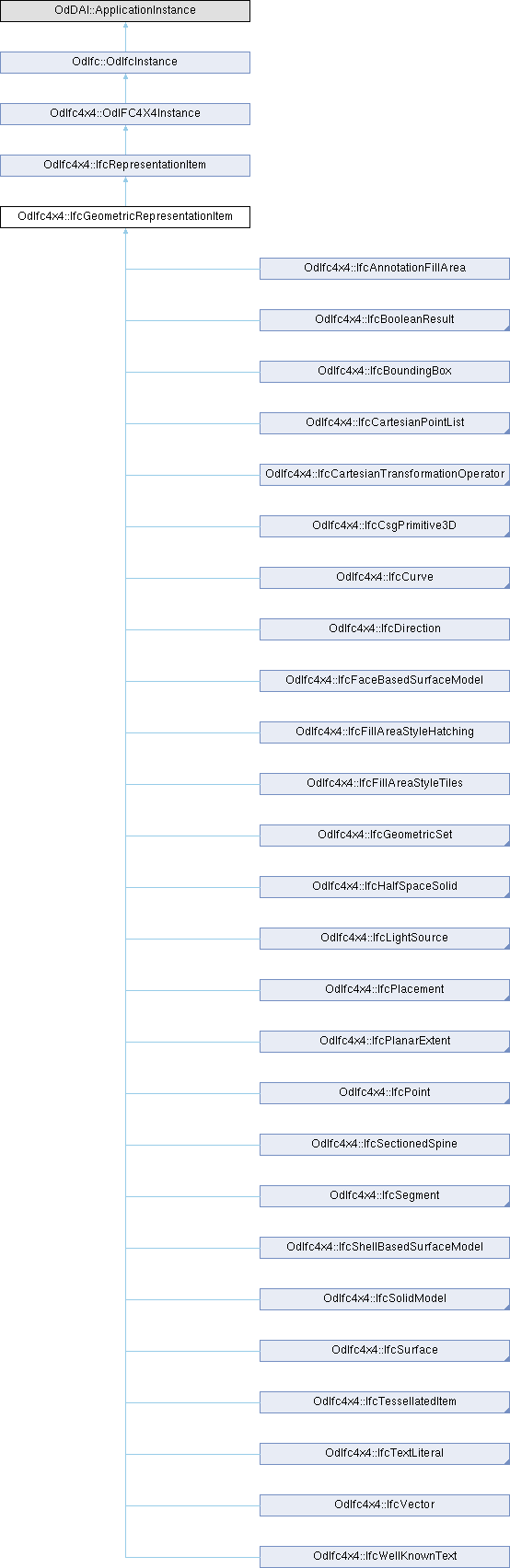

Inheritance diagram for OdIfc4x4::IfcGeometricRepresentationItem:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc4x4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const
void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

An IfcGeometricRepresentationItem is the common supertype of all geometric items used within a representation. It is positioned within a geometric coordinate system, directly or indirectly through intervening items. An indirect reference to a Cartesian point or direction means that a given geometric item references the Cartesian point or direction through one or more intervening geometry or topology items.

Definition at line 43 of file IFC4X4/IfcGeometricRepresentationItemAutoImpl.h.

Member Function Documentation

comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcGeometricRepresentationItem::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther, OdRx::Ordering & ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns

true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses: Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcAdvancedBrep, OdIfc4x4::IfcAdvancedBrepWithVoids, OdIfc4x4::IfcAnnotationFillArea, OdIfc4x4::IfcAxis1Placement, OdIfc4x4::IfcAxis2Placement2D, OdIfc4x4::IfcAxis2Placement3D, OdIfc4x4::IfcAxis2PlacementLinear, OdIfc4x4::IfcBlock, OdIfc4x4::IfcBooleanClippingResult, OdIfc4x4::IfcBooleanResult, OdIfc4x4::IfcBoundaryCurve, OdIfc4x4::IfcBoundedCurve, OdIfc4x4::IfcBoundedSurface, OdIfc4x4::IfcBoundingBox, OdIfc4x4::IfcBoxedHalfSpace, OdIfc4x4::IfcBSplineCurve, OdIfc4x4::IfcBSplineCurveWithKnots, OdIfc4x4::IfcBSplineSurface, OdIfc4x4::IfcBSplineSurfaceWithKnots, OdIfc4x4::IfcCartesianPoint, OdIfc4x4::IfcCartesianPointList2D, OdIfc4x4::IfcCartesianPointList3D, OdIfc4x4::IfcCartesianPointList, OdIfc4x4::IfcCartesianTransformationOperator2D, OdIfc4x4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator3D, OdIfc4x4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator, OdIfc4x4::IfcCircle, OdIfc4x4::IfcClothoid, OdIfc4x4::IfcCompositeCurve, OdIfc4x4::IfcCompositeCurveOnSurface, OdIfc4x4::IfcCompositeCurveSegment, OdIfc4x4::IfcConic, OdIfc4x4::IfcCosineSpiral, OdIfc4x4::IfcCsgPrimitive3D, OdIfc4x4::IfcCsgSolid, OdIfc4x4::IfcCurve, OdIfc4x4::IfcCurveBoundedPlane, OdIfc4x4::IfcCurveBoundedSurface, OdIfc4x4::IfcCurveSegment, OdIfc4x4::IfcCylindricalSurface, OdIfc4x4::IfcDirection, OdIfc4x4::IfcDirectrixCurveSweptAreaSolid, OdIfc4x4::IfcDirectrixDerivedReferenceSweptAreaSolid, OdIfc4x4::IfcElementarySurface, OdIfc4x4::IfcEllipse, OdIfc4x4::IfcExtrudedAreaSolid, OdIfc4x4::IfcExtrudedAreaSolidTapered, OdIfc4x4::IfcFaceBasedSurfaceModel, OdIfc4x4::IfcFacetedBrep, OdIfc4x4::IfcFacetedBrepWithVoids, OdIfc4x4::IfcFillAreaStyleHatching, OdIfc4x4::IfcFillAreaStyleTiles, OdIfc4x4::IfcFixedReferenceSweptAreaSolid, OdIfc4x4::IfcGeometricCurveSet, OdIfc4x4::IfcGeometricSet, OdIfc4x4::IfcGradientCurve, OdIfc4x4::IfcHalfSpaceSolid, OdIfc4x4::IfcIndexedPolyCurve, OdIfc4x4::IfcIndexedPolygonalFace, OdIfc4x4::IfcIndexedPolygonalFaceWithVoids, OdIfc4x4::IfcIntersectionCurve, OdIfc4x4::IfcLightSource, OdIfc4x4::IfcLightSourceAmbient, OdIfc4x4::IfcLightSourceDirectional, OdIfc4x4::IfcLightSourceGoniometric, OdIfc4x4::IfcLightSourcePositional, OdIfc4x4::IfcLightSourceSpot, OdIfc4x4::IfcLine, OdIfc4x4::IfcManifoldSolidBrep, OdIfc4x4::IfcOffsetCurve2D, OdIfc4x4::IfcOffsetCurve3D, OdIfc4x4::IfcOffsetCurve, OdIfc4x4::IfcOffsetCurveByDistances, OdIfc4x4::IfcOuterBoundaryCurve, OdIfc4x4::IfcPcurve, OdIfc4x4::IfcPlacement, OdIfc4x4::IfcPlanarBox, OdIfc4x4::IfcPlanarExtent, OdIfc4x4::IfcPlane, OdIfc4x4::IfcPoint, OdIfc4x4::IfcPointByDistanceExpression, OdIfc4x4::IfcPointOnCurve, OdIfc4x4::IfcPointOnSurface, OdIfc4x4::IfcPolygonalBoundedHalfSpace, OdIfc4x4::IfcPolygonalFaceSet, OdIfc4x4::IfcPolyline, OdIfc4x4::IfcPolynomialCurve, OdIfc4x4::IfcRationalBSplineCurveWithKnots, OdIfc4x4::IfcRationalBSplineSurfaceWithKnots, OdIfc4x4::IfcRectangularPyramid, OdIfc4x4::IfcRectangularTrimmedSurface, OdIfc4x4::IfcReparametrisedCompositeCurveSegment, OdIfc4x4::IfcRevolvedAreaSolid, OdIfc4x4::IfcRevolvedAreaSolidTapered, OdIfc4x4::IfcRightCircularCone, OdIfc4x4::IfcRightCircularCylinder, OdIfc4x4::IfcSeamCurve, OdIfc4x4::IfcSecondOrderPolynomialSpiral, OdIfc4x4::IfcSectionedSolid, OdIfc4x4::IfcSectionedSolidHorizontal, OdIfc4x4::IfcSectionedSpine, OdIfc4x4::IfcSectionedSurface, OdIfc4x4::IfcSegment, OdIfc4x4::IfcSegmentedReferenceCurve, OdIfc4x4::IfcSeventhOrderPolynomialSpiral, OdIfc4x4::IfcShellBasedSurfaceModel, OdIfc4x4::IfcSineSpiral, OdIfc4x4::IfcSolidModel, OdIfc4x4::IfcSphere, OdIfc4x4::IfcSphericalSurface, OdIfc4x4::IfcSpiral, OdIfc4x4::IfcSurface, OdIfc4x4::IfcSurfaceCurve, OdIfc4x4::IfcSurfaceCurveSweptAreaSolid, OdIfc4x4::IfcSurfaceOfLinearExtrusion, OdIfc4x4::IfcSurfaceOfRevolution, OdIfc4x4::IfcSweptAreaSolid, OdIfc4x4::IfcSweptDiskSolid, OdIfc4x4::IfcSweptDiskSolidPolygonal, OdIfc4x4::IfcSweptSurface, OdIfc4x4::IfcTessellatedFaceSet, OdIfc4x4::IfcTessellatedItem, OdIfc4x4::IfcTextLiteral, OdIfc4x4::IfcTextLiteralWithExtent, OdIfc4x4::IfcThirdOrderPolynomialSpiral, OdIfc4x4::IfcToroidalSurface, OdIfc4x4::IfcTriangulatedFaceSet, OdIfc4x4::IfcTriangulatedIrregularNetwork, OdIfc4x4::IfcTrimmedCurve, OdIfc4x4::IfcVector, OdIfc4x4::IfcVoxelGrid, and OdIfc4x4::IfcWellKnownText.

getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcGeometricRepresentationItem::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcAdvancedBrep, OdIfc4x4::IfcAdvancedBrepWithVoids, OdIfc4x4::IfcAnnotationFillArea, OdIfc4x4::IfcAxis1Placement, OdIfc4x4::IfcAxis2Placement2D, OdIfc4x4::IfcAxis2Placement3D, OdIfc4x4::IfcAxis2PlacementLinear, OdIfc4x4::IfcBlock, OdIfc4x4::IfcBooleanClippingResult, OdIfc4x4::IfcBooleanResult, OdIfc4x4::IfcBoundaryCurve, OdIfc4x4::IfcBoundedCurve, OdIfc4x4::IfcBoundedSurface, OdIfc4x4::IfcBoundingBox, OdIfc4x4::IfcBoxedHalfSpace, OdIfc4x4::IfcBSplineCurve, OdIfc4x4::IfcBSplineCurveWithKnots, OdIfc4x4::IfcBSplineSurface, OdIfc4x4::IfcBSplineSurfaceWithKnots, OdIfc4x4::IfcCartesianPoint, OdIfc4x4::IfcCartesianPointList2D, OdIfc4x4::IfcCartesianPointList3D, OdIfc4x4::IfcCartesianPointList, OdIfc4x4::IfcCartesianTransformationOperator2D, OdIfc4x4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator3D, OdIfc4x4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator, OdIfc4x4::IfcCircle, OdIfc4x4::IfcClothoid, OdIfc4x4::IfcCompositeCurve, OdIfc4x4::IfcCompositeCurveOnSurface, OdIfc4x4::IfcCompositeCurveSegment, OdIfc4x4::IfcConic, OdIfc4x4::IfcCosineSpiral, OdIfc4x4::IfcCsgPrimitive3D, OdIfc4x4::IfcCsgSolid, OdIfc4x4::IfcCurve, OdIfc4x4::IfcCurveBoundedPlane, OdIfc4x4::IfcCurveBoundedSurface, OdIfc4x4::IfcCurveSegment, OdIfc4x4::IfcCylindricalSurface, OdIfc4x4::IfcDirection, OdIfc4x4::IfcDirectrixCurveSweptAreaSolid, OdIfc4x4::IfcDirectrixDerivedReferenceSweptAreaSolid, OdIfc4x4::IfcElementarySurface, OdIfc4x4::IfcEllipse, OdIfc4x4::IfcExtrudedAreaSolid, OdIfc4x4::IfcExtrudedAreaSolidTapered, OdIfc4x4::IfcFaceBasedSurfaceModel, OdIfc4x4::IfcFacetedBrep, OdIfc4x4::IfcFacetedBrepWithVoids, OdIfc4x4::IfcFillAreaStyleHatching, OdIfc4x4::IfcFillAreaStyleTiles, OdIfc4x4::IfcFixedReferenceSweptAreaSolid, OdIfc4x4::IfcGeometricCurveSet, OdIfc4x4::IfcGeometricSet, OdIfc4x4::IfcGradientCurve, OdIfc4x4::IfcHalfSpaceSolid, OdIfc4x4::IfcIndexedPolyCurve, OdIfc4x4::IfcIndexedPolygonalFace, OdIfc4x4::IfcIndexedPolygonalFaceWithVoids, OdIfc4x4::IfcIntersectionCurve, OdIfc4x4::IfcLightSource, OdIfc4x4::IfcLightSourceAmbient, OdIfc4x4::IfcLightSourceDirectional, OdIfc4x4::IfcLightSourceGoniometric, OdIfc4x4::IfcLightSourcePositional, OdIfc4x4::IfcLightSourceSpot, OdIfc4x4::IfcLine, OdIfc4x4::IfcManifoldSolidBrep, OdIfc4x4::IfcOffsetCurve2D, OdIfc4x4::IfcOffsetCurve3D, OdIfc4x4::IfcOffsetCurve, OdIfc4x4::IfcOffsetCurveByDistances, OdIfc4x4::IfcOuterBoundaryCurve, OdIfc4x4::IfcPcurve, OdIfc4x4::IfcPlacement, OdIfc4x4::IfcPlanarBox, OdIfc4x4::IfcPlanarExtent, OdIfc4x4::IfcPlane, OdIfc4x4::IfcPoint, OdIfc4x4::IfcPointByDistanceExpression, OdIfc4x4::IfcPointOnCurve, OdIfc4x4::IfcPointOnSurface, OdIfc4x4::IfcPolygonalBoundedHalfSpace, OdIfc4x4::IfcPolygonalFaceSet, OdIfc4x4::IfcPolyline, OdIfc4x4::IfcPolynomialCurve, OdIfc4x4::IfcRationalBSplineCurveWithKnots, OdIfc4x4::IfcRationalBSplineSurfaceWithKnots, OdIfc4x4::IfcRectangularPyramid, OdIfc4x4::IfcRectangularTrimmedSurface, OdIfc4x4::IfcReparametrisedCompositeCurveSegment, OdIfc4x4::IfcRevolvedAreaSolid, OdIfc4x4::IfcRevolvedAreaSolidTapered, OdIfc4x4::IfcRightCircularCone, OdIfc4x4::IfcRightCircularCylinder, OdIfc4x4::IfcSeamCurve, OdIfc4x4::IfcSecondOrderPolynomialSpiral, OdIfc4x4::IfcSectionedSolid, OdIfc4x4::IfcSectionedSolidHorizontal, OdIfc4x4::IfcSectionedSpine, OdIfc4x4::IfcSectionedSurface, OdIfc4x4::IfcSegment, OdIfc4x4::IfcSegmentedReferenceCurve, OdIfc4x4::IfcSeventhOrderPolynomialSpiral, OdIfc4x4::IfcShellBasedSurfaceModel, OdIfc4x4::IfcSineSpiral, OdIfc4x4::IfcSolidModel, OdIfc4x4::IfcSphere, OdIfc4x4::IfcSphericalSurface, OdIfc4x4::IfcSpiral, OdIfc4x4::IfcSurface, OdIfc4x4::IfcSurfaceCurve, OdIfc4x4::IfcSurfaceCurveSweptAreaSolid, OdIfc4x4::IfcSurfaceOfLinearExtrusion, OdIfc4x4::IfcSurfaceOfRevolution, OdIfc4x4::IfcSweptAreaSolid, OdIfc4x4::IfcSweptDiskSolid, OdIfc4x4::IfcSweptDiskSolidPolygonal, OdIfc4x4::IfcSweptSurface, OdIfc4x4::IfcTessellatedFaceSet, OdIfc4x4::IfcTessellatedItem, OdIfc4x4::IfcTextLiteral, OdIfc4x4::IfcTextLiteralWithExtent, OdIfc4x4::IfcThirdOrderPolynomialSpiral, OdIfc4x4::IfcToroidalSurface, OdIfc4x4::IfcTriangulatedFaceSet, OdIfc4x4::IfcTriangulatedIrregularNetwork, OdIfc4x4::IfcTrimmedCurve, OdIfc4x4::IfcVector, OdIfc4x4::IfcVoxelGrid, and OdIfc4x4::IfcWellKnownText.

isKindOf()

virtual bool OdIfc4x4::IfcGeometricRepresentationItem::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcAdvancedBrep, OdIfc4x4::IfcAdvancedBrepWithVoids, OdIfc4x4::IfcAnnotationFillArea, OdIfc4x4::IfcAxis1Placement, OdIfc4x4::IfcAxis2Placement2D, OdIfc4x4::IfcAxis2Placement3D, OdIfc4x4::IfcAxis2PlacementLinear, OdIfc4x4::IfcBlock, OdIfc4x4::IfcBooleanClippingResult, OdIfc4x4::IfcBooleanResult, OdIfc4x4::IfcBoundaryCurve, OdIfc4x4::IfcBoundedCurve, OdIfc4x4::IfcBoundedSurface, OdIfc4x4::IfcBoundingBox, OdIfc4x4::IfcBoxedHalfSpace, OdIfc4x4::IfcBSplineCurve, OdIfc4x4::IfcBSplineCurveWithKnots, OdIfc4x4::IfcBSplineSurface, OdIfc4x4::IfcBSplineSurfaceWithKnots, OdIfc4x4::IfcCartesianPoint, OdIfc4x4::IfcCartesianPointList2D, OdIfc4x4::IfcCartesianPointList3D, OdIfc4x4::IfcCartesianPointList, OdIfc4x4::IfcCartesianTransformationOperator2D, OdIfc4x4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator3D, OdIfc4x4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator, OdIfc4x4::IfcCircle, OdIfc4x4::IfcClothoid, OdIfc4x4::IfcCompositeCurve, OdIfc4x4::IfcCompositeCurveOnSurface, OdIfc4x4::IfcCompositeCurveSegment, OdIfc4x4::IfcConic, OdIfc4x4::IfcCosineSpiral, OdIfc4x4::IfcCsgPrimitive3D, OdIfc4x4::IfcCsgSolid, OdIfc4x4::IfcCurve, OdIfc4x4::IfcCurveBoundedPlane, OdIfc4x4::IfcCurveBoundedSurface, OdIfc4x4::IfcCurveSegment, OdIfc4x4::IfcCylindricalSurface, OdIfc4x4::IfcDirection, OdIfc4x4::IfcDirectrixCurveSweptAreaSolid, OdIfc4x4::IfcDirectrixDerivedReferenceSweptAreaSolid, OdIfc4x4::IfcElementarySurface, OdIfc4x4::IfcEllipse, OdIfc4x4::IfcExtrudedAreaSolid, OdIfc4x4::IfcExtrudedAreaSolidTapered, OdIfc4x4::IfcFaceBasedSurfaceModel, OdIfc4x4::IfcFacetedBrep, OdIfc4x4::IfcFacetedBrepWithVoids, OdIfc4x4::IfcFillAreaStyleHatching, OdIfc4x4::IfcFillAreaStyleTiles, OdIfc4x4::IfcFixedReferenceSweptAreaSolid, OdIfc4x4::IfcGeometricCurveSet, OdIfc4x4::IfcGeometricSet, OdIfc4x4::IfcGradientCurve, OdIfc4x4::IfcHalfSpaceSolid, OdIfc4x4::IfcIndexedPolyCurve, OdIfc4x4::IfcIndexedPolygonalFace, OdIfc4x4::IfcIndexedPolygonalFaceWithVoids, OdIfc4x4::IfcIntersectionCurve, OdIfc4x4::IfcLightSource, OdIfc4x4::IfcLightSourceAmbient, OdIfc4x4::IfcLightSourceDirectional, OdIfc4x4::IfcLightSourceGoniometric, OdIfc4x4::IfcLightSourcePositional, OdIfc4x4::IfcLightSourceSpot, OdIfc4x4::IfcLine, OdIfc4x4::IfcManifoldSolidBrep, OdIfc4x4::IfcOffsetCurve2D, OdIfc4x4::IfcOffsetCurve3D, OdIfc4x4::IfcOffsetCurve, OdIfc4x4::IfcOffsetCurveByDistances, OdIfc4x4::IfcOuterBoundaryCurve, OdIfc4x4::IfcPcurve, OdIfc4x4::IfcPlacement, OdIfc4x4::IfcPlanarBox, OdIfc4x4::IfcPlanarExtent, OdIfc4x4::IfcPlane, OdIfc4x4::IfcPoint, OdIfc4x4::IfcPointByDistanceExpression, OdIfc4x4::IfcPointOnCurve, OdIfc4x4::IfcPointOnSurface, OdIfc4x4::IfcPolygonalBoundedHalfSpace, OdIfc4x4::IfcPolygonalFaceSet, OdIfc4x4::IfcPolyline, OdIfc4x4::IfcPolynomialCurve, OdIfc4x4::IfcRationalBSplineCurveWithKnots, OdIfc4x4::IfcRationalBSplineSurfaceWithKnots, OdIfc4x4::IfcRectangularPyramid, OdIfc4x4::IfcRectangularTrimmedSurface, OdIfc4x4::IfcReparametrisedCompositeCurveSegment, OdIfc4x4::IfcRevolvedAreaSolid, OdIfc4x4::IfcRevolvedAreaSolidTapered, OdIfc4x4::IfcRightCircularCone, OdIfc4x4::IfcRightCircularCylinder, OdIfc4x4::IfcSeamCurve, OdIfc4x4::IfcSecondOrderPolynomialSpiral, OdIfc4x4::IfcSectionedSolid, OdIfc4x4::IfcSectionedSolidHorizontal, OdIfc4x4::IfcSectionedSpine, OdIfc4x4::IfcSectionedSurface, OdIfc4x4::IfcSegment, OdIfc4x4::IfcSegmentedReferenceCurve, OdIfc4x4::IfcSeventhOrderPolynomialSpiral, OdIfc4x4::IfcShellBasedSurfaceModel, OdIfc4x4::IfcSineSpiral, OdIfc4x4::IfcSolidModel, OdIfc4x4::IfcSphere, OdIfc4x4::IfcSphericalSurface, OdIfc4x4::IfcSpiral, OdIfc4x4::IfcSurface, OdIfc4x4::IfcSurfaceCurve, OdIfc4x4::IfcSurfaceCurveSweptAreaSolid, OdIfc4x4::IfcSurfaceOfLinearExtrusion, OdIfc4x4::IfcSurfaceOfRevolution, OdIfc4x4::IfcSweptAreaSolid, OdIfc4x4::IfcSweptDiskSolid, OdIfc4x4::IfcSweptDiskSolidPolygonal, OdIfc4x4::IfcSweptSurface, OdIfc4x4::IfcTessellatedFaceSet, OdIfc4x4::IfcTessellatedItem, OdIfc4x4::IfcTextLiteral, OdIfc4x4::IfcTextLiteralWithExtent, OdIfc4x4::IfcThirdOrderPolynomialSpiral, OdIfc4x4::IfcToroidalSurface, OdIfc4x4::IfcTriangulatedFaceSet, OdIfc4x4::IfcTriangulatedIrregularNetwork, OdIfc4x4::IfcTrimmedCurve, OdIfc4x4::IfcVector, OdIfc4x4::IfcVoxelGrid, and OdIfc4x4::IfcWellKnownText.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcGeometricRepresentationItem::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Reimplemented in OdIfc4x4::IfcAdvancedBrep, OdIfc4x4::IfcAdvancedBrepWithVoids, OdIfc4x4::IfcAnnotationFillArea, OdIfc4x4::IfcAxis1Placement, OdIfc4x4::IfcAxis2Placement2D, OdIfc4x4::IfcAxis2Placement3D, OdIfc4x4::IfcAxis2PlacementLinear, OdIfc4x4::IfcBlock, OdIfc4x4::IfcBooleanClippingResult, OdIfc4x4::IfcBooleanResult, OdIfc4x4::IfcBoundaryCurve, OdIfc4x4::IfcBoundedCurve, OdIfc4x4::IfcBoundedSurface, OdIfc4x4::IfcBoundingBox, OdIfc4x4::IfcBoxedHalfSpace, OdIfc4x4::IfcBSplineCurve, OdIfc4x4::IfcBSplineCurveWithKnots, OdIfc4x4::IfcBSplineSurface, OdIfc4x4::IfcBSplineSurfaceWithKnots, OdIfc4x4::IfcCartesianPoint, OdIfc4x4::IfcCartesianPointList2D, OdIfc4x4::IfcCartesianPointList3D, OdIfc4x4::IfcCartesianPointList, OdIfc4x4::IfcCartesianTransformationOperator2D, OdIfc4x4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator3D, OdIfc4x4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x4::IfcCartesianTransformationOperator, OdIfc4x4::IfcCircle, OdIfc4x4::IfcClothoid, OdIfc4x4::IfcCompositeCurve, OdIfc4x4::IfcCompositeCurveOnSurface, OdIfc4x4::IfcCompositeCurveSegment, OdIfc4x4::IfcConic, OdIfc4x4::IfcCosineSpiral, OdIfc4x4::IfcCsgPrimitive3D, OdIfc4x4::IfcCsgSolid, OdIfc4x4::IfcCurve, OdIfc4x4::IfcCurveBoundedPlane, OdIfc4x4::IfcCurveBoundedSurface, OdIfc4x4::IfcCurveSegment, OdIfc4x4::IfcCylindricalSurface, OdIfc4x4::IfcDirection, OdIfc4x4::IfcDirectrixCurveSweptAreaSolid, OdIfc4x4::IfcDirectrixDerivedReferenceSweptAreaSolid, OdIfc4x4::IfcElementarySurface, OdIfc4x4::IfcEllipse, OdIfc4x4::IfcExtrudedAreaSolid, OdIfc4x4::IfcExtrudedAreaSolidTapered, OdIfc4x4::IfcFaceBasedSurfaceModel, OdIfc4x4::IfcFacetedBrep, OdIfc4x4::IfcFacetedBrepWithVoids, OdIfc4x4::IfcFillAreaStyleHatching, OdIfc4x4::IfcFillAreaStyleTiles, OdIfc4x4::IfcFixedReferenceSweptAreaSolid, OdIfc4x4::IfcGeometricCurveSet, OdIfc4x4::IfcGeometricSet, OdIfc4x4::IfcGradientCurve, OdIfc4x4::IfcHalfSpaceSolid, OdIfc4x4::IfcIndexedPolyCurve, OdIfc4x4::IfcIndexedPolygonalFace, OdIfc4x4::IfcIndexedPolygonalFaceWithVoids, OdIfc4x4::IfcIntersectionCurve, OdIfc4x4::IfcLightSource, OdIfc4x4::IfcLightSourceAmbient, OdIfc4x4::IfcLightSourceDirectional, OdIfc4x4::IfcLightSourceGoniometric, OdIfc4x4::IfcLightSourcePositional, OdIfc4x4::IfcLightSourceSpot, OdIfc4x4::IfcLine, OdIfc4x4::IfcManifoldSolidBrep, OdIfc4x4::IfcOffsetCurve2D, OdIfc4x4::IfcOffsetCurve3D, OdIfc4x4::IfcOffsetCurve, OdIfc4x4::IfcOffsetCurveByDistances, OdIfc4x4::IfcOuterBoundaryCurve, OdIfc4x4::IfcPcurve, OdIfc4x4::IfcPlacement, OdIfc4x4::IfcPlanarBox, OdIfc4x4::IfcPlanarExtent, OdIfc4x4::IfcPlane, OdIfc4x4::IfcPoint, OdIfc4x4::IfcPointByDistanceExpression, OdIfc4x4::IfcPointOnCurve, OdIfc4x4::IfcPointOnSurface, OdIfc4x4::IfcPolygonalBoundedHalfSpace, OdIfc4x4::IfcPolygonalFaceSet, OdIfc4x4::IfcPolyline, OdIfc4x4::IfcPolynomialCurve, OdIfc4x4::IfcRationalBSplineCurveWithKnots, OdIfc4x4::IfcRationalBSplineSurfaceWithKnots, OdIfc4x4::IfcRectangularPyramid, OdIfc4x4::IfcRectangularTrimmedSurface, OdIfc4x4::IfcReparametrisedCompositeCurveSegment, OdIfc4x4::IfcRevolvedAreaSolid, OdIfc4x4::IfcRevolvedAreaSolidTapered, OdIfc4x4::IfcRightCircularCone, OdIfc4x4::IfcRightCircularCylinder, OdIfc4x4::IfcSeamCurve, OdIfc4x4::IfcSecondOrderPolynomialSpiral, OdIfc4x4::IfcSectionedSolid, OdIfc4x4::IfcSectionedSolidHorizontal, OdIfc4x4::IfcSectionedSpine, OdIfc4x4::IfcSectionedSurface, OdIfc4x4::IfcSegment, OdIfc4x4::IfcSegmentedReferenceCurve, OdIfc4x4::IfcSeventhOrderPolynomialSpiral, OdIfc4x4::IfcShellBasedSurfaceModel, OdIfc4x4::IfcSineSpiral, OdIfc4x4::IfcSolidModel, OdIfc4x4::IfcSphere, OdIfc4x4::IfcSphericalSurface, OdIfc4x4::IfcSpiral, OdIfc4x4::IfcSurface, OdIfc4x4::IfcSurfaceCurve, OdIfc4x4::IfcSurfaceCurveSweptAreaSolid, OdIfc4x4::IfcSurfaceOfLinearExtrusion, OdIfc4x4::IfcSurfaceOfRevolution, OdIfc4x4::IfcSweptAreaSolid, OdIfc4x4::IfcSweptDiskSolid, OdIfc4x4::IfcSweptDiskSolidPolygonal, OdIfc4x4::IfcSweptSurface, OdIfc4x4::IfcTessellatedFaceSet, OdIfc4x4::IfcTessellatedItem, OdIfc4x4::IfcTextLiteral, OdIfc4x4::IfcTextLiteralWithExtent, OdIfc4x4::IfcThirdOrderPolynomialSpiral, OdIfc4x4::IfcToroidalSurface, OdIfc4x4::IfcTriangulatedFaceSet, OdIfc4x4::IfcTriangulatedIrregularNetwork, OdIfc4x4::IfcTrimmedCurve, OdIfc4x4::IfcVector, OdIfc4x4::IfcVoxelGrid, and OdIfc4x4::IfcWellKnownText.

---

The documentation for this class was generated from the following file:

• IFC4X4/IfcGeometricRepresentationItemAutoImpl.h
