#include <IfcSpaceProgramAutoImpl.h>

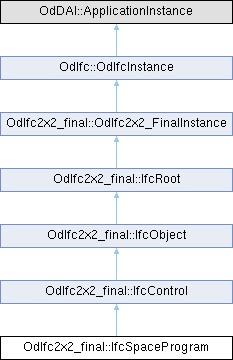

Inheritance diagram for OdIfc2x2_final::IfcSpaceProgram:

Public Member Functions
const OdAnsiString &	getSpaceProgramIdentifier () const

void	setSpaceProgramIdentifier (const OdAnsiString &SpaceProgramIdentifier)

double	getMaxRequiredArea () const

void	setMaxRequiredArea (double MaxRequiredArea)

double	getMinRequiredArea () const

void	setMinRequiredArea (double MinRequiredArea)

const OdDAIObjectId &	getRequestedLocation () const

void	setRequestedLocation (const OdDAIObjectId &RequestedLocation)

double	getStandardRequiredArea () const

void	setStandardRequiredArea (double StandardRequiredArea)

void	getInvHasInteractionReqsFrom (OdDAIObjectIds &HasInteractionReqsFrom) const

void	getInvHasInteractionReqsTo (OdDAIObjectIds &HasInteractionReqsTo) const

	IfcSpaceProgram ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcControl
void	getInvControls (OdDAIObjectIds &Controls) const

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_SpaceProgramIdentifier

double	m_MaxRequiredArea

double	m_MinRequiredArea

OdDAIObjectId	m_RequestedLocation

double	m_StandardRequiredArea

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelInteractionRequirements

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

Architectural program for a space in the building or facility is designed, essentially the requirements definition for such a building space. The assignment of a person or an organization to a space program, e.g. is handled through using the objectified relationship IfcRelAssignsToActor referring to IfcActor. Space programs can be nested, i.e. an IfcSpaceProgram can specify a program group up to any desired level. This is handled through using the objectified relationship IfcRelNests.

Definition at line 45 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSpaceProgram()

OdIfc2x2_final::IfcSpaceProgram::IfcSpaceProgram ( )

Default constructor for the IfcSpaceProgram class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcSpaceProgram::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcSpaceProgram::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcSpaceProgram::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ getInvHasInteractionReqsFrom()

void OdIfc2x2_final::IfcSpaceProgram::getInvHasInteractionReqsFrom ( OdDAIObjectIds & HasInteractionReqsFrom ) const

Returns the value of HasInteractionReqsFrom attribute. This attribute represents the set of inverse relationships to space or work interaction requirement objects.

Returns: Returns the value of HasInteractionReqsFrom attribute.

◆ getInvHasInteractionReqsTo()

void OdIfc2x2_final::IfcSpaceProgram::getInvHasInteractionReqsTo ( OdDAIObjectIds & HasInteractionReqsTo ) const

Returns the value of HasInteractionReqsTo attribute. This attribute represents the set of inverse relationships to space or work interaction requirements.

Returns: Returns the value of HasInteractionReqsTo attribute.

◆ getMaxRequiredArea()

double OdIfc2x2_final::IfcSpaceProgram::getMaxRequiredArea ( ) const

Returns the value of MaxRequiredArea attribute. This attribute represents the the maximum floor area programmed for this space (according to client requirements).

Returns: Returns the value of MaxRequiredArea attribute.

◆ getMinRequiredArea()

double OdIfc2x2_final::IfcSpaceProgram::getMinRequiredArea ( ) const

Returns the value of MinRequiredArea attribute. This attribute represents the minimum floor area programmed for this space (according to client requirements).

Returns: Returns the value of MinRequiredArea attribute.

◆ getRequestedLocation()

const OdDAIObjectId & OdIfc2x2_final::IfcSpaceProgram::getRequestedLocation ( ) const

Returns the value of RequestedLocation attribute. This attribute represents the location within the building structure, requested for the space.

Returns: Returns the value of RequestedLocation attribute.

◆ getSpaceProgramIdentifier()

const OdAnsiString & OdIfc2x2_final::IfcSpaceProgram::getSpaceProgramIdentifier ( ) const

Returns the value of SpaceProgramIdentifier attribute. This attribute represents the identifier for this space program. It often refers to a number (or code) assigned to the space program. Example: R-001.

Returns: Returns the value of SpaceProgramIdentifier attribute.

◆ getStandardRequiredArea()

double OdIfc2x2_final::IfcSpaceProgram::getStandardRequiredArea ( ) const

Returns the value of StandardRequiredArea attribute. This attribute represents the floor area programmed for this space (according to client requirements).

Returns: Returns the value of StandardRequiredArea attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcSpaceProgram::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcSpaceProgram::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcSpaceProgram::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcSpaceProgram::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcSpaceProgram::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ setMaxRequiredArea()

void OdIfc2x2_final::IfcSpaceProgram::setMaxRequiredArea ( double MaxRequiredArea )

Sets the value of MaxRequiredArea attribute. This attribute represents the the maximum floor area programmed for this space (according to client requirements).

Parameters

MaxRequiredArea [in] MaxRequiredArea attribute to set.

◆ setMinRequiredArea()

void OdIfc2x2_final::IfcSpaceProgram::setMinRequiredArea ( double MinRequiredArea )

Sets the value of MinRequiredArea attribute. This attribute represents the minimum floor area programmed for this space (according to client requirements).

Parameters

MinRequiredArea [in] MinRequiredArea attribute to set.

◆ setRequestedLocation()

void OdIfc2x2_final::IfcSpaceProgram::setRequestedLocation ( const OdDAIObjectId & RequestedLocation )

Sets the value of RequestedLocation attribute. This attribute represents the location within the building structure, requested for the space.

Parameters

RequestedLocation [in] RequestedLocation attribute to set.

◆ setSpaceProgramIdentifier()

void OdIfc2x2_final::IfcSpaceProgram::setSpaceProgramIdentifier ( const OdAnsiString & SpaceProgramIdentifier )

Sets the value of SpaceProgramIdentifier attribute. This attribute represents the identifier for this space program. It often refers to a number (or code) assigned to the space program. Example: R-001.

Parameters

SpaceProgramIdentifier [in] SpaceProgramIdentifier attribute to set.

◆ setStandardRequiredArea()

void OdIfc2x2_final::IfcSpaceProgram::setStandardRequiredArea ( double StandardRequiredArea )

Sets the value of StandardRequiredArea attribute. This attribute represents the floor area programmed for this space (according to client requirements).

Parameters

StandardRequiredArea [in] StandardRequiredArea attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcSpaceProgram::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcSpaceProgram::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcSpaceProgram::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcSpaceProgram::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcControl.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcSpaceProgram::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcControl.

Friends And Related Symbol Documentation

◆ IfcRelInteractionRequirements

IfcRelInteractionRequirements

friend

Definition at line 269 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

Member Data Documentation

◆ m_MaxRequiredArea

double OdIfc2x2_final::IfcSpaceProgram::m_MaxRequiredArea

protected

Definition at line 263 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

◆ m_MinRequiredArea

double OdIfc2x2_final::IfcSpaceProgram::m_MinRequiredArea

protected

Definition at line 264 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

◆ m_RequestedLocation

OdDAIObjectId OdIfc2x2_final::IfcSpaceProgram::m_RequestedLocation

protected

Definition at line 265 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

◆ m_SpaceProgramIdentifier

OdAnsiString OdIfc2x2_final::IfcSpaceProgram::m_SpaceProgramIdentifier

protected

Definition at line 262 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

◆ m_StandardRequiredArea

double OdIfc2x2_final::IfcSpaceProgram::m_StandardRequiredArea

protected

Definition at line 266 of file Ifc2x2_Final/IfcSpaceProgramAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcSpaceProgramAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSpaceProgram()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getInvHasInteractionReqsFrom()

◆ getInvHasInteractionReqsTo()

◆ getMaxRequiredArea()

◆ getMinRequiredArea()

◆ getRequestedLocation()

◆ getSpaceProgramIdentifier()

◆ getStandardRequiredArea()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setMaxRequiredArea()

◆ setMinRequiredArea()

◆ setRequestedLocation()

◆ setSpaceProgramIdentifier()

◆ setStandardRequiredArea()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcRelInteractionRequirements

Member Data Documentation

◆ m_MaxRequiredArea

◆ m_MinRequiredArea

◆ m_RequestedLocation

◆ m_SpaceProgramIdentifier

◆ m_StandardRequiredArea
