#include <IfcProject.h>

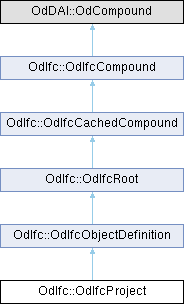

Inheritance diagram for OdIfc::OdIfcProject:

Public Member Functions
virtual void	compose ()

OdDAIObjectId	getUnitsInContextId ()

OdString	getPhase ()

OdString	getLongName ()

OdDAIObjectIds	getRepresentationContexts ()

virtual bool	subWorldDraw (OdGiWorldDraw *pWd) const ODRX_OVERRIDE

OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const

Public Member Functions inherited from OdIfc::OdIfcObjectDefinition
void	compose () override

const OdDAIObjectIds &	getIsNestedBy () const

OdDAIObjectIds	extractIsNestedBy () const

Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override

OdIfcEntityType	type ()

OdRxValue	getAttr (const OdIfcAttribute attrDef) const

virtual OdRxValue	getAttr (const OdAnsiString &attrName) const

OdIfcModel *	owningModel () const

bool	isKindOf (OdIfcEntityType type) const

bool	isInstanceOf (OdIfcEntityType entityType) const

const OdAnsiString &	typeName ()

OdIfcFile *	owningIfcFile () const

OdStepFile *	owningStepFile () const override

virtual bool	isPersistent () const

virtual OdDbStub *	id () const

virtual OdDbStub *	ownerId () const

virtual void	xmitPropagateModify ()

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)

Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode

Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Detailed Description

A class that implements storing and handling data about an IFC project. The project determines the design, construction, and maintenance context of a product.

Definition at line 42 of file IfcProject.h.

Member Function Documentation

◆ compose()

virtual void OdIfc::OdIfcProject::compose ( )

virtual

Composes the project object.

◆ getLongName()

OdString OdIfc::OdIfcProject::getLongName ( )

Retrieves the project's long name.

Returns: A string that contains the project's long name.

◆ getPhase()

OdString OdIfc::OdIfcProject::getPhase ( )

Retrieves the project phase.

Returns: A string that contains the phase name.

◆ getRepresentationContexts()

OdDAIObjectIds OdIfc::OdIfcProject::getRepresentationContexts ( )

Retrieves the project's representation context.

Returns: An array of DAI object identifiers, which refer to the representation context objects.

◆ getUnitsInContextId()

OdDAIObjectId OdIfc::OdIfcProject::getUnitsInContextId ( )

Retrieves the unit context identifier of the project.

Returns: An DAI object identifier of the unit's context.

◆ subSetAttributes()

OdUInt32 OdIfc::OdIfcProject::subSetAttributes ( OdGiDrawableTraits * pTraits ) const

Sets the values of the object's subentity traits, and returns the object's subentity traits to the calling subroutine.

Parameters

pTraits [in] A raw pointer to the <exref target="https://docs.opendesign.com/tv_api_cpp/OdGiDrawableTraits.html">OdGiDrawableTraits</exref> object to be set.

Returns: A set of flags represented with an unsigned 32-bit integer value.

Remarks: When re-implementing this method, use the "or" bit operation (|) for the return value of the parent class' subSetAttributes() method and any flags you have added.

See also: <exref target="https://docs.opendesign.com/tv_api_cpp/OdGiDrawableTraits.html">OdGiDrawableTraits</exref> class documentation.

◆ subWorldDraw()

virtual bool OdIfc::OdIfcProject::subWorldDraw ( OdGiWorldDraw * pWd ) const
