#include <IfcOpeningStandardCaseAutoImpl.h>

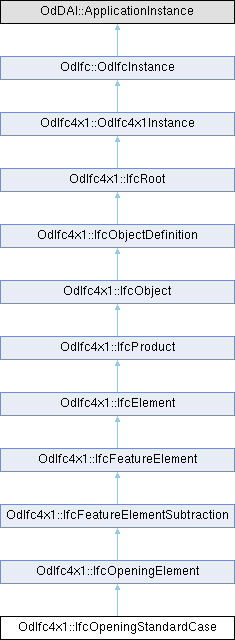

Inheritance diagram for OdIfc4x1::IfcOpeningStandardCase:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x1::IfcOpeningElement
IfcOpeningElementTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcOpeningElementTypeEnum PredefinedType)

void	getInvHasFillings (OdDAIObjectIds &HasFillings) const

	IfcOpeningElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcFeatureElementSubtraction
OdDAIObjectId	getInvVoidsElements () const

Public Member Functions inherited from OdIfc4x1::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x1::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x1::IfcOpeningElement
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x1::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x1::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The standard opening, IfcOpeningStandardCase, defines an opening with certain constraints for the dimension parameters, position within the voided element, and with certain constraints for the geometric representation. The IfcOpeningStandardCase handles all cases of openings, that:

are true openings where the opening depth is greater than or equal to the thickness of the element, and the PredefinedType is set correctly to .OPENING. are true recesses where the opening depth is lower than the thickness of the element, and the PredefinedType is set correctly to .RECESS. are extruded perpendicular to the wall plane in case of openings in a wall are extruded perpendicular to the slab plane in case of openings in a slab have a local placement relative to the local placement of the voided element have a 'Body' shape representation with 'SweptSolid' representation type have only a single extrusion body within the 'Body' shape representation

Placement - The following constraint is mandatory for IfcOpeningStandardCase: The PlacementRelTo relationship of IfcLocalPlacement should point to the local placement of the same element, which is voided by the opening, i.e. referred to by VoidsElement.RelatingBuildingElement.
Body Geometry - The geometric representation of IfcOpeningStandardCase is defined using the following multiple shape representations for its definition: Body: A SweptSolid representation defining the 3D subtraction shape of the standard opening
Body Representation - The body representation of IfcOpeningStandardCase is represented using the representation type 'SweptSolid'. The standard geometric representation of IfcOpeningStandardCase is defined using the 'SweptSolid' representation. The following attribute values for the IfcShapeRepresentation holding this geometric representation are be used: RepresentationIdentifier : 'Body' RepresentationType : 'SweptSolid'

The following additional constraints apply to the swept solid representation: Solid: a single IfcExtrudedAreaSolid is required Profile: IfcRectangleProfileDef, IfcCircleProfileDef and IfcArbitraryClosedProfileDef are supported. Extrusion: The profile is extruded horizontally (i.e. perpendicular to the extrusion direction of the voided element) for wall openings, or vertically (i.e. in the extrusion direction of the voided element), for slab openings.

As shown on the image below, the orientation of the opening profile that is extruded for the opening body guarantees the following interpretation of dimension parameter for rectangular openings: IfcRectangleProfileDef.YDim interpreted as opening width IfcRectangleProfileDef.XDim interpreted as opening height

Remarks: Deprecated: this definition may be imported, but is not exported by applications. This definition is removed from Ifc4x3 version.

Definition at line 82 of file Ifc4x1/IfcOpeningStandardCaseAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcOpeningStandardCase::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcOpeningElement.

◆ isKindOf()

virtual bool OdIfc4x1::IfcOpeningStandardCase::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcOpeningElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcOpeningStandardCase::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcOpeningElement.

The documentation for this class was generated from the following file:

Ifc4x1/IfcOpeningStandardCaseAutoImpl.h
