#include <IfcResourceAutoImpl.h>

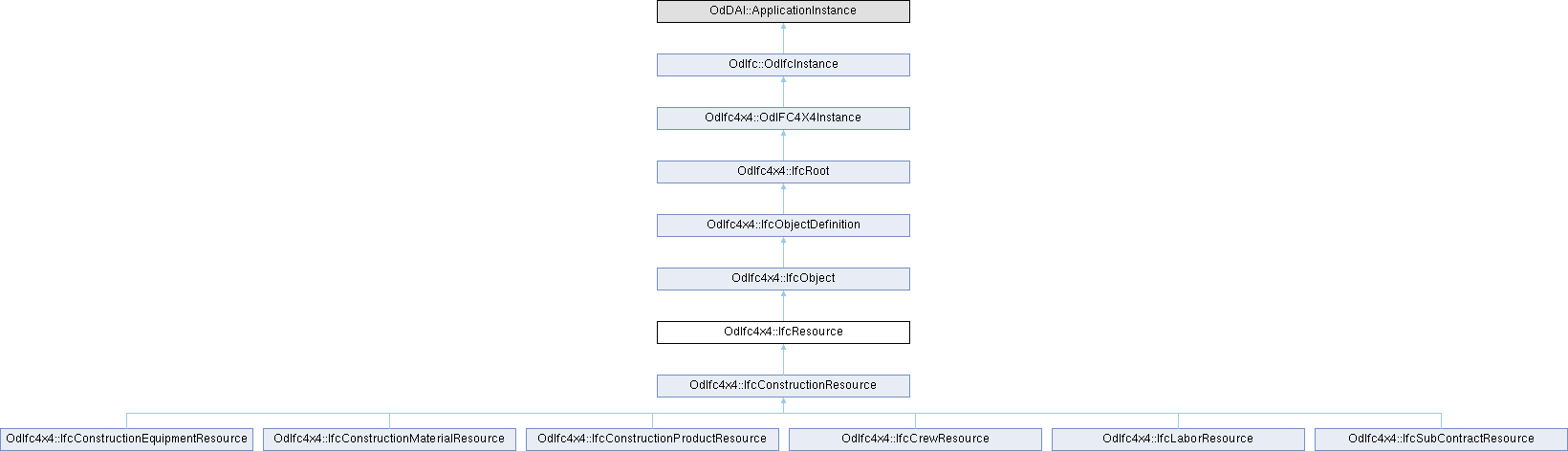

Inheritance diagram for OdIfc4x4::IfcResource:

Public Member Functions
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

	IfcResource ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Identification

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelAssignsToResource

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcResource contains the information needed to represent the costs, schedule, and other impacts from the use of a thing in a process. It is not intended to use IfcResource to model the general properties of the things themselves, while an optional linkage from IfcResource to the things to be used can be specified (specifically, the relationship from subtypes of IfcResource to IfcProduct through the IfcRelAssignsToResource relationship).

There are two basic intended uses of IfcResource. First, if the attributes of the thing are not needed for the purpose of the use of IfcResource, or the types of things are not explicitly modeled in IFC yet, then the linkage between the resource and the thing doesn't have to be instantiated in the system. That is, the attributes of IfcResource (or its subtypes) alone are sufficient to represent the use of the thing as a resource for the purpose of the project.

If the attributes of the thing are needed for the use of IfcResource objects, and they are modeled explicitly as objects, then the IfcResource instances can be linked to the instances of the type of the things being referenced. Things that might be used as resources and that are already modeled in the IFC include physical products, people and organizations, and materials. The relationship object IfcRelAssignsToResource is provided for this approach. The inherited attribute ObjectType is used as a textual code that identifies the resource type.

Remarks: This definition cannot be instantiated

Definition at line 61 of file IFC4X4/IfcResourceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcResource()

OdIfc4x4::IfcResource::IfcResource ( )

Default constructor for the IfcResource class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcResource::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcResource::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcResource::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ getIdentification()

const OdAnsiString & OdIfc4x4::IfcResource::getIdentification ( ) const

Returns the value of Identification attribute. This attribute represents an identifying designation given to a resource. It is the identifier at the occurrence level.

Returns: Returns the value of Identification attribute.

Remarks: IFC4 CHANGE: Attribute promoted from subtype IfcConstructionResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ getInvResourceOf()

void OdIfc4x4::IfcResource::getInvResourceOf ( OdDAIObjectIds & ResourceOf ) const

Returns the value of ResourceOf attribute. This attribute represents set of relationships to other objects, e.g. products, processes, controls, resources or actors, for which this resource object is a resource.

Parameters

ResourceOf [out] Receives the value of ResourceOf attribute.

◆ getLongDescription()

const OdAnsiString & OdIfc4x4::IfcResource::getLongDescription ( ) const

Returns the value of LongDescription attribute. This attribute represents a detailed description of the resource (e.g. the skillset for a labor resource).

Returns: Returns the value of LongDescription attribute.

Remarks: IFC4 CHANGE: The attribute LongDescription is added replacing the ResourceGroup attribute at subtype IfcConstructionResource.

◆ inFields()

virtual OdResult OdIfc4x4::IfcResource::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ isKindOf()

virtual bool OdIfc4x4::IfcResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ outFields()

virtual OdResult OdIfc4x4::IfcResource::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcResource::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcResource::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ setIdentification()

void OdIfc4x4::IfcResource::setIdentification ( const OdAnsiString & Identification )

Sets the value of Identification attribute. This attribute represents an identifying designation given to a resource. It is the identifier at the occurrence level.

Parameters

Identification [in] Identification to set.

Remarks: IFC4 CHANGE: Attribute promoted from subtype IfcConstructionResource.

◆ setLongDescription()

void OdIfc4x4::IfcResource::setLongDescription ( const OdAnsiString & LongDescription )

Sets the value of LongDescription attribute. This attribute represents a detailed description of the resource (e.g. the skillset for a labor resource). IFC4 CHANGE: The attribute LongDescription is added replacing the ResourceGroup attribute at subtype IfcConstructionResource.

Parameters

LongDescription [in] Long description to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcResource::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcResource::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcResource::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcResource::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcConstructionEquipmentResource, OdIfc4x4::IfcConstructionMaterialResource, OdIfc4x4::IfcConstructionProductResource, OdIfc4x4::IfcConstructionResource, OdIfc4x4::IfcCrewResource, OdIfc4x4::IfcLaborResource, and OdIfc4x4::IfcSubContractResource.

Friends And Related Symbol Documentation

◆ IfcRelAssignsToResource

friend class IfcRelAssignsToResource

friend

Definition at line 255 of file IFC4X4/IfcResourceAutoImpl.h.

Member Data Documentation

◆ m_Identification

OdAnsiString OdIfc4x4::IfcResource::m_Identification

protected

Definition at line 251 of file IFC4X4/IfcResourceAutoImpl.h.

◆ m_LongDescription

OdAnsiString OdIfc4x4::IfcResource::m_LongDescription

protected

Definition at line 252 of file IFC4X4/IfcResourceAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcResourceAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcResource()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getIdentification()

◆ getInstanceType()

◆ getInvResourceOf()

◆ getLongDescription()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setIdentification()

◆ setLongDescription()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcRelAssignsToResource

Member Data Documentation

◆ m_Identification

◆ m_LongDescription
