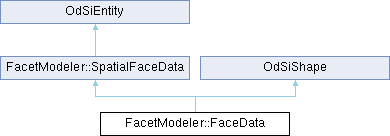

Inheritance diagram for FacetModeler::FaceData:

Public Member Functions
bool	contains (const OdGeExtents3d &, bool, const OdGeTol &) const

bool	intersects (const OdGeExtents3d &extents, bool planar, const OdGeTol &tol) const

	FaceData ()

Public Member Functions inherited from FacetModeler::SpatialFaceData
const Face *	face () const

void	detach ()

void	attach (Face *pFace)

bool	extents (OdGeExtents3d &extents) const

bool	extents (OdGeExtents2d &extents) const

bool	contains (const OdGeExtents3d &, bool, const OdGeTol &) const

Public Member Functions inherited from OdSiShape
virtual	~OdSiShape ()

virtual OdSiShape *	clone () const

virtual void	transform (const OdGeMatrix3d &)

Public Attributes
OdUInt32	m_state

Public Attributes inherited from FacetModeler::SpatialFaceData
Face *	m_pFace

TagType	m_savedTag

OdGeExtents3d	m_ext3d

OdGeExtents2d	m_ext2d

Additional Inherited Members
Static Public Member Functions inherited from FacetModeler::SpatialFaceData
static void	extents (const Face *pFace, OdGeExtents3d &extents)

static void	extents (const Face *pFace, OdGeExtents2d &extents)

Static Public Member Functions inherited from OdSiShape
static bool	isOverallSpace (const OdSiShape *ptr)

static bool	isNoSpace (const OdSiShape *ptr)

Static Public Attributes inherited from OdSiShape
static ODSI_API_STATIC const OdSiShape &	kOverallSpace

static ODSI_API_STATIC const OdSiShape &	kNoSpace

Detailed Description

Definition at line 198 of file FMSliceEngine.h.

Constructor & Destructor Documentation

FacetModeler::FaceData::FaceData ( )

inline

Definition at line 210 of file FMSliceEngine.h.

bool FacetModeler::FaceData::contains	(	const OdGeExtents3d &	extents,
		bool	planar,
		const OdGeTol &	tol ) const

inlinevirtual

Returns true if and only if this Shape object contains the specified extents.

Parameters

extents	[in] Any 3D extents box.
planar	[in] If and only if true, a planar computation is made.

Implements OdSiShape.

Definition at line 200 of file FMSliceEngine.h.

bool FacetModeler::FaceData::intersects	(	const OdGeExtents3d &	extents,
		bool	planar,
		const OdGeTol &	tol ) const

inlinevirtual

Returns true if and only if this Shape object intersects the specified extents.

Parameters

extents	[in] Any 3D extents box.
planar	[in] If and only if true, a planar computation is made.

Implements OdSiShape.

Definition at line 205 of file FMSliceEngine.h.

OdUInt32 FacetModeler::FaceData::m_state

Definition at line 211 of file FMSliceEngine.h.

The documentation for this struct was generated from the following file:
