#include <IfcDoorStyleAutoImpl.h>

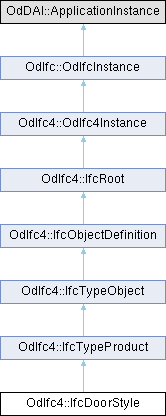

Inheritance diagram for OdIfc4::IfcDoorStyle:

Public Member Functions
IfcDoorStyleOperationEnum	getOperationType () const

void	setOperationType (IfcDoorStyleOperationEnum OperationType)

IfcDoorStyleConstructionEnum	getConstructionType () const

void	setConstructionType (IfcDoorStyleConstructionEnum ConstructionType)

OdDAI::Boolean	getParameterTakesPrecedence () const

void	setParameterTakesPrecedence (OdDAI::Boolean ParameterTakesPrecedence)

OdDAI::Boolean	getSizeable () const

void	setSizeable (OdDAI::Boolean Sizeable)

	IfcDoorStyle ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcTypeProduct
void	getRepresentationMaps (OdDAIObjectIds &RepresentationMaps) const

OdDAI::ListOfOdDAIObjectId &	representationMaps ()

const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

	IfcTypeProduct ()

Public Member Functions inherited from OdIfc4::IfcTypeObject
const OdAnsiString &	getApplicableOccurrence () const

void	setApplicableOccurrence (const OdAnsiString &ApplicableOccurrence)

void	getHasPropertySets (OdDAIObjectIds &HasPropertySets) const

OdDAI::SetOfOdDAIObjectId &	hasPropertySets ()

void	getInvTypes (OdDAIObjectIds &Types) const

	IfcTypeObject ()

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_OperationType

OdDAI::Enum	m_ConstructionType

OdDAI::Boolean	m_ParameterTakesPrecedence

OdDAI::Boolean	m_Sizeable

Protected Attributes inherited from OdIfc4::IfcTypeProduct
OdDAI::ListOfOdDAIObjectId	m_RepresentationMaps

OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4::IfcTypeObject
OdAnsiString	m_ApplicableOccurrence

OdDAI::SetOfOdDAIObjectId	m_HasPropertySets

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The door style (IfcDoorStyle) defines a particular style of doors, which can be included into the spatial context of the building model through an (or multiple) instances of IfcDoor. A door style defines the overall parameter of the door style and refers to the particular parameter of the lining and one or several panels through the IfcDoorLiningProperties and the IfcDoorPanelProperties.

The door entity (IfcDoor) defines a particular occurrence of a door inserted in the spatial context of a project. The actual parameter of the door and/or its shape is defined at the IfcDoorStyle, to which the IfcDoor is related by the inverse relationship IsDefinedBy pointing to IfcRelDefinedByType. The IfcDoorStyle also defines the particular attributes for the lining, IfcDoorLiningProperties, and panels, IfcDoorPanelProperties.

Definition at line 48 of file Ifc4/IfcDoorStyleAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcDoorStyle()

OdIfc4::IfcDoorStyle::IfcDoorStyle ( )

Default constructor for the IfcDoorStyle class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcDoorStyle::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcDoorStyle::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcDoorStyle::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ getConstructionType()

IfcDoorStyleConstructionEnum OdIfc4::IfcDoorStyle::getConstructionType ( ) const

Returns the value of ConstructionType attribute. This attribute represents the basic construction and material type of the door.

Returns: Returns the value of ConstructionType attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcDoorStyle::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ getOperationType()

IfcDoorStyleOperationEnum OdIfc4::IfcDoorStyle::getOperationType ( ) const

Returns the value of OperationType attribute. This attribute represents the type defining the general layout and operation of the door style.

Returns: Returns the value of OperationType attribute.

◆ getParameterTakesPrecedence()

OdDAI::Boolean OdIfc4::IfcDoorStyle::getParameterTakesPrecedence ( ) const

Returns the value of ParameterTakesPrecedence attribute. This attribute indicates whether the parameter given in the attached lining and panel properties exactly define the geometry (TRUE), or whether the attached style shape take precedence (FALSE). In the last case the parameter has only informative value.

Returns: Returns the value of ParameterTakesPrecedence attribute.

◆ getSizeable()

OdDAI::Boolean OdIfc4::IfcDoorStyle::getSizeable ( ) const

Returns the value of Sizeable attribute. This attribute indicates whether the attached IfcMappedRepresentation (if given) can be sized (using scale factor of transformation), or not (FALSE). If not, the IfcMappedRepresentation should be IfcShapeRepresentation of the IfcDoor (using IfcMappedItem as the Item) with the scale factor = 1.

Returns: Returns the value of Sizeable attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcDoorStyle::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ isKindOf()

virtual bool OdIfc4::IfcDoorStyle::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ outFields()

virtual OdResult OdIfc4::IfcDoorStyle::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcDoorStyle::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcDoorStyle::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ setConstructionType()

void OdIfc4::IfcDoorStyle::setConstructionType ( IfcDoorStyleConstructionEnum ConstructionType )

Sets the value of ConstructionType attribute. This attribute represents the basic construction and material type of the door.

Parameters

ConstructionType [in] ConstructionType attribute to set.

◆ setOperationType()

void OdIfc4::IfcDoorStyle::setOperationType ( IfcDoorStyleOperationEnum OperationType )

Sets the value of OperationType attribute. This attribute represents the type defining the general layout and operation of the door style.

Parameters

OperationType [in] OperationType attribute to set.

◆ setParameterTakesPrecedence()

void OdIfc4::IfcDoorStyle::setParameterTakesPrecedence ( OdDAI::Boolean ParameterTakesPrecedence )

Sets the value of ParameterTakesPrecedence attribute. This attribute indicates whether the parameter given in the attached lining and panel properties exactly define the geometry (TRUE), or whether the attached style shape take precedence (FALSE). In the last case the parameter has only informative value.

Parameters

ParameterTakesPrecedence [in] ParameterTakesPrecedence attribute to set.

◆ setSizeable()

void OdIfc4::IfcDoorStyle::setSizeable ( OdDAI::Boolean Sizeable )

Sets the value of Sizeable attribute. This attribute indicates whether the attached IfcMappedRepresentation (if given) can be sized (using scale factor of transformation), or not (FALSE). If not, the IfcMappedRepresentation should be IfcShapeRepresentation of the IfcDoor (using IfcMappedItem as the Item) with the scale factor = 1.

Parameters

Sizeable [in] Sizeable attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcDoorStyle::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcDoorStyle::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcDoorStyle::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcDoorStyle::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcTypeProduct.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcDoorStyle::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcTypeProduct.

Member Data Documentation

◆ m_ConstructionType

OdDAI::Enum OdIfc4::IfcDoorStyle::m_ConstructionType

protected

Definition at line 256 of file Ifc4/IfcDoorStyleAutoImpl.h.

◆ m_OperationType

OdDAI::Enum OdIfc4::IfcDoorStyle::m_OperationType

protected

Definition at line 255 of file Ifc4/IfcDoorStyleAutoImpl.h.

◆ m_ParameterTakesPrecedence

OdDAI::Boolean OdIfc4::IfcDoorStyle::m_ParameterTakesPrecedence

protected

Definition at line 257 of file Ifc4/IfcDoorStyleAutoImpl.h.

◆ m_Sizeable

OdDAI::Boolean OdIfc4::IfcDoorStyle::m_Sizeable

protected

Definition at line 258 of file Ifc4/IfcDoorStyleAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcDoorStyleAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcDoorStyle()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getConstructionType()

◆ getInstanceType()

◆ getOperationType()

◆ getParameterTakesPrecedence()

◆ getSizeable()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setConstructionType()

◆ setOperationType()

◆ setParameterTakesPrecedence()

◆ setSizeable()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ConstructionType

◆ m_OperationType

◆ m_ParameterTakesPrecedence

◆ m_Sizeable
