#include <IfcDoorAutoImpl.h>

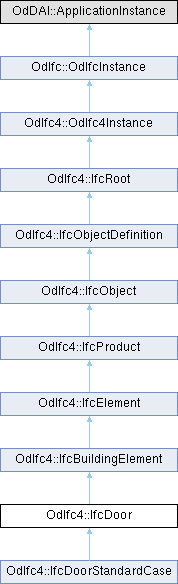

Inheritance diagram for OdIfc4::IfcDoor:

Public Member Functions
double	getOverallHeight () const

void	setOverallHeight (double OverallHeight)

double	getOverallWidth () const

void	setOverallWidth (double OverallWidth)

IfcDoorTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcDoorTypeEnum PredefinedType)

IfcDoorTypeOperationEnum	getOperationType () const

void	setOperationType (IfcDoorTypeOperationEnum OperationType)

const OdAnsiString &	getUserDefinedOperationType () const

void	setUserDefinedOperationType (const OdAnsiString &UserDefinedOperationType)

	IfcDoor ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_OverallHeight

IfcPositiveLengthMeasure	m_OverallWidth

OdDAI::Enum	m_PredefinedType

OdDAI::Enum	m_OperationType

OdAnsiString	m_UserDefinedOperationType

Protected Attributes inherited from OdIfc4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The door is a built element that is predominately used to provide controlled access for people, goods, animals and vehicles. It includes constructions with hinged, pivoted, sliding, and additionally revolving and folding operations. A door can: be a "free standing" door, contained in an IfcSpatialElement such as an IfcBuildingStorey fill an opening, typically in a wall. The door will then have a FillsVoids attribute which uses the IfcRelFillsElement relationship to relate the IfcDoor with the IfcOpeningElement be part of an element assembly, typically an IfcCurtainWall. The door will then have a Decomposes attribute which uses the the IfcRelAggregates relationship to relate the door with the assembly of elements

There are two main representations for door occurrences: IfcDoor entities that have a 3D rectangle 'Profile' shape representation defined. This profile can then be used to parametrically generate the geometry of a door. If not provided, the profile of the IfcOpeningElement can be used if the door fills an opening. The parameters are specified on the relating IfcDoorType that references IfcDoorLiningProperties and IfcDoorPanelProperties for each panel in the door IfcDoor entities that are not parametrically generated and have only 'Brep', or 'SurfaceModel' geometry

The parameters of a door are defined by both the IfcDoor occurrence and its IfcDoorType. The IfcDoor specifies: the door width and height the door opening direction (by the positive y-axis of the ObjectPlacement)

The IfcDoorType specifies parameters which are common to all of its occurrences of IfcDoor: the operation type (single swing, double swing, revolving, etc.) the door hinge side (by using two different styles for right and left opening doors) the particular attributes for the lining by the IfcDoorLiningProperties the particular attributes for the panels by the IfcDoorPanelProperties

Door Attributes - The opening direction is determined by the local placement of IfcDoor and the OperationType of the IfcDoorType. The IfcDoorTypeOperationEnum defines the general layout of the door type and its symbolic presentation. Depending on the enumerator, the appropriate instances of IfcDoorLiningProperties and IfcDoorPanelProperties are attached in the list of HasPropertySets. The IfcDoorTypeOperationEnum mainly determines the hinge side (left hung, or right hung), the operation (swinging, sliding, folding, etc.) and the number of panels.

There are different definitions in various countries on what a left opening or left hung or left swing door is (same for right). Therefore the IFC definition can derivate from the local standard and need to be mapped appropriately.

Material Set - This concept can be applied to the following resources: Lining - Indicates that the material constituent applies to the door lining Framing - Indicates that the material constituent applies to the door panel(s); if not provided, the 'Lining' material information applies to panel(s) as well Glazing - Indicates that the material constituent applies to the glazing part
Object Typing - This concept can be applied to the following resources: IfcDoorType
Product Local Placement - The product placement is used to determine the opening direction of the door. Restrictions for this concept: The PlacementRelTo relationship of IfcLocalPlacement points to the local placement of the same element (if specified), in which the IfcDoor is used as a filling (normally an IfcOpeningElement), as provided by the IfcRelFillsElement relationship If the IfcDoor is part of an assembly, e.g. an IfcCurtainWall, then the PlacementRelTo relationship of IfcLocalPlacement points (if specified) to the local placement of that assembly If the IfcDoor is not inserted into an IfcOpeningElement, then the PlacementRelTo relationship of IfcLocalPlacement points (if specified) to the local placement of the same IfcSpatialStructureElement that is used in the ContainedInStructure inverse attribute or to a referenced spatial structure element at a higher level
Profile 3D Geometry - The door profile is represented by a three-dimensional closed curve lying in the xz plane. The profile is used to apply the parameters of a parametric door representation. The following attribute values for the IfcShapeRepresentation holding this geometric representation is used: RepresentationIdentifier: 'Profile' RepresentationType: 'Curve3D' or 'GeometricCurveSet'. In case of 'GeometricCurveSet' only a single closed curve is contained in the set of IfcShapeRepresentation.Items

The image below illustrates applying the door lining parameters to the door profile shape representation. The profile defines the outer boundary to which the door lining parameters relate as: IfcDoorLiningProperties.LiningDepth starting at distance defined by LiningOffset going into the positive y direction IfcDoorLiningProperties.LiningThickness offset into the inner side of the rectangle IfcDoorLiningProperties.LiningOffset distance along the positive y direction to where the LiningDepth applies IfcDoorLiningProperties.ThresholdThickness starting at the bottom edge of the rectangle into the inner side of the rectangle IfcDoorLiningProperties.ThresholdDepth starting at distance defined by LiningOffset going into the positive y direction IfcDoorLiningProperties.TransomOffset starting at the bottom edge of the rectangle (along local x axis) into the inner side of the rectangle, distance provided as percentage of overall height. Distance to the center line of the transom

Property Sets for Objects - Pset_ProcessCapacity Pset_DoorCommon Pset_DoorWindowGlazingType Pset_TicketProcessing (only applies to BOOM_BARRIER) Pset_TicketProcessing (only applies to TURNSTILE) Pset_DoorTypeTurnstile (only applies to TURNSTILE)
Quantity Sets - This concept can be applied to the following resources: Qto_DoorBaseQuantities
Spatial Containment - The IfcDoor, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition

The IfcDoor can also be connected to the IfcOpeningElement in which it is placed as a filler. In this case, the spatial containment relationship is provided, see the image below.

Remarks: It is recommended to use an IfcDoor with a 'Profile' representation instead of IfcDoorStandardCase, since IfcDoorStandardCase entity has been removed

Definition at line 139 of file Ifc4/IfcDoorAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcDoor()

OdIfc4::IfcDoor::IfcDoor ( )

Default constructor for the IfcDoor class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcDoor::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcBuildingElement.

Reimplemented in OdIfc4::IfcDoorStandardCase.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcDoor::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcDoor::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcDoor::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcBuildingElement.

Reimplemented in OdIfc4::IfcDoorStandardCase.

◆ getOperationType()

IfcDoorTypeOperationEnum OdIfc4::IfcDoor::getOperationType ( ) const

Returns the value of OperationType attribute. This attribute represents type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations.

Returns: Returns the value of OperationType attribute.

Remarks: The OperationType is only used if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType.

◆ getOverallHeight()

double OdIfc4::IfcDoor::getOverallHeight ( ) const

Returns the value of OverallHeight attribute. This attribute represents overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the body of the door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted.

Returns: Returns the value of OverallHeight attribute.

Remarks: The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight is still specified as the door opening height, and not as the total height of the door lining.

◆ getOverallWidth()

double OdIfc4::IfcDoor::getOverallWidth ( ) const

Returns the value of OverallWidth attribute. This attribute represents overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the body of theE door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted.

Returns: Returns the value of OverallWidth attribute.

Remarks: The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth is still specified as the door opening width, and not as the total width of the door lining.

◆ getPredefinedType()

IfcDoorTypeEnum OdIfc4::IfcDoor::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Returns: Returns the value of PredefinedType attribute.

Remarks: If the object has an associated IfcTypeObject with a PredefinedType, then this attribute is not used.

◆ getUserDefinedOperationType()

const OdAnsiString & OdIfc4::IfcDoor::getUserDefinedOperationType ( ) const

Returns the value of UserDefinedOperationType attribute. This attribute represents designator for the user defined operation type is only provided if the value of OperationType is set to USERDEFINED.

Returns: Returns the value of UserDefinedOperationType attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcDoor::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcElement.

◆ isKindOf()

virtual bool OdIfc4::IfcDoor::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcBuildingElement.

Reimplemented in OdIfc4::IfcDoorStandardCase.

◆ outFields()

virtual OdResult OdIfc4::IfcDoor::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcDoor::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcDoor::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcElement.

◆ setOperationType()

void OdIfc4::IfcDoor::setOperationType ( IfcDoorTypeOperationEnum OperationType )

Sets the value of OperationType attribute. This attribute represents type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations.

Parameters

OperationType [in] Operation type to set.

Remarks: The OperationType is only used if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType.

◆ setOverallHeight()

void OdIfc4::IfcDoor::setOverallHeight ( double OverallHeight )

Sets the value of OverallHeight attribute. This attribute represents overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the body of the door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted.

Parameters

OverallHeight [in] Overall height to set.

Remarks: The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight is still specified as the door opening height, and not as the total height of the door lining.

◆ setOverallWidth()

void OdIfc4::IfcDoor::setOverallWidth ( double OverallWidth )

Sets the value of OverallWidth attribute. This attribute represents overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the body of theE door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted.

Parameters

OverallWidth [in] Overall width to set.

Remarks: The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth is still specified as the door opening width, and not as the total width of the door lining.

◆ setPredefinedType()

void OdIfc4::IfcDoor::setPredefinedType ( IfcDoorTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: If the object has an associated IfcTypeObject with a PredefinedType, then this attribute is not used.

◆ setUserDefinedOperationType()

void OdIfc4::IfcDoor::setUserDefinedOperationType ( const OdAnsiString & UserDefinedOperationType )

Sets the value of UserDefinedOperationType attribute. This attribute represents designator for the user defined operation type is only provided if the value of OperationType is set to USERDEFINED.

Parameters

UserDefinedOperationType [in] User-defined operation type to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcDoor::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcDoor::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcDoor::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcBuildingElement.

Reimplemented in OdIfc4::IfcDoorStandardCase.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcDoor::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcDoor::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcElement.

Member Data Documentation

◆ m_OperationType

OdDAI::Enum OdIfc4::IfcDoor::m_OperationType

protected

Definition at line 388 of file Ifc4/IfcDoorAutoImpl.h.

◆ m_OverallHeight

IfcPositiveLengthMeasure OdIfc4::IfcDoor::m_OverallHeight

protected

Definition at line 385 of file Ifc4/IfcDoorAutoImpl.h.

◆ m_OverallWidth

IfcPositiveLengthMeasure OdIfc4::IfcDoor::m_OverallWidth

protected

Definition at line 386 of file Ifc4/IfcDoorAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4::IfcDoor::m_PredefinedType

protected

Definition at line 387 of file Ifc4/IfcDoorAutoImpl.h.

◆ m_UserDefinedOperationType

OdAnsiString OdIfc4::IfcDoor::m_UserDefinedOperationType

protected

Definition at line 389 of file Ifc4/IfcDoorAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcDoorAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcDoor()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getOperationType()

◆ getOverallHeight()

◆ getOverallWidth()

◆ getPredefinedType()

◆ getUserDefinedOperationType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setOperationType()

◆ setOverallHeight()

◆ setOverallWidth()

◆ setPredefinedType()

◆ setUserDefinedOperationType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_OperationType

◆ m_OverallHeight

◆ m_OverallWidth

◆ m_PredefinedType

◆ m_UserDefinedOperationType
