#include <AcDbLoftedSurface.h>

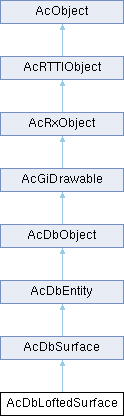

Inheritance diagram for AcDbLoftedSurface:

Public Types
enum	LoftSurfaceType { kLoftSurf , kLoftBlendSurf , kLoftNetworkSurf }

Public Types inherited from AcDbSurface
enum	WireframeType { kIsolines = 0 , kIsoparms = 1 }

enum	EdgeExtensionType { kExtendEdge = 0x000 , kStretchEdge = 0x001 }

Public Types inherited from AcDbEntity
enum	VisualStyleType { kFullVisualStyle , kFaceVisualStyle , kEdgeVisualStyle }

Public Types inherited from AcGiDrawable
enum	DrawableType { kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 , kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground , kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground }

enum	SetAttributesFlags { kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 , kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependentGeometry = 64 , kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableViewDependentViewportDraw = 2048 }

Public Member Functions
	AcDbLoftedSurface (void)

AcDbEntity *	getCrossSection (int) const

AcDbEntity *	getGuideCurve (int) const

AcDbEntity *	getPathEntity (void) const

Acad::ErrorStatus	setLoftOptions (AcDbLoftOptions const &)

int	numCrossSections (void) const

int	numGuideCurves (void) const

virtual	~AcDbLoftedSurface (void)

virtual bool	isDependent (void) const

AcDbLoftProfile *	crossSection (int) const

void	getCrossSections (AcArray< AcDbLoftProfile * > &) const

AcDbLoftProfile *	guide (int) const

void	getGuides (AcArray< AcDbLoftProfile * > &) const

AcDbLoftProfile *	path () const

int	startContinuity (bool=true) const

int	endContinuity (bool=true) const

double	startMagnitude (bool=true) const

double	endMagnitude (bool=true) const

Acad::ErrorStatus	setStartContinuity (int, bool=true)

Acad::ErrorStatus	setEndContinuity (int, bool=true)

Acad::ErrorStatus	setStartMagnitude (double, bool=true)

Acad::ErrorStatus	setEndMagnitude (double, bool=true)

AcDbLoftedSurface::LoftSurfaceType	loftSurfaceType () const

void	getLoftOptions (AcDbLoftOptions &) const

virtual Acad::ErrorStatus	createLoftedSurface (AcDbEntityArray &, AcDbEntityArray &, AcDbEntity *, AcDbLoftOptions &)

virtual Acad::ErrorStatus	dwgInFields (AcDbDwgFiler *)

virtual Acad::ErrorStatus	dwgOutFields (AcDbDwgFiler *) const

virtual Acad::ErrorStatus	dxfInFields (AcDbDxfFiler *)

virtual Acad::ErrorStatus	dxfOutFields (AcDbDxfFiler *) const

virtual Acad::ErrorStatus	subGetClassID (CLSID *) const

virtual Acad::ErrorStatus	subTransformBy (AcGeMatrix3d const &)

Public Member Functions inherited from AcDbSurface
	AcDbSurface (void)

virtual	~AcDbSurface (void)

virtual AcDbSubentId	internalSubentId (void *) const

virtual Acad::ErrorStatus	convertToRegion (AcDbEntityArray &)

virtual Acad::ErrorStatus	getArea (double &) const

virtual Acad::ErrorStatus	getClassID (_GUID *) const

virtual Acad::ErrorStatus	setBody (void const *)

virtual Acad::ErrorStatus	setUIsolineDensity (unsigned short)

virtual Acad::ErrorStatus	setVIsolineDensity (unsigned short)

virtual Acad::ErrorStatus	thicken (double, bool, AcDb3dSolid *&) const

virtual unsigned short	uIsolineDensity (void) const

virtual unsigned short	vIsolineDensity (void) const

virtual void *	body (void) const

virtual void *	internalSubentPtr (AcDbSubentId const &) const

virtual Acad::ErrorStatus	booleanUnion (const AcDbSurface , AcDbSurface &)

virtual Acad::ErrorStatus	booleanSubtract (const AcDb3dSolid , AcDbSurface &)

virtual Acad::ErrorStatus	booleanSubtract (const AcDbSurface , AcDbSurface &)

virtual Acad::ErrorStatus	booleanIntersect (const AcDbSurface , AcArray< AcDbEntity > &)

virtual Acad::ErrorStatus	booleanIntersect (const AcDb3dSolid , AcArray< AcDbEntity > &)

virtual Acad::ErrorStatus	imprintEntity (const AcDbEntity *)

virtual Acad::ErrorStatus	createSectionObjects (const AcGePlane &, AcArray< AcDbEntity * > &) const

virtual Acad::ErrorStatus	sliceByPlane (const AcGePlane &, AcDbSurface &, AcDbSurface &)

virtual Acad::ErrorStatus	sliceBySurface (const AcDbSurface , AcDbSurface &, AcDbSurface *&)

virtual Acad::ErrorStatus	chamferEdges (const AcArray< AcDbSubentId * > &, const AcDbSubentId &, double, double)

virtual Acad::ErrorStatus	filletEdges (const AcArray< AcDbSubentId * > &, const AcGeDoubleArray &, const AcGeDoubleArray &, const AcGeDoubleArray &)

virtual Acad::ErrorStatus	createInterferenceObjects (AcArray< AcDbEntity * > &, AcDbEntity *, unsigned int) const

Acad::ErrorStatus	chamferEdges (const AcArray< AcDbSubentId * > &, const AcDbSubentId &, double, double, bool)

Acad::ErrorStatus	filletEdges (const AcArray< AcDbSubentId * > &, double, bool)

Acad::ErrorStatus	projectOnToSurface (const AcDbEntity , const AcGeVector3d &, AcArray< AcDbEntity > &) const

virtual Acad::ErrorStatus	setSubentColor (const AcDbSubentId &, const AcCmColor &)

virtual Acad::ErrorStatus	getSubentColor (const AcDbSubentId &, AcCmColor &) const

virtual Acad::ErrorStatus	setSubentMaterial (const AcDbSubentId &, const AcDbObjectId &)

virtual Acad::ErrorStatus	getSubentMaterial (const AcDbSubentId &, AcDbObjectId &) const

virtual Acad::ErrorStatus	setSubentMaterialMapper (const AcDbSubentId &, const AcGiMapper &)

virtual Acad::ErrorStatus	getSubentMaterialMapper (const AcDbSubentId &, AcGiMapper &) const

virtual void *	ASMBodyCopy (bool=false) const

virtual void const *	getLockedASMBody ()

virtual void	unlockASMBody ()

virtual void *	getLockedWritableASMBody ()

virtual void	commitWritableASMBody ()

virtual Acad::ErrorStatus	setASMBody (const void *)

Acad::ErrorStatus	getPerimeter (double &) const

WireframeType	getWireframeType () const

Acad::ErrorStatus	setWireframeType (WireframeType)

AcDbObjectId	creationActionBodyId () const

Acad::ErrorStatus	modificationActionBodyIds (AcDbObjectIdArray &) const

Acad::ErrorStatus	extendEdges (AcDbFullSubentPathArray &, double, EdgeExtensionType, bool)

Acad::ErrorStatus	rayTest (const AcGePoint3d &, const AcGeVector3d &, double, AcArray< AcDbSubentId > &, AcGeDoubleArray &) const

Acad::ErrorStatus	convertToNurbSurface (AcDbNurbSurfaceArray &)

virtual Acad::ErrorStatus	subExplode (AcDbVoidPtrArray &) const

virtual bool	usesGraphicsCache ()

Public Member Functions inherited from AcDbEntity
	ACRX_DECLARE_MEMBERS (AcDbEntity)

AcCmColor	color (void) const

AcCmEntityColor	entityColor (void) const

AcCmTransparency	transparency (void) const

AcDbObjectId	blockId (void) const

AcDbObjectId	layerId (void) const

AcDbObjectId	linetypeId (void) const

AcDbObjectId	materialId (void) const

double	linetypeScale (void) const

AcDb::LineWeight	lineWeight (void) const

AcDb::PlotStyleNameType	getPlotStyleNameId (AcDbObjectId &) const

AcDb::Visibility	visibility (void) const

Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const

Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const

Acad::ErrorStatus	draw (void)

Acad::ErrorStatus	setPropertiesFrom (AcDbEntity const *, int=1)

unsigned short	colorIndex (void) const

virtual bool	castShadows (void) const

virtual bool	hideMeForDragging (void) const

virtual bool	receiveShadows (void) const

virtual AcDbEntity *	subentPtr (AcDbFullSubentPath const &) const

virtual AcGiDrawable *	drawable (void)

virtual AcGsNode *	gsNode (void) const

virtual AcDb::CollisionType	collisionType (void) const

virtual Acad::ErrorStatus	addSubentPaths (AcDbFullSubentPathArray const &)

virtual Acad::ErrorStatus	applyPartialUndo (AcDbDwgFiler , AcRxClass )

virtual Acad::ErrorStatus	audit (AcDbAuditInfo *)

virtual Acad::ErrorStatus	deleteSubentPaths (AcDbFullSubentPathArray const &)

virtual Acad::ErrorStatus	explode (AcDbVoidPtrArray &) const

virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)

virtual Acad::ErrorStatus	getCompoundObjectTransform (AcGeMatrix3d &) const

virtual Acad::ErrorStatus	getGeomExtents (AcDbExtents &) const

virtual Acad::ErrorStatus	getGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const

virtual Acad::ErrorStatus	getGripPoints (AcDbGripDataPtrArray &, const double, const int, AcGeVector3d const &, const int) const

virtual Acad::ErrorStatus	getGripPoints (AcGePoint3dArray &, AcGeIntArray &, AcGeIntArray &) const

virtual Acad::ErrorStatus	getGripPointsAtSubentPath (AcDbFullSubentPath const &, AcDbGripDataPtrArray &, double, int, AcGeVector3d const &, int) const

virtual Acad::ErrorStatus	getGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const

virtual Acad::ErrorStatus	getMaterialMapper (AcGiMapper &) const

virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &) const

virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const

virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcGePoint3dArray &, AcGeIntArray &) const

virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const

virtual Acad::ErrorStatus	getStretchPoints (AcGePoint3dArray &) const

virtual Acad::ErrorStatus	getSubentClassId (AcDbFullSubentPath const &, _GUID *) const

virtual Acad::ErrorStatus	getSubentPathGeomExtents (AcDbFullSubentPath const &, AcDbExtents &) const

virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (unsigned long, Adesk::GsMarker, AcGePoint3d const &, AcGeFastTransform const &, int &, AcDbFullSubentPath &, int=0, AcDbObjectId =nullptr) const

virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath &, int=0, AcDbObjectId =NULL) const

virtual Acad::ErrorStatus	getTransformedCopy (AcGeMatrix3d const &, AcDbEntity *&) const

virtual Acad::ErrorStatus	highlight (AcDbFullSubentPath const &=::kNullSubent, Adesk::Boolean=0) const

virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const

virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const

virtual Acad::ErrorStatus	moveGripPointsAt (AcGeIntArray const &, AcGeVector3d const &)

virtual Acad::ErrorStatus	moveGripPointsAt (AcDbVoidPtrArray const &, AcGeVector3d const &, const int)

virtual Acad::ErrorStatus	moveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, AcDbVoidPtrArray const &, AcGeVector3d const &, int)

virtual Acad::ErrorStatus	moveStretchPointsAt (AcGeIntArray const &, AcGeVector3d const &)

virtual Acad::ErrorStatus	setColor (AcCmColor const &, Adesk::Boolean=1)

virtual Acad::ErrorStatus	setColorIndex (unsigned short, Adesk::Boolean=1)

virtual Acad::ErrorStatus	setLayer (AcDbObjectId, Adesk::Boolean=true, bool=false)

virtual Acad::ErrorStatus	setLayer (wchar_t const *, Adesk::Boolean=true, bool=false)

virtual Acad::ErrorStatus	setLineWeight (AcDb::LineWeight, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setLinetype (AcDbObjectId, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setLinetype (wchar_t const *, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setLinetypeScale (double, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setMaterial (AcDbObjectId, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setMaterial (wchar_t const *, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setMaterialMapper (AcGiMapper const &, Adesk::Boolean=true)

virtual Acad::ErrorStatus	setPlotStyleName (AcDb::PlotStyleNameType, AcDbObjectId=AcDbObjectId::kNull, Adesk::Boolean=1)

virtual Acad::ErrorStatus	setPlotStyleName (wchar_t const *, Adesk::Boolean=1)

virtual Acad::ErrorStatus	setTransparency (AcCmTransparency const &, Adesk::Boolean=1)

virtual Acad::ErrorStatus	setVisibility (AcDb::Visibility, Adesk::Boolean=1)

virtual Acad::ErrorStatus	transformBy (AcGeFastTransform const &)

virtual Acad::ErrorStatus	transformBy (AcGeMatrix3d const &)

virtual Acad::ErrorStatus	transformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)

virtual Acad::ErrorStatus	unhighlight (AcDbFullSubentPath const &=::kNullSubent, const Adesk::Boolean=0) const

virtual Adesk::Boolean	cloneMeForDragging (void)

virtual Adesk::Boolean	worldDraw (AcGiWorldDraw *)

virtual unsigned long	setAttributes (AcGiDrawableTraits *)

virtual void	dragStatus (AcDb::DragStat)

virtual void	getEcs (AcGeMatrix3d &) const

virtual void	gripStatus (AcDb::GripStat)

virtual void	list (void) const

virtual void	saveAs (AcGiWorldDraw *, AcDb::SaveType)

virtual void	setCastShadows (bool)

virtual void	setGsNode (AcGsNode *)

virtual void	setReceiveShadows (bool)

virtual void	subSetDatabaseDefaults (AcDbDatabase *)

virtual void	subentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)

virtual void	viewportDraw (AcGiViewportDraw *)

void	recordGraphicsModified (int=1)

void	setDatabaseDefaults (AcDbDatabase *)

void	setDatabaseDefaults (void)

wchar_t *	layer (void) const

wchar_t *	linetype (void) const

wchar_t *	material (void) const

wchar_t *	plotStyleName (void) const

virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &) const

virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &, const AcGeMatrix3d &) const

virtual Acad::ErrorStatus	subGetGripPoints (AcGePoint3dArray &, AcDbIntArray &, AcDbIntArray &) const

virtual Acad::ErrorStatus	subGetGripPoints (AcDbGripDataPtrArray &, const double, const int, const AcGeVector3d &, const int) const

virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbIntArray &, const AcGeVector3d &)

virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbVoidPtrArray &, const AcGeVector3d &, const int)

virtual Acad::ErrorStatus	subGetStretchPoints (AcGePoint3dArray &) const

virtual Acad::ErrorStatus	subMoveStretchPointsAt (AcDbIntArray const &, AcGeVector3d const &)

virtual Acad::ErrorStatus	subGetGripPointsAtSubentPath (class AcDbFullSubentPath const &, class AcArray< class AcDbGripData , class AcArrayMemCopyReallocator< class AcDbGripData > > &, double, int, class AcGeVector3d const &, int) const

virtual Acad::ErrorStatus	subMoveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, class AcArray< void , class AcArrayMemCopyReallocator< void > > const &, class AcGeVector3d const &, int)

virtual Adesk::Boolean	isPlanar (void) const

virtual Acad::ErrorStatus	getPlane (AcGePlane &, AcDb::Planarity &) const

virtual bool	bounds (AcDbExtents &) const

virtual Acad::ErrorStatus	setVisualStyle (AcDbObjectId, AcDbEntity::VisualStyleType=kFullVisualStyle, int=true)

virtual bool	isContentSnappable (void) const

virtual Acad::ErrorStatus	subSetVisibility (AcDb::Visibility, int)

virtual Acad::ErrorStatus	subGetTransformedCopy (AcGeMatrix3d const &param_1, AcDbEntity *&param_2) const

virtual Acad::ErrorStatus	subGetGeomExtents (AcDbExtents &) const

virtual AcDb::Visibility	subVisibility (void) const

virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const

virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const

virtual Acad::ErrorStatus	subGetSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath &, int=0, AcDbObjectId =0) const

virtual Acad::ErrorStatus	subHighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const

virtual Acad::ErrorStatus	subUnhighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const

virtual void	subList (void) const

virtual Acad::ErrorStatus	subGetGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const

virtual Acad::ErrorStatus	setColor (const AcCmColor &, bool, AcDbDatabase *)

Acad::ErrorStatus	plotStyleName (AcString &) const

Acad::ErrorStatus	layer (AcString &) const

Acad::ErrorStatus	linetype (AcString &) const

Acad::ErrorStatus	material (AcString &) const

AcDbObjectId	visualStyleId (VisualStyleType=kFullVisualStyle) const

virtual	~AcDbEntity (void)

Public Member Functions inherited from AcDbObject
	ACRX_DECLARE_MEMBERS (AcDbObject)

bool	hasFields (void) const

bool	hasPersistentReactor (AcDbObjectId) const

bool	hasSaveVersionOverride (void)

bool	isUndoRecordingDisabled (void) const

AcDbVoidPtrArray const *	reactors (void) const

AcDbDatabase *	database (void) const

AcDbDwgFiler *	undoFiler (void)

AcDbObjectId	extensionDictionary (void) const

AcDbObjectId	getFieldDictionary (void) const

AcDbObjectId	objectId (void) const

AcDbObjectId	ownerId (void) const

Acad::ErrorStatus	cancel (void)

Acad::ErrorStatus	close (void)

Acad::ErrorStatus	closeAndPage (int=0)

Acad::ErrorStatus	createExtensionDictionary (void)

Acad::ErrorStatus	downgradeOpen (void)

Acad::ErrorStatus	downgradeToNotify (Adesk::Boolean)

Acad::ErrorStatus	dwgIn (AcDbDwgFiler *)

Acad::ErrorStatus	dwgOut (AcDbDwgFiler *) const

Acad::ErrorStatus	dxfIn (AcDbDxfFiler *)

Acad::ErrorStatus	dxfOut (AcDbDxfFiler , Adesk::Boolean, unsigned char ) const

Acad::ErrorStatus	erase (Adesk::Boolean=true)

Acad::ErrorStatus	getBinaryData (wchar_t const , long &, char &) const

Acad::ErrorStatus	getField (wchar_t const , AcDbField &, AcDb::OpenMode) const

Acad::ErrorStatus	getField (wchar_t const *, AcDbObjectId &) const

Acad::ErrorStatus	getFieldDictionary (AcDbDictionary *&, AcDb::OpenMode) const

Acad::ErrorStatus	getObjectBirthVersion (AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)

Acad::ErrorStatus	handOverTo (AcDbObject *, Adesk::Boolean=1, Adesk::Boolean=1)

Acad::ErrorStatus	releaseExtensionDictionary (void)

Acad::ErrorStatus	setBinaryData (wchar_t const , long, char const )

Acad::ErrorStatus	swapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)

Acad::ErrorStatus	upgradeFromNotify (Adesk::Boolean &)

Acad::ErrorStatus	upgradeOpen (void)

Acad::ErrorStatus	xDataTransformBy (AcGeMatrix3d const &)

Adesk::Boolean	isAProxy (void) const

Adesk::Boolean	isAcDbObjectIdsInFlux (void) const

Adesk::Boolean	isCancelling (void) const

Adesk::Boolean	isEraseStatusToggled (void) const

Adesk::Boolean	isErased (void) const

Adesk::Boolean	isModified (void) const

Adesk::Boolean	isModifiedGraphics (void) const

Adesk::Boolean	isModifiedXData (void) const

Adesk::Boolean	isNewObject (void) const

Adesk::Boolean	isNotifyEnabled (void) const

Adesk::Boolean	isNotifying (void) const

Adesk::Boolean	isReadEnabled (void) const

Adesk::Boolean	isReallyClosing (void) const

Adesk::Boolean	isTransactionResident (void) const

Adesk::Boolean	isUndoing (void) const

Adesk::Boolean	isWriteEnabled (void) const

virtual	~AcDbObject (void)

virtual AcDbObjectId	id (void) const

virtual AcRxObject *	clone (void) const

virtual AcDb::DuplicateRecordCloning	mergeStyle (void) const

virtual Acad::ErrorStatus	decomposeForSave (AcDb::AcDbDwgVersion, AcDbObject *&, AcDbObjectId &, int &)

virtual Acad::ErrorStatus	deepClone (AcDbObject , AcDbObject &, AcDbIdMapping &, Adesk::Boolean=1) const

virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDwgFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)

virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDxfFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)

virtual Acad::ErrorStatus	removeField (AcDbObjectId)

virtual Acad::ErrorStatus	removeField (wchar_t const *)

virtual Acad::ErrorStatus	removeField (wchar_t const *, AcDbObjectId &)

virtual Acad::ErrorStatus	removePersistentReactor (AcDbObjectId)

virtual Acad::ErrorStatus	setField (wchar_t const , AcDbField , AcDbObjectId &)

virtual Acad::ErrorStatus	setOwnerId (AcDbObjectId)

virtual Acad::ErrorStatus	setXData (resbuf const *)

virtual Acad::ErrorStatus	subCancel (void)

virtual Acad::ErrorStatus	subClose (void)

virtual Acad::ErrorStatus	subErase (Adesk::Boolean)

virtual Acad::ErrorStatus	subHandOverTo (AcDbObject *)

virtual Acad::ErrorStatus	subOpen (AcDb::OpenMode)

virtual Acad::ErrorStatus	subSwapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)

virtual Acad::ErrorStatus	swapReferences (AcDbIdMapping const &)

virtual Acad::ErrorStatus	wblockClone (AcRxObject , AcDbObject &, AcDbIdMapping &, Adesk::Boolean=1) const

virtual Adesk::UInt32	subSetAttributes (AcGiDrawableTraits *pTraits)

virtual void	subViewportDraw (AcGiViewportDraw *)

virtual Adesk::Boolean	isPersistent (void) const

virtual resbuf *	xData (wchar_t const *=NULL) const

virtual void	addPersistentReactor (AcDbObjectId)

virtual void	cancelled (AcDbObject const *)

virtual void	copied (AcDbObject const , AcDbObject const )

virtual void	erased (AcDbObject const *, Adesk::Boolean)

virtual void	goodbye (AcDbObject const *)

virtual void	modified (AcDbObject const *)

virtual void	modifiedGraphics (AcDbEntity const *)

virtual void	modifiedXData (AcDbObject const *)

virtual void	modifyUndone (AcDbObject const *)

virtual void	objectClosed (AcDbObjectId const)

virtual void	openedForModify (AcDbObject const *)

virtual void	reappended (AcDbObject const *)

virtual void	recvPropagateModify (AcDbObject const *)

virtual void	subObjModified (AcDbObject const , AcDbObject const )

virtual void	unappended (AcDbObject const *)

virtual void	xmitPropagateModify (void) const

void	addReactor (AcDbObjectReactor *) const

void	assertNotifyEnabled (void) const

void	assertReadEnabled (void) const

void	assertWriteEnabled (Adesk::Boolean=1, Adesk::Boolean=1)

void	disableUndoRecording (Adesk::Boolean)

void	getAcDbHandle (AcDbHandle &) const

void	removeReactor (AcDbObjectReactor *) const

void	setAcDbObjectIdsInFlux (void)

void	setHasSaveVersionOverride (bool)

virtual Adesk::Boolean	subWorldDraw (AcGiWorldDraw *)

virtual Acad::ErrorStatus	subDeepClone (AcDbObject , AcDbObject &, AcDbIdMapping &, Adesk::Boolean=1) const

virtual Acad::ErrorStatus	subWblockClone (AcRxObject , AcDbObject &, AcDbIdMapping &, Adesk::Boolean=1) const

virtual Acad::ErrorStatus	subGetClassID (_GUID *) const

Public Member Functions inherited from AcGiDrawable
	ACRX_DECLARE_MEMBERS (AcGiDrawable)

virtual Adesk::UInt32	subViewportDrawLogicalFlags (AcGiViewportDraw *)

virtual unsigned long	viewportDrawLogicalFlags (AcGiViewportDraw *)

virtual void	setDrawStream (AcGiDrawStream *)

virtual AcGiDrawStream *	drawStream (void) const

virtual	~AcGiDrawable (void)

Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const

AcRxObject *	x (AcRxClass const *) const

virtual AcRxClass *	isA (void) const

virtual AcRx::Ordering	comparedTo (AcRxObject const *) const

virtual int	isEqualTo (AcRxObject const *) const

bool	isKindOf (const AcRxClass *pOtherClass) const

virtual	~AcRxObject (void)

Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()

virtual	~AcRTTIObject ()

Public Member Functions inherited from AcObject
	AcObject ()

	AcObject (const AcObject &source)

virtual	~AcObject ()

void *	data () const

Additional Inherited Members
Static Public Member Functions inherited from AcDbSurface
static Acad::ErrorStatus __cdecl	createFrom (AcDbEntity const , AcDbSurface &)

static Acad::ErrorStatus	createLoftedSurface (AcArray< AcDbLoftProfile , AcArrayMemCopyReallocator< AcDbLoftProfile > > const &, AcArray< AcDbLoftProfile , AcArrayMemCopyReallocator< AcDbLoftProfile __ptr64 > > const &, AcDbLoftProfile , AcDbLoftOptions &, class AcDbSurface &)

static Acad::ErrorStatus	createExtrudedSurface (AcDb3dProfile , const AcGeVector3d &, AcDbSweepOptions &, AcDbExtrudedSurface &)

static Acad::ErrorStatus	createExtrudedSurface (AcDb3dProfile *, const AcGeVector3d &, AcDbSweepOptions &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createLoftedSurface (const AcArray< AcDbLoftProfile * > &, const AcArray< AcDbLoftProfile * > &, AcDbLoftProfile *, AcDbLoftOptions &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createPatchSurface (const AcDbPathRef &, const AcDbObjectIdArray &, int, double, AcDbSurface *&)

static Acad::ErrorStatus	createPatchSurface (const AcDbPathRef &, const AcDbObjectIdArray &, int, double, bool, AcDbObjectId &)

static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile , AcDb3dProfile , bool, double, double, AcDbRevolveOptions &, AcDbRevolvedSurface *&)

static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile , AcDb3dProfile , bool, double, double, AcDbRevolveOptions &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile , const AcGePoint3d &, const AcGeVector3d &, double, double, AcDbRevolveOptions &, AcDbRevolvedSurface &)

static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile *, const AcGePoint3d &, const AcGeVector3d &, double, double, AcDbRevolveOptions &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createNetworkSurface (AcArray< AcDb3dProfile * > &, AcArray< AcDb3dProfile * > &, AcDbSurface *&)

static Acad::ErrorStatus	createNetworkSurface (const AcArray< AcDb3dProfile * > &, const AcArray< AcDb3dProfile * > &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createSweptSurface (AcDb3dProfile , AcDb3dProfile , AcDbSweepOptions &, AcDbSweptSurface *&)

static Acad::ErrorStatus	createSweptSurface (AcDb3dProfile , AcDb3dProfile , AcDbSweepOptions &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createBlendSurface (AcDbLoftProfile , AcDbLoftProfile , AcDbBlendOptions , AcDbSurface &)

static Acad::ErrorStatus	createBlendSurface (AcDbLoftProfile , AcDbLoftProfile , AcDbBlendOptions *, bool, AcDbObjectId &)

static Acad::ErrorStatus	createFilletSurface (const AcDbObjectId &, const AcGePoint3d &, const AcDbObjectId &, const AcGePoint3d &, double, AcDb::FilletTrimMode, const AcGeVector3d &, AcDbSurface *&)

static Acad::ErrorStatus	createFilletSurface (const AcDbObjectId &, const AcGePoint3d &, const AcDbObjectId &, const AcGePoint3d &, double, AcDb::FilletTrimMode, const AcGeVector3d &, bool, AcDbObjectId &)

static Acad::ErrorStatus	createOffsetSurface (AcDbEntity , double, AcDbEntity &)

static Acad::ErrorStatus	createOffsetSurface (AcDbEntity *, double, bool, AcDbObjectId &)

static Acad::ErrorStatus	createExtendSurface (AcDbObjectId, const AcArray< AcDbSubentId > &, double, EdgeExtensionType, bool, AcDbObjectId &)

static Acad::ErrorStatus	trimSurface (const AcDbObjectId &, const AcDbObjectIdArray &, const AcDbObjectIdArray &, const AcArray< AcGeVector3d >, const AcGePoint3d &, const AcGeVector3d &, bool, bool)

Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)

static AcRxObject *__cdecl	cast (AcRxObject const *)

Protected Member Functions inherited from AcDbEntity
	AcDbEntity (AcDbSystemInternals *)

	AcDbEntity (void)

virtual bool	subIsContentSnappable (void) const

virtual Adesk::Boolean	subCloneMeForDragging (void)

virtual bool	subHideMeForDragging (void) const

virtual Acad::ErrorStatus	subGetSubentClassId (AcDbFullSubentPath const &, _GUID *) const

virtual Acad::ErrorStatus	subAddSubentPaths (AcDbFullSubentPathArray const &)

virtual Acad::ErrorStatus	subDeleteSubentPaths (AcDbFullSubentPathArray const &)

virtual Acad::ErrorStatus	subTransformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)

virtual Acad::ErrorStatus	subGetSubentPathGeomExtents (AcDbFullSubentPath const &, class AcDbExtents &) const

virtual AcDbEntity *	subSubentPtr (AcDbFullSubentPath const &) const

virtual void	subGripStatus (const AcDb::GripStat)

virtual void	subSubentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)

virtual Acad::ErrorStatus	subGetGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const

virtual Acad::ErrorStatus	subGetCompoundObjectTransform (AcGeMatrix3d &) const

virtual Acad::ErrorStatus	subPushHighlight (AcDbFullSubentPath const &, AcGiHighlightStyle)

virtual Acad::ErrorStatus	subPopHighlight (AcDbFullSubentPath const &)

virtual AcGiHighlightStyle	subHighlightState (AcDbFullSubentPath const &)

Protected Member Functions inherited from AcDbObject
	AcDbObject (AcDbSystemInternals *)

	AcDbObject (void)

Protected Member Functions inherited from AcRxObject
	AcRxObject (void)

virtual AcRxObject *	subQueryX (AcRxClass const *) const

Protected Attributes inherited from AcDbObject
AcDbObjectImpl *	m_pImpl

Protected Attributes inherited from AcObject
void *	m_pData

Detailed Description

Definition at line 33 of file AcDbLoftedSurface.h.

Member Enumeration Documentation

◆ LoftSurfaceType

enum AcDbLoftedSurface::LoftSurfaceType

Enumerator
kLoftSurf
kLoftBlendSurf
kLoftNetworkSurf

Definition at line 37 of file AcDbLoftedSurface.h.

Constructor & Destructor Documentation

◆ AcDbLoftedSurface()

AcDbLoftedSurface::AcDbLoftedSurface ( void )

◆ ~AcDbLoftedSurface()

virtual AcDbLoftedSurface::~AcDbLoftedSurface ( void )

virtual

Member Function Documentation

◆ createLoftedSurface()

virtual Acad::ErrorStatus AcDbLoftedSurface::createLoftedSurface	(	AcDbEntityArray &	,
		AcDbEntityArray &	,
		AcDbEntity *	,
		AcDbLoftOptions &	)

virtual

◆ crossSection()

AcDbLoftProfile * AcDbLoftedSurface::crossSection ( int ) const

◆ dwgInFields()

virtual Acad::ErrorStatus AcDbLoftedSurface::dwgInFields ( AcDbDwgFiler * )

virtual

Reimplemented from AcDbSurface.

◆ dwgOutFields()

virtual Acad::ErrorStatus AcDbLoftedSurface::dwgOutFields ( AcDbDwgFiler * ) const

virtual

Reimplemented from AcDbSurface.

◆ dxfInFields()

virtual Acad::ErrorStatus AcDbLoftedSurface::dxfInFields ( AcDbDxfFiler * )

virtual

Reimplemented from AcDbSurface.

◆ dxfOutFields()

virtual Acad::ErrorStatus AcDbLoftedSurface::dxfOutFields ( AcDbDxfFiler * ) const

virtual

Reimplemented from AcDbSurface.

◆ endContinuity()

int AcDbLoftedSurface::endContinuity ( bool = true ) const

◆ endMagnitude()

double AcDbLoftedSurface::endMagnitude ( bool = true ) const

◆ getCrossSection()

AcDbEntity * AcDbLoftedSurface::getCrossSection ( int ) const

◆ getCrossSections()

void AcDbLoftedSurface::getCrossSections ( AcArray< AcDbLoftProfile * > & ) const

◆ getGuideCurve()

AcDbEntity * AcDbLoftedSurface::getGuideCurve ( int ) const

◆ getGuides()

void AcDbLoftedSurface::getGuides ( AcArray< AcDbLoftProfile * > & ) const

◆ getLoftOptions()

void AcDbLoftedSurface::getLoftOptions ( AcDbLoftOptions & ) const

◆ getPathEntity()

AcDbEntity * AcDbLoftedSurface::getPathEntity ( void ) const

◆ guide()

AcDbLoftProfile * AcDbLoftedSurface::guide ( int ) const

◆ isDependent()

virtual bool AcDbLoftedSurface::isDependent ( void ) const

virtual

◆ loftSurfaceType()

AcDbLoftedSurface::LoftSurfaceType AcDbLoftedSurface::loftSurfaceType ( ) const

◆ numCrossSections()

int AcDbLoftedSurface::numCrossSections ( void ) const

◆ numGuideCurves()

int AcDbLoftedSurface::numGuideCurves ( void ) const

◆ path()

AcDbLoftProfile * AcDbLoftedSurface::path ( ) const

◆ setEndContinuity()

Acad::ErrorStatus AcDbLoftedSurface::setEndContinuity	(	int	,
		bool	= true )

◆ setEndMagnitude()

Acad::ErrorStatus AcDbLoftedSurface::setEndMagnitude	(	double	,
		bool	= true )

◆ setLoftOptions()

Acad::ErrorStatus AcDbLoftedSurface::setLoftOptions ( AcDbLoftOptions const & )

◆ setStartContinuity()

Acad::ErrorStatus AcDbLoftedSurface::setStartContinuity	(	int	,
		bool	= true )

◆ setStartMagnitude()

Acad::ErrorStatus AcDbLoftedSurface::setStartMagnitude	(	double	,
		bool	= true )

◆ startContinuity()

int AcDbLoftedSurface::startContinuity ( bool = true ) const

◆ startMagnitude()

double AcDbLoftedSurface::startMagnitude ( bool = true ) const

◆ subGetClassID()

virtual Acad::ErrorStatus AcDbLoftedSurface::subGetClassID ( CLSID * ) const

virtual

Reimplemented from AcDbSurface.

◆ subTransformBy()

virtual Acad::ErrorStatus AcDbLoftedSurface::subTransformBy ( AcGeMatrix3d const & )

virtual

Reimplemented from AcDbSurface.

The documentation for this class was generated from the following file:

AcDbLoftedSurface.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LoftSurfaceType

Constructor & Destructor Documentation

◆ AcDbLoftedSurface()

◆ ~AcDbLoftedSurface()

Member Function Documentation

◆ createLoftedSurface()

◆ crossSection()

◆ dwgInFields()

◆ dwgOutFields()

◆ dxfInFields()

◆ dxfOutFields()

◆ endContinuity()

◆ endMagnitude()

◆ getCrossSection()

◆ getCrossSections()

◆ getGuideCurve()

◆ getGuides()

◆ getLoftOptions()

◆ getPathEntity()

◆ guide()

◆ isDependent()

◆ loftSurfaceType()

◆ numCrossSections()

◆ numGuideCurves()

◆ path()

◆ setEndContinuity()

◆ setEndMagnitude()

◆ setLoftOptions()

◆ setStartContinuity()

◆ setStartMagnitude()

◆ startContinuity()

◆ startMagnitude()

◆ subGetClassID()

◆ subTransformBy()
