AcDbSurface Class Reference

#include <AcDbSurface.h>

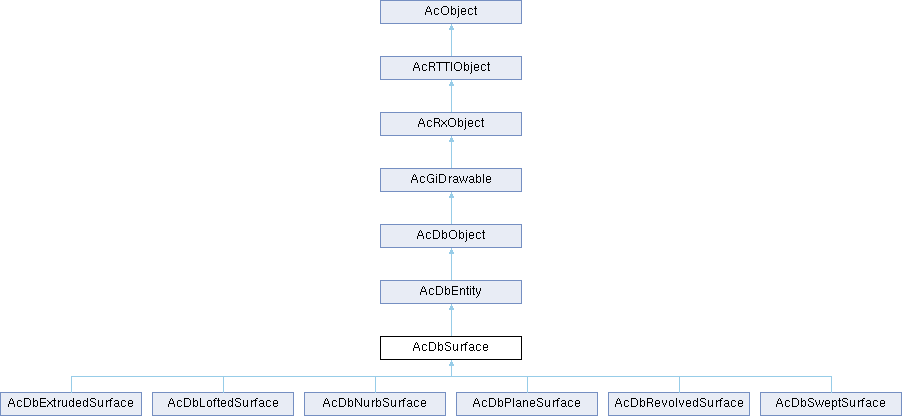

Inheritance diagram for AcDbSurface:

Public Types
enum	WireframeType { kIsolines = 0 , kIsoparms = 1 }
enum	EdgeExtensionType { kExtendEdge = 0x000 , kStretchEdge = 0x001 }
Public Types inherited from AcDbEntity
enum	VisualStyleType { kFullVisualStyle , kFaceVisualStyle , kEdgeVisualStyle }
Public Types inherited from AcGiDrawable
enum	DrawableType {   kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 ,   kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground ,   kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground }
enum	SetAttributesFlags {   kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 ,   kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependentGeometry = 64 ,   kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableViewDependentViewportDraw = 2048 }

Public Member Functions
	AcDbSurface (void)
virtual	~AcDbSurface (void)
virtual AcDbSubentId	internalSubentId (void *) const
virtual Acad::ErrorStatus	convertToRegion (AcDbEntityArray &)
virtual Acad::ErrorStatus	getArea (double &) const
virtual Acad::ErrorStatus	getClassID (_GUID *) const
virtual Acad::ErrorStatus	setBody (void const *)
virtual Acad::ErrorStatus	setUIsolineDensity (unsigned short)
virtual Acad::ErrorStatus	setVIsolineDensity (unsigned short)
virtual Acad::ErrorStatus	thicken (double, bool, AcDb3dSolid *&) const
virtual unsigned short	uIsolineDensity (void) const
virtual unsigned short	vIsolineDensity (void) const
virtual void *	body (void) const
virtual void *	internalSubentPtr (AcDbSubentId const &) const
virtual Acad::ErrorStatus	booleanUnion (const AcDbSurface *, AcDbSurface *&)
virtual Acad::ErrorStatus	booleanSubtract (const AcDb3dSolid *, AcDbSurface *&)
virtual Acad::ErrorStatus	booleanSubtract (const AcDbSurface *, AcDbSurface *&)
virtual Acad::ErrorStatus	booleanIntersect (const AcDbSurface *, AcArray< AcDbEntity * > &)
virtual Acad::ErrorStatus	booleanIntersect (const AcDb3dSolid *, AcArray< AcDbEntity * > &)
virtual Acad::ErrorStatus	imprintEntity (const AcDbEntity *)
virtual Acad::ErrorStatus	createSectionObjects (const AcGePlane &, AcArray< AcDbEntity * > &) const
virtual Acad::ErrorStatus	sliceByPlane (const AcGePlane &, AcDbSurface *&, AcDbSurface *&)
virtual Acad::ErrorStatus	sliceBySurface (const AcDbSurface *, AcDbSurface *&, AcDbSurface *&)
virtual Acad::ErrorStatus	chamferEdges (const AcArray< AcDbSubentId * > &, const AcDbSubentId &, double, double)
virtual Acad::ErrorStatus	filletEdges (const AcArray< AcDbSubentId * > &, const AcGeDoubleArray &, const AcGeDoubleArray &, const AcGeDoubleArray &)
virtual Acad::ErrorStatus	createInterferenceObjects (AcArray< AcDbEntity * > &, AcDbEntity *, unsigned int) const
Acad::ErrorStatus	chamferEdges (const AcArray< AcDbSubentId * > &, const AcDbSubentId &, double, double, bool)
Acad::ErrorStatus	filletEdges (const AcArray< AcDbSubentId * > &, double, bool)
Acad::ErrorStatus	projectOnToSurface (const AcDbEntity *, const AcGeVector3d &, AcArray< AcDbEntity * > &) const
virtual Acad::ErrorStatus	setSubentColor (const AcDbSubentId &, const AcCmColor &)
virtual Acad::ErrorStatus	getSubentColor (const AcDbSubentId &, AcCmColor &) const
virtual Acad::ErrorStatus	setSubentMaterial (const AcDbSubentId &, const AcDbObjectId &)
virtual Acad::ErrorStatus	getSubentMaterial (const AcDbSubentId &, AcDbObjectId &) const
virtual Acad::ErrorStatus	setSubentMaterialMapper (const AcDbSubentId &, const AcGiMapper &)
virtual Acad::ErrorStatus	getSubentMaterialMapper (const AcDbSubentId &, AcGiMapper &) const
virtual void *	ASMBodyCopy (bool=false) const
virtual void const *	getLockedASMBody ()
virtual void	unlockASMBody ()
virtual void *	getLockedWritableASMBody ()
virtual void	commitWritableASMBody ()
virtual Acad::ErrorStatus	setASMBody (const void *)
Acad::ErrorStatus	getPerimeter (double &) const
WireframeType	getWireframeType () const
Acad::ErrorStatus	setWireframeType (WireframeType)
AcDbObjectId	creationActionBodyId () const
Acad::ErrorStatus	modificationActionBodyIds (AcDbObjectIdArray &) const
Acad::ErrorStatus	extendEdges (AcDbFullSubentPathArray &, double, EdgeExtensionType, bool)
Acad::ErrorStatus	rayTest (const AcGePoint3d &, const AcGeVector3d &, double, AcArray< AcDbSubentId > &, AcGeDoubleArray &) const
Acad::ErrorStatus	convertToNurbSurface (AcDbNurbSurfaceArray &)
virtual Acad::ErrorStatus	dwgInFields (AcDbDwgFiler *)
virtual Acad::ErrorStatus	dwgOutFields (AcDbDwgFiler *) const
virtual Acad::ErrorStatus	dxfInFields (AcDbDxfFiler *)
virtual Acad::ErrorStatus	dxfOutFields (AcDbDxfFiler *) const
virtual Acad::ErrorStatus	subGetClassID (CLSID *) const override
virtual Acad::ErrorStatus	subExplode (AcDbVoidPtrArray &) const
virtual Acad::ErrorStatus	subTransformBy (AcGeMatrix3d const &)
virtual bool	usesGraphicsCache ()
Public Member Functions inherited from AcDbEntity
	ACRX_DECLARE_MEMBERS (AcDbEntity)
AcCmColor	color (void) const
AcCmEntityColor	entityColor (void) const
AcCmTransparency	transparency (void) const
AcDbObjectId	blockId (void) const
AcDbObjectId	layerId (void) const
AcDbObjectId	linetypeId (void) const
AcDbObjectId	materialId (void) const
double	linetypeScale (void) const
AcDb::LineWeight	lineWeight (void) const
AcDb::PlotStyleNameType	getPlotStyleNameId (AcDbObjectId &) const
AcDb::Visibility	visibility (void) const
Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
Acad::ErrorStatus	draw (void)
Acad::ErrorStatus	setPropertiesFrom (AcDbEntity const *, int=1)
unsigned short	colorIndex (void) const
virtual bool	castShadows (void) const
virtual bool	hideMeForDragging (void) const
virtual bool	receiveShadows (void) const
virtual AcDbEntity *	subentPtr (AcDbFullSubentPath const &) const
virtual AcGiDrawable *	drawable (void)
virtual AcGsNode *	gsNode (void) const
virtual AcDb::CollisionType	collisionType (void) const
virtual Acad::ErrorStatus	addSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	applyPartialUndo (AcDbDwgFiler *, AcRxClass *)
virtual Acad::ErrorStatus	audit (AcDbAuditInfo *)
virtual Acad::ErrorStatus	deleteSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	explode (AcDbVoidPtrArray &) const
virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)
virtual Acad::ErrorStatus	getCompoundObjectTransform (AcGeMatrix3d &) const
virtual Acad::ErrorStatus	getGeomExtents (AcDbExtents &) const
virtual Acad::ErrorStatus	getGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const
virtual Acad::ErrorStatus	getGripPoints (AcDbGripDataPtrArray &, const double, const int, AcGeVector3d const &, const int) const
virtual Acad::ErrorStatus	getGripPoints (AcGePoint3dArray &, AcGeIntArray &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getGripPointsAtSubentPath (AcDbFullSubentPath const &, AcDbGripDataPtrArray &, double, int, AcGeVector3d const &, int) const
virtual Acad::ErrorStatus	getGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const
virtual Acad::ErrorStatus	getMaterialMapper (AcGiMapper &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcGePoint3dArray &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const
virtual Acad::ErrorStatus	getStretchPoints (AcGePoint3dArray &) const
virtual Acad::ErrorStatus	getSubentClassId (AcDbFullSubentPath const &, _GUID *) const
virtual Acad::ErrorStatus	getSubentPathGeomExtents (AcDbFullSubentPath const &, AcDbExtents &) const
virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (unsigned long, Adesk::GsMarker, AcGePoint3d const &, AcGeFastTransform const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=nullptr) const
virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=NULL) const
virtual Acad::ErrorStatus	getTransformedCopy (AcGeMatrix3d const &, AcDbEntity *&) const
virtual Acad::ErrorStatus	highlight (AcDbFullSubentPath const &=::kNullSubent, Adesk::Boolean=0) const
virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const
virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const
virtual Acad::ErrorStatus	moveGripPointsAt (AcGeIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	moveGripPointsAt (AcDbVoidPtrArray const &, AcGeVector3d const &, const int)
virtual Acad::ErrorStatus	moveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, AcDbVoidPtrArray const &, AcGeVector3d const &, int)
virtual Acad::ErrorStatus	moveStretchPointsAt (AcGeIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	setColor (AcCmColor const &, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setColorIndex (unsigned short, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setLayer (AcDbObjectId, Adesk::Boolean=true, bool=false)
virtual Acad::ErrorStatus	setLayer (wchar_t const *, Adesk::Boolean=true, bool=false)
virtual Acad::ErrorStatus	setLineWeight (AcDb::LineWeight, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetype (AcDbObjectId, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetype (wchar_t const *, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetypeScale (double, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterial (AcDbObjectId, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterial (wchar_t const *, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterialMapper (AcGiMapper const &, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setPlotStyleName (AcDb::PlotStyleNameType, AcDbObjectId=AcDbObjectId::kNull, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setPlotStyleName (wchar_t const *, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setTransparency (AcCmTransparency const &, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setVisibility (AcDb::Visibility, Adesk::Boolean=1)
virtual Acad::ErrorStatus	transformBy (AcGeFastTransform const &)
virtual Acad::ErrorStatus	transformBy (AcGeMatrix3d const &)
virtual Acad::ErrorStatus	transformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)
virtual Acad::ErrorStatus	unhighlight (AcDbFullSubentPath const &=::kNullSubent, const Adesk::Boolean=0) const
virtual Adesk::Boolean	cloneMeForDragging (void)
virtual Adesk::Boolean	worldDraw (AcGiWorldDraw *)
virtual unsigned long	setAttributes (AcGiDrawableTraits *)
virtual void	dragStatus (AcDb::DragStat)
virtual void	getEcs (AcGeMatrix3d &) const
virtual void	gripStatus (AcDb::GripStat)
virtual void	list (void) const
virtual void	saveAs (AcGiWorldDraw *, AcDb::SaveType)
virtual void	setCastShadows (bool)
virtual void	setGsNode (AcGsNode *)
virtual void	setReceiveShadows (bool)
virtual void	subSetDatabaseDefaults (AcDbDatabase *)
virtual void	subentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)
virtual void	viewportDraw (AcGiViewportDraw *)
void	recordGraphicsModified (int=1)
void	setDatabaseDefaults (AcDbDatabase *)
void	setDatabaseDefaults (void)
wchar_t *	layer (void) const
wchar_t *	linetype (void) const
wchar_t *	material (void) const
wchar_t *	plotStyleName (void) const
virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &) const
virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &, const AcGeMatrix3d &) const
virtual Acad::ErrorStatus	subGetGripPoints (AcGePoint3dArray &, AcDbIntArray &, AcDbIntArray &) const
virtual Acad::ErrorStatus	subGetGripPoints (AcDbGripDataPtrArray &, const double, const int, const AcGeVector3d &, const int) const
virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbIntArray &, const AcGeVector3d &)
virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbVoidPtrArray &, const AcGeVector3d &, const int)
virtual Acad::ErrorStatus	subGetStretchPoints (AcGePoint3dArray &) const
virtual Acad::ErrorStatus	subMoveStretchPointsAt (AcDbIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	subGetGripPointsAtSubentPath (class AcDbFullSubentPath const &, class AcArray< class AcDbGripData *, class AcArrayMemCopyReallocator< class AcDbGripData * > > &, double, int, class AcGeVector3d const &, int) const
virtual Acad::ErrorStatus	subMoveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, class AcArray< void *, class AcArrayMemCopyReallocator< void * > > const &, class AcGeVector3d const &, int)
virtual Adesk::Boolean	isPlanar (void) const
virtual Acad::ErrorStatus	getPlane (AcGePlane &, AcDb::Planarity &) const
virtual bool	bounds (AcDbExtents &) const
virtual Acad::ErrorStatus	setVisualStyle (AcDbObjectId, AcDbEntity::VisualStyleType=kFullVisualStyle, int=true)
virtual bool	isContentSnappable (void) const
virtual Acad::ErrorStatus	subSetVisibility (AcDb::Visibility, int)
virtual Acad::ErrorStatus	subGetTransformedCopy (AcGeMatrix3d const &param_1, AcDbEntity *&param_2) const
virtual Acad::ErrorStatus	subGetGeomExtents (AcDbExtents &) const
virtual AcDb::Visibility	subVisibility (void) const
virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
virtual Acad::ErrorStatus	subGetSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=0) const
virtual Acad::ErrorStatus	subHighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const
virtual Acad::ErrorStatus	subUnhighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const
virtual void	subList (void) const
virtual Acad::ErrorStatus	subGetGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const
virtual Acad::ErrorStatus	setColor (const AcCmColor &, bool, AcDbDatabase *)
Acad::ErrorStatus	plotStyleName (AcString &) const
Acad::ErrorStatus	layer (AcString &) const
Acad::ErrorStatus	linetype (AcString &) const
Acad::ErrorStatus	material (AcString &) const
AcDbObjectId	visualStyleId (VisualStyleType=kFullVisualStyle) const
virtual	~AcDbEntity (void)
Public Member Functions inherited from AcDbObject
	ACRX_DECLARE_MEMBERS (AcDbObject)
bool	hasFields (void) const
bool	hasPersistentReactor (AcDbObjectId) const
bool	hasSaveVersionOverride (void)
bool	isUndoRecordingDisabled (void) const
AcDbVoidPtrArray const *	reactors (void) const
AcDbDatabase *	database (void) const
AcDbDwgFiler *	undoFiler (void)
AcDbObjectId	extensionDictionary (void) const
AcDbObjectId	getFieldDictionary (void) const
AcDbObjectId	objectId (void) const
AcDbObjectId	ownerId (void) const
Acad::ErrorStatus	cancel (void)
Acad::ErrorStatus	close (void)
Acad::ErrorStatus	closeAndPage (int=0)
Acad::ErrorStatus	createExtensionDictionary (void)
Acad::ErrorStatus	downgradeOpen (void)
Acad::ErrorStatus	downgradeToNotify (Adesk::Boolean)
Acad::ErrorStatus	dwgIn (AcDbDwgFiler *)
Acad::ErrorStatus	dwgOut (AcDbDwgFiler *) const
Acad::ErrorStatus	dxfIn (AcDbDxfFiler *)
Acad::ErrorStatus	dxfOut (AcDbDxfFiler *, Adesk::Boolean, unsigned char *) const
Acad::ErrorStatus	erase (Adesk::Boolean=true)
Acad::ErrorStatus	getBinaryData (wchar_t const *, long &, char *&) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbField *&, AcDb::OpenMode) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbObjectId &) const
Acad::ErrorStatus	getFieldDictionary (AcDbDictionary *&, AcDb::OpenMode) const
Acad::ErrorStatus	getObjectBirthVersion (AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
Acad::ErrorStatus	handOverTo (AcDbObject *, Adesk::Boolean=1, Adesk::Boolean=1)
Acad::ErrorStatus	releaseExtensionDictionary (void)
Acad::ErrorStatus	setBinaryData (wchar_t const *, long, char const *)
Acad::ErrorStatus	swapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
Acad::ErrorStatus	upgradeFromNotify (Adesk::Boolean &)
Acad::ErrorStatus	upgradeOpen (void)
Acad::ErrorStatus	xDataTransformBy (AcGeMatrix3d const &)
Adesk::Boolean	isAProxy (void) const
Adesk::Boolean	isAcDbObjectIdsInFlux (void) const
Adesk::Boolean	isCancelling (void) const
Adesk::Boolean	isEraseStatusToggled (void) const
Adesk::Boolean	isErased (void) const
Adesk::Boolean	isModified (void) const
Adesk::Boolean	isModifiedGraphics (void) const
Adesk::Boolean	isModifiedXData (void) const
Adesk::Boolean	isNewObject (void) const
Adesk::Boolean	isNotifyEnabled (void) const
Adesk::Boolean	isNotifying (void) const
Adesk::Boolean	isReadEnabled (void) const
Adesk::Boolean	isReallyClosing (void) const
Adesk::Boolean	isTransactionResident (void) const
Adesk::Boolean	isUndoing (void) const
Adesk::Boolean	isWriteEnabled (void) const
virtual	~AcDbObject (void)
virtual AcDbObjectId	id (void) const
virtual AcRxObject *	clone (void) const
virtual AcDb::DuplicateRecordCloning	mergeStyle (void) const
virtual Acad::ErrorStatus	decomposeForSave (AcDb::AcDbDwgVersion, AcDbObject *&, AcDbObjectId &, int &)
virtual Acad::ErrorStatus	deepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDwgFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDxfFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	removeField (AcDbObjectId)
virtual Acad::ErrorStatus	removeField (wchar_t const *)
virtual Acad::ErrorStatus	removeField (wchar_t const *, AcDbObjectId &)
virtual Acad::ErrorStatus	removePersistentReactor (AcDbObjectId)
virtual Acad::ErrorStatus	setField (wchar_t const *, AcDbField *, AcDbObjectId &)
virtual Acad::ErrorStatus	setOwnerId (AcDbObjectId)
virtual Acad::ErrorStatus	setXData (resbuf const *)
virtual Acad::ErrorStatus	subCancel (void)
virtual Acad::ErrorStatus	subClose (void)
virtual Acad::ErrorStatus	subErase (Adesk::Boolean)
virtual Acad::ErrorStatus	subHandOverTo (AcDbObject *)
virtual Acad::ErrorStatus	subOpen (AcDb::OpenMode)
virtual Acad::ErrorStatus	subSwapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
virtual Acad::ErrorStatus	swapReferences (AcDbIdMapping const &)
virtual Acad::ErrorStatus	wblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Adesk::UInt32	subSetAttributes (AcGiDrawableTraits *pTraits)
virtual void	subViewportDraw (AcGiViewportDraw *)
virtual Adesk::Boolean	isPersistent (void) const
virtual resbuf *	xData (wchar_t const *=NULL) const
virtual void	addPersistentReactor (AcDbObjectId)
virtual void	cancelled (AcDbObject const *)
virtual void	copied (AcDbObject const *, AcDbObject const *)
virtual void	erased (AcDbObject const *, Adesk::Boolean)
virtual void	goodbye (AcDbObject const *)
virtual void	modified (AcDbObject const *)
virtual void	modifiedGraphics (AcDbEntity const *)
virtual void	modifiedXData (AcDbObject const *)
virtual void	modifyUndone (AcDbObject const *)
virtual void	objectClosed (AcDbObjectId const)
virtual void	openedForModify (AcDbObject const *)
virtual void	reappended (AcDbObject const *)
virtual void	recvPropagateModify (AcDbObject const *)
virtual void	subObjModified (AcDbObject const *, AcDbObject const *)
virtual void	unappended (AcDbObject const *)
virtual void	xmitPropagateModify (void) const
void	addReactor (AcDbObjectReactor *) const
void	assertNotifyEnabled (void) const
void	assertReadEnabled (void) const
void	assertWriteEnabled (Adesk::Boolean=1, Adesk::Boolean=1)
void	disableUndoRecording (Adesk::Boolean)
void	getAcDbHandle (AcDbHandle &) const
void	removeReactor (AcDbObjectReactor *) const
void	setAcDbObjectIdsInFlux (void)
void	setHasSaveVersionOverride (bool)
virtual Adesk::Boolean	subWorldDraw (AcGiWorldDraw *)
virtual Acad::ErrorStatus	subDeepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subWblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subGetClassID (_GUID *) const
Public Member Functions inherited from AcGiDrawable
	ACRX_DECLARE_MEMBERS (AcGiDrawable)
virtual Adesk::UInt32	subViewportDrawLogicalFlags (AcGiViewportDraw *)
virtual unsigned long	viewportDrawLogicalFlags (AcGiViewportDraw *)
virtual void	setDrawStream (AcGiDrawStream *)
virtual AcGiDrawStream *	drawStream (void) const
virtual	~AcGiDrawable (void)
Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const
AcRxObject *	x (AcRxClass const *) const
virtual AcRxClass *	isA (void) const
virtual AcRx::Ordering	comparedTo (AcRxObject const *) const
virtual int	isEqualTo (AcRxObject const *) const
bool	isKindOf (const AcRxClass *pOtherClass) const
virtual	~AcRxObject (void)
Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()
virtual	~AcRTTIObject ()
Public Member Functions inherited from AcObject
	AcObject ()
	AcObject (const AcObject &source)
virtual	~AcObject ()
void *	data () const

Static Public Member Functions
static Acad::ErrorStatus __cdecl	createFrom (AcDbEntity const *, AcDbSurface *&)
static Acad::ErrorStatus	createLoftedSurface (AcArray< AcDbLoftProfile *, AcArrayMemCopyReallocator< AcDbLoftProfile * > > const &, AcArray< AcDbLoftProfile *, AcArrayMemCopyReallocator< AcDbLoftProfile *__ptr64 > > const &, AcDbLoftProfile *, AcDbLoftOptions &, class AcDbSurface *&)
static Acad::ErrorStatus	createExtrudedSurface (AcDb3dProfile *, const AcGeVector3d &, AcDbSweepOptions &, AcDbExtrudedSurface *&)
static Acad::ErrorStatus	createExtrudedSurface (AcDb3dProfile *, const AcGeVector3d &, AcDbSweepOptions &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createLoftedSurface (const AcArray< AcDbLoftProfile * > &, const AcArray< AcDbLoftProfile * > &, AcDbLoftProfile *, AcDbLoftOptions &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createPatchSurface (const AcDbPathRef &, const AcDbObjectIdArray &, int, double, AcDbSurface *&)
static Acad::ErrorStatus	createPatchSurface (const AcDbPathRef &, const AcDbObjectIdArray &, int, double, bool, AcDbObjectId &)
static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile *, AcDb3dProfile *, bool, double, double, AcDbRevolveOptions &, AcDbRevolvedSurface *&)
static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile *, AcDb3dProfile *, bool, double, double, AcDbRevolveOptions &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile *, const AcGePoint3d &, const AcGeVector3d &, double, double, AcDbRevolveOptions &, AcDbRevolvedSurface *&)
static Acad::ErrorStatus	createRevolvedSurface (AcDb3dProfile *, const AcGePoint3d &, const AcGeVector3d &, double, double, AcDbRevolveOptions &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createNetworkSurface (AcArray< AcDb3dProfile * > &, AcArray< AcDb3dProfile * > &, AcDbSurface *&)
static Acad::ErrorStatus	createNetworkSurface (const AcArray< AcDb3dProfile * > &, const AcArray< AcDb3dProfile * > &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createSweptSurface (AcDb3dProfile *, AcDb3dProfile *, AcDbSweepOptions &, AcDbSweptSurface *&)
static Acad::ErrorStatus	createSweptSurface (AcDb3dProfile *, AcDb3dProfile *, AcDbSweepOptions &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createBlendSurface (AcDbLoftProfile *, AcDbLoftProfile *, AcDbBlendOptions *, AcDbSurface *&)
static Acad::ErrorStatus	createBlendSurface (AcDbLoftProfile *, AcDbLoftProfile *, AcDbBlendOptions *, bool, AcDbObjectId &)
static Acad::ErrorStatus	createFilletSurface (const AcDbObjectId &, const AcGePoint3d &, const AcDbObjectId &, const AcGePoint3d &, double, AcDb::FilletTrimMode, const AcGeVector3d &, AcDbSurface *&)
static Acad::ErrorStatus	createFilletSurface (const AcDbObjectId &, const AcGePoint3d &, const AcDbObjectId &, const AcGePoint3d &, double, AcDb::FilletTrimMode, const AcGeVector3d &, bool, AcDbObjectId &)
static Acad::ErrorStatus	createOffsetSurface (AcDbEntity *, double, AcDbEntity *&)
static Acad::ErrorStatus	createOffsetSurface (AcDbEntity *, double, bool, AcDbObjectId &)
static Acad::ErrorStatus	createExtendSurface (AcDbObjectId, const AcArray< AcDbSubentId > &, double, EdgeExtensionType, bool, AcDbObjectId &)
static Acad::ErrorStatus	trimSurface (const AcDbObjectId &, const AcDbObjectIdArray &, const AcDbObjectIdArray &, const AcArray< AcGeVector3d >, const AcGePoint3d &, const AcGeVector3d &, bool, bool)
Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)
static AcRxObject *__cdecl	cast (AcRxObject const *)

Additional Inherited Members
Protected Member Functions inherited from AcDbEntity
	AcDbEntity (AcDbSystemInternals *)
	AcDbEntity (void)
virtual bool	subIsContentSnappable (void) const
virtual Adesk::Boolean	subCloneMeForDragging (void)
virtual bool	subHideMeForDragging (void) const
virtual Acad::ErrorStatus	subGetSubentClassId (AcDbFullSubentPath const &, _GUID *) const
virtual Acad::ErrorStatus	subAddSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	subDeleteSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	subTransformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)
virtual Acad::ErrorStatus	subGetSubentPathGeomExtents (AcDbFullSubentPath const &, class AcDbExtents &) const
virtual AcDbEntity *	subSubentPtr (AcDbFullSubentPath const &) const
virtual void	subGripStatus (const AcDb::GripStat)
virtual void	subSubentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)
virtual Acad::ErrorStatus	subGetGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const
virtual Acad::ErrorStatus	subGetCompoundObjectTransform (AcGeMatrix3d &) const
virtual Acad::ErrorStatus	subPushHighlight (AcDbFullSubentPath const &, AcGiHighlightStyle)
virtual Acad::ErrorStatus	subPopHighlight (AcDbFullSubentPath const &)
virtual AcGiHighlightStyle	subHighlightState (AcDbFullSubentPath const &)
Protected Member Functions inherited from AcDbObject
	AcDbObject (AcDbSystemInternals *)
	AcDbObject (void)
Protected Member Functions inherited from AcRxObject
	AcRxObject (void)
virtual AcRxObject *	subQueryX (AcRxClass const *) const
Protected Attributes inherited from AcDbObject
AcDbObjectImpl *	m_pImpl
Protected Attributes inherited from AcObject
void *	m_pData

Detailed Description

Definition at line 41 of file AcDbSurface.h.

Member Enumeration Documentation

EdgeExtensionType

enum AcDbSurface::EdgeExtensionType

Enumerator
kExtendEdge
kStretchEdge

Definition at line 49 of file AcDbSurface.h.

WireframeType

enum AcDbSurface::WireframeType

Enumerator
kIsolines
kIsoparms

Definition at line 44 of file AcDbSurface.h.

Constructor & Destructor Documentation

AcDbSurface()

AcDbSurface::AcDbSurface

(

void

)

~AcDbSurface()

virtual AcDbSurface::~AcDbSurface ( void )

virtual

Member Function Documentation

ASMBodyCopy()

virtual void * AcDbSurface::ASMBodyCopy ( bool = false ) const

virtual

body()

virtual void * AcDbSurface::body ( void ) const

virtual

booleanIntersect() [1/2]

virtual Acad::ErrorStatus AcDbSurface::booleanIntersect ( const AcDb3dSolid * , AcArray< AcDbEntity * > &  )

virtual

booleanIntersect() [2/2]

virtual Acad::ErrorStatus AcDbSurface::booleanIntersect ( const AcDbSurface * , AcArray< AcDbEntity * > &  )

virtual

booleanSubtract() [1/2]

virtual Acad::ErrorStatus AcDbSurface::booleanSubtract ( const AcDb3dSolid * , AcDbSurface *&  )

virtual

booleanSubtract() [2/2]

virtual Acad::ErrorStatus AcDbSurface::booleanSubtract ( const AcDbSurface * , AcDbSurface *&  )

virtual

booleanUnion()

virtual Acad::ErrorStatus AcDbSurface::booleanUnion ( const AcDbSurface * , AcDbSurface *&  )

virtual

chamferEdges() [1/2]

virtual Acad::ErrorStatus AcDbSurface::chamferEdges ( const AcArray< AcDbSubentId * > & , const AcDbSubentId & , double , double  )

virtual

chamferEdges() [2/2]

Acad::ErrorStatus AcDbSurface::chamferEdges	(	const AcArray< AcDbSubentId * > &	,
		const AcDbSubentId &	,
		double	,
		double	,
		bool	)

commitWritableASMBody()

virtual void AcDbSurface::commitWritableASMBody ( )

virtual

convertToNurbSurface()

Acad::ErrorStatus AcDbSurface::convertToNurbSurface

(

AcDbNurbSurfaceArray &

)

convertToRegion()

virtual Acad::ErrorStatus AcDbSurface::convertToRegion ( AcDbEntityArray & )

virtual

createBlendSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createBlendSurface ( AcDbLoftProfile * , AcDbLoftProfile * , AcDbBlendOptions * , AcDbSurface *&  )

static

createBlendSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createBlendSurface ( AcDbLoftProfile * , AcDbLoftProfile * , AcDbBlendOptions * , bool , AcDbObjectId &  )

static

createExtendSurface()

static Acad::ErrorStatus AcDbSurface::createExtendSurface ( AcDbObjectId , const AcArray< AcDbSubentId > & , double , EdgeExtensionType , bool , AcDbObjectId &  )

static

createExtrudedSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createExtrudedSurface ( AcDb3dProfile * , const AcGeVector3d & , AcDbSweepOptions & , AcDbExtrudedSurface *&  )

static

createExtrudedSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createExtrudedSurface ( AcDb3dProfile * , const AcGeVector3d & , AcDbSweepOptions & , bool , AcDbObjectId &  )

static

createFilletSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createFilletSurface ( const AcDbObjectId & , const AcGePoint3d & , const AcDbObjectId & , const AcGePoint3d & , double , AcDb::FilletTrimMode , const AcGeVector3d & , AcDbSurface *&  )

static

createFilletSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createFilletSurface ( const AcDbObjectId & , const AcGePoint3d & , const AcDbObjectId & , const AcGePoint3d & , double , AcDb::FilletTrimMode , const AcGeVector3d & , bool , AcDbObjectId &  )

static

createFrom()

static Acad::ErrorStatus __cdecl AcDbSurface::createFrom ( AcDbEntity const * , AcDbSurface *&  )

static

createInterferenceObjects()

virtual Acad::ErrorStatus AcDbSurface::createInterferenceObjects ( AcArray< AcDbEntity * > & , AcDbEntity * , unsigned int  ) const

virtual

createLoftedSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createLoftedSurface ( AcArray< AcDbLoftProfile *, AcArrayMemCopyReallocator< AcDbLoftProfile * > > const & , AcArray< AcDbLoftProfile *, AcArrayMemCopyReallocator< AcDbLoftProfile *__ptr64 > > const & , AcDbLoftProfile * , AcDbLoftOptions & , class AcDbSurface *&  )

static

createLoftedSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createLoftedSurface ( const AcArray< AcDbLoftProfile * > & , const AcArray< AcDbLoftProfile * > & , AcDbLoftProfile * , AcDbLoftOptions & , bool , AcDbObjectId &  )

static

createNetworkSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createNetworkSurface ( AcArray< AcDb3dProfile * > & , AcArray< AcDb3dProfile * > & , AcDbSurface *&  )

static

createNetworkSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createNetworkSurface ( const AcArray< AcDb3dProfile * > & , const AcArray< AcDb3dProfile * > & , bool , AcDbObjectId &  )

static

createOffsetSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createOffsetSurface ( AcDbEntity * , double , AcDbEntity *&  )

static

createOffsetSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createOffsetSurface ( AcDbEntity * , double , bool , AcDbObjectId &  )

static

createPatchSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createPatchSurface ( const AcDbPathRef & , const AcDbObjectIdArray & , int , double , AcDbSurface *&  )

static

createPatchSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createPatchSurface ( const AcDbPathRef & , const AcDbObjectIdArray & , int , double , bool , AcDbObjectId &  )

static

createRevolvedSurface() [1/4]

static Acad::ErrorStatus AcDbSurface::createRevolvedSurface ( AcDb3dProfile * , AcDb3dProfile * , bool , double , double , AcDbRevolveOptions & , AcDbRevolvedSurface *&  )

static

createRevolvedSurface() [2/4]

static Acad::ErrorStatus AcDbSurface::createRevolvedSurface ( AcDb3dProfile * , AcDb3dProfile * , bool , double , double , AcDbRevolveOptions & , bool , AcDbObjectId &  )

static

createRevolvedSurface() [3/4]

static Acad::ErrorStatus AcDbSurface::createRevolvedSurface ( AcDb3dProfile * , const AcGePoint3d & , const AcGeVector3d & , double , double , AcDbRevolveOptions & , AcDbRevolvedSurface *&  )

static

createRevolvedSurface() [4/4]

static Acad::ErrorStatus AcDbSurface::createRevolvedSurface ( AcDb3dProfile * , const AcGePoint3d & , const AcGeVector3d & , double , double , AcDbRevolveOptions & , bool , AcDbObjectId &  )

static

createSectionObjects()

virtual Acad::ErrorStatus AcDbSurface::createSectionObjects ( const AcGePlane & , AcArray< AcDbEntity * > &  ) const

virtual

createSweptSurface() [1/2]

static Acad::ErrorStatus AcDbSurface::createSweptSurface ( AcDb3dProfile * , AcDb3dProfile * , AcDbSweepOptions & , AcDbSweptSurface *&  )

static

createSweptSurface() [2/2]

static Acad::ErrorStatus AcDbSurface::createSweptSurface ( AcDb3dProfile * , AcDb3dProfile * , AcDbSweepOptions & , bool , AcDbObjectId &  )

static

creationActionBodyId()

AcDbObjectId AcDbSurface::creationActionBodyId

(

)

const

dwgInFields()

virtual Acad::ErrorStatus AcDbSurface::dwgInFields ( AcDbDwgFiler * )

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbExtrudedSurface, AcDbLoftedSurface, AcDbNurbSurface, AcDbPlaneSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

dwgOutFields()

virtual Acad::ErrorStatus AcDbSurface::dwgOutFields ( AcDbDwgFiler * ) const

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbExtrudedSurface, AcDbLoftedSurface, AcDbNurbSurface, AcDbPlaneSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

dxfInFields()

virtual Acad::ErrorStatus AcDbSurface::dxfInFields ( AcDbDxfFiler * )

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbExtrudedSurface, AcDbLoftedSurface, AcDbNurbSurface, AcDbPlaneSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

dxfOutFields()

virtual Acad::ErrorStatus AcDbSurface::dxfOutFields ( AcDbDxfFiler * ) const

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbExtrudedSurface, AcDbLoftedSurface, AcDbNurbSurface, AcDbPlaneSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

extendEdges()

Acad::ErrorStatus AcDbSurface::extendEdges	(	AcDbFullSubentPathArray &	,
		double	,
		EdgeExtensionType	,
		bool	)

filletEdges() [1/2]

virtual Acad::ErrorStatus AcDbSurface::filletEdges ( const AcArray< AcDbSubentId * > & , const AcGeDoubleArray & , const AcGeDoubleArray & , const AcGeDoubleArray &  )

virtual

filletEdges() [2/2]

Acad::ErrorStatus AcDbSurface::filletEdges	(	const AcArray< AcDbSubentId * > &	,
		double	,
		bool	)

getArea()

virtual Acad::ErrorStatus AcDbSurface::getArea ( double & ) const

virtual

getClassID()

virtual Acad::ErrorStatus AcDbSurface::getClassID ( _GUID * ) const

virtual

Reimplemented from AcDbEntity.

getLockedASMBody()

virtual void const * AcDbSurface::getLockedASMBody ( )

virtual

getLockedWritableASMBody()

virtual void * AcDbSurface::getLockedWritableASMBody ( )

virtual

getPerimeter()

Acad::ErrorStatus AcDbSurface::getPerimeter

(

double &

)

const

getSubentColor()

virtual Acad::ErrorStatus AcDbSurface::getSubentColor ( const AcDbSubentId & , AcCmColor &  ) const

virtual

getSubentMaterial()

virtual Acad::ErrorStatus AcDbSurface::getSubentMaterial ( const AcDbSubentId & , AcDbObjectId &  ) const

virtual

getSubentMaterialMapper()

virtual Acad::ErrorStatus AcDbSurface::getSubentMaterialMapper ( const AcDbSubentId & , AcGiMapper &  ) const

virtual

getWireframeType()

WireframeType AcDbSurface::getWireframeType

(

)

const

imprintEntity()

virtual Acad::ErrorStatus AcDbSurface::imprintEntity ( const AcDbEntity * )

virtual

internalSubentId()

virtual AcDbSubentId AcDbSurface::internalSubentId ( void * ) const

virtual

internalSubentPtr()

virtual void * AcDbSurface::internalSubentPtr ( AcDbSubentId const & ) const

virtual

modificationActionBodyIds()

Acad::ErrorStatus AcDbSurface::modificationActionBodyIds

(

AcDbObjectIdArray &

)

const

projectOnToSurface()

Acad::ErrorStatus AcDbSurface::projectOnToSurface	(	const AcDbEntity *	,
		const AcGeVector3d &	,
		AcArray< AcDbEntity * > &	) const

rayTest()

Acad::ErrorStatus AcDbSurface::rayTest	(	const AcGePoint3d &	,
		const AcGeVector3d &	,
		double	,
		AcArray< AcDbSubentId > &	,
		AcGeDoubleArray &	) const

setASMBody()

virtual Acad::ErrorStatus AcDbSurface::setASMBody ( const void * )

virtual

setBody()

virtual Acad::ErrorStatus AcDbSurface::setBody ( void const * )

virtual

setSubentColor()

virtual Acad::ErrorStatus AcDbSurface::setSubentColor ( const AcDbSubentId & , const AcCmColor &  )

virtual

setSubentMaterial()

virtual Acad::ErrorStatus AcDbSurface::setSubentMaterial ( const AcDbSubentId & , const AcDbObjectId &  )

virtual

setSubentMaterialMapper()

virtual Acad::ErrorStatus AcDbSurface::setSubentMaterialMapper ( const AcDbSubentId & , const AcGiMapper &  )

virtual

setUIsolineDensity()

virtual Acad::ErrorStatus AcDbSurface::setUIsolineDensity ( unsigned short )

virtual

setVIsolineDensity()

virtual Acad::ErrorStatus AcDbSurface::setVIsolineDensity ( unsigned short )

virtual

setWireframeType()

Acad::ErrorStatus AcDbSurface::setWireframeType

(

WireframeType

)

sliceByPlane()

virtual Acad::ErrorStatus AcDbSurface::sliceByPlane ( const AcGePlane & , AcDbSurface *& , AcDbSurface *&  )

virtual

sliceBySurface()

virtual Acad::ErrorStatus AcDbSurface::sliceBySurface ( const AcDbSurface * , AcDbSurface *& , AcDbSurface *&  )

virtual

subExplode()

virtual Acad::ErrorStatus AcDbSurface::subExplode ( AcDbVoidPtrArray & ) const

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbPlaneSurface.

subGetClassID()

virtual Acad::ErrorStatus AcDbSurface::subGetClassID ( CLSID * ) const

overridevirtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbLoftedSurface, AcDbExtrudedSurface, AcDbPlaneSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

subTransformBy()

virtual Acad::ErrorStatus AcDbSurface::subTransformBy ( AcGeMatrix3d const & )

virtual

Reimplemented from AcDbEntity.

Reimplemented in AcDbExtrudedSurface, AcDbLoftedSurface, AcDbRevolvedSurface, and AcDbSweptSurface.

thicken()

virtual Acad::ErrorStatus AcDbSurface::thicken ( double , bool , AcDb3dSolid *&  ) const

virtual

trimSurface()

static Acad::ErrorStatus AcDbSurface::trimSurface ( const AcDbObjectId & , const AcDbObjectIdArray & , const AcDbObjectIdArray & , const AcArray< AcGeVector3d > , const AcGePoint3d & , const AcGeVector3d & , bool , bool  )

static

uIsolineDensity()

virtual unsigned short AcDbSurface::uIsolineDensity ( void ) const

virtual

unlockASMBody()

virtual void AcDbSurface::unlockASMBody ( )

virtual

usesGraphicsCache()

virtual bool AcDbSurface::usesGraphicsCache ( )

virtual

vIsolineDensity()

virtual unsigned short AcDbSurface::vIsolineDensity ( void ) const

virtual

---

The documentation for this class was generated from the following file:

• AcDbSurface.h
