#include <IfcGroupAutoImpl.h>

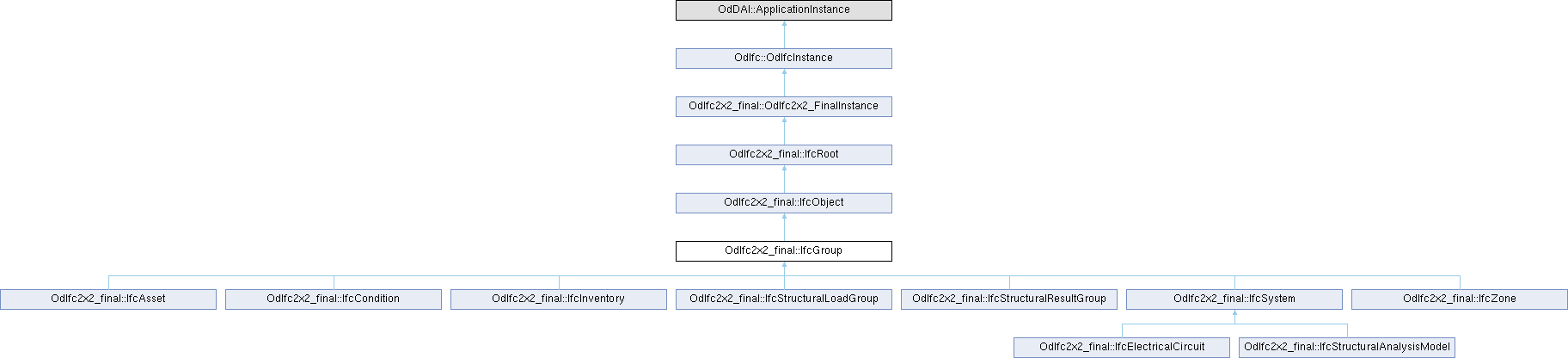

Inheritance diagram for OdIfc2x2_final::IfcGroup:

Public Member Functions
OdDAIObjectId	getInvIsGroupedBy () const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelAssignsToGroup

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcGroup is an generalization of any arbitrary group. A group is a logical collection of objects. It does not have its own position, nor can it hold its own shape representation. Therefore a group is an aggregation under some non-geometrical / topological grouping aspects.

EXAMPLE: An example for a group is a system, since it groups elements under the aspect of their role, regardless of their position in a building. One of the most important usage of a group representing a system is the IfcDistributionSystem, that groups distribution components, such as space heaters and valves into a heating system.

A group can hold any collection of objects, the relationship IfcRelAssignsToGroup is used to establish the group collection. Objects within a group are products, processes, controls, resources, actors or other groups, thus groups can be nested. An object can be part of zero, one, or many groups. Grouping relationships are not required to be hierarchical nor do they imply a dependency. Groups are assigned to other objects (such as a process or a resource) by the relationship object that refers to the corresponding object: Process: assigned using IfcRelAssignsToProcess Resource: assigned using IfcRelAssignsToResource Controls: affecting the group using IfcRelAssignsToControl

A group can be exchanged without having already objects within the group collection. IfcGroup does not define an own object coordinate system, nor does it have an independent shape representation.

Definition at line 57 of file Ifc2x2_Final/IfcGroupAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcObject::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcGroup::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcGroup::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcCondition, OdIfc2x2_final::IfcElectricalCircuit, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, OdIfc2x2_final::IfcSystem, and OdIfc2x2_final::IfcZone.

◆ getInvIsGroupedBy()

OdDAIObjectId OdIfc2x2_final::IfcGroup::getInvIsGroupedBy ( ) const

Returns the value of IsGroupedBy attribute. This attribute represents reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object.

Parameters

IsGroupedBy [out] Receives the value of IsGroupedBy attribute.

Remarks: IFC4 CHANGE: The cardinality has been changed from 1..1 to 0..? in order to allow the exchange of a group concept without having already group members assigned. It now also allows the use of many instances of IfcRelAssignsToGroup to assign the group members. The change has been done with upward compatibility for file based exchange.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcGroup::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcGroup::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcCondition, OdIfc2x2_final::IfcElectricalCircuit, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, OdIfc2x2_final::IfcSystem, and OdIfc2x2_final::IfcZone.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcGroup::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcObject::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcGroup::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcGroup::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcGroup::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, and OdIfc2x2_final::IfcSystem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcGroup::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcAsset, OdIfc2x2_final::IfcCondition, OdIfc2x2_final::IfcElectricalCircuit, OdIfc2x2_final::IfcInventory, OdIfc2x2_final::IfcStructuralAnalysisModel, OdIfc2x2_final::IfcStructuralLoadGroup, OdIfc2x2_final::IfcStructuralResultGroup, OdIfc2x2_final::IfcSystem, and OdIfc2x2_final::IfcZone.
