OdIfc2x2_final::IfcZone Class Reference

#include <IfcZoneAutoImpl.h>

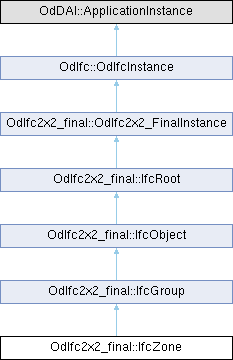

Inheritance diagram for OdIfc2x2_final::IfcZone:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc2x2_final::IfcGroup
OdDAIObjectId	getInvIsGroupedBy () const
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const
void	setObjectType (const OdAnsiString &ObjectType)
void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const
void	getInvDecomposes (OdDAIObjectIds &Decomposes) const
void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const
	IfcObject ()
Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Member Functions inherited from OdIfc2x2_final::IfcGroup
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType
Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

A zone is a group of spaces, partial spaces or other zones. Zone structures may not be hierarchical (in contrary to the spatial structure of a project - see IfcSpatialStructureElement), i.e. one individual IfcSpace can be associated with zero, one, or several IfcZone's. IfcSpace's are grouped into an IfcZone by using the objectified relationship IfcRelAssignsToGroup as specified at the supertype IfcGroup.

• Property Sets for Objects - The Property Sets for Objects concept template applies to this entity under Pset_ZoneCommon name as shown in table below: Template

PropertyName Value Single Value Reference IfcIdentifier Single Value IsExternal IfcBoolean Single Value GrossPlannedArea IfcAreaMeasure Single Value NetPlannedArea IfcAreaMeasure Single Value PubliclyAccessible IfcBoolean Single Value HandicapAccessible IfcBoolean

The concept also applies to this entity under the Pset_ZoneCommon name:

Template PropertyName Value Single Value Name IfcLabel Single Value Description IfcLabel Single Value TotalAirflow IfcVolumetricFlowRateMeasure Single Value EnergyGainTotal IfcPowerMeasure Single Value AirflowSensible IfcVolumetricFlowRateMeasure Single Value EnergyGainSensible IfcPowerMeasure Single Value EnergyLoss IfcPowerMeasure Single Value LightingDiversity IfcPositiveRatioMeasure Single Value InfiltrationDiversitySummer IfcPositiveRatioMeasure Single Value InfiltrationDiversityWinter IfcPositiveRatioMeasure Single Value ApplianceDiversity IfcPositiveRatioMeasure Single Value LoadSafetyFactor IfcPositiveRatioMeasure Single Value HeatingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value CoolingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value Ventilation IfcVolumetricFlowRateMeasure Single Value FanPower IfcPowerMeasure Enumerated Value AirSideSystemType IfcLabel Enumerated Value AirSideSystemDistributionType IfcLabel

• Group Assignment - An IfcZone is a spatial system under which individual IfcSpace's (and other IfcZone's) are grouped. In contrary to the IfcSpatialZone entity, IfcZone is a mere grouping, it can not define an own geometric representation and placement. Therefore it cannot be used for spatial zones having a different shape and size compared to the shape and size of aggregated spaces.

In case of a zone denoting a (fire) compartment, the following types should be used, if applicable, as values of the ObjectType attribute: 'FireCompartment': a zone of spaces, collected to represent a single fire compartment. 'ElevatorShaft': a collection of spaces within an elevator, potentially going through many storeys. 'RisingDuct': A collection of vertical airspaces. 'RunningDuct': A collection of horizontal airspaces.

Definition at line 89 of file Ifc2x2_Final/IfcZoneAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcZone::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcGroup.

isKindOf()

virtual bool OdIfc2x2_final::IfcZone::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcGroup.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcZone::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcGroup.

---

The documentation for this class was generated from the following file:

• Ifc2x2_Final/IfcZoneAutoImpl.h
