#include <IfcFanAutoImpl.h>

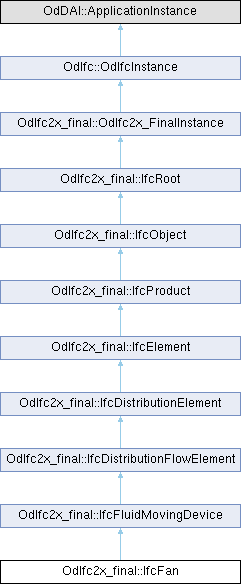

Inheritance diagram for OdIfc2x_final::IfcFan:

Public Member Functions
IfcAirFlowTypeEnum	getAirFlowType () const

void	setAirFlowType (IfcAirFlowTypeEnum AirFlowType)

double	getStaticPressure () const

void	setStaticPressure (double StaticPressure)

IfcFanPressureClassEnum	getFanPressureClass () const

void	setFanPressureClass (IfcFanPressureClassEnum FanPressureClass)

IfcFanWheelTypeEnum	getFanWheelType () const

void	setFanWheelType (IfcFanWheelTypeEnum FanWheelType)

IfcMaterialSelect	wheelMaterial ()

double	getWheelTipSpeed () const

void	setWheelTipSpeed (double WheelTipSpeed)

double	getDischargeVelocity () const

void	setDischargeVelocity (double DischargeVelocity)

IfcMaterialSelect	housingMaterial ()

double	getDischargePressureLoss () const

void	setDischargePressureLoss (double DischargePressureLoss)

IfcFanDischargeTypeEnum	getFanDischargeType () const

void	setFanDischargeType (IfcFanDischargeTypeEnum FanDischargeType)

IfcFanArrangementEnum	getFanArrangement () const

void	setFanArrangement (IfcFanArrangementEnum FanArrangement)

IfcFanRotationEnum	getFanRotation () const

void	setFanRotation (IfcFanRotationEnum FanRotation)

IfcFanDriveArrangementEnum	getFanDriveArrangement () const

void	setFanDriveArrangement (IfcFanDriveArrangementEnum FanDriveArrangement)

double	getDrivePowerLoss () const

void	setDrivePowerLoss (double DrivePowerLoss)

IfcMoterConnectionTypeEnum	getMotorDriveType () const

void	setMotorDriveType (IfcMoterConnectionTypeEnum MotorDriveType)

OdDAI::Boolean	getMotorInAirstream () const

void	setMotorInAirstream (OdDAI::Boolean MotorInAirstream)

IfcFanMountingTypeEnum	getFanMountingType () const

void	setFanMountingType (IfcFanMountingTypeEnum FanMountingType)

	IfcFan ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcFluidMovingDevice
IfcEnergySourceEnum	getPrimaryEnergySource () const

void	setPrimaryEnergySource (IfcEnergySourceEnum PrimaryEnergySource)

double	getImpellerDiameter () const

void	setImpellerDiameter (double ImpellerDiameter)

	IfcFluidMovingDevice ()

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_AirFlowType

double	m_StaticPressure

OdDAI::Enum	m_FanPressureClass

OdDAI::Enum	m_FanWheelType

OdDAI::Select	m_WheelMaterial

double	m_WheelTipSpeed

double	m_DischargeVelocity

OdDAI::Select	m_HousingMaterial

double	m_DischargePressureLoss

OdDAI::Enum	m_FanDischargeType

OdDAI::Enum	m_FanArrangement

OdDAI::Enum	m_FanRotation

OdDAI::Enum	m_FanDriveArrangement

double	m_DrivePowerLoss

OdDAI::Enum	m_MotorDriveType

OdDAI::Boolean	m_MotorInAirstream

OdDAI::Enum	m_FanMountingType

Protected Attributes inherited from OdIfc2x_final::IfcFluidMovingDevice
OdDAI::Enum	m_PrimaryEnergySource

double	m_ImpellerDiameter

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A fan is a device which imparts mechanical work on a gas. A typical usage of a fan is to induce airflow in a building services air distribution system.

Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed. Wheel - Material from which the fan wheel is constructed.
Object Typing - This concept can be applied to the following resources: IfcFanType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType AirIn SINK NOTDEFINED AirOut SOURCE NOTDEFINED

Property Sets for Objects - This concept can be applied to the following resources: Pset_FanCentrifugal (only applies to CENTRIFUGALAIRFOIL) Pset_FanCentrifugal (only applies to CENTRIFUGALBACKWARDINCLINEDCURVED) Pset_FanCentrifugal (only applies to CENTRIFUGALFORWARDCURVED) Pset_FanCentrifugal (only applies to CENTRIFUGALRADIAL) Pset_FanOccurrence Pset_FanTypeCommon
Quantity Sets - This concept can be applied to the following resources: Qto_FanBaseQuantities
Property Sets for Performance - This concept can be applied to the following resources: Pset_FanPHistory

Definition at line 75 of file Ifc2x_Final/IfcFanAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcFan()

OdIfc2x_final::IfcFan::IfcFan ( )

Default constructor for the IfcFan class.

Member Function Documentation

◆ getAirFlowType()

IfcAirFlowTypeEnum OdIfc2x_final::IfcFan::getAirFlowType ( ) const

Returns the value of AirFlowType attribute. This attribute represents possible Fan AirFlow types (e.g., Supply, Return, Exhaust, etc.).

Returns: Returns the value of AirFlowType attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcFan::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcFan::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getDischargePressureLoss()

double OdIfc2x_final::IfcFan::getDischargePressureLoss ( ) const

Returns the value of DischargePressureLoss attribute. This attribute represents the fan discharge pressure losses that is associated with the discharge arrangement.

Returns: Returns the value of DischargePressureLoss attribute.

◆ getDischargeVelocity()

double OdIfc2x_final::IfcFan::getDischargeVelocity ( ) const

Returns the value of DischargeVelocity attribute. This attribute represents the speed at which air discharges from the fan through the fan housing discharge opening.

Returns: Returns the value of DischargeVelocity attribute.

◆ getDrivePowerLoss()

double OdIfc2x_final::IfcFan::getDrivePowerLoss ( ) const

Returns the value of DrivePowerLoss attribute. This attribute represents the fan drive power losses that is associated with the type of connection between the motor and the fan wheel.

Returns: Returns the value of DrivePowerLoss attribute.

◆ getFanArrangement()

IfcFanArrangementEnum OdIfc2x_final::IfcFan::getFanArrangement ( ) const

Returns the value of FanArrangement attribute. This attribute represents the type of fan arrangement for centrifugal fans.

Returns: Returns the value of FanArrangement attribute.

◆ getFanDischargeType()

IfcFanDischargeTypeEnum OdIfc2x_final::IfcFan::getFanDischargeType ( ) const

Returns the value of FanDischargeType attribute. This attribute represents the type of discharge arrangement from the fan housing discharge opening, which is used to determine the DischargePressureLoss.

Returns: Returns the value of FanDischargeType attribute.

◆ getFanDriveArrangement()

IfcFanDriveArrangementEnum OdIfc2x_final::IfcFan::getFanDriveArrangement ( ) const

Returns the value of FanDriveArrangement attribute. This attribute represents the fan and motor drive arrangement as defined by AMCA.

Returns: Returns the value of FanDriveArrangement attribute.

◆ getFanMountingType()

IfcFanMountingTypeEnum OdIfc2x_final::IfcFan::getFanMountingType ( ) const

Returns the value of FanMountingType attribute. This attribute represents the method of mounting the fan in the building.

Returns: Returns the value of FanMountingType attribute.

◆ getFanPressureClass()

IfcFanPressureClassEnum OdIfc2x_final::IfcFan::getFanPressureClass ( ) const

Returns the value of FanPressureClass attribute. This attribute represents the Pressure Class of the fan used for identifying the thickness and types of materials required for the construction of the fan assembly.

Returns: Returns the value of FanPressureClass attribute.

◆ getFanRotation()

IfcFanRotationEnum OdIfc2x_final::IfcFan::getFanRotation ( ) const

Returns the value of FanRotation attribute. This attribute represents the types of fan rotation for centrifugal fans.

Returns: Returns the value of FanRotation attribute.

◆ getFanWheelType()

IfcFanWheelTypeEnum OdIfc2x_final::IfcFan::getFanWheelType ( ) const

Returns the value of FanWheelType attribute. This attribute represents the type of wheel typically utilized in fans.

Returns: Returns the value of FanWheelType attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcFan::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getMotorDriveType()

IfcMoterConnectionTypeEnum OdIfc2x_final::IfcFan::getMotorDriveType ( ) const

Returns the value of MotorDriveType attribute. This attribute represents the type of connection between the motor and the fan wheel.

Returns: Returns the value of MotorDriveType attribute.

◆ getMotorInAirstream()

OdDAI::Boolean OdIfc2x_final::IfcFan::getMotorInAirstream ( ) const

Returns the value of MotorInAirstream attribute. This attribute indicates whether the fan motor is in the conditioned air stream.

Returns: Returns the value of MotorInAirstream attribute.

◆ getStaticPressure()

double OdIfc2x_final::IfcFan::getStaticPressure ( ) const

Returns the value of StaticPressure attribute. This attribute represents the static pressure within the air stream that the fan must overcome to insure designed circulation of air.

Returns: Returns the value of StaticPressure attribute.

◆ getWheelTipSpeed()

double OdIfc2x_final::IfcFan::getWheelTipSpeed ( ) const

Returns the value of WheelTipSpeed attribute. This attribute represents the linear speed of the tip of the fan blade furthest from the shaft.

Returns: Returns the value of WheelTipSpeed attribute.

◆ housingMaterial()

IfcMaterialSelect OdIfc2x_final::IfcFan::housingMaterial ( )

Returns the value of HousingMaterial attribute. This attribute represents the material used to construct the fan housing.

Returns: Returns the value of HousingMaterial attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcFan::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcFan::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcFan::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcFan::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcFan::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ setAirFlowType()

void OdIfc2x_final::IfcFan::setAirFlowType ( IfcAirFlowTypeEnum AirFlowType )

Sets the value of AirFlowType attribute. This attribute represents possible Fan AirFlow types (e.g., Supply, Return, Exhaust, etc.).

Parameters

AirFlowType [in] AirFlowType attribute to set.

◆ setDischargePressureLoss()

void OdIfc2x_final::IfcFan::setDischargePressureLoss ( double DischargePressureLoss )

Sets the value of DischargePressureLoss attribute. This attribute represents the fan discharge pressure losses that is associated with the discharge arrangement.

Parameters

DischargePressureLoss [in] DischargePressureLoss attribute to set.

◆ setDischargeVelocity()

void OdIfc2x_final::IfcFan::setDischargeVelocity ( double DischargeVelocity )

Sets the value of DischargeVelocity attribute. This attribute represents the speed at which air discharges from the fan through the fan housing discharge opening.

Parameters

DischargeVelocity [in] DischargeVelocity attribute to set.

◆ setDrivePowerLoss()

void OdIfc2x_final::IfcFan::setDrivePowerLoss ( double DrivePowerLoss )

Sets the value of DrivePowerLoss attribute. This attribute represents the fan drive power losses that is associated with the type of connection between the motor and the fan wheel.

Parameters

DrivePowerLoss [in] DrivePowerLoss attribute to set.

◆ setFanArrangement()

void OdIfc2x_final::IfcFan::setFanArrangement ( IfcFanArrangementEnum FanArrangement )

Sets the value of FanArrangement attribute. This attribute represents the type of fan arrangement for centrifugal fans.

Parameters

FanArrangement [in] FanArrangement attribute to set.

◆ setFanDischargeType()

void OdIfc2x_final::IfcFan::setFanDischargeType ( IfcFanDischargeTypeEnum FanDischargeType )

Sets the value of FanDischargeType attribute. This attribute represents the type of discharge arrangement from the fan housing discharge opening, which is used to determine the DischargePressureLoss.

Parameters

FanDischargeType [in] FanDischargeType attribute to set.

◆ setFanDriveArrangement()

void OdIfc2x_final::IfcFan::setFanDriveArrangement ( IfcFanDriveArrangementEnum FanDriveArrangement )

Sets the value of FanDriveArrangement attribute. This attribute represents the fan and motor drive arrangement as defined by AMCA.

Parameters

FanDriveArrangement [in] FanDriveArrangement attribute to set.

◆ setFanMountingType()

void OdIfc2x_final::IfcFan::setFanMountingType ( IfcFanMountingTypeEnum FanMountingType )

Sets the value of FanMountingType attribute. This attribute represents the method of mounting the fan in the building.

Parameters

FanMountingType [in] FanMountingType attribute to set.

◆ setFanPressureClass()

void OdIfc2x_final::IfcFan::setFanPressureClass ( IfcFanPressureClassEnum FanPressureClass )

Sets the value of FanPressureClass attribute. This attribute represents the Pressure Class of the fan used for identifying the thickness and types of materials required for the construction of the fan assembly.

Parameters

FanPressureClass [in] FanPressureClass attribute to set.

◆ setFanRotation()

void OdIfc2x_final::IfcFan::setFanRotation ( IfcFanRotationEnum FanRotation )

Sets the value of FanRotation attribute. This attribute represents the types of fan rotation for centrifugal fans.

Parameters

FanRotation [in] FanRotation attribute to set.

◆ setFanWheelType()

void OdIfc2x_final::IfcFan::setFanWheelType ( IfcFanWheelTypeEnum FanWheelType )

Sets the value of FanWheelType attribute. This attribute represents the type of wheel typically utilized in fans.

Parameters

FanWheelType [in] FanWheelType attribute to set.

◆ setMotorDriveType()

void OdIfc2x_final::IfcFan::setMotorDriveType ( IfcMoterConnectionTypeEnum MotorDriveType )

Sets the value of MotorDriveType attribute. This attribute represents the type of connection between the motor and the fan wheel.

Parameters

MotorDriveType [in] MotorDriveType attribute to set.

◆ setMotorInAirstream()

void OdIfc2x_final::IfcFan::setMotorInAirstream ( OdDAI::Boolean MotorInAirstream )

Sets the value of MotorInAirstream attribute. This attribute indicates whether the fan motor is in the conditioned air stream.

Parameters

MotorInAirstream [in] MotorInAirstream attribute to set.

◆ setStaticPressure()

void OdIfc2x_final::IfcFan::setStaticPressure ( double StaticPressure )

Sets the value of StaticPressure attribute. This attribute represents the static pressure within the air stream that the fan must overcome to insure designed circulation of air.

Parameters

StaticPressure [in] StaticPressure attribute to set.

◆ setWheelTipSpeed()

void OdIfc2x_final::IfcFan::setWheelTipSpeed ( double WheelTipSpeed )

Sets the value of WheelTipSpeed attribute. This attribute represents the linear speed of the tip of the fan blade furthest from the shaft.

Parameters

WheelTipSpeed [in] WheelTipSpeed attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcFan::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcFan::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcFan::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcFan::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcFan::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ wheelMaterial()

IfcMaterialSelect OdIfc2x_final::IfcFan::wheelMaterial ( )

Returns the value of FanWheelType attribute. This attribute represents the material used to construct the fan wheel.

Returns: Returns the value of FanWheelType attribute.

Member Data Documentation

◆ m_AirFlowType

OdDAI::Enum OdIfc2x_final::IfcFan::m_AirFlowType

protected

Definition at line 446 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_DischargePressureLoss

double OdIfc2x_final::IfcFan::m_DischargePressureLoss

protected

Definition at line 454 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_DischargeVelocity

double OdIfc2x_final::IfcFan::m_DischargeVelocity

protected

Definition at line 452 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_DrivePowerLoss

double OdIfc2x_final::IfcFan::m_DrivePowerLoss

protected

Definition at line 459 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanArrangement

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanArrangement

protected

Definition at line 456 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanDischargeType

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanDischargeType

protected

Definition at line 455 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanDriveArrangement

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanDriveArrangement

protected

Definition at line 458 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanMountingType

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanMountingType

protected

Definition at line 462 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanPressureClass

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanPressureClass

protected

Definition at line 448 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanRotation

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanRotation

protected

Definition at line 457 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_FanWheelType

OdDAI::Enum OdIfc2x_final::IfcFan::m_FanWheelType

protected

Definition at line 449 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_HousingMaterial

OdDAI::Select OdIfc2x_final::IfcFan::m_HousingMaterial

protected

Definition at line 453 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_MotorDriveType

OdDAI::Enum OdIfc2x_final::IfcFan::m_MotorDriveType

protected

Definition at line 460 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_MotorInAirstream

OdDAI::Boolean OdIfc2x_final::IfcFan::m_MotorInAirstream

protected

Definition at line 461 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_StaticPressure

double OdIfc2x_final::IfcFan::m_StaticPressure

protected

Definition at line 447 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_WheelMaterial

OdDAI::Select OdIfc2x_final::IfcFan::m_WheelMaterial

protected

Definition at line 450 of file Ifc2x_Final/IfcFanAutoImpl.h.

◆ m_WheelTipSpeed

double OdIfc2x_final::IfcFan::m_WheelTipSpeed

protected

Definition at line 451 of file Ifc2x_Final/IfcFanAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcFanAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcFan()

Member Function Documentation

◆ getAirFlowType()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getDischargePressureLoss()

◆ getDischargeVelocity()

◆ getDrivePowerLoss()

◆ getFanArrangement()

◆ getFanDischargeType()

◆ getFanDriveArrangement()

◆ getFanMountingType()

◆ getFanPressureClass()

◆ getFanRotation()

◆ getFanWheelType()

◆ getInstanceType()

◆ getMotorDriveType()

◆ getMotorInAirstream()

◆ getStaticPressure()

◆ getWheelTipSpeed()

◆ housingMaterial()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setAirFlowType()

◆ setDischargePressureLoss()

◆ setDischargeVelocity()

◆ setDrivePowerLoss()

◆ setFanArrangement()

◆ setFanDischargeType()

◆ setFanDriveArrangement()

◆ setFanMountingType()

◆ setFanPressureClass()

◆ setFanRotation()

◆ setFanWheelType()

◆ setMotorDriveType()

◆ setMotorInAirstream()

◆ setStaticPressure()

◆ setWheelTipSpeed()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

◆ wheelMaterial()

Member Data Documentation

◆ m_AirFlowType

◆ m_DischargePressureLoss

◆ m_DischargeVelocity

◆ m_DrivePowerLoss

◆ m_FanArrangement

◆ m_FanDischargeType

◆ m_FanDriveArrangement

◆ m_FanMountingType

◆ m_FanPressureClass

◆ m_FanRotation

◆ m_FanWheelType

◆ m_HousingMaterial

◆ m_MotorDriveType

◆ m_MotorInAirstream

◆ m_StaticPressure

◆ m_WheelMaterial

◆ m_WheelTipSpeed
