OdIfc2x_final::IfcElement Class Reference

#include <IfcElementAutoImpl.h>

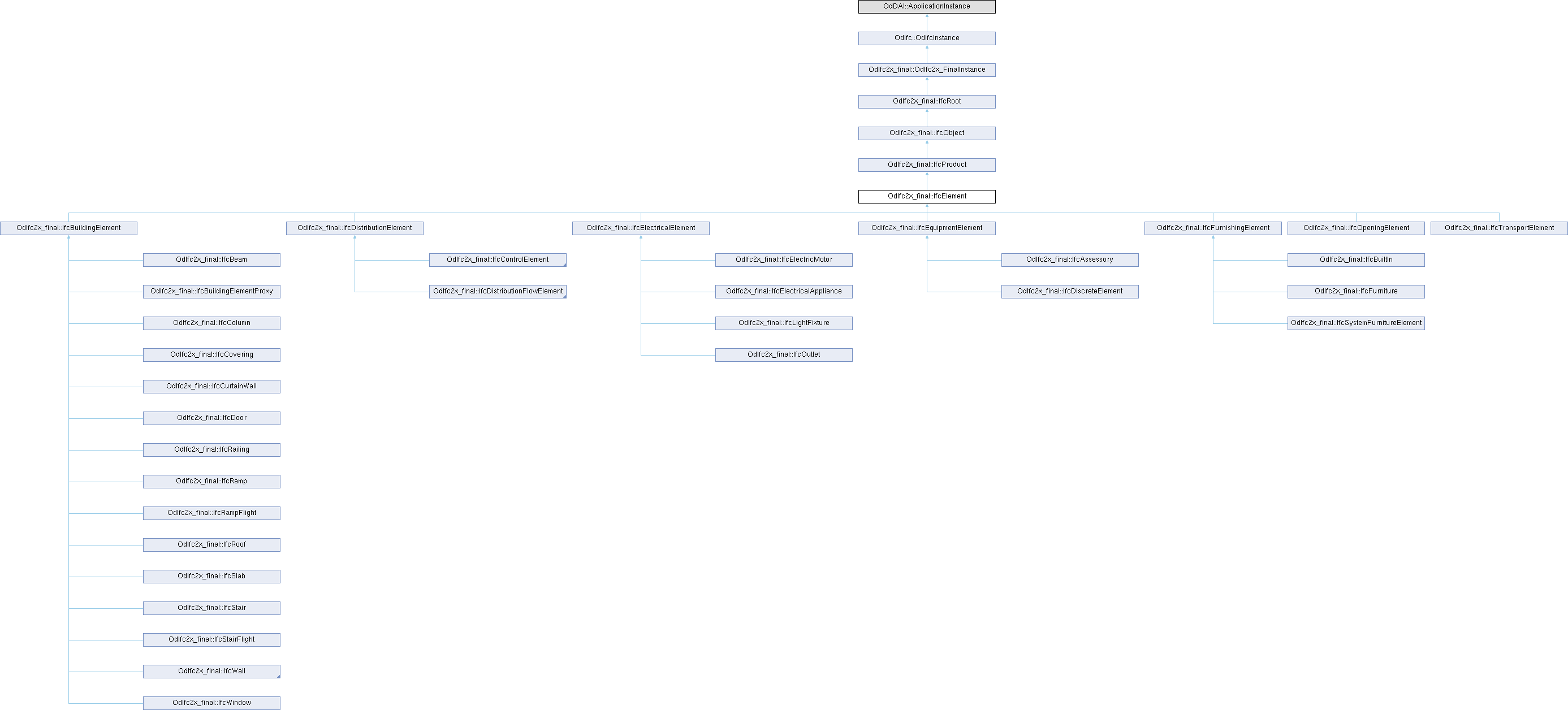

Inheritance diagram for OdIfc2x_final::IfcElement:

Public Member Functions
const OdAnsiString &	getTag () const
void	setTag (const OdAnsiString &Tag)
void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const
void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const
void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const
	IfcElement ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdDAI::Entity *	getInstanceType () const override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const
void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)
const OdDAIObjectId &	getRepresentation () const
void	setRepresentation (const OdDAIObjectId &Representation)
void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const
Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const
void	setObjectType (const OdAnsiString &ObjectType)
void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const
void	getInvDecomposes (OdDAIObjectIds &Decomposes) const
void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const
	IfcObject ()
Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Tag
Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement
OdDAIObjectId	m_Representation
Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType
Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Friends
class	IfcRelConnectsElements
class	IfcRelContainedInSpatialStructure

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An element is a generalization of all components that make up an AEC product. Elements are physically existent objects, although they might be void elements, such as holes.
Elements can be either assembled on site or pre-manufactured and built in on site. EXAMPLE: Examples of elements in a building construction context are walls, floors, windows and recesses.

The elements can be logically contained by a spatial structure element that constitutes a certain level within a project structure hierarchy (site, building, storey or space). This is done by using the IfcRelContainedInSpatialStructure relationship. An element can have material and quantity information assigned through the IfcRelAssociatesMaterial and IfcRelDefinesByProperties relationship.

In addition an element can be declared to be a specific occurrence of an element type (and thereby be defined by the element type properties) using the IfcRelDefinesByType relationship. An element can also be defined as an element assembly that is a group of semantically and topologically related elements that form a higher level part of the AEC product. Those element assemblies are defined by virtue of the IfcRelAggregates relationship. EXAMPLE: Examples for element assembly are complete Roof Structures, made by several Roof Areas, or a Stair, composed by Flights and Landings.

Elements that performs the same function can be grouped by an "Element Group By Function". It is realized by an instance of IfcGroup with the ObjectType ='ElementGroupByFunction'.

Definition at line 56 of file Ifc2x_Final/IfcElementAutoImpl.h.

Constructor & Destructor Documentation

IfcElement()

OdIfc2x_final::IfcElement::IfcElement

(

)

Default constructor for the IfcElement class.

Member Function Documentation

getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcElement::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName

[in] Name of an attribute to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcElement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcElement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, and OdIfc2x_final::IfcWindow.

getInvConnectedFrom()

void OdIfc2x_final::IfcElement::getInvConnectedFrom

(

OdDAIObjectIds &

ConnectedFrom

)

const

Returns the value of ConnectedFrom attribute. This attribute represents the reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.

Parameters

ConnectedFrom

[out] Receives the value of ConnectedFrom attribute.

getInvConnectedTo()

void OdIfc2x_final::IfcElement::getInvConnectedTo

(

OdDAIObjectIds &

ConnectedTo

)

const

Returns the value of ConnectedTo attribute. This attribute represents the reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.

Parameters

ConnectedTo

[out] Receives the value of ConnectedTo attribute.

getInvContainedInStructure()

void OdIfc2x_final::IfcElement::getInvContainedInStructure

(

OdDAIObjectIds &

ContainedInStructure

)

const

Returns the value of ContainedInStructure attribute. This attribute represents the containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierarchical, i.e. an element can only be assigned directly to zero or one spatial structure.

Parameters

ContainedInStructure

[out] Receives the value of ContainedInStructure attribute.

getTag()

const OdAnsiString & OdIfc2x_final::IfcElement::getTag

(

)

const

Returns the value of Tag attribute. This attribute represents the tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.

Returns

Returns the value of Tag attribute.

inFields()

virtual OdResult OdIfc2x_final::IfcElement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

isKindOf()

virtual bool OdIfc2x_final::IfcElement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, and OdIfc2x_final::IfcWindow.

outFields()

virtual OdResult OdIfc2x_final::IfcElement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

putAttr() [1/2]

virtual bool OdIfc2x_final::IfcElement::putAttr ( const char * explicitAttrName, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

putAttr() [2/2]

virtual bool OdIfc2x_final::IfcElement::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

setTag()

void OdIfc2x_final::IfcElement::setTag

(

const OdAnsiString &

Tag

)

Sets the value of Tag attribute. This attribute represents the tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.

Parameters

Tag	[in] Tag to set.

testAttr() [1/2]

virtual bool OdIfc2x_final::IfcElement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

testAttr() [2/2]

virtual bool OdIfc2x_final::IfcElement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcElement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, and OdIfc2x_final::IfcWindow.

unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcElement::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcElement::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcProduct.

Reimplemented in OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcValve, and OdIfc2x_final::IfcWindow.

Friends And Related Symbol Documentation

IfcRelConnectsElements

IfcRelConnectsElements

friend

Definition at line 224 of file Ifc2x_Final/IfcElementAutoImpl.h.

IfcRelContainedInSpatialStructure

friend class IfcRelContainedInSpatialStructure

friend

Definition at line 226 of file Ifc2x_Final/IfcElementAutoImpl.h.

Member Data Documentation

m_Tag

OdAnsiString OdIfc2x_final::IfcElement::m_Tag

protected

Definition at line 221 of file Ifc2x_Final/IfcElementAutoImpl.h.

---

The documentation for this class was generated from the following file:

• Ifc2x_Final/IfcElementAutoImpl.h
