#include <IfcConstructionResourceAutoImpl.h>

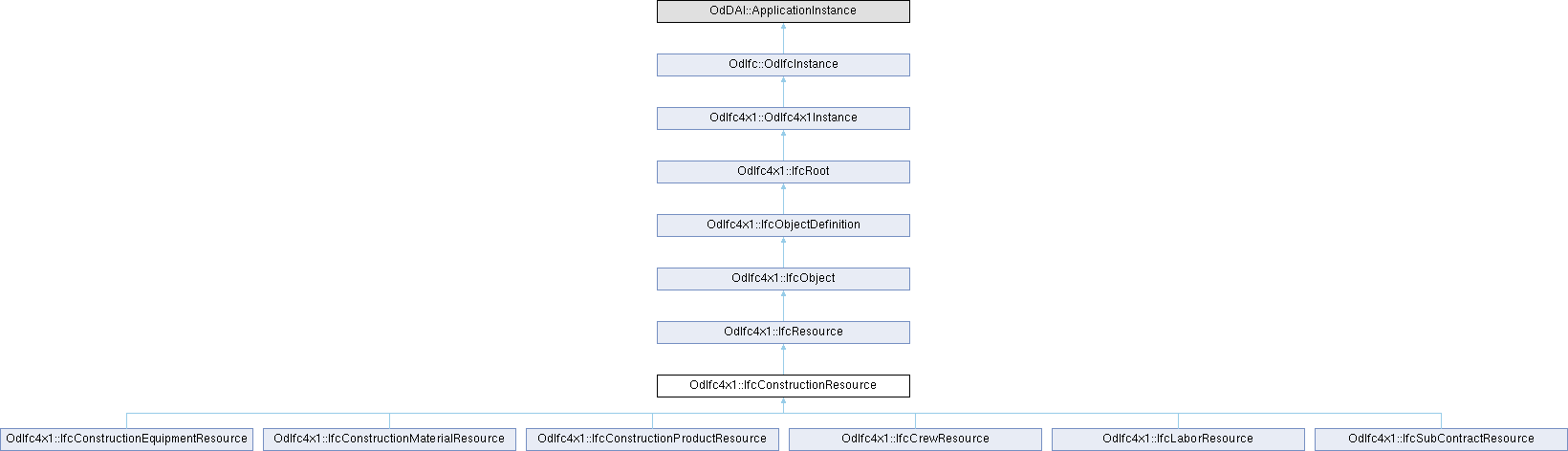

Inheritance diagram for OdIfc4x1::IfcConstructionResource:

Public Member Functions
const OdDAIObjectId &	getUsage () const

void	setUsage (const OdDAIObjectId &Usage)

void	getBaseCosts (OdDAIObjectIds &BaseCosts) const

OdDAI::ListOfOdDAIObjectId &	baseCosts ()

const OdDAIObjectId &	getBaseQuantity () const

void	setBaseQuantity (const OdDAIObjectId &BaseQuantity)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcResource
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

	IfcResource ()

Public Member Functions inherited from OdIfc4x1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Usage

OdDAI::ListOfOdDAIObjectId	m_BaseCosts

OdDAIObjectId	m_BaseQuantity

Protected Attributes inherited from OdIfc4x1::IfcResource
OdAnsiString	m_Identification

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4x1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcConstructionResource is an abstract generalization of the different resources used in construction projects, mainly labor, material, equipment and product resources, plus subcontracted resources and aggregations such as a crew resource.

A resource represents "use of something" and does not necessarily correspond to a single item such as a person or vehicle, but represents a pool of items having limited availability such as general labor or an equipment fleet. A resource can represent either a generic resource pool (not having any task assignment) or a task-specific resource allocation (having an IfcTask assignment).

Declaration use Definition - A root-level resource (specifically IfcCrewResource or IfcSubContractResource) is declared within the project by IfcRelDeclares where RelatingContext refers to the single IfcProject and RelatedObjects refers to one or more IfcConstructionResource, and other root-level objects within the project.
Assignment use Definition - A resource can be assigned to an actor by IfcRelAssignsToActor where RelatingActor refers to an IfcActor and RelatedObjects refers to one or more IfcConstructionResource or other objects. Such relationship indicates the actor responsible for allocating the resource such as partitioning into task-specific allocations, delegating to other actors, and/or scheduling over time. Note that this assignment does not indicate the person or organization performing the work; that is indicated by IfcRelAssignsToResource. The actor responsible for the resource may or may not be the same as any actor(s) performing work. A resource can be assigned to a control by IfcRelAssignsToControl where RelatingControl refers to an IfcControl and RelatedObjects refers to one or more IfcConstructionResource or other objects. Most commonly an IfcWorkCalendar is assigned indicating availability of the resource, where such calendar is nested within a base calendar or an IfcWorkPlan which in turn is assigned to the IfcProject. A resource can be assigned to a group by IfcRelAssignsToGroup where RelatingGroup refers to an IfcGroup and RelatedObjects refers to one or more IfcConstructionResource or other objects. Most commonly an IfcAsset is assigned indicating the asset to be tracked, where such asset is nested within an IfcInventory which in turn is assigned to the IfcProject. A resource can be assigned to a product by IfcRelAssignsToProduct where RelatingProduct refers to an IfcProduct and RelatedObjects refers to one or more IfcConstructionResource or other objects. Most commonly an IfcElement subtype is assigned indicating the product to be constructed, where such product is connected to a spatial structure which in turn is aggregated within the IfcProject. A resource can be assigned to a process by IfcRelAssignsToProcess where RelatingProcess refers to an IfcProcess and RelatedObjects refers to one or more IfcConstructionResource or other objects. Most commonly an IfcTask is assigned indicating the task to be performed by the resource, where such task is nested within a summary task which in turn is assigned to the IfcProject. A resource can have assignments of other objects using IfcRelAssignsToResource where RelatingResource refers to the IfcConstructionResource and RelatedObjects refers to one or more objects such as IfcActor or IfcProduct subtypes. This relationship indicates specific objects assigned to fulfill resource usage.

The image below illustrates resource assignment.

Baseline use Definition - A resource can have any number of baselines defined using the relationship IfcRelDefinesByObject where RelatingObject is the "current" resource and RelatedObjects consists of multiple "baseline" resources, each representing a copy of the resource as it existed at an earlier point in time as shown on the image below. Each baseline IfcConstructionResource is identified by its nested IfcRelAssignsToControl relationship to an IfcWorkSchedule having PredefinedType=BASELINE, IfcWorkSchedule.CreationDate indicating the date of the baseline, and IfcWorkSchedule.Name indicating the name of the baseline.

Remarks: This definition cannot be instantiated

\changes

IFC4 changes: Name of the ResourceConsumption attribute changed from "ResourceConsumption" to "BaseQuantity" Type of the ResourceConsumption attribute changed from "IfcResourceConsumptionEnum" to "IfcPhysicalQuantity" Name of the ResourceGroup attribute changed from "ResourceGroup" to "BaseCosts" Type of the ResourceGroup attribute changed from "IfcLabel" to "list[1:?] of IfcAppliedValue" Name of the ResourceIdentifier attribute changed from "ResourceIdentifier" to "Usage" Type of the ResourceIdentifier attribute changed from "IfcIdentifier" to "IfcResourceTime"

Definition at line 106 of file Ifc4x1/IfcConstructionResourceAutoImpl.h.

Member Function Documentation

◆ baseCosts()

OdDAI::ListOfOdDAIObjectId & OdIfc4x1::IfcConstructionResource::baseCosts ( )

Gets the value of BaseCosts attribute. This attribute represents indicates the unit costs for which accrued amounts should be calculated. Such unit costs can be split into Name designations (for example, 'Standard', 'Overtime'), and can contain a hierarchy of cost values that apply at different dates (using IfcCostValue.ApplicableDate and IfcCostValue.FixedUntilDate).

Parameters

BaseCosts [out] Receives the base costs.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcConstructionResource::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcConstructionResource::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ getBaseCosts()

void OdIfc4x1::IfcConstructionResource::getBaseCosts ( OdDAIObjectIds & BaseCosts ) const

Returns the value of BaseCosts attribute. This attribute represents indicates the unit costs for which accrued amounts should be calculated. Such unit costs can be split into Name designations (for example, 'Standard', 'Overtime'), and can contain a hierarchy of cost values that apply at different dates (using IfcCostValue.ApplicableDate and IfcCostValue.FixedUntilDate).

Returns: Returns the value of BaseCosts attribute.

◆ getBaseQuantity()

const OdDAIObjectId & OdIfc4x1::IfcConstructionResource::getBaseQuantity ( ) const

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcConstructionResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ getUsage()

const OdDAIObjectId & OdIfc4x1::IfcConstructionResource::getUsage ( ) const

Returns the value of Usage attribute. This attribute represents indicates the work, usage, and times scheduled and completed. Some attributes on this object can have associated constraints or time series (see IfcResourceTime). If the resource is nested, then certain values can be calculated based on the component resources as indicated at IfcResourceTime.

Returns: Returns the value of Usage attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcConstructionResource::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ isKindOf()

virtual bool OdIfc4x1::IfcConstructionResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ outFields()

virtual OdResult OdIfc4x1::IfcConstructionResource::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcConstructionResource::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcConstructionResource::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ setBaseQuantity()

void OdIfc4x1::IfcConstructionResource::setBaseQuantity ( const OdDAIObjectId & BaseQuantity )

◆ setUsage()

void OdIfc4x1::IfcConstructionResource::setUsage ( const OdDAIObjectId & Usage )

Sets the value of Usage attribute. This attribute represents indicates the work, usage, and times scheduled and completed. Some attributes on this object can have associated constraints or time series (see IfcResourceTime). If the resource is nested, then certain values can be calculated based on the component resources as indicated at IfcResourceTime.

Parameters

Usage [in] Usage to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcConstructionResource::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcConstructionResource::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcConstructionResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcResource.

Reimplemented in OdIfc4x1::IfcConstructionEquipmentResource, OdIfc4x1::IfcConstructionMaterialResource, OdIfc4x1::IfcConstructionProductResource, OdIfc4x1::IfcCrewResource, OdIfc4x1::IfcLaborResource, and OdIfc4x1::IfcSubContractResource.
