#include <IfcPumpAutoImpl.h>

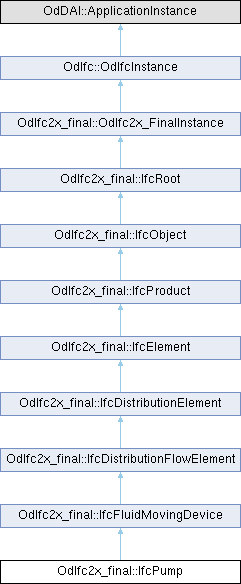

Inheritance diagram for OdIfc2x_final::IfcPump:

Public Member Functions
IfcPumpTypeEnum	getPumpType () const

void	setPumpType (IfcPumpTypeEnum PumpType)

double	getNetPositiveSuctionHead () const

void	setNetPositiveSuctionHead (double NetPositiveSuctionHead)

IfcMaterialSelect	impellerSealMaterial ()

IfcPumpBaseTypeEnum	getPumpBaseType () const

void	setPumpBaseType (IfcPumpBaseTypeEnum PumpBaseType)

IfcMoterConnectionTypeEnum	getMotorDriveType () const

void	setMotorDriveType (IfcMoterConnectionTypeEnum MotorDriveType)

	IfcPump ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcFluidMovingDevice
IfcEnergySourceEnum	getPrimaryEnergySource () const

void	setPrimaryEnergySource (IfcEnergySourceEnum PrimaryEnergySource)

double	getImpellerDiameter () const

void	setImpellerDiameter (double ImpellerDiameter)

	IfcFluidMovingDevice ()

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PumpType

double	m_NetPositiveSuctionHead

OdDAI::Select	m_ImpellerSealMaterial

OdDAI::Enum	m_PumpBaseType

OdDAI::Enum	m_MotorDriveType

Protected Attributes inherited from OdIfc2x_final::IfcFluidMovingDevice
OdDAI::Enum	m_PrimaryEnergySource

double	m_ImpellerDiameter

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A pump is a device which imparts mechanical work on fluids or slurries to move them through a channel or pipeline. A typical use of a pump is to circulate chilled water or heating hot water in a building services distribution system.

Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed. Impeller - Material from which the impeller of the pump is constructed. In the case of a positive displacement pump, the piston acts as the impeller. Seal - Material from which the impeller shaft seal of the pump is constructed.
Object Typing - This concept can be applied to the following resources: IfcPumpType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType Power SINK ELECTRICAL Inlet SINK NOTDEFINED Outlet SOURCE NOTDEFINED

Property Sets for Objects - This concept can be applied to the following resources: Pset_PumpOccurrence Pset_PumpTypeCommon
Property Sets for Performance - This concept can be applied to the following resources: Pset_PumpPHistory
Quantity Sets - This concept can be applied to the following resources: Qto_PumpBaseQuantities

Definition at line 73 of file Ifc2x_Final/IfcPumpAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPump()

OdIfc2x_final::IfcPump::IfcPump ( )

Default constructor for the IfcPump class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcPump::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcPump::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcPump::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ getMotorDriveType()

IfcMoterConnectionTypeEnum OdIfc2x_final::IfcPump::getMotorDriveType ( ) const

Returns the value of MotorDriveType attribute. This attribute represents the type of connection between the motor and the pump impeller.

Returns: Returns the value of MotorDriveType attribute.

◆ getNetPositiveSuctionHead()

double OdIfc2x_final::IfcPump::getNetPositiveSuctionHead ( ) const

Returns the value of NetPositiveSuctionHead attribute. This attribute represents minimum liquid pressure at pump inlet to prevent cavitation.

Returns: Returns the value of NetPositiveSuctionHead attribute.

◆ getPumpBaseType()

IfcPumpBaseTypeEnum OdIfc2x_final::IfcPump::getPumpBaseType ( ) const

Returns the value of PumpBaseType attribute. This attribute represents the type of base used for centrifugal pumps.

Returns: Returns the value of PumpBaseType attribute.

◆ getPumpType()

IfcPumpTypeEnum OdIfc2x_final::IfcPump::getPumpType ( ) const

Returns the value of PumpType attribute. This attribute represents the type of centrifugal pump typically used in building services.

Returns: Returns the value of PumpType attribute.

◆ impellerSealMaterial()

IfcMaterialSelect OdIfc2x_final::IfcPump::impellerSealMaterial ( )

Returns the value of ImpellerSealMaterial attribute. This attribute represents the material used for the impeller shaft seals.

Returns: Returns the value of ImpellerSealMaterial attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcPump::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcPump::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcPump::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcPump::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcPump::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ setMotorDriveType()

void OdIfc2x_final::IfcPump::setMotorDriveType ( IfcMoterConnectionTypeEnum MotorDriveType )

Sets the value of MotorDriveType attribute. This attribute represents the type of connection between the motor and the pump impeller.

Parameters

MotorDriveType [in] Motor drive type to set.

◆ setNetPositiveSuctionHead()

void OdIfc2x_final::IfcPump::setNetPositiveSuctionHead ( double NetPositiveSuctionHead )

Sets the value of NetPositiveSuctionHead attribute. This attribute represents minimum liquid pressure at pump inlet to prevent cavitation.

Parameters

NetPositiveSuctionHead [in] NetPositiveSuctionHead attribute to set.

◆ setPumpBaseType()

void OdIfc2x_final::IfcPump::setPumpBaseType ( IfcPumpBaseTypeEnum PumpBaseType )

Sets the value of PumpBaseType attribute. This attribute represents the type of base used for centrifugal pumps.

Parameters

PumpBaseType [in] PumpBaseType attribute to set.

◆ setPumpType()

void OdIfc2x_final::IfcPump::setPumpType ( IfcPumpTypeEnum PumpType )

Sets the value of PumpType attribute. This attribute represents the type of centrifugal pump typically used in building services.

Parameters

PumpType [in] Pump type to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcPump::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcPump::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcPump::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcPump::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcPump::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcFluidMovingDevice.

Member Data Documentation

◆ m_ImpellerSealMaterial

OdDAI::Select OdIfc2x_final::IfcPump::m_ImpellerSealMaterial

protected

Definition at line 267 of file Ifc2x_Final/IfcPumpAutoImpl.h.

◆ m_MotorDriveType

OdDAI::Enum OdIfc2x_final::IfcPump::m_MotorDriveType

protected

Definition at line 269 of file Ifc2x_Final/IfcPumpAutoImpl.h.

◆ m_NetPositiveSuctionHead

double OdIfc2x_final::IfcPump::m_NetPositiveSuctionHead

protected

Definition at line 266 of file Ifc2x_Final/IfcPumpAutoImpl.h.

◆ m_PumpBaseType

OdDAI::Enum OdIfc2x_final::IfcPump::m_PumpBaseType

protected

Definition at line 268 of file Ifc2x_Final/IfcPumpAutoImpl.h.

◆ m_PumpType

OdDAI::Enum OdIfc2x_final::IfcPump::m_PumpType

protected

Definition at line 265 of file Ifc2x_Final/IfcPumpAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcPumpAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcPump()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getMotorDriveType()

◆ getNetPositiveSuctionHead()

◆ getPumpBaseType()

◆ getPumpType()

◆ impellerSealMaterial()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setMotorDriveType()

◆ setNetPositiveSuctionHead()

◆ setPumpBaseType()

◆ setPumpType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ImpellerSealMaterial

◆ m_MotorDriveType

◆ m_NetPositiveSuctionHead

◆ m_PumpBaseType

◆ m_PumpType
