#include <IfcRelAggregatesAutoImpl.h>

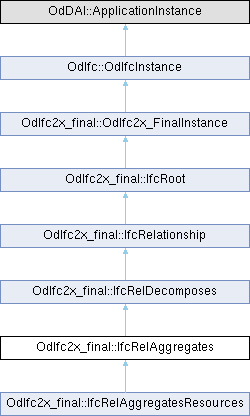

Inheritance diagram for OdIfc2x_final::IfcRelAggregates:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x_final::IfcRelDecomposes
const OdDAIObjectId &	getRelatingObject () const

void	setRelatingObject (const OdDAIObjectId &RelatingObject)

void	getRelatedObjects (OdDAIObjectIds &RelatedObjects) const

OdDAI::SetOfOdDAIObjectId &	relatedObjects ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x_final::IfcRelDecomposes
OdDAIObjectId	m_RelatingObject

OdDAI::SetOfOdDAIObjectId	m_RelatedObjects

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The aggregation relationship IfcRelAggregates is a special type of the general composition/decomposition (or whole/part) relationship IfcRelDecomposes. The aggregation relationship can be applied to all subtypes of IfcObjectDefinition. Decompositions imply a dependency, implying that the whole depends on the definition of the parts and the parts depend on the existence of the whole. The behavior that is implied from the dependency relationship has to be established inside the applications.

Definition at line 43 of file Ifc2x_Final/IfcRelAggregatesAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRelAggregates::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcRelDecomposes.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcRelAggregates::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcRelDecomposes.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRelAggregates::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcRelDecomposes.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcRelAggregatesAutoImpl.h
