#include <IfcRelDecomposesAutoImpl.h>

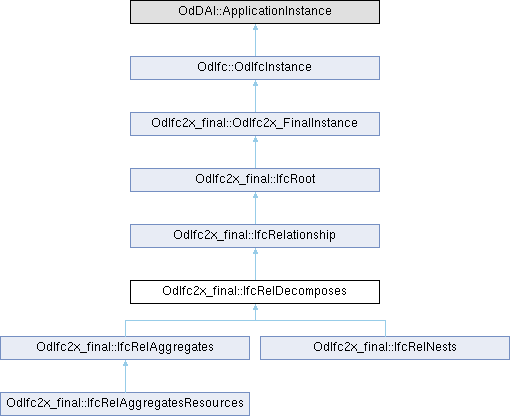

Inheritance diagram for OdIfc2x_final::IfcRelDecomposes:

Public Member Functions
const OdDAIObjectId &	getRelatingObject () const

void	setRelatingObject (const OdDAIObjectId &RelatingObject)

void	getRelatedObjects (OdDAIObjectIds &RelatedObjects) const

OdDAI::SetOfOdDAIObjectId &	relatedObjects ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_RelatingObject

OdDAI::SetOfOdDAIObjectId	m_RelatedObjects

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The decomposition relationship, IfcRelDecomposes, defines the general concept of elements being composed or decomposed. The decomposition relationship denotes a whole/part hierarchy with the ability to navigate from the whole (the composition) to the parts and vice versa. Decompositions can be constrained by requiring both, the whole and its parts, to be of the same type - thus establishing a nesting relationship. Or they can require some form of physical containment, thus establishing special types of aggregation relationships.

EXAMPLE: A cost element is a nest of other cost elements. Or a structural frame is an aggregation of beams and columns. Both are applications of decomposition relationship.

Decompositions imply a dependency, i.e. the definition of the whole depends on the definition of the parts and the parts depend on the existence of the whole. The decomposition relationship can be applied in a recursive manner, i.e. a decomposed element can be part in another decomposition. Cyclic references have to be prevented at application level.

Remarks: There are two special names for decomposition, which are linguistically distinguished, nesting and aggregation. The subtypes of IfcRelDecomposes will introduce either the nesting or aggregation convention (see IfcRelNests and IfcRelAggregates).

Definition at line 54 of file Ifc2x_Final/IfcRelDecomposesAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcRelDecomposes::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcRelDecomposes::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRelDecomposes::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, and OdIfc2x_final::IfcRelNests.

◆ getRelatedObjects()

void OdIfc2x_final::IfcRelDecomposes::getRelatedObjects ( OdDAIObjectIds & RelatedObjects ) const

Sets the value of RelatedObjects attribute. This attribute represents the part within the whole/part relationship.

Parameters

RelatedObjects [out] Receives the related objects.

◆ getRelatingObject()

const OdDAIObjectId & OdIfc2x_final::IfcRelDecomposes::getRelatingObject ( ) const

Returns the value of RelatingObject attribute. This attribute represents the whole within the whole/part relationship.

Returns: Returns the value of RelatingObject attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcRelDecomposes::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcRelDecomposes::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, and OdIfc2x_final::IfcRelNests.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcRelDecomposes::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcRelDecomposes::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcRelDecomposes::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ relatedObjects()

OdDAI::SetOfOdDAIObjectId & OdIfc2x_final::IfcRelDecomposes::relatedObjects ( )

Returns the value of RelatedObjects attribute. This attribute represents the part within the whole/part relationship.

Returns: Returns the value of RelatingObject attribute.

◆ setRelatingObject()

void OdIfc2x_final::IfcRelDecomposes::setRelatingObject ( const OdDAIObjectId & RelatingObject )

Sets the value of RelatingObject attribute. This attribute represents the whole within the whole/part relationship.

Parameters

RelatingObject [in] Relating object to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcRelDecomposes::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcRelDecomposes::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAggregatesResources.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRelDecomposes::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, and OdIfc2x_final::IfcRelNests.
