OdIfc::OdIfcCurve Class Reference

#include <IfcCurve.h>

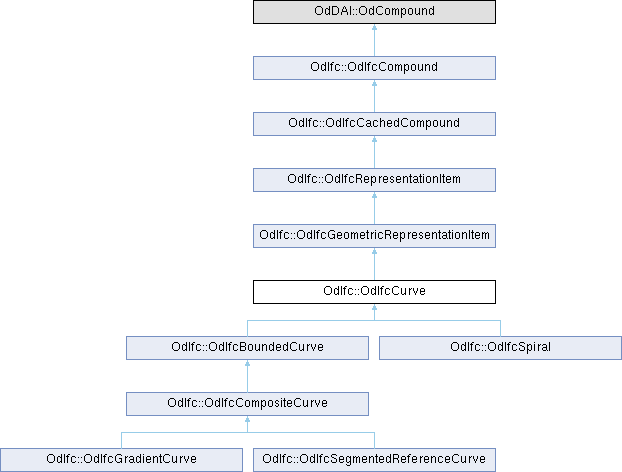

Inheritance diagram for OdIfc::OdIfcCurve:

Public Member Functions
virtual OdGe::EntityId	entityId () const
virtual OdGeCurve3d *	getGeCurveCopy () const
const OdGeCurve3d *	getGeCurve () const
OdResult	transformBy (const OdGeMatrix3d &transform) override
virtual double	paramAtLength (double length) const
virtual OdGePoint3d	evalPoint (double param, OdGeVector3dArray &derivs) const
virtual bool	is3d () const
void	setIs3d (bool val)
Public Member Functions inherited from OdIfc::OdIfcGeometricRepresentationItem
virtual OdDAI::OdBodyVariant	bodyContainer () const
Public Member Functions inherited from OdIfc::OdIfcRepresentationItem
virtual	~OdIfcRepresentationItem ()
virtual void	compose ()
virtual bool	draw (OdGiWorldDraw *pWd) const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override
OdIfcEntityType	type ()
OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual OdRxValue	getAttr (const OdAnsiString &attrName) const
OdIfcModel *	owningModel () const
bool	isKindOf (OdIfcEntityType type) const
bool	isInstanceOf (OdIfcEntityType entityType) const
const OdAnsiString &	typeName ()
OdIfcFile *	owningIfcFile () const
OdStepFile *	owningStepFile () const override
virtual bool	isPersistent () const
virtual OdDbStub *	id () const
virtual OdDbStub *	ownerId () const
virtual void	xmitPropagateModify ()

Protected Member Functions
void	getMatrix (OdIfcInstancePtr pPosition, OdGeMatrix3d &matr)
Protected Member Functions inherited from OdIfc::OdIfcRepresentationItem
void	updateTraitsAuxData (OdGiWorldDraw *wd) const
void	resetTraitsAuxData (OdGiWorldDraw *wd) const
OdResult	setAttributes (OdGiWorldDraw *pWd) const

Protected Attributes
OdGeMatrix3d	m_transform
OdGeCurve3dPtr	m_pCurve
Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode
Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)

Detailed Description

A base class that implements storing and handling data about a definition of an IfcCurve.

Definition at line 47 of file IfcCurve.h.

Member Function Documentation

entityId()

virtual OdGe::EntityId OdIfc::OdIfcCurve::entityId ( ) const

inlinevirtual

Retrieves the identifier of an underlying Ge curve.

Returns

An <exref target="OdGe::EntityId"></exref> object that contains the underlaying Ge curve identifier.

Definition at line 59 of file IfcCurve.h.

evalPoint()

virtual OdGePoint3d OdIfc::OdIfcCurve::evalPoint ( double param, OdGeVector3dArray & derivs ) const

virtual

Calculates position and first derivative of the curve by parameter value.

Parameters

param	[in] Parameter value.
derivs	[out] An OdGeVector3dArray which contains first derivative of the curve in parameter.

Returns

Position on the curve as OdGePoint3d instance.

Reimplemented in OdIfc::OdIfcGradientCurve.

getGeCurve()

const OdGeCurve3d * OdIfc::OdIfcCurve::getGeCurve ( ) const

inline

Retrieves the underlaying Ge curve object in read-only mode.

Returns

A constant raw pointer to the underlying Ge curve represented with an <exref target="OdGeCurve3d.html">OdGeCurve3d</exref> object.

Definition at line 71 of file IfcCurve.h.

getGeCurveCopy()

virtual OdGeCurve3d * OdIfc::OdIfcCurve::getGeCurveCopy ( ) const

inlinevirtual

Returns a copy of the underlying Ge curve.

Returns

A raw pointer to the <exref target="OdGeCurve3d.html">OdGeCurve3d</exref> object that represents the copy of the underlaying Ge curve.

Definition at line 65 of file IfcCurve.h.

getMatrix()

void OdIfc::OdIfcCurve::getMatrix ( OdIfcInstancePtr pPosition, OdGeMatrix3d & matr )

protected

is3d()

virtual bool OdIfc::OdIfcCurve::is3d ( ) const

inlinevirtual

Defines whether the curve is a 3D object.

Returns

true if the curve is a 3D object; otherwise, the method returns false.

Reimplemented in OdIfc::OdIfcCompositeCurve.

Definition at line 99 of file IfcCurve.h.

paramAtLength()

virtual double OdIfc::OdIfcCurve::paramAtLength ( double length ) const

virtual

Retrieves parameter value by provided curve length.

Parameters

length

[in] Length from the curve start.

Returns

Parameter value along the curve.

Reimplemented in OdIfc::OdIfcGradientCurve.

setIs3d()

void OdIfc::OdIfcCurve::setIs3d ( bool val )

inline

Sets a new value of the 3D flag for the curve. 3D flag determines whether the curve is a 3D object (if it equals true) or not (in this case the flag value equals false).

Parameters

val	[in] A new value of the flag to be set.

Definition at line 106 of file IfcCurve.h.

transformBy()

OdResult OdIfc::OdIfcCurve::transformBy ( const OdGeMatrix3d & transform )

overridevirtual

Applies the specified transformation to the object.

Parameters

transform

[in] A transformation matrix to be applied.

Returns

eOk value if the transformation operation was successful; otherwise, the method returns an appropriate error code.

Reimplemented from OdIfc::OdIfcRepresentationItem.

Member Data Documentation

m_pCurve

OdGeCurve3dPtr OdIfc::OdIfcCurve::m_pCurve

protected

Definition at line 113 of file IfcCurve.h.

m_transform

OdGeMatrix3d OdIfc::OdIfcCurve::m_transform

protected

Definition at line 111 of file IfcCurve.h.

---

The documentation for this class was generated from the following file:

• IfcCurve.h
