OdIfc::OdIfcCompositeCurve Class Reference

#include <IfcCompositeCurve.h>

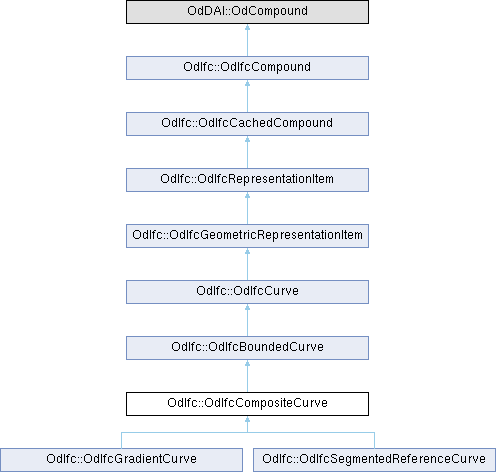

Inheritance diagram for OdIfc::OdIfcCompositeCurve:

Public Member Functions
virtual void	compose ()
virtual bool	is3d () const
virtual bool	draw (OdGiWorldDraw *pWd) const
Public Member Functions inherited from OdIfc::OdIfcCurve
virtual OdGe::EntityId	entityId () const
virtual OdGeCurve3d *	getGeCurveCopy () const
const OdGeCurve3d *	getGeCurve () const
OdResult	transformBy (const OdGeMatrix3d &transform) override
virtual double	paramAtLength (double length) const
virtual OdGePoint3d	evalPoint (double param, OdGeVector3dArray &derivs) const
void	setIs3d (bool val)
Public Member Functions inherited from OdIfc::OdIfcGeometricRepresentationItem
virtual OdDAI::OdBodyVariant	bodyContainer () const
Public Member Functions inherited from OdIfc::OdIfcRepresentationItem
virtual	~OdIfcRepresentationItem ()
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override
OdIfcEntityType	type ()
OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual OdRxValue	getAttr (const OdAnsiString &attrName) const
OdIfcModel *	owningModel () const
bool	isKindOf (OdIfcEntityType type) const
bool	isInstanceOf (OdIfcEntityType entityType) const
const OdAnsiString &	typeName ()
OdIfcFile *	owningIfcFile () const
OdStepFile *	owningStepFile () const override
virtual bool	isPersistent () const
virtual OdDbStub *	id () const
virtual OdDbStub *	ownerId () const
virtual void	xmitPropagateModify ()

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)
Protected Member Functions inherited from OdIfc::OdIfcCurve
void	getMatrix (OdIfcInstancePtr pPosition, OdGeMatrix3d &matr)
Protected Member Functions inherited from OdIfc::OdIfcRepresentationItem
void	updateTraitsAuxData (OdGiWorldDraw *wd) const
void	resetTraitsAuxData (OdGiWorldDraw *wd) const
OdResult	setAttributes (OdGiWorldDraw *pWd) const
Protected Attributes inherited from OdIfc::OdIfcCurve
OdGeMatrix3d	m_transform
OdGeCurve3dPtr	m_pCurve
Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode
Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Detailed Description

A base class that implements storing and handling data about a definition of an IfcCompositeCurve. An IfcCompositeCurve is a continuous curve composed of curve segments.

Definition at line 47 of file IfcCompositeCurve.h.

Member Function Documentation

compose()

virtual void OdIfc::OdIfcCompositeCurve::compose ( )

virtual

Composes the composite curve object based on IFC data of curve segments.

Reimplemented from OdIfc::OdIfcRepresentationItem.

Reimplemented in OdIfc::OdIfcGradientCurve, and OdIfc::OdIfcSegmentedReferenceCurve.

draw()

virtual bool OdIfc::OdIfcCompositeCurve::draw ( OdGiWorldDraw * pWd ) const

virtual

Draws the composite curve to the <exref target="https://docs.opendesign.com/tv_api_cpp/OdGiWorldDraw.html">OdGiWorldDraw interface</exref>.

Parameters

pWd	[in] A raw pointer to the object for the entity-level vectorization.

Returns

true if the gradient curve was successfully drawn; otherwise, the method returns false.

Reimplemented from OdIfc::OdIfcRepresentationItem.

is3d()

virtual bool OdIfc::OdIfcCompositeCurve::is3d ( ) const

virtual

Defines whether the curve is a 3D object.

Returns

true if the curve is a 3D object; otherwise, the method returns false.

Reimplemented from OdIfc::OdIfcCurve.

---

The documentation for this class was generated from the following file:

• IfcCompositeCurve.h
