#include <IfcPropertySetAutoImpl.h>

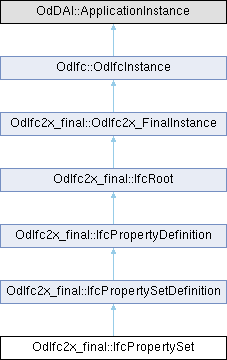

Inheritance diagram for OdIfc2x_final::IfcPropertySet:

Public Member Functions
void	getHasProperties (OdDAIObjectIds &HasProperties) const

OdDAI::SetOfOdDAIObjectId &	hasProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcPropertySetDefinition
void	getInvPropertyDefinitionOf (OdDAIObjectIds &PropertyDefinitionOf) const

void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

Public Member Functions inherited from OdIfc2x_final::IfcPropertyDefinition
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::SetOfOdDAIObjectId	m_HasProperties

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x_final::IfcPropertySetDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

The IfcPropertySet contains properties within a property tree. These properties are interpreted according to their name attribute.
Property sets applicable to certain objects are listed in the object specification. The specification supposes usage of the naming convention "Pset_Xxx". Such naming convention is applied to the property sets that are defined as part of this specification and be used as the value of the Name attribute.

IfcPropertySet can be assigned to object occurrences and object types. An IfcPropertySet assigned to an object type is shared among all occurrences of the same object type.

Property sets are related to other objects by using the relationship object that refers to the corresponding object: Occurrence Object: IfcRelDefinesByProperties using the inverse attribute DefinesOccurrence. Type Object: using a direct link by inverse attribute DefinesType. Underlying template: IfcRelDefinesByTemplate using the inverse attribute IsDefinedBy. External reference: subtypes of IfcRelAssociates are used to provide a link to a classification system, or external library providing further reference to the property set. Accessible by inverse attribute HasAssociations.

Definition at line 55 of file Ifc2x_Final/IfcPropertySetAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcPropertySet::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcPropertyDefinition.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcPropertySet::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ getHasProperties()

void OdIfc2x_final::IfcPropertySet::getHasProperties ( OdDAIObjectIds & HasProperties ) const

Retrieves the contained set of properties.

Parameters

HasProperties [out] Receives an array of Data Access Interface (DAI) identifiers that represent properties in the property set.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcPropertySet::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ hasProperties()

OdDAI::SetOfOdDAIObjectId & OdIfc2x_final::IfcPropertySet::hasProperties ( )

Retrieves the contained set of properties.

Returns: An array of Data Access Interface (DAI) identifiers that represent properties in the property set.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcPropertySet::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcPropertySet::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcPropertySet::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcPropertySet::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcPropertyDefinition.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcPropertySet::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcPropertySet::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcPropertySet::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcPropertySet::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcPropertySet::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcPropertySet::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcPropertySetDefinition.

Member Data Documentation

◆ m_HasProperties

OdDAI::SetOfOdDAIObjectId OdIfc2x_final::IfcPropertySet::m_HasProperties

protected

Definition at line 187 of file Ifc2x_Final/IfcPropertySetAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcPropertySetAutoImpl.h
