#include <IfcPropertyDefinitionAutoImpl.h>

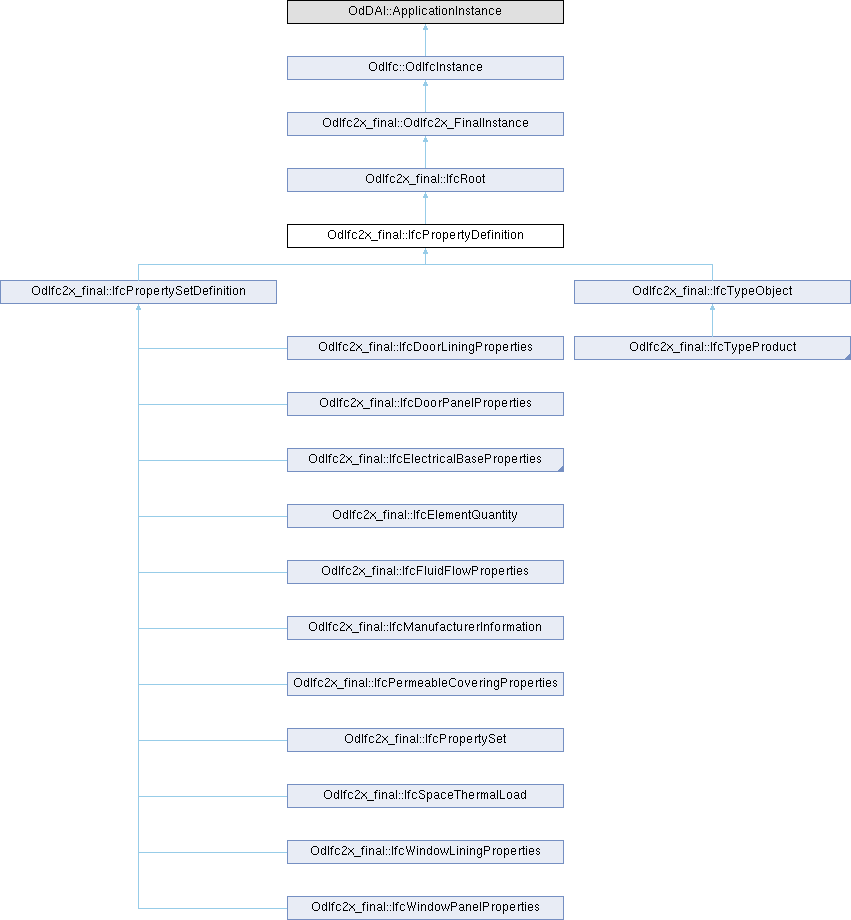

Inheritance diagram for OdIfc2x_final::IfcPropertyDefinition:

Public Member Functions
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelAssociates

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcPropertyDefinition defines the generalization of all characteristics (i.e. a grouping of individual properties), that can be assigned to objects. Currently, subtypes of IfcPropertyDefinition include property set occurrences, property set templates and property templates.

Property set template - IfcPropertySetTemplate, a collection of property templates that determine the definition of properties used within a project context.
Property template - IfcPropertyTemplate, a single template that determines the definition of a particular property used in the same project context.
The template can determine the name, description, data type, the unit, or a standard expression for each property that is based on that template.
Property set occurrence - IfcPropertySet, a set of individual properties (that may or may not be determined by a property template) holding individual values,
measure types and units, and are associated to an object occurrence or object type.

Property definitions define information that is shared among multiple instances of objects, either object occurrences or object types. IfcPropertyDefinition's (by their instantiable subtypes) can participate within the following relationships: Assignment to a project context - an HasContext relationship to IfcRelDeclares that establishes the project context in which this property definition is declared. This relationship is mostly applicable to subtypes of IfcPropertyTemplateDefinition. Association to external resources - an HasAssociation relationship to IfcRelAssociates that refers to external sources of information (most notably a classification or document) and creates a uni-directional association. There is no dependency implied by the association.

Remarks: The subtype hierarchy of IfcPropertyDefinition also includes statically defined property sets as IfcPreDefinedPropertySet. Those are rarely used collections of fixed attributes combined in an entity definition. The IfcPreDefinedPropertySet can not be determined by an IfcPropertySetTemplate. Individual properties, (subtypes of IfcProperty), are currently not included in the subtype hierarchy of IfcPropertyDefinition. This is due to upward compatibility reasons with earlier releases of this standard.

Definition at line 61 of file Ifc2x_Final/IfcPropertyDefinitionAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcRoot::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, and OdIfc2x_final::IfcWindowStyle.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcPropertyDefinition::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcPropertyDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ getInvHasAssociations()

void OdIfc2x_final::IfcPropertyDefinition::getInvHasAssociations ( OdDAIObjectIds & HasAssociations ) const

Returns the value of HasAssociations attribute. This attribute represents reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.

Parameters

HasAssociations [out] Receives the value of HasAssociations attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcPropertyDefinition::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcPropertyDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcPropertyDefinition::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcRoot::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, and OdIfc2x_final::IfcWindowStyle.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcPropertyDefinition::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcPropertyDefinition::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcPropertyDefinition::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcPropertyDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcPropertyDefinition::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcRoot.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcPropertyDefinition::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcRoot.

Friends And Related Symbol Documentation

◆ IfcRelAssociates

friend class IfcRelAssociates

friend

Definition at line 177 of file Ifc2x_Final/IfcPropertyDefinitionAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcPropertyDefinitionAutoImpl.h
