#include <IfcDamperAutoImpl.h>

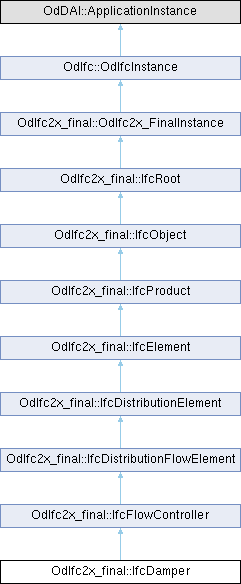

Inheritance diagram for OdIfc2x_final::IfcDamper:

Public Member Functions
IfcDamperTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcDamperTypeEnum PredefinedType)

double	getFrameDepth () const

void	setFrameDepth (double FrameDepth)

IfcDamperSizingMethodEnum	getSizingMethod () const

void	setSizingMethod (IfcDamperSizingMethodEnum SizingMethod)

double	getCloseOffRating () const

void	setCloseOffRating (double CloseOffRating)

double	getLeakageAirFlowRate () const

void	setLeakageAirFlowRate (double LeakageAirFlowRate)

double	getPercentOpen () const

void	setPercentOpen (double PercentOpen)

	IfcDamper ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

double	m_FrameDepth

OdDAI::Enum	m_SizingMethod

double	m_CloseOffRating

double	m_LeakageAirFlowRate

IfcPositiveRatioMeasure	m_PercentOpen

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A damper typically participates in an HVAC duct distribution system and is used to control or modulate the flow of air.

Material Set - This concept can be applied to the following resources: Blade - The material from which the damper blades are constructed. Frame - The material from which the damper frame is constructed. Seal - The material from which the damper seals are constructed.
Object Typing - This concept can be applied to the following resources: IfcDamperType
Port Nesting - This concept can be applied with the following combinations:

PortName Flow PredefinedType AirIn SINK AIRCONDITIONING AirOut SOURCE AIRCONDITIONING

Definition at line 58 of file Ifc2x_Final/IfcDamperAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcDamper()

OdIfc2x_final::IfcDamper::IfcDamper ( )

Default constructor for the IfcDamper class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcDamper::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcDamper::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getCloseOffRating()

double OdIfc2x_final::IfcDamper::getCloseOffRating ( ) const

Returns the value of CloseOffRating attribute. This attribute represents the maximum pressure drop that a valve can withstand without leakage while in the fully closed position.

Returns: Returns the value of CloseOffRating attribute.

◆ getFrameDepth()

double OdIfc2x_final::IfcDamper::getFrameDepth ( ) const

Returns the value of FrameDepth attribute. This attribute represents the length (or depth) of the damper frame.

Returns: Returns the value of FrameDepth attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcDamper::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFlowController.

◆ getLeakageAirFlowRate()

double OdIfc2x_final::IfcDamper::getLeakageAirFlowRate ( ) const

Returns the value of LeakageAirFlowRate attribute. This attribute represents the volume of air that still passes through a fully closed damper.

Returns: Returns the value of LeakageAirFlowRate attribute.

◆ getPercentOpen()

double OdIfc2x_final::IfcDamper::getPercentOpen ( ) const

Returns the value of PercentOpen attribute. This attribute represents the percentage open position for the damper blades. This value varies for dampers under automatic control, but typically remain fixed for dampers used for balancing purposes.

Returns: Returns the value of PercentOpen attribute.

◆ getPredefinedType()

IfcDamperTypeEnum OdIfc2x_final::IfcDamper::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents types to further identify the object. Some property sets can be specifically applicable to one of these types.

Returns: Returns the value of PredefinedType attribute.

◆ getSizingMethod()

IfcDamperSizingMethodEnum OdIfc2x_final::IfcDamper::getSizingMethod ( ) const

Returns the value of SizingMethod attribute. This attribute indicates whether the damper is sized nominally or with exact measurements.

Returns: Returns the value of SizingMethod attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcDamper::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcDamper::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFlowController.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcDamper::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcDamper::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcDamper::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ setCloseOffRating()

void OdIfc2x_final::IfcDamper::setCloseOffRating ( double CloseOffRating )

Sets the value of CloseOffRating attribute. This attribute represents the maximum pressure drop that a valve can withstand without leakage while in the fully closed position.

Parameters

CloseOffRating [in] CloseOffRating attribute to set.

◆ setFrameDepth()

void OdIfc2x_final::IfcDamper::setFrameDepth ( double FrameDepth )

Sets the value of FrameDepth attribute. This attribute represents the length (or depth) of the damper frame.

Parameters

FrameDepth [in] Frame depth to set.

◆ setLeakageAirFlowRate()

void OdIfc2x_final::IfcDamper::setLeakageAirFlowRate ( double LeakageAirFlowRate )

Sets the value of LeakageAirFlowRate attribute. This attribute represents the volume of air that still passes through a fully closed damper.

Parameters

LeakageAirFlowRate [in] LeakageAirFlowRate attribute to set.

◆ setPercentOpen()

void OdIfc2x_final::IfcDamper::setPercentOpen ( double PercentOpen )

Sets the value of PercentOpen attribute. This attribute represents the percentage open position for the damper blades. This value varies for dampers under automatic control, but typically remain fixed for dampers used for balancing purposes.

Parameters

PercentOpen [in] PercentOpen attribute to set.

◆ setPredefinedType()

void OdIfc2x_final::IfcDamper::setPredefinedType ( IfcDamperTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents types to further identify the object. Some property sets can be specifically applicable to one of these types.

Parameters

PredefinedType [in] PredefinedType to set.

◆ setSizingMethod()

void OdIfc2x_final::IfcDamper::setSizingMethod ( IfcDamperSizingMethodEnum SizingMethod )

Sets the value of SizingMethod attribute. This attribute indicates whether the damper is sized nominally or with exact measurements.

Parameters

SizingMethod [in] Sizing method to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcDamper::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcDamper::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcDamper::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFlowController.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcDamper::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcDamper::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

Member Data Documentation

◆ m_CloseOffRating

double OdIfc2x_final::IfcDamper::m_CloseOffRating

protected

Definition at line 281 of file Ifc2x_Final/IfcDamperAutoImpl.h.

◆ m_FrameDepth

double OdIfc2x_final::IfcDamper::m_FrameDepth

protected

Definition at line 279 of file Ifc2x_Final/IfcDamperAutoImpl.h.

◆ m_LeakageAirFlowRate

double OdIfc2x_final::IfcDamper::m_LeakageAirFlowRate

protected

Definition at line 282 of file Ifc2x_Final/IfcDamperAutoImpl.h.

◆ m_PercentOpen

IfcPositiveRatioMeasure OdIfc2x_final::IfcDamper::m_PercentOpen

protected

Definition at line 283 of file Ifc2x_Final/IfcDamperAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc2x_final::IfcDamper::m_PredefinedType

protected

Definition at line 278 of file Ifc2x_Final/IfcDamperAutoImpl.h.

◆ m_SizingMethod

OdDAI::Enum OdIfc2x_final::IfcDamper::m_SizingMethod

protected

Definition at line 280 of file Ifc2x_Final/IfcDamperAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcDamperAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcDamper()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCloseOffRating()

◆ getFrameDepth()

◆ getInstanceType()

◆ getLeakageAirFlowRate()

◆ getPercentOpen()

◆ getPredefinedType()

◆ getSizingMethod()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setCloseOffRating()

◆ setFrameDepth()

◆ setLeakageAirFlowRate()

◆ setPercentOpen()

◆ setPredefinedType()

◆ setSizingMethod()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_CloseOffRating

◆ m_FrameDepth

◆ m_LeakageAirFlowRate

◆ m_PercentOpen

◆ m_PredefinedType

◆ m_SizingMethod
