OdIfc4x2::IfcPropertyTemplateDefinition Class Reference

#include <IfcPropertyTemplateDefinitionAutoImpl.h>

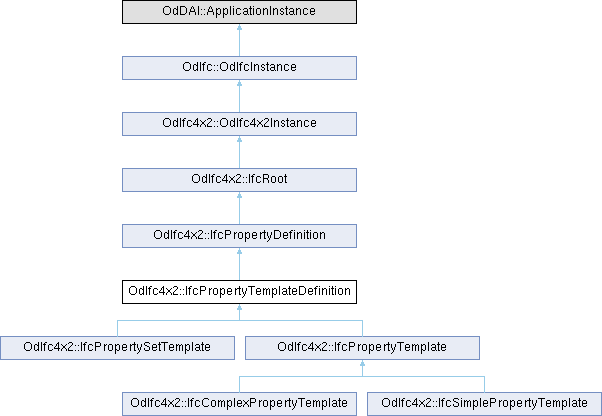

Inheritance diagram for OdIfc4x2::IfcPropertyTemplateDefinition:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc4x2::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Member Functions inherited from OdIfc4x2::IfcPropertyDefinition
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

IfcPropertyTemplateDefinition is a generalization of all property and property set templates. Templates define the collection, types, names, applicable measure types and units of individual properties used in a project. The property template definition can be:

Property set template - IfcPropertySetTemplate, a collection of property templates
that determine the definition of properties used within a project context.
Property template - IfcPropertyTemplate, a single template that determines the definition
of a particular property used in the same project context.
The template can determine the name, description, data type, the unit,
or a standard expression for each property that is based on that template.

Definition at line 49 of file Ifc4x2/IfcPropertyTemplateDefinitionAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcPropertyTemplateDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcPropertyDefinition.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, and OdIfc4x2::IfcSimplePropertyTemplate.

isKindOf()

virtual bool OdIfc4x2::IfcPropertyTemplateDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyDefinition.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, and OdIfc4x2::IfcSimplePropertyTemplate.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcPropertyTemplateDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcPropertyDefinition.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, and OdIfc4x2::IfcSimplePropertyTemplate.

---

The documentation for this class was generated from the following file:

• Ifc4x2/IfcPropertyTemplateDefinitionAutoImpl.h
