#include <IfcCostAutoImpl.h>

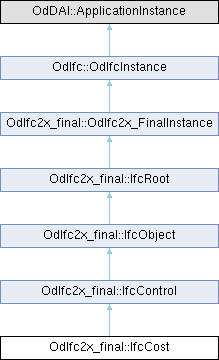

Inheritance diagram for OdIfc2x_final::IfcCost:

Public Member Functions
const OdAnsiString &	getContextDescription () const

void	setContextDescription (const OdAnsiString &ContextDescription)

const OdDAIObjectId &	getElementCost () const

void	setElementCost (const OdDAIObjectId &ElementCost)

const OdDAIObjectId &	getExtensionCost () const

void	setExtensionCost (const OdDAIObjectId &ExtensionCost)

IfcCostUseEnum	getCostUse () const

void	setCostUse (IfcCostUseEnum CostUse)

const OdDAIObjectId &	getPreparedOn () const

void	setPreparedOn (const OdDAIObjectId &PreparedOn)

void	getQuantities (OdDAIObjectIds &Quantities) const

OdDAI::ListOfOdDAIObjectId &	quantities ()

const OdAnsiString &	getCostType () const

void	setCostType (const OdAnsiString &CostType)

OdDAIObjectId	getInvCostSchedule () const

	IfcCost ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcControl
void	getInvControls (OdDAIObjectIds &Controls) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_ContextDescription

OdDAIObjectId	m_ElementCost

OdDAIObjectId	m_ExtensionCost

OdDAI::Enum	m_CostUse

OdDAIObjectId	m_PreparedOn

OdDAI::ListOfOdDAIObjectId	m_Quantities

OdAnsiString	m_CostType

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcCostSchedule

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcCost is a cost with context information. It represents goods, services, or the execution of works of a described elemental nature in given conditions. This entity also has the capability of nesting other costs of the same type through its relationships to IfcRelNests.

The IfcRelNests provides a model mechanism to allow IfcCost to contain other items of the same type. It provides the relationships between the nesting IfcCost and nested IfcCost(s). The image below shows how cost elements can be grouped into one cost, represented by costs being nested within another cost (using the IfcRelNests relationship).

Definition at line 52 of file IfcCostAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcCost()

OdIfc2x_final::IfcCost::IfcCost ( )

Default constructor for the IfcCost class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcCost::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcControl.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcCost::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcControl.

◆ getContextDescription()

const OdAnsiString & OdIfc2x_final::IfcCost::getContextDescription ( ) const

Returns the value of ContextDescription attribute. This attribute represents the contextual information of the cost such as purchase cost, installation cost, consulting cost, etc.

Returns: Returns the value of ContextDescription attribute.

◆ getCostType()

const OdAnsiString & OdIfc2x_final::IfcCost::getCostType ( ) const

Returns the value of CostType attribute. This attribute represents a type of cost that is expressed.

Returns: Returns the value of CostType attribute.

◆ getCostUse()

IfcCostUseEnum OdIfc2x_final::IfcCost::getCostUse ( ) const

Returns the value of CostUse attribute. This attribute indicates how the value of the ElementCost and ExtensionCost is provided and thus how they should be used.

Returns: Returns the value of CostUse attribute.

◆ getElementCost()

const OdDAIObjectId & OdIfc2x_final::IfcCost::getElementCost ( ) const

Returns the value of ElementCost attribute. This attribute represents the cost of a single item of each 'Quantity'. It can be either a unit cost or an item cost depending on the context of the cost element.

Returns: Returns the value of ElementCost attribute.

◆ getExtensionCost()

const OdDAIObjectId & OdIfc2x_final::IfcCost::getExtensionCost ( ) const

Returns the value of ExtensionCost attribute. This attribute represents the summarized the cost of this cost element.

Returns: Returns the value of ExtensionCost attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcCost::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcControl.

◆ getInvCostSchedule()

OdDAIObjectId OdIfc2x_final::IfcCost::getInvCostSchedule ( ) const

Returns the value of CostSchedule attribute. This attribute represents a reference to the cost schedule to which the cost element belongs.

Returns: Returns the value of CostSchedule attribute.

◆ getPreparedOn()

const OdDAIObjectId & OdIfc2x_final::IfcCost::getPreparedOn ( ) const

Returns the value of PreparedOn attribute. This attribute represents the date that the cost is provided.

Returns: Returns the value of PreparedOn attribute.

◆ getQuantities()

void OdIfc2x_final::IfcCost::getQuantities ( OdDAIObjectIds & Quantities ) const

Returns the value of Quantities attribute. This attribute represents the quantities of the items referenced by the cost.

Returns: Returns the value of Quantities attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcCost::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcControl.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcCost::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcControl.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcCost::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcControl.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcCost::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcControl.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcCost::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcControl.

◆ quantities()

OdDAI::ListOfOdDAIObjectId & OdIfc2x_final::IfcCost::quantities ( )

◆ setContextDescription()

void OdIfc2x_final::IfcCost::setContextDescription ( const OdAnsiString & ContextDescription )

Sets the value of ContextDescription attribute. This attribute represents the contextual information of the cost such as purchase cost, installation cost, consulting cost, etc.

Parameters

ContextDescription [in] ContextDescription attribute to set.

◆ setCostType()

void OdIfc2x_final::IfcCost::setCostType ( const OdAnsiString & CostType )

Sets the value of CostType attribute. This attribute represents a type of cost that is expressed.

Parameters

CostType [in] CostType attribute to set.

◆ setCostUse()

void OdIfc2x_final::IfcCost::setCostUse ( IfcCostUseEnum CostUse )

Sets the value of CostUse attribute. This attribute indicates how the value of the ElementCost and ExtensionCost is provided and thus how they should be used.

Parameters

CostUse [in] CostUse attribute to set.

◆ setElementCost()

void OdIfc2x_final::IfcCost::setElementCost ( const OdDAIObjectId & ElementCost )

Sets the value of ElementCost attribute. This attribute represents the cost of a single item of each 'Quantity'. It can be either a unit cost or an item cost depending on the context of the cost element.

Parameters

ElementCost [in] ElementCost attribute to set.

◆ setExtensionCost()

void OdIfc2x_final::IfcCost::setExtensionCost ( const OdDAIObjectId & ExtensionCost )

Sets the value of ExtensionCost attribute. This attribute represents the summarized the cost of this cost element.

Parameters

ExtensionCost [in] ExtensionCost attribute to set.

◆ setPreparedOn()

void OdIfc2x_final::IfcCost::setPreparedOn ( const OdDAIObjectId & PreparedOn )

Sets the value of PreparedOn attribute. This attribute represents the date that the cost is provided.

Parameters

PreparedOn [in] PreparedOn attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcCost::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcControl.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcCost::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcControl.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcCost::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcControl.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcCost::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcControl.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcCost::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcControl.

Friends And Related Symbol Documentation

◆ IfcCostSchedule

friend class IfcCostSchedule

friend

Definition at line 295 of file IfcCostAutoImpl.h.

Member Data Documentation

◆ m_ContextDescription

OdAnsiString OdIfc2x_final::IfcCost::m_ContextDescription

protected

Definition at line 285 of file IfcCostAutoImpl.h.

◆ m_CostType

OdAnsiString OdIfc2x_final::IfcCost::m_CostType

protected

Definition at line 292 of file IfcCostAutoImpl.h.

◆ m_CostUse

OdDAI::Enum OdIfc2x_final::IfcCost::m_CostUse

protected

Definition at line 288 of file IfcCostAutoImpl.h.

◆ m_ElementCost

OdDAIObjectId OdIfc2x_final::IfcCost::m_ElementCost

protected

Definition at line 286 of file IfcCostAutoImpl.h.

◆ m_ExtensionCost

OdDAIObjectId OdIfc2x_final::IfcCost::m_ExtensionCost

protected

Definition at line 287 of file IfcCostAutoImpl.h.

◆ m_PreparedOn

OdDAIObjectId OdIfc2x_final::IfcCost::m_PreparedOn

protected

Definition at line 289 of file IfcCostAutoImpl.h.

◆ m_Quantities

OdDAI::ListOfOdDAIObjectId OdIfc2x_final::IfcCost::m_Quantities

protected

Definition at line 290 of file IfcCostAutoImpl.h.

The documentation for this class was generated from the following file:

IfcCostAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcCost()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getContextDescription()

◆ getCostType()

◆ getCostUse()

◆ getElementCost()

◆ getExtensionCost()

◆ getInstanceType()

◆ getInvCostSchedule()

◆ getPreparedOn()

◆ getQuantities()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ quantities()

◆ setContextDescription()

◆ setCostType()

◆ setCostUse()

◆ setElementCost()

◆ setExtensionCost()

◆ setPreparedOn()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcCostSchedule

Member Data Documentation

◆ m_ContextDescription

◆ m_CostType

◆ m_CostUse

◆ m_ElementCost

◆ m_ExtensionCost

◆ m_PreparedOn

◆ m_Quantities
