#include <IfcControlAutoImpl.h>

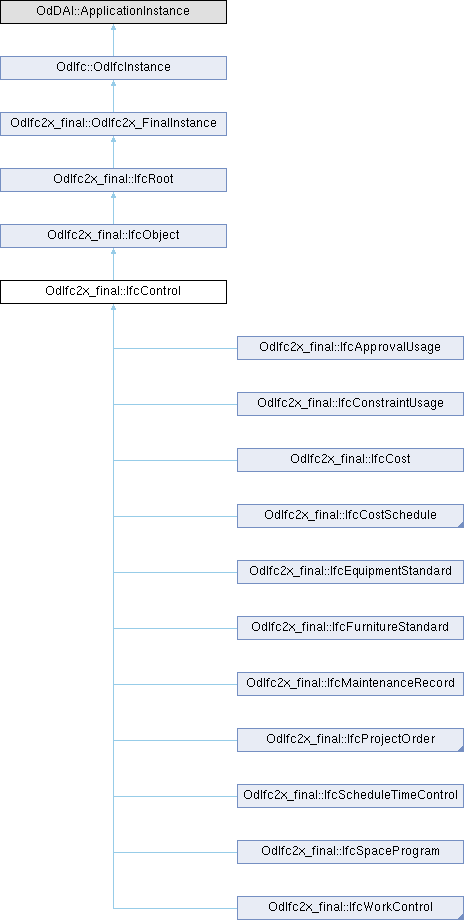

Inheritance diagram for OdIfc2x_final::IfcControl:

Public Member Functions
void	getInvControls (OdDAIObjectIds &Controls) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelAssignsToControl

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcControl is the abstract generalization of all concepts that control or constrain the utilization of products, processes, or resources in general. It can be seen as a regulation, cost schedule, request or order, or other requirements applied to a product, process or resource whose requirements and provisions must be fulfilled. EXAMPLE: Controls include action requests, cost schedules, project orders, work plans, and work calendars.

Control Assignment - The Control Assignment concept applies to this entity. Controls have assignments from products, processes, or other objects by using the relationship object IfcRelAssignsToControl.

Definition at line 47 of file Ifc2x_Final/IfcControlAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcObject::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcControl::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcControl::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcObject.

◆ getInvControls()

void OdIfc2x_final::IfcControl::getInvControls ( OdDAIObjectIds & Controls ) const

Returns the value of Controls attribute. This attribute represents reference to the relationship that associates the control to the object(s) being controlled.

Parameters

Controls [out] Receives the value of Controls attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcControl::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcControl::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcObject.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcControl::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcObject::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcControl::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcControl::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcControl::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcObject.

Reimplemented in OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcControl::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcObject.
