#include <IfcBudgetAutoImpl.h>

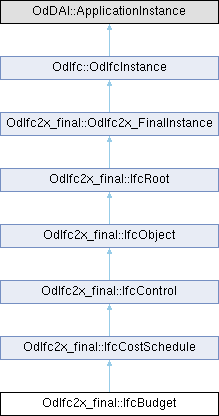

Inheritance diagram for OdIfc2x_final::IfcBudget:

Public Member Functions
const OdAnsiString &	getBudgetSource () const

void	setBudgetSource (const OdAnsiString &BudgetSource)

const OdDAIObjectId &	getBalance () const

void	setBalance (const OdDAIObjectId &Balance)

	IfcBudget ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcCostSchedule
const OdAnsiString &	getTitle () const

void	setTitle (const OdAnsiString &Title)

IfcActorSelect	submittedBy ()

void	getApprovedBy (OdArray< OdDAI::Select > &ApprovedBy) const

void	getApprovedByWrapperArray (OdArray< IfcActorSelect > &ApprovedBy) const

OdDAI::SetOfSelect &	approvedBy ()

const OdDAIObjectId &	getPreparedBy () const

void	setPreparedBy (const OdDAIObjectId &PreparedBy)

const OdDAIObjectId &	getSubmittedOn () const

void	setSubmittedOn (const OdDAIObjectId &SubmittedOn)

const OdDAIObjectId &	getTotalCost () const

void	setTotalCost (const OdDAIObjectId &TotalCost)

void	getCostElements (OdDAIObjectIds &CostElements) const

OdDAI::ListOfOdDAIObjectId &	costElements ()

const OdAnsiString &	getStatus () const

void	setStatus (const OdAnsiString &Status)

const OdAnsiString &	getIntendedUse () const

void	setIntendedUse (const OdAnsiString &IntendedUse)

void	getComments (OdArray< OdAnsiString > &Comments) const

OdDAI::ListOfOdAnsiString &	comments ()

void	getTargetUsers (OdArray< OdDAI::Select > &TargetUsers) const

void	getTargetUsersWrapperArray (OdArray< IfcActorSelect > &TargetUsers) const

OdDAI::SetOfSelect &	targetUsers ()

const OdDAIObjectId &	getValidFromDate () const

void	setValidFromDate (const OdDAIObjectId &ValidFromDate)

const OdDAIObjectId &	getValidToDate () const

void	setValidToDate (const OdDAIObjectId &ValidToDate)

const OdDAIObjectId &	getUpdateDate () const

void	setUpdateDate (const OdDAIObjectId &UpdateDate)

const OdAnsiString &	getScheduleNumber () const

void	setScheduleNumber (const OdAnsiString &ScheduleNumber)

	IfcCostSchedule ()

Public Member Functions inherited from OdIfc2x_final::IfcControl
void	getInvControls (OdDAIObjectIds &Controls) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_BudgetSource

OdDAIObjectId	m_Balance

Protected Attributes inherited from OdIfc2x_final::IfcCostSchedule
OdAnsiString	m_Title

OdDAI::Select	m_SubmittedBy

OdDAI::SetOfSelect	m_ApprovedBy

OdDAIObjectId	m_PreparedBy

OdDAIObjectId	m_SubmittedOn

OdDAIObjectId	m_TotalCost

OdDAI::ListOfOdDAIObjectId	m_CostElements

OdAnsiString	m_Status

OdAnsiString	m_IntendedUse

OdDAI::ListOfOdAnsiString	m_Comments

OdDAI::SetOfSelect	m_TargetUsers

OdDAIObjectId	m_ValidFromDate

OdDAIObjectId	m_ValidToDate

OdDAIObjectId	m_UpdateDate

OdAnsiString	m_ScheduleNumber

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcBudget represents a cost budget (i.e. an amount of money available from a source) available for projects. This class also allows tracking the history of the budget uses. The details of budget assignment and usage for multiple projects or plans are not handled in this class.

Definition at line 43 of file IfcBudgetAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcBudget()

OdIfc2x_final::IfcBudget::IfcBudget ( )

Default constructor for the IfcBudget class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcBudget::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcBudget::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ getBalance()

const OdDAIObjectId & OdIfc2x_final::IfcBudget::getBalance ( ) const

Returns the value of Balance attribute. This attribute represents the balance available on the budget.

Returns: Returns the value of Balance attribute.

◆ getBudgetSource()

const OdAnsiString & OdIfc2x_final::IfcBudget::getBudgetSource ( ) const

Returns the value of BudgetSource attribute. This attribute represents description of the source of the budget.

Returns: Returns the value of BudgetSource attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcBudget::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcBudget::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcBudget::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcBudget::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcBudget::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcBudget::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ setBalance()

void OdIfc2x_final::IfcBudget::setBalance ( const OdDAIObjectId & Balance )

Sets the value of Balance attribute. This attribute represents the balance available on the budget.

Parameters

Balance [in] Balance attribute to set.

◆ setBudgetSource()

void OdIfc2x_final::IfcBudget::setBudgetSource ( const OdAnsiString & BudgetSource )

Sets the value of BudgetSource attribute. This attribute represents description of the source of the budget.

Parameters

BudgetSource [in] BudgetSource attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcBudget::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcBudget::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcBudget::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcBudget::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcBudget::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcCostSchedule.

Member Data Documentation

◆ m_Balance

OdDAIObjectId OdIfc2x_final::IfcBudget::m_Balance

protected

Definition at line 198 of file IfcBudgetAutoImpl.h.

◆ m_BudgetSource

OdAnsiString OdIfc2x_final::IfcBudget::m_BudgetSource

protected

Definition at line 197 of file IfcBudgetAutoImpl.h.

The documentation for this class was generated from the following file:

IfcBudgetAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcBudget()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBalance()

◆ getBudgetSource()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBalance()

◆ setBudgetSource()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_Balance

◆ m_BudgetSource
