#include <IfcCoilAutoImpl.h>

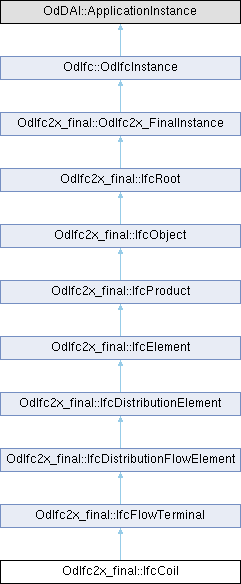

Inheritance diagram for OdIfc2x_final::IfcCoil:

Public Member Functions
IfcCoilTypeEnum	getCoilType () const

void	setCoilType (IfcCoilTypeEnum CoilType)

double	getBypassFactor () const

void	setBypassFactor (double BypassFactor)

double	getFaceVelocity () const

void	setFaceVelocity (double FaceVelocity)

IfcCoilFlowArrangementEnum	getFlowArrangement () const

void	setFlowArrangement (IfcCoilFlowArrangementEnum FlowArrangement)

	IfcCoil ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_CoilType

double	m_BypassFactor

double	m_FaceVelocity

OdDAI::Enum	m_FlowArrangement

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A coil is a device that provides heat transfer between non-mixing media. A common example is a cooling coil, which utilizes a finned coil in which circulates chilled water, antifreeze, or refrigerant that is used to remove heat from air moving across the surface of the coil. A coil can be used either for heating or cooling purposes by placing a series of tubes (the coil) carrying a heating or cooling fluid into an air stream. The coil can be constructed from tubes bundled in a serpentine form or from finned tubes that give a extended heat transfer surface.

Coils can also be used for non-airflow cases such as embedded in a floor slab.

Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed.
Object Typing - This concept can be applied to the following resources: IfcCoilType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType RefrigerantIn SINK REFRIGERATION RefrigerantOut SOURCE DXCOOLINGCOIL AirIn SINK DXCOOLINGCOIL AirOut SOURCE AIRCONDITIONING ChilledWaterIn SINK WATERCOOLINGCOIL ChilledWaterOut SOURCE WATERCOOLINGCOIL AirIn SINK WATERCOOLINGCOIL AirOut SOURCE WATERCOOLINGCOIL HeatingIn SINK HEATING HeatingOut SOURCE HEATING AirIn SINK WATERHEATINGCOIL AirOut SOURCE WATERHEATINGCOIL

Property Sets for Objects - This concept can be applied to the following resources: Pset_CoilOccurrence Pset_CoilTypeCommon Pset_CoilTypeHydronic
Quantity Sets - This concept can be applied to the following resources: Qto_CoilBaseQuantities
Property Sets for Performance - This concept can be applied to the following resources: Pset_CoilPHistory

Definition at line 86 of file Ifc2x_Final/IfcCoilAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcCoil()

OdIfc2x_final::IfcCoil::IfcCoil ( )

Default constructor for the IfcCoil class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcCoil::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcCoil::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getBypassFactor()

double OdIfc2x_final::IfcCoil::getBypassFactor ( ) const

Returns the value of BypassFactor attribute. This attribute represents coil bypass factor.

Returns: Returns the value of BypassFactor attribute.

◆ getCoilType()

IfcCoilTypeEnum OdIfc2x_final::IfcCoil::getCoilType ( ) const

Returns the value of CoilType attribute. This attribute represents typical types of coils.

Returns: Returns the value of CoilType attribute.

◆ getFaceVelocity()

double OdIfc2x_final::IfcCoil::getFaceVelocity ( ) const

Returns the value of FaceVelocity attribute. This attribute represents air velocity through the coil.

Returns: Returns the value of FaceVelocity attribute.

◆ getFlowArrangement()

IfcCoilFlowArrangementEnum OdIfc2x_final::IfcCoil::getFlowArrangement ( ) const

Returns the value of FlowArrangement attribute. This attribute represents coil flow arrangement.

Returns: Returns the value of FlowArrangement attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcCoil::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcCoil::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcCoil::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcCoil::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcCoil::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcCoil::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ setBypassFactor()

void OdIfc2x_final::IfcCoil::setBypassFactor ( double BypassFactor )

Sets the value of BypassFactor attribute. This attribute represents coil bypass factor.

Parameters

BypassFactor [in] BypassFactor attribute to set.

◆ setCoilType()

void OdIfc2x_final::IfcCoil::setCoilType ( IfcCoilTypeEnum CoilType )

Sets the value of CoilType attribute. This attribute represents typical types of coils.

Parameters

CoilType [in] Coil type to set.

◆ setFaceVelocity()

void OdIfc2x_final::IfcCoil::setFaceVelocity ( double FaceVelocity )

Sets the value of FaceVelocity attribute. This attribute represents air velocity through the coil.

Parameters

FaceVelocity [in] FaceVelocity attribute to set.

◆ setFlowArrangement()

void OdIfc2x_final::IfcCoil::setFlowArrangement ( IfcCoilFlowArrangementEnum FlowArrangement )

Sets the value of FlowArrangement attribute. This attribute represents coil flow arrangement.

Parameters

FlowArrangement [in] FlowArrangement attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcCoil::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcCoil::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcCoil::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcCoil::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcCoil::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

Member Data Documentation

◆ m_BypassFactor

double OdIfc2x_final::IfcCoil::m_BypassFactor

protected

Definition at line 271 of file Ifc2x_Final/IfcCoilAutoImpl.h.

◆ m_CoilType

OdDAI::Enum OdIfc2x_final::IfcCoil::m_CoilType

protected

Definition at line 270 of file Ifc2x_Final/IfcCoilAutoImpl.h.

◆ m_FaceVelocity

double OdIfc2x_final::IfcCoil::m_FaceVelocity

protected

Definition at line 272 of file Ifc2x_Final/IfcCoilAutoImpl.h.

◆ m_FlowArrangement

OdDAI::Enum OdIfc2x_final::IfcCoil::m_FlowArrangement

protected

Definition at line 273 of file Ifc2x_Final/IfcCoilAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcCoilAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcCoil()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBypassFactor()

◆ getCoilType()

◆ getFaceVelocity()

◆ getFlowArrangement()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBypassFactor()

◆ setCoilType()

◆ setFaceVelocity()

◆ setFlowArrangement()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BypassFactor

◆ m_CoilType

◆ m_FaceVelocity

◆ m_FlowArrangement
