#include <IfcGeometricRepresentationItemAutoImpl.h>

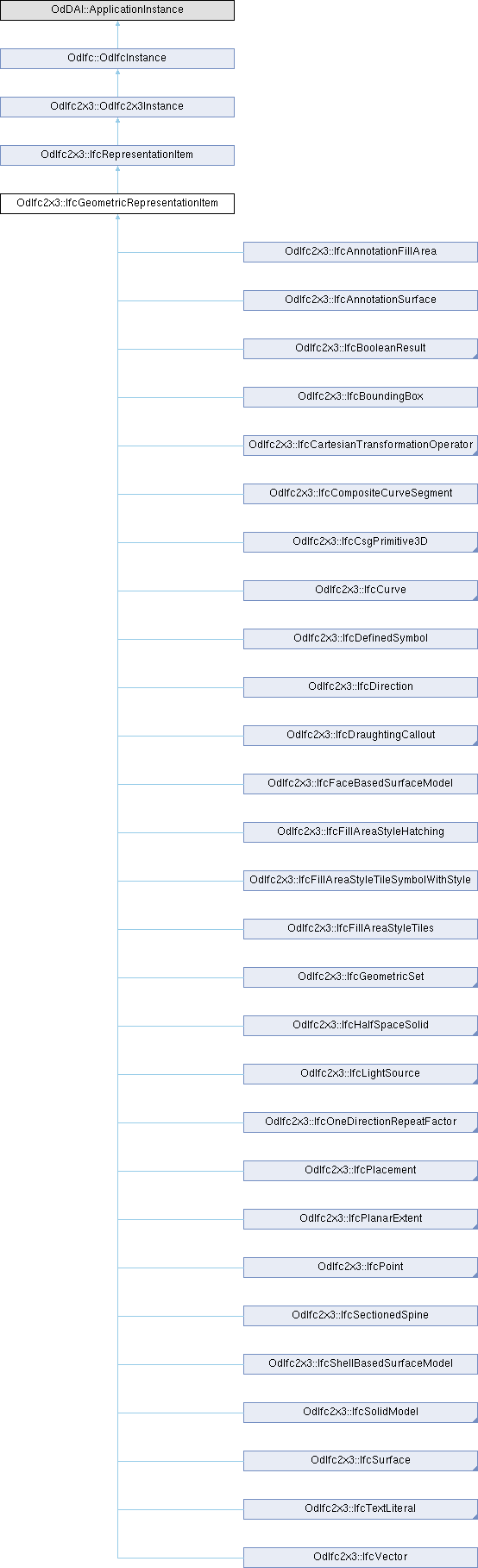

Inheritance diagram for OdIfc2x3::IfcGeometricRepresentationItem:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An IfcGeometricRepresentationItem is the common supertype of all geometric items used within a representation. It is positioned within a geometric coordinate system, directly or indirectly through intervening items. An indirect reference to a Cartesian point or direction means that a given geometric item references the Cartesian point or direction through one or more intervening geometry or topology items.

Definition at line 43 of file Ifc2x3/IfcGeometricRepresentationItemAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcGeometricRepresentationItem::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Reimplemented in OdIfc2x3::Ifc2DCompositeCurve, OdIfc2x3::IfcAngularDimension, OdIfc2x3::IfcAnnotationFillArea, OdIfc2x3::IfcAnnotationSurface, OdIfc2x3::IfcAxis1Placement, OdIfc2x3::IfcAxis2Placement2D, OdIfc2x3::IfcAxis2Placement3D, OdIfc2x3::IfcBezierCurve, OdIfc2x3::IfcBlock, OdIfc2x3::IfcBooleanClippingResult, OdIfc2x3::IfcBooleanResult, OdIfc2x3::IfcBoundedCurve, OdIfc2x3::IfcBoundedSurface, OdIfc2x3::IfcBoundingBox, OdIfc2x3::IfcBoxedHalfSpace, OdIfc2x3::IfcBSplineCurve, OdIfc2x3::IfcCartesianPoint, OdIfc2x3::IfcCartesianTransformationOperator2D, OdIfc2x3::IfcCartesianTransformationOperator2DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator3D, OdIfc2x3::IfcCartesianTransformationOperator3DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator, OdIfc2x3::IfcCircle, OdIfc2x3::IfcCompositeCurve, OdIfc2x3::IfcCompositeCurveSegment, OdIfc2x3::IfcConic, OdIfc2x3::IfcCsgPrimitive3D, OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcCurve, OdIfc2x3::IfcCurveBoundedPlane, OdIfc2x3::IfcDefinedSymbol, OdIfc2x3::IfcDiameterDimension, OdIfc2x3::IfcDimensionCurveDirectedCallout, OdIfc2x3::IfcDirection, OdIfc2x3::IfcDraughtingCallout, OdIfc2x3::IfcElementarySurface, OdIfc2x3::IfcEllipse, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFaceBasedSurfaceModel, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcFillAreaStyleHatching, OdIfc2x3::IfcFillAreaStyleTiles, OdIfc2x3::IfcFillAreaStyleTileSymbolWithStyle, OdIfc2x3::IfcGeometricCurveSet, OdIfc2x3::IfcGeometricSet, OdIfc2x3::IfcHalfSpaceSolid, OdIfc2x3::IfcLightSource, OdIfc2x3::IfcLightSourceAmbient, OdIfc2x3::IfcLightSourceDirectional, OdIfc2x3::IfcLightSourceGoniometric, OdIfc2x3::IfcLightSourcePositional, OdIfc2x3::IfcLightSourceSpot, OdIfc2x3::IfcLine, OdIfc2x3::IfcLinearDimension, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcOffsetCurve2D, OdIfc2x3::IfcOffsetCurve3D, OdIfc2x3::IfcOneDirectionRepeatFactor, OdIfc2x3::IfcPlacement, OdIfc2x3::IfcPlanarBox, OdIfc2x3::IfcPlanarExtent, OdIfc2x3::IfcPlane, OdIfc2x3::IfcPoint, OdIfc2x3::IfcPointOnCurve, OdIfc2x3::IfcPointOnSurface, OdIfc2x3::IfcPolygonalBoundedHalfSpace, OdIfc2x3::IfcPolyline, OdIfc2x3::IfcRadiusDimension, OdIfc2x3::IfcRationalBezierCurve, OdIfc2x3::IfcRectangularPyramid, OdIfc2x3::IfcRectangularTrimmedSurface, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcRightCircularCone, OdIfc2x3::IfcRightCircularCylinder, OdIfc2x3::IfcSectionedSpine, OdIfc2x3::IfcShellBasedSurfaceModel, OdIfc2x3::IfcSolidModel, OdIfc2x3::IfcSphere, OdIfc2x3::IfcStructuredDimensionCallout, OdIfc2x3::IfcSurface, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSurfaceOfLinearExtrusion, OdIfc2x3::IfcSurfaceOfRevolution, OdIfc2x3::IfcSweptAreaSolid, OdIfc2x3::IfcSweptDiskSolid, OdIfc2x3::IfcSweptSurface, OdIfc2x3::IfcTextLiteral, OdIfc2x3::IfcTextLiteralWithExtent, OdIfc2x3::IfcTrimmedCurve, OdIfc2x3::IfcTwoDirectionRepeatFactor, and OdIfc2x3::IfcVector.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcGeometricRepresentationItem::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Reimplemented in OdIfc2x3::Ifc2DCompositeCurve, OdIfc2x3::IfcAngularDimension, OdIfc2x3::IfcAnnotationFillArea, OdIfc2x3::IfcAnnotationSurface, OdIfc2x3::IfcAxis1Placement, OdIfc2x3::IfcAxis2Placement2D, OdIfc2x3::IfcAxis2Placement3D, OdIfc2x3::IfcBezierCurve, OdIfc2x3::IfcBlock, OdIfc2x3::IfcBooleanClippingResult, OdIfc2x3::IfcBooleanResult, OdIfc2x3::IfcBoundedCurve, OdIfc2x3::IfcBoundedSurface, OdIfc2x3::IfcBoundingBox, OdIfc2x3::IfcBoxedHalfSpace, OdIfc2x3::IfcBSplineCurve, OdIfc2x3::IfcCartesianPoint, OdIfc2x3::IfcCartesianTransformationOperator2D, OdIfc2x3::IfcCartesianTransformationOperator2DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator3D, OdIfc2x3::IfcCartesianTransformationOperator3DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator, OdIfc2x3::IfcCircle, OdIfc2x3::IfcCompositeCurve, OdIfc2x3::IfcCompositeCurveSegment, OdIfc2x3::IfcConic, OdIfc2x3::IfcCsgPrimitive3D, OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcCurve, OdIfc2x3::IfcCurveBoundedPlane, OdIfc2x3::IfcDefinedSymbol, OdIfc2x3::IfcDiameterDimension, OdIfc2x3::IfcDimensionCurveDirectedCallout, OdIfc2x3::IfcDirection, OdIfc2x3::IfcDraughtingCallout, OdIfc2x3::IfcElementarySurface, OdIfc2x3::IfcEllipse, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFaceBasedSurfaceModel, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcFillAreaStyleHatching, OdIfc2x3::IfcFillAreaStyleTiles, OdIfc2x3::IfcFillAreaStyleTileSymbolWithStyle, OdIfc2x3::IfcGeometricCurveSet, OdIfc2x3::IfcGeometricSet, OdIfc2x3::IfcHalfSpaceSolid, OdIfc2x3::IfcLightSource, OdIfc2x3::IfcLightSourceAmbient, OdIfc2x3::IfcLightSourceDirectional, OdIfc2x3::IfcLightSourceGoniometric, OdIfc2x3::IfcLightSourcePositional, OdIfc2x3::IfcLightSourceSpot, OdIfc2x3::IfcLine, OdIfc2x3::IfcLinearDimension, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcOffsetCurve2D, OdIfc2x3::IfcOffsetCurve3D, OdIfc2x3::IfcOneDirectionRepeatFactor, OdIfc2x3::IfcPlacement, OdIfc2x3::IfcPlanarBox, OdIfc2x3::IfcPlanarExtent, OdIfc2x3::IfcPlane, OdIfc2x3::IfcPoint, OdIfc2x3::IfcPointOnCurve, OdIfc2x3::IfcPointOnSurface, OdIfc2x3::IfcPolygonalBoundedHalfSpace, OdIfc2x3::IfcPolyline, OdIfc2x3::IfcRadiusDimension, OdIfc2x3::IfcRationalBezierCurve, OdIfc2x3::IfcRectangularPyramid, OdIfc2x3::IfcRectangularTrimmedSurface, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcRightCircularCone, OdIfc2x3::IfcRightCircularCylinder, OdIfc2x3::IfcSectionedSpine, OdIfc2x3::IfcShellBasedSurfaceModel, OdIfc2x3::IfcSolidModel, OdIfc2x3::IfcSphere, OdIfc2x3::IfcStructuredDimensionCallout, OdIfc2x3::IfcSurface, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSurfaceOfLinearExtrusion, OdIfc2x3::IfcSurfaceOfRevolution, OdIfc2x3::IfcSweptAreaSolid, OdIfc2x3::IfcSweptDiskSolid, OdIfc2x3::IfcSweptSurface, OdIfc2x3::IfcTextLiteral, OdIfc2x3::IfcTextLiteralWithExtent, OdIfc2x3::IfcTrimmedCurve, OdIfc2x3::IfcTwoDirectionRepeatFactor, and OdIfc2x3::IfcVector.

◆ isKindOf()

virtual bool OdIfc2x3::IfcGeometricRepresentationItem::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Reimplemented in OdIfc2x3::Ifc2DCompositeCurve, OdIfc2x3::IfcAngularDimension, OdIfc2x3::IfcAnnotationFillArea, OdIfc2x3::IfcAnnotationSurface, OdIfc2x3::IfcAxis1Placement, OdIfc2x3::IfcAxis2Placement2D, OdIfc2x3::IfcAxis2Placement3D, OdIfc2x3::IfcBezierCurve, OdIfc2x3::IfcBlock, OdIfc2x3::IfcBooleanClippingResult, OdIfc2x3::IfcBooleanResult, OdIfc2x3::IfcBoundedCurve, OdIfc2x3::IfcBoundedSurface, OdIfc2x3::IfcBoundingBox, OdIfc2x3::IfcBoxedHalfSpace, OdIfc2x3::IfcBSplineCurve, OdIfc2x3::IfcCartesianPoint, OdIfc2x3::IfcCartesianTransformationOperator2D, OdIfc2x3::IfcCartesianTransformationOperator2DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator3D, OdIfc2x3::IfcCartesianTransformationOperator3DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator, OdIfc2x3::IfcCircle, OdIfc2x3::IfcCompositeCurve, OdIfc2x3::IfcCompositeCurveSegment, OdIfc2x3::IfcConic, OdIfc2x3::IfcCsgPrimitive3D, OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcCurve, OdIfc2x3::IfcCurveBoundedPlane, OdIfc2x3::IfcDefinedSymbol, OdIfc2x3::IfcDiameterDimension, OdIfc2x3::IfcDimensionCurveDirectedCallout, OdIfc2x3::IfcDirection, OdIfc2x3::IfcDraughtingCallout, OdIfc2x3::IfcElementarySurface, OdIfc2x3::IfcEllipse, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFaceBasedSurfaceModel, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcFillAreaStyleHatching, OdIfc2x3::IfcFillAreaStyleTiles, OdIfc2x3::IfcFillAreaStyleTileSymbolWithStyle, OdIfc2x3::IfcGeometricCurveSet, OdIfc2x3::IfcGeometricSet, OdIfc2x3::IfcHalfSpaceSolid, OdIfc2x3::IfcLightSource, OdIfc2x3::IfcLightSourceAmbient, OdIfc2x3::IfcLightSourceDirectional, OdIfc2x3::IfcLightSourceGoniometric, OdIfc2x3::IfcLightSourcePositional, OdIfc2x3::IfcLightSourceSpot, OdIfc2x3::IfcLine, OdIfc2x3::IfcLinearDimension, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcOffsetCurve2D, OdIfc2x3::IfcOffsetCurve3D, OdIfc2x3::IfcOneDirectionRepeatFactor, OdIfc2x3::IfcPlacement, OdIfc2x3::IfcPlanarBox, OdIfc2x3::IfcPlanarExtent, OdIfc2x3::IfcPlane, OdIfc2x3::IfcPoint, OdIfc2x3::IfcPointOnCurve, OdIfc2x3::IfcPointOnSurface, OdIfc2x3::IfcPolygonalBoundedHalfSpace, OdIfc2x3::IfcPolyline, OdIfc2x3::IfcRadiusDimension, OdIfc2x3::IfcRationalBezierCurve, OdIfc2x3::IfcRectangularPyramid, OdIfc2x3::IfcRectangularTrimmedSurface, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcRightCircularCone, OdIfc2x3::IfcRightCircularCylinder, OdIfc2x3::IfcSectionedSpine, OdIfc2x3::IfcShellBasedSurfaceModel, OdIfc2x3::IfcSolidModel, OdIfc2x3::IfcSphere, OdIfc2x3::IfcStructuredDimensionCallout, OdIfc2x3::IfcSurface, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSurfaceOfLinearExtrusion, OdIfc2x3::IfcSurfaceOfRevolution, OdIfc2x3::IfcSweptAreaSolid, OdIfc2x3::IfcSweptDiskSolid, OdIfc2x3::IfcSweptSurface, OdIfc2x3::IfcTextLiteral, OdIfc2x3::IfcTextLiteralWithExtent, OdIfc2x3::IfcTrimmedCurve, OdIfc2x3::IfcTwoDirectionRepeatFactor, and OdIfc2x3::IfcVector.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcGeometricRepresentationItem::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Reimplemented in OdIfc2x3::Ifc2DCompositeCurve, OdIfc2x3::IfcAngularDimension, OdIfc2x3::IfcAnnotationFillArea, OdIfc2x3::IfcAnnotationSurface, OdIfc2x3::IfcAxis1Placement, OdIfc2x3::IfcAxis2Placement2D, OdIfc2x3::IfcAxis2Placement3D, OdIfc2x3::IfcBezierCurve, OdIfc2x3::IfcBlock, OdIfc2x3::IfcBooleanClippingResult, OdIfc2x3::IfcBooleanResult, OdIfc2x3::IfcBoundedCurve, OdIfc2x3::IfcBoundedSurface, OdIfc2x3::IfcBoundingBox, OdIfc2x3::IfcBoxedHalfSpace, OdIfc2x3::IfcBSplineCurve, OdIfc2x3::IfcCartesianPoint, OdIfc2x3::IfcCartesianTransformationOperator2D, OdIfc2x3::IfcCartesianTransformationOperator2DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator3D, OdIfc2x3::IfcCartesianTransformationOperator3DnonUniform, OdIfc2x3::IfcCartesianTransformationOperator, OdIfc2x3::IfcCircle, OdIfc2x3::IfcCompositeCurve, OdIfc2x3::IfcCompositeCurveSegment, OdIfc2x3::IfcConic, OdIfc2x3::IfcCsgPrimitive3D, OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcCurve, OdIfc2x3::IfcCurveBoundedPlane, OdIfc2x3::IfcDefinedSymbol, OdIfc2x3::IfcDiameterDimension, OdIfc2x3::IfcDimensionCurveDirectedCallout, OdIfc2x3::IfcDirection, OdIfc2x3::IfcDraughtingCallout, OdIfc2x3::IfcElementarySurface, OdIfc2x3::IfcEllipse, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFaceBasedSurfaceModel, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcFillAreaStyleHatching, OdIfc2x3::IfcFillAreaStyleTiles, OdIfc2x3::IfcFillAreaStyleTileSymbolWithStyle, OdIfc2x3::IfcGeometricCurveSet, OdIfc2x3::IfcGeometricSet, OdIfc2x3::IfcHalfSpaceSolid, OdIfc2x3::IfcLightSource, OdIfc2x3::IfcLightSourceAmbient, OdIfc2x3::IfcLightSourceDirectional, OdIfc2x3::IfcLightSourceGoniometric, OdIfc2x3::IfcLightSourcePositional, OdIfc2x3::IfcLightSourceSpot, OdIfc2x3::IfcLine, OdIfc2x3::IfcLinearDimension, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcOffsetCurve2D, OdIfc2x3::IfcOffsetCurve3D, OdIfc2x3::IfcOneDirectionRepeatFactor, OdIfc2x3::IfcPlacement, OdIfc2x3::IfcPlanarBox, OdIfc2x3::IfcPlanarExtent, OdIfc2x3::IfcPlane, OdIfc2x3::IfcPoint, OdIfc2x3::IfcPointOnCurve, OdIfc2x3::IfcPointOnSurface, OdIfc2x3::IfcPolygonalBoundedHalfSpace, OdIfc2x3::IfcPolyline, OdIfc2x3::IfcRadiusDimension, OdIfc2x3::IfcRationalBezierCurve, OdIfc2x3::IfcRectangularPyramid, OdIfc2x3::IfcRectangularTrimmedSurface, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcRightCircularCone, OdIfc2x3::IfcRightCircularCylinder, OdIfc2x3::IfcSectionedSpine, OdIfc2x3::IfcShellBasedSurfaceModel, OdIfc2x3::IfcSolidModel, OdIfc2x3::IfcSphere, OdIfc2x3::IfcStructuredDimensionCallout, OdIfc2x3::IfcSurface, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSurfaceOfLinearExtrusion, OdIfc2x3::IfcSurfaceOfRevolution, OdIfc2x3::IfcSweptAreaSolid, OdIfc2x3::IfcSweptDiskSolid, OdIfc2x3::IfcSweptSurface, OdIfc2x3::IfcTextLiteral, OdIfc2x3::IfcTextLiteralWithExtent, OdIfc2x3::IfcTrimmedCurve, OdIfc2x3::IfcTwoDirectionRepeatFactor, and OdIfc2x3::IfcVector.

The documentation for this class was generated from the following file:

Ifc2x3/IfcGeometricRepresentationItemAutoImpl.h
