#include <IfcAirTerminalAutoImpl.h>

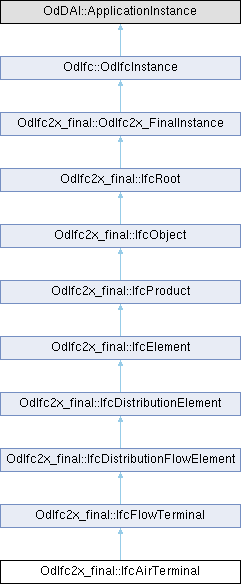

Inheritance diagram for OdIfc2x_final::IfcAirTerminal:

Public Member Functions
IfcAirFlowTypeEnum	getAirFlowType () const

void	setAirFlowType (IfcAirFlowTypeEnum AirFlowType)

double	getThrow () const

void	setThrow (double Throw)

double	getAirDiffusionPerformanceIndex () const

void	setAirDiffusionPerformanceIndex (double AirDiffusionPerformanceIndex)

IfcAirTerminalFinishTypeEnum	getFinishType () const

void	setFinishType (IfcAirTerminalFinishTypeEnum FinishType)

const OdAnsiString &	getFinishColor () const

void	setFinishColor (const OdAnsiString &FinishColor)

IfcAirTerminalMountingTypeEnum	getMountingType () const

void	setMountingType (IfcAirTerminalMountingTypeEnum MountingType)

IfcAirTerminalFaceTypeEnum	getFaceType () const

void	setFaceType (IfcAirTerminalFaceTypeEnum FaceType)

IfcAirTerminalCoreTypeEnum	getCoreType () const

void	setCoreType (IfcAirTerminalCoreTypeEnum CoreType)

double	getCoreSetVertical () const

void	setCoreSetVertical (double CoreSetVertical)

double	getCoreSetHorizontal () const

void	setCoreSetHorizontal (double CoreSetHorizontal)

OdDAI::Boolean	getIntegralControl () const

void	setIntegralControl (OdDAI::Boolean IntegralControl)

	IfcAirTerminal ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_AirFlowType

double	m_Throw

double	m_AirDiffusionPerformanceIndex

OdDAI::Enum	m_FinishType

OdAnsiString	m_FinishColor

OdDAI::Enum	m_MountingType

OdDAI::Enum	m_FaceType

OdDAI::Enum	m_CoreType

double	m_CoreSetVertical

double	m_CoreSetHorizontal

OdDAI::Boolean	m_IntegralControl

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An air terminal is a terminating or origination point for the transfer of air between distribution system(s) and one or more spaces. It can also be used for the transfer of air between adjacent spaces.

Definition at line 41 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcAirTerminal()

OdIfc2x_final::IfcAirTerminal::IfcAirTerminal ( )

Default constructor for the IfcAirTerminal class.

Member Function Documentation

◆ getAirDiffusionPerformanceIndex()

double OdIfc2x_final::IfcAirTerminal::getAirDiffusionPerformanceIndex ( ) const

Returns the value of AirDiffusionPerformanceIndex attribute. This attribute represents the Air Diffusion Performance Index (ADPI) that is used for cooling mode conditions. If several measurements of air velocity and air temperature are made throughout the occupied zone of a space, the ADPI is the percentage of locations where measurements were taken that meet the specifications for effective draft temperature and air velocity.

Returns: Returns the value of AirDiffusionPerformanceIndex attribute.

◆ getAirFlowType()

IfcAirFlowTypeEnum OdIfc2x_final::IfcAirTerminal::getAirFlowType ( ) const

Returns the value of AirFlowType attribute. This attribute represents possible AirTerminal types (e.g., Supply, Return, Exhaust, etc.).

Returns: Returns the value of AirFlowType attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcAirTerminal::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcAirTerminal::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getCoreSetHorizontal()

double OdIfc2x_final::IfcAirTerminal::getCoreSetHorizontal ( ) const

Returns the value of CoreSetHorizontal attribute. This attribute represents degree of blade set from the centerline.

Returns: Returns the value of CoreSetHorizontal attribute.

◆ getCoreSetVertical()

double OdIfc2x_final::IfcAirTerminal::getCoreSetVertical ( ) const

Returns the value of CoreSetVertical attribute. This attribute represents degree of blade set from the center line.

Returns: Returns the value of CoreSetVertical attribute.

◆ getCoreType()

IfcAirTerminalCoreTypeEnum OdIfc2x_final::IfcAirTerminal::getCoreType ( ) const

Returns the value of CoreType attribute. This attribute identifies the way the core of the AirTerminal is constructed.

Returns: Returns the value of CoreType attribute.

◆ getFaceType()

IfcAirTerminalFaceTypeEnum OdIfc2x_final::IfcAirTerminal::getFaceType ( ) const

Returns the value of FaceType attribute. This attribute identifies how the terminal face of an AirTerminal is constructed.

Returns: Returns the value of FaceType attribute.

◆ getFinishColor()

const OdAnsiString & OdIfc2x_final::IfcAirTerminal::getFinishColor ( ) const

Returns the value of FinishColor attribute. This attribute represents the finish color for the air terminal.

Returns: Returns the value of FinishColor attribute.

◆ getFinishType()

IfcAirTerminalFinishTypeEnum OdIfc2x_final::IfcAirTerminal::getFinishType ( ) const

Returns the value of FinishType attribute. This attribute represents the type of finish for the AirTerminal.

Returns: Returns the value of FinishType attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcAirTerminal::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ getIntegralControl()

OdDAI::Boolean OdIfc2x_final::IfcAirTerminal::getIntegralControl ( ) const

Returns the value of IntegralControl attribute. This attribute indicates whether a self-powered temperature control is included in the AirTerminal.

Returns: Returns the value of IntegralControl attribute.

◆ getMountingType()

IfcAirTerminalMountingTypeEnum OdIfc2x_final::IfcAirTerminal::getMountingType ( ) const

Returns the value of MountingType attribute. This attribute represents the way the AirTerminal is mounted to the ceiling, wall, etc.

Returns: Returns the value of MountingType attribute.

◆ getThrow()

double OdIfc2x_final::IfcAirTerminal::getThrow ( ) const

Returns the value of Throw attribute. This attribute represents horizontal or vertical axial distance an air stream travels after leaving an AirTerminal before the maximum stream velocity is reduced to a specified terminal velocity.

Returns: Returns the value of Throw attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcAirTerminal::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcAirTerminal::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcAirTerminal::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcAirTerminal::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcAirTerminal::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ setAirDiffusionPerformanceIndex()

void OdIfc2x_final::IfcAirTerminal::setAirDiffusionPerformanceIndex ( double AirDiffusionPerformanceIndex )

Sets the value of AirDiffusionPerformanceIndex attribute. This attribute represents the Air Diffusion Performance Index (ADPI) that is used for cooling mode conditions. If several measurements of air velocity and air temperature are made throughout the occupied zone of a space, the ADPI is the percentage of locations where measurements were taken that meet the specifications for effective draft temperature and air velocity.

Parameters

AirDiffusionPerformanceIndex [in] AirDiffusionPerformanceIndex attribute to set.

◆ setAirFlowType()

void OdIfc2x_final::IfcAirTerminal::setAirFlowType ( IfcAirFlowTypeEnum AirFlowType )

Sets the value of AirFlowType attribute. This attribute represents possible AirTerminal types (e.g., Supply, Return, Exhaust, etc.).

Parameters

AirFlowType [in] AirFlowType attribute to set.

◆ setCoreSetHorizontal()

void OdIfc2x_final::IfcAirTerminal::setCoreSetHorizontal ( double CoreSetHorizontal )

Sets the value of CoreSetHorizontal attribute. This attribute represents degree of blade set from the centerline.

Parameters

CoreSetHorizontal [in] CoreSetHorizontal attribute to set.

◆ setCoreSetVertical()

void OdIfc2x_final::IfcAirTerminal::setCoreSetVertical ( double CoreSetVertical )

Sets the value of CoreSetVertical attribute. This attribute represents degree of blade set from the center line.

Parameters

CoreSetVertical [in] CoreSetVertical attribute to set.

◆ setCoreType()

void OdIfc2x_final::IfcAirTerminal::setCoreType ( IfcAirTerminalCoreTypeEnum CoreType )

Sets the value of CoreType attribute. This attribute identifies the way the core of the AirTerminal is constructed.

Parameters

CoreType [in] CoreType attribute to set.

◆ setFaceType()

void OdIfc2x_final::IfcAirTerminal::setFaceType ( IfcAirTerminalFaceTypeEnum FaceType )

Sets the value of FaceType attribute. This attribute identifies how the terminal face of an AirTerminal is constructed.

Parameters

FaceType [in] FaceType attribute to set.

◆ setFinishColor()

void OdIfc2x_final::IfcAirTerminal::setFinishColor ( const OdAnsiString & FinishColor )

Sets the value of FinishColor attribute. This attribute represents the finish color for the air terminal.

Parameters

FinishColor [in] FinishColor attribute to set.

◆ setFinishType()

void OdIfc2x_final::IfcAirTerminal::setFinishType ( IfcAirTerminalFinishTypeEnum FinishType )

Sets the value of FinishType attribute. This attribute represents the type of finish for the AirTerminal.

Parameters

FinishType [in] FinishType attribute to set.

◆ setIntegralControl()

void OdIfc2x_final::IfcAirTerminal::setIntegralControl ( OdDAI::Boolean IntegralControl )

Sets the value of IntegralControl attribute. This attribute indicates whether a self-powered temperature control is included in the AirTerminal.

Parameters

IntegralControl [in] IntegralControl attribute to set.

◆ setMountingType()

void OdIfc2x_final::IfcAirTerminal::setMountingType ( IfcAirTerminalMountingTypeEnum MountingType )

Sets the value of MountingType attribute. This attribute represents the way the AirTerminal is mounted to the ceiling, wall, etc.

Parameters

MountingType [in] MountingType attribute to set.

◆ setThrow()

void OdIfc2x_final::IfcAirTerminal::setThrow ( double Throw )

Sets the value of Throw attribute. This attribute represents horizontal or vertical axial distance an air stream travels after leaving an AirTerminal before the maximum stream velocity is reduced to a specified terminal velocity.

Parameters

Throw [in] Throw attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcAirTerminal::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcAirTerminal::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcAirTerminal::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcAirTerminal::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcAirTerminal::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

Member Data Documentation

◆ m_AirDiffusionPerformanceIndex

double OdIfc2x_final::IfcAirTerminal::m_AirDiffusionPerformanceIndex

protected

Definition at line 338 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_AirFlowType

OdDAI::Enum OdIfc2x_final::IfcAirTerminal::m_AirFlowType

protected

Definition at line 336 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_CoreSetHorizontal

double OdIfc2x_final::IfcAirTerminal::m_CoreSetHorizontal

protected

Definition at line 345 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_CoreSetVertical

double OdIfc2x_final::IfcAirTerminal::m_CoreSetVertical

protected

Definition at line 344 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_CoreType

OdDAI::Enum OdIfc2x_final::IfcAirTerminal::m_CoreType

protected

Definition at line 343 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_FaceType

OdDAI::Enum OdIfc2x_final::IfcAirTerminal::m_FaceType

protected

Definition at line 342 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_FinishColor

OdAnsiString OdIfc2x_final::IfcAirTerminal::m_FinishColor

protected

Definition at line 340 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_FinishType

OdDAI::Enum OdIfc2x_final::IfcAirTerminal::m_FinishType

protected

Definition at line 339 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_IntegralControl

OdDAI::Boolean OdIfc2x_final::IfcAirTerminal::m_IntegralControl

protected

Definition at line 346 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_MountingType

OdDAI::Enum OdIfc2x_final::IfcAirTerminal::m_MountingType

protected

Definition at line 341 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

◆ m_Throw

double OdIfc2x_final::IfcAirTerminal::m_Throw

protected

Definition at line 337 of file Ifc2x_Final/IfcAirTerminalAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcAirTerminalAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcAirTerminal()

Member Function Documentation

◆ getAirDiffusionPerformanceIndex()

◆ getAirFlowType()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCoreSetHorizontal()

◆ getCoreSetVertical()

◆ getCoreType()

◆ getFaceType()

◆ getFinishColor()

◆ getFinishType()

◆ getInstanceType()

◆ getIntegralControl()

◆ getMountingType()

◆ getThrow()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setAirDiffusionPerformanceIndex()

◆ setAirFlowType()

◆ setCoreSetHorizontal()

◆ setCoreSetVertical()

◆ setCoreType()

◆ setFaceType()

◆ setFinishColor()

◆ setFinishType()

◆ setIntegralControl()

◆ setMountingType()

◆ setThrow()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_AirDiffusionPerformanceIndex

◆ m_AirFlowType

◆ m_CoreSetHorizontal

◆ m_CoreSetVertical

◆ m_CoreType

◆ m_FaceType

◆ m_FinishColor

◆ m_FinishType

◆ m_IntegralControl

◆ m_MountingType

◆ m_Throw
