#include <IfcMemberAutoImpl.h>

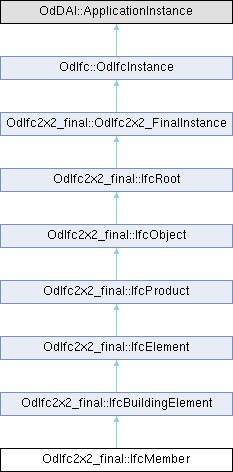

Inheritance diagram for OdIfc2x2_final::IfcMember:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x2_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x2_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x2_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An IfcMember is a structural member designed to carry loads between or beyond points of support. It is not required to be load bearing. The orientation of the member (being horizontal, vertical or sloped) is not relevant to its definition (in contrary to IfcBeam and IfcColumn). An IfcMember represents a linear structural element from an architectural or structural modeling point of view and is used if it cannot be expressed more specifically as either an IfcBeam or an IfcColumn.

There are two main representations for member occurrences: IfcMember with IfcMaterialProfileSetUsage is used for all occurrences of members, that have a profile defined that is swept along a directrix. The profile might be changed uniformly by a taper definition along the directrix. The profile parameter and its cardinal point of insertion can be fully described by the IfcMaterialProfileSetUsage. These members are always represented geometrically by an 'Axis' and a 'SweptSolid' or 'AdvancedSweptSolid' shape representation (or by a 'Clipping' geometry based on the swept solid), if a 3D geometric representation is assigned IfcMember without IfcMaterialProfileSetUsage is used for all other occurrences of members, particularly for members with changing profile sizes along the extrusion, or members defined by non-linear extrusion, or members having only 'Brep', or 'SurfaceModel' geometry, or if a more parametric representation is not intended

Axis 3D Geometry - The axis representation can be used to represent the fundamental orientation and extents of a member's body. The image below illustrates that the axis representation can be used to represent the system length of a member that can extend past the body length of the member.

As shown on the image below, the axis representation must be positioned at the IfcMaterialProfileSetUsage.CardinalPoint, and parallel to the IfcExtrudedAreaSolid.ExtrudedDirection. This offset between the axis line and the IfcExtrudedAreaSolid.Position must correlate with the chosen IfcMaterialProfileSetUsage.CardinalPoint.

Body AdvancedSweptSolid Geometry - IfcSurfaceCurveSweptAreaSolid, IfcFixedReferenceSweptAreaSolid, IfcExtrudedAreaSolidTapered, IfcRevolvedAreaSolidTapered is supported All subtypes of (IfcProfileDef) (with exception of IfcArbitraryOpenProfileDef) are supported
Body Clipping Geometry - IfcExtrudedAreaSolid, IfcRevolvedAreaSolid is supported All subtypes of (IfcProfileDef) (with exception of IfcArbitraryOpenProfileDef) are supported All extrusion directions are supported The IfcBooleanClippingResult is supported, allowing for Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid (or its subtypes) instances

The image below illustrates a 'Clipping' geometric representation with use of IfcBooleanClippingResult between an IfcExtrudedAreaSolid and an IfcHalfSpaceSolid to create a clipped body.

When an IfcMaterialProfileSetUsage is applied, the image below illustrates an advanced geometric representation with use of IfcBooleanClippingResult between an IfcExtrudedAreaSolid and an IfcHalfSpaceSolid to create a clipped body, with cardinal point applied as 4 (mid-depth left).

Body SweptSolid Geometry - IfcExtrudedAreaSolid, IfcRevolvedAreaSolid is supported All subtypes of (IfcProfileDef) (with exception of IfcArbitraryOpenProfileDef) are supported All extrusion directions are supported

When an (IfcMaterialProfileSetUsage) is assigned to the IfcMember: For all single profiles, the IfcParameterizedProfileDef.Position is NIL, or having Location = 0.,0. and RefDirection = 1.,0 The extrusion is perpendicular to the profile direction The y-axis of the profile, as determined by IfcSweptAreaSolid.Position.P[2] points to the Z-Axis. It indicates the "role" of the column, a role=0° means y-axis of profile = Z-axis of reference coordinate system. In the exception of a vertical member, the y-axis points to the Y-axis

The image below illustrates a 'SweptSolid' geometric representation with cardinal point applied as 1 (bottom left).

If parametric profiles are used, the parameters can be interpreted to be the dimensions of the beam: IfcRectangleProfileDef.YDim interpreted as member width IfcRectangleProfileDef.XDim interpreted as member depth IfcCircleProfileDef.Radius interpreted as member radius

Material Profile Set Usage - The image below illustrates assignment of IfcMaterialProfileSetUsage and IfcMaterialProfileSet to the IfcMemberType and the IfcMember occurrence. Both the IfcMaterialProfileSet and IfcProfileDef is shared between all occurrences.

Te image below illustrates assignment of a composite profile by using IfcCompositeProfileDef for geometric representation and several IfcMaterialProfile entities within the IfcMaterialProfileSet.

Material Set - This concept can be applied to the following resources: LoadBearing
Object Typing - This concept can be applied to the following resources: IfcMemberType
Product Assignment - This concept can be applied to the following resources: IfcStructuralCurveMember - An idealized structural member corresponding to the member IfcTask - A task for operating on the member
Property Sets for Objects - This concept can be applied to the following resources: Pset_ConcreteElementGeneral Pset_PrecastConcreteElementFabrication Pset_PrecastConcreteElementGeneral Pset_MemberCommon Pset_MemberTypeAnchoringBar (only applies to BRACE) Pset_MemberTypeOCSRigidSupport (only applies to MEMBER) Pset_MemberTypePost (only applies to POST) Pset_MemberTypeCatenaryStay (only applies to STAY_CABLE) Pset_MemberTypeTieBar (only applies to TIEBAR)
Quantity Sets - This concept can be applied to the following resources: Qto_MemberBaseQuantities
Spatial Containment - The IfcMember, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition

Definition at line 156 of file Ifc2x2_Final/IfcMemberAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcMember::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcBuildingElement.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcMember::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcBuildingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcMember::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcBuildingElement.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcMemberAutoImpl.h
