#include <IfcBuildingElementAutoImpl.h>

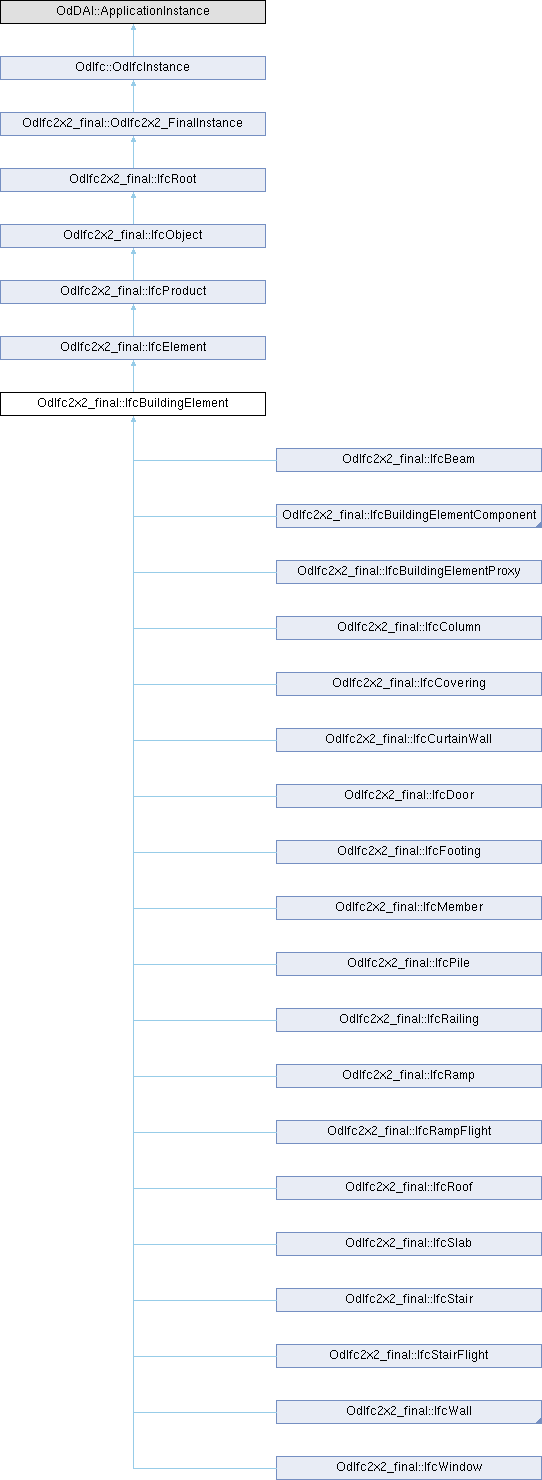

Inheritance diagram for OdIfc2x2_final::IfcBuildingElement:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x2_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x2_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x2_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The building element comprises all elements that are primarily part of the construction of a building, i.e., its structural and space separating system. They are separated from other elements, since they are dealt with in separate AEC processes. The IfcBuildingElement utilizes the following capabilities mainly through inverse referenced to objectified relationships: Grouping - being part of a logical group of objects Classification - assigned reference to an external classification Documentation - assigned reference to an external documentation Type - reference to the product type information for the element occurrence Properties - reference to all attached properties, including quantities Cost control - reference to cost elements associated with this building element Work processes - reference to work tasks, in which this building element is used Aggregation - aggregated together with other elements to form an aggregate Connection - connectivity to other elements, including the definition of the joint Ports - information, whether the building element has ports for system connections Realization - information, whether the building element is used to realize a connection Assignment to spatial structure - hierarchical assignment to the right level within the spatial structure Material - assignment of material used by this building element Boundary - provision of space boundaries through this building element Opening - information, whether the building element includes openings Projection - information, whether the building element has projections Filling - information whether the building element is used to fill openings

Quantity Use Definition - The quantities relating to the IfcBuildingElement are defined by the IfcElementQuantity and attached by the IfcRelDefinesByProperties. A detailed specification for individual quantities is introduced at the level of subtypes of IfcBuildingElement.
Geometry Use Definitions - The geometric representation of any IfcBuildingElement is given by the IfcProductDefinitionShape and IfcLocalPlacement allowing multiple geometric representations.
Local Placement - The local placement for any IfcBuildingElement is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations. Further constraints are defined at the level of its subtypes.
Bounding Box Representation - Any IfcBuildingElement can be represented as a bounding box, which shows the maximum extend of the body within the coordinated system established by the IfcLocalPlacement. The bounding box representation is the simplest geometric representation available. The following attribute values for the IfcShapeRepresentation holding this geometric representation is used: RepresentationIdentifier : 'Body' RepresentationType : 'BoundingBox'

The bounding box representation is given by an IfcShapeRepresentation, which includes a single item, an IfcBoundingBox.

SurfaceModel Representation - Any IfcBuildingElement (so far no further constraints are defined at the level of its subtypes) can be represented as a single or multiple surface models, based on either shell or face based models. The following attribute values for the IfcShapeRepresentation holding this geometric representation is used: RepresentationIdentifier : 'Body' RepresentationType : 'SurfaceModel'

In some cases it can be useful to also expose a simple representation as a bounding box representation of the same complex shape. The surface model representation is given by an IfcShapeRepresentation, which includes a single item, which is either: IfcShellBasedSurfaceModel IfcFaceBasedSurfaceModel

Brep Representation - Any IfcBuildingElement (so far no further constraints are defined at the level of its subtypes) can be represented as a single or multiple Boundary Representation elements (which are restricted to faceted Brep with or without voids). The Brep representation allows for the representation of complex element shape. The following attribute values for the IfcShapeRepresentation holding this geometric representation is used: RepresentationIdentifier : 'Body' RepresentationType : 'Brep'

In some cases it can be useful to also expose a simple representation as a bounding box representation of the same complex shape. TheBrep representation is given by an IfcShapeRepresentation, which includes one or more items, all of type IfcManifoldSolidBrep.

MappedRepresentation - Any IfcBuildingElement (so far no further constraints are defined at the level of its subtypes) can be represented using the MappedRepresentation. This is supported as it allows for reusing the geometry definition of a type at all occurrences of the same type. The following attribute values for the IfcShapeRepresentation holding this geometric representation are used: RepresentationIdentifier : 'Body' RepresentationType : 'MappedRepresentation'

Definition at line 116 of file Ifc2x2_Final/IfcBuildingElementAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcBuildingElement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcElement.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcBuildingElement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcBuildingElement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcElement.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcBuildingElementAutoImpl.h
