#include <IfcAnnotationSurfaceAutoImpl.h>

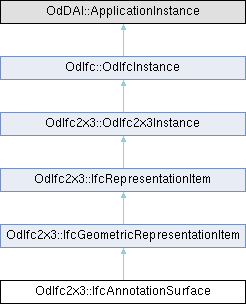

Inheritance diagram for OdIfc2x3::IfcAnnotationSurface:

Public Member Functions
const OdDAIObjectId &	getItem () const

void	setItem (const OdDAIObjectId &Item)

const OdDAIObjectId &	getTextureCoordinates () const

void	setTextureCoordinates (const OdDAIObjectId &TextureCoordinates)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Item

OdDAIObjectId	m_TextureCoordinates

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcAnnotationSurface is a surface or solid with texture coordinates assigned. It provides the capabilities to assign some data to a surface, or all surfaces of a face based surface model, a shell based surface model, or a solid model. Data that can be assigned: Surface shading information Surface rendering information Surface lighting information Surface textures

If the assigned IfcSurfaceStyle defines textures by including an instance of IfcSurfaceStyleWithTextures, the attribute TextureCoordinates determines the mapping of the texture to the surface(s) of the Item.

Definition at line 50 of file IfcAnnotationSurfaceAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcAnnotationSurface::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcAnnotationSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcAnnotationSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcAnnotationSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

◆ getItem()

const OdDAIObjectId & OdIfc2x3::IfcAnnotationSurface::getItem ( ) const

Returns the value of Item attribute. This attribute represents geometric representation item, providing the geometric definition of the annotated surface. It is further restricted to be a surface, surface model, or solid model.

Returns: Returns the value of Item attribute.

◆ getTextureCoordinates()

const OdDAIObjectId & OdIfc2x3::IfcAnnotationSurface::getTextureCoordinates ( ) const

Returns the value of TextureCoordinates attribute. This attribute represents texture coordinates, such as a texture map, that are associated with the textures for the surface style. It should only be provided, if the IfcSurfaceStyle associated to the IfcAnnotationSurfaceOccurrence contains an IfcSurfaceStyleWithTextures.

Returns: Returns the value of TextureCoordinates attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcAnnotationSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc2x3::IfcAnnotationSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

◆ outFields()

virtual OdResult OdIfc2x3::IfcAnnotationSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcAnnotationSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcAnnotationSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ setInverseCounterParts()

virtual void OdIfc2x3::IfcAnnotationSurface::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setItem()

void OdIfc2x3::IfcAnnotationSurface::setItem ( const OdDAIObjectId & Item )

Sets the value of Item attribute. This attribute represents geometric representation item, providing the geometric definition of the annotated surface. It is further restricted to be a surface, surface model, or solid model.

Parameters

Item	[in] Item attribute to set.

◆ setTextureCoordinates()

void OdIfc2x3::IfcAnnotationSurface::setTextureCoordinates ( const OdDAIObjectId & TextureCoordinates )

Sets the value of TextureCoordinates attribute. This attribute represents texture coordinates, such as a texture map, that are associated with the textures for the surface style. It should only be provided, if the IfcSurfaceStyle associated to the IfcAnnotationSurfaceOccurrence contains an IfcSurfaceStyleWithTextures.

Parameters

TextureCoordinates [in] TextureCoordinates attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcAnnotationSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcAnnotationSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcAnnotationSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcAnnotationSurface::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcAnnotationSurface::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Member Data Documentation

◆ m_Item

OdDAIObjectId OdIfc2x3::IfcAnnotationSurface::m_Item

protected

Definition at line 227 of file IfcAnnotationSurfaceAutoImpl.h.

◆ m_TextureCoordinates

OdDAIObjectId OdIfc2x3::IfcAnnotationSurface::m_TextureCoordinates

protected

Definition at line 228 of file IfcAnnotationSurfaceAutoImpl.h.

The documentation for this class was generated from the following file:

IfcAnnotationSurfaceAutoImpl.h
