#include <IfcColumnAutoImpl.h>

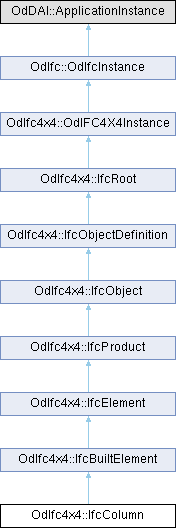

Inheritance diagram for OdIfc4x4::IfcColumn:

Public Member Functions
IfcColumnTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcColumnTypeEnum PredefinedType)

	IfcColumn ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasSurfaceFeatures (OdDAIObjectIds &HasSurfaceFeatures) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcColumn is a vertical structural member which often is aligned with a structural grid intersection. It represents a vertical, or nearly vertical, structural member that transmits, through compression, the weight of the structure above to other structural elements below. It represents such a member from an architectural point of view. It is not required to be load bearing.

Details - There are two main representations for column occurrences: IfcColumn with IfcMaterialProfileSetUsage is used for all occurrences of columns, that have a profile defined that is swept along a directrix. The profile might change uniformly by a taper definition along the directrix. The profile parameter and its cardinal point of insertion can be fully described by the IfcMaterialProfileSetUsage. These columns are always represented geometrically by an 'Axis' and a 'SweptSolid' or 'AdvancedSweptSolid' shape representation (or by a 'Clipping' geometry based on the swept solid), if a 3D geometric representation is assigned. IfcColumn is used for all other occurrences of columns, particularly for columns with changing profile sizes along the extrusion, or columns defined by non-linear extrusion, or columns having only 'Brep', or 'SurfaceModel' geometry, if a more parametric representation is not intended.
Axis 3D Geometry - The axis representation can be used to represent the fundamental orientation and extents of a column's body. If an IfcMaterialProfileSetUsage is used, the axis representation is used to locate the profile. In addition: For a body representation using an IfcExtrudedAreaSolid, the axis can be an IfcPolyline having two Points, or IfcTrimmedCurve with BasisCurve of type IfcLine. The axis curve lies on the z axis of the object coordinate system. For a body representation using an IfcRevolvedAreaSolid, the axis can be an IfcTrimmedCurve with BasisCurve of type IfcCircle. The axis curve lies on the x/z plane of the object coordinate system, the tangent at the start is along the positive z-axis.

As shown on the image below, the axis representation must be positioned at the IfcMaterialProfileSetUsage.CardinalPoint, and parallel to the IfcExtrudedAreaSolid.ExtrudedDirection. This offset between the axis line and the IfcExtrudedAreaSolid.Position must correlate with the chosen IfcMaterialProfileSetUsage.CardinalPoint.

Body AdvancedSweptSolid Geometry - The following additional constraints apply to the 'AdvancedSweptSolid' representation type: Solid: IfcSurfaceCurveSweptAreaSolid, IfcFixedReferenceSweptAreaSolid, IfcExtrudedAreaSolidTapered, IfcRevolvedAreaSolidTapered is supported Profile: see 'SweptSolid' geometric representation Extrusion: not applicable
Body Clipping Geometry - IfcExtrudedAreaSolid, IfcRevolvedAreaSolid is supported All subtypes of IfcProfileDef (with exception of IfcArbitraryOpenProfileDef) is supported All extrusion directions is supported The IfcBooleanClippingResult is supported, allowing Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid

The image below illustrates a 'Clipping' geometric representation with use of IfcBooleanClippingResult between an IfcExtrudedAreaSolid and an IfcHalfSpaceSolid to create a clipped body.

Body SweptSolid Geometry - IfcExtrudedAreaSolid, IfcRevolvedAreaSolid is supported All subtypes of IfcProfileDef (with exception of IfcArbitraryOpenProfileDef) are supported All extrusion directions are supported

The image below illustrates a 'SweptSolid' geometric representation. There are no restrictions or conventions on how to use the object placement (black), extrusion placement (red) and profile placement (green).

The image below illustrates use of a special profile type (here IfcIShapeProfileDef) for the definition of the IfcExtrudedAreaSolid.

Material Profile Set Usage - The image below illustrates assignment of IfcMaterialProfileSetUsage and IfcMaterialProfileSet to the IfcColumnType and the IfcColumn occurrence. Both the IfcMaterialProfileSet and IfcProfileDef is shared between all occurrences.

The image below illustrates cardinal point alignment. The use of IfcCardinalPointEnum must be consistent with the placement of the extrusion body provided by IfcExtrudedAreaSolid.Position.

The image below illustrates assignment of a composite profile by using IfcCompositeProfileDef for geometric representation and several IfcMaterialProfile entities within the IfcMaterialProfileSet.

Material Set - This concept can be applied to the following resources: LoadBearing
Object Typing - This concept can be applied to the following resources: IfcColumnType
Product Assignment - This concept can be applied to the following resources: IfcStructuralCurveMember - An idealized structural member corresponding to the column. IfcTask - A task for operating on the column.
Property Sets for Objects - This concept can be applied to the following resources: Pset_ConcreteElementGeneral Pset_PrecastConcreteElementFabrication Pset_PrecastConcreteElementGeneral Pset_ColumnCommon Pset_ReinforcementBarPitchOfColumn
Quantity Sets - This concept can be applied to the following resources: Qto_ColumnBaseQuantities
Spatial Containment - The IfcColumn, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition

\changes

IFC4X3_RC1 changes: Supertype changed from "IfcBuildingElement" to "IfcBuiltElement".

Definition at line 151 of file IFC4X4/IfcColumnAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcColumn()

OdIfc4x4::IfcColumn::IfcColumn ( )

Default constructor for the IfcColumn class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcColumn::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcColumn::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcColumn::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcColumn::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ getPredefinedType()

IfcColumnTypeEnum OdIfc4x4::IfcColumn::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents predefined generic type for a column that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Returns: Returns the value of PredefinedType attribute.

Remarks: The PredefinedType is only used if no IfcColumnType is assigned, providing its own IfcColumnType.PredefinedType.

◆ inFields()

virtual OdResult OdIfc4x4::IfcColumn::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcElement.

◆ isKindOf()

virtual bool OdIfc4x4::IfcColumn::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ outFields()

virtual OdResult OdIfc4x4::IfcColumn::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcColumn::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcColumn::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ setPredefinedType()

void OdIfc4x4::IfcColumn::setPredefinedType ( IfcColumnTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents predefined generic type for a column that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: The PredefinedType is only used if no IfcColumnType is assigned, providing its own IfcColumnType.PredefinedType.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcColumn::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcColumn::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcColumn::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcColumn::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcColumn::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcElement.

Member Data Documentation

◆ m_PredefinedType

OdDAI::Enum OdIfc4x4::IfcColumn::m_PredefinedType

protected

Definition at line 315 of file IFC4X4/IfcColumnAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcColumnAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcColumn()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_PredefinedType
