OdIfc::OdIfcSpiral Class Reference
#include <IfcSpiral.h>

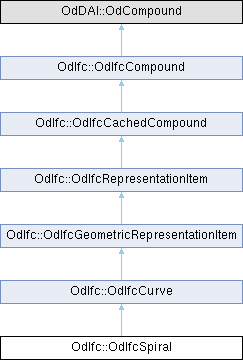

Inheritance diagram for OdIfc::OdIfcSpiral:
Protected Member Functions | |
| bool | setPosition (OdIfcFile *pFile) |
 Protected Member Functions inherited from OdIfc::OdIfcCurve | |
| void | getMatrix (OdIfcInstancePtr pPosition, OdGeMatrix3d &matr) |
| Protected Member Functions inherited from OdIfc::OdIfcRepresentationItem | |
| void | updateTraitsAuxData (OdGiWorldDraw *wd) const |
| void | resetTraitsAuxData (OdGiWorldDraw *wd) const |
| OdResult | setAttributes (OdGiWorldDraw *pWd) const |
Additional Inherited Members | |
| Public Member Functions inherited from OdIfc::OdIfcCurve | |
| virtual OdGe::EntityId | entityId () const |
| virtual OdGeCurve3d * | getGeCurveCopy () const |
| const OdGeCurve3d * | getGeCurve () const |
| OdResult | transformBy (const OdGeMatrix3d &transform) override |
| virtual double | paramAtLength (double length) const |
| virtual OdGePoint3d | evalPoint (double param, OdGeVector3dArray &derivs) const |
| virtual bool | is3d () const |
| void | setIs3d (bool val) |
| Public Member Functions inherited from OdIfc::OdIfcGeometricRepresentationItem | |
| virtual OdDAI::OdBodyVariant | bodyContainer () const |
| Public Member Functions inherited from OdIfc::OdIfcRepresentationItem | |
| virtual | ~OdIfcRepresentationItem () |
| virtual void | compose () |
| virtual bool | draw (OdGiWorldDraw *pWd) const |
| virtual OdUInt32 | subSetAttributes (OdGiDrawableTraits *pTraits) const |
| virtual bool | subWorldDraw (OdGiWorldDraw *wd) const |
| Public Member Functions inherited from OdIfc::OdIfcCachedCompound | |
| OdIfcCachedCompound () | |
| virtual void | setGsNode (OdGsCache *pGsNode) |
| virtual OdGsCache * | gsNode () const |
| Public Member Functions inherited from OdIfc::OdIfcCompound | |
| void | compose () override |
| OdIfcEntityType | type () |
| OdRxValue | getAttr (const OdIfcAttribute attrDef) const |
| virtual OdRxValue | getAttr (const OdAnsiString &attrName) const |
| OdIfcModel * | owningModel () const |
| bool | isKindOf (OdIfcEntityType type) const |
| bool | isInstanceOf (OdIfcEntityType entityType) const |
| const OdAnsiString & | typeName () |
| OdIfcFile * | owningIfcFile () const |
| OdStepFile * | owningStepFile () const override |
| virtual bool | isPersistent () const |
| virtual OdDbStub * | id () const |
| virtual OdDbStub * | ownerId () const |
| virtual void | xmitPropagateModify () |
| Static Public Member Functions inherited from OdIfc::OdIfcCompound | |
| static const OdIfcInstance * | earlyAccess (const OdIfcCompound *compound) |
| Protected Attributes inherited from OdIfc::OdIfcCurve | |
| OdGeMatrix3d | m_transform |
| OdGeCurve3dPtr | m_pCurve |
| Protected Attributes inherited from OdIfc::OdIfcCachedCompound | |
| OdGsCache * | m_pGsNode |
| Protected Attributes inherited from OdIfc::OdIfcCompound | |
| OdIfcInstance * | m_pEntInst |
Detailed Description
A class that implements storing and handling data about an IfcSpiral. An IfcSpiral is defined with a curve and a position the curve revolves around and increases its length in the same time.
Definition at line 45 of file IfcSpiral.h.
Member Function Documentation
◆ setPosition()
|
protected |
The documentation for this class was generated from the following file:
