#include <IfcTubeBundleAutoImpl.h>

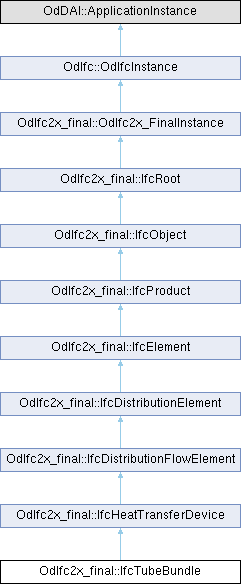

Inheritance diagram for OdIfc2x_final::IfcTubeBundle:

Public Member Functions
double	getTubeSize () const

void	setTubeSize (double TubeSize)

IfcMaterialSelect	tubeMaterial ()

double	getTubeLength () const

void	setTubeLength (double TubeLength)

double	getTubeSpacing () const

void	setTubeSpacing (double TubeSpacing)

void	getTubeFluidEnteringTemperature (OdArray< double > &TubeFluidEnteringTemperature) const

OdDAI::ListOfDouble &	tubeFluidEnteringTemperature ()

void	getTubeFluidLeavingTemperature (OdArray< double > &TubeFluidLeavingTemperature) const

OdDAI::ListOfDouble &	tubeFluidLeavingTemperature ()

IfcMaterialSelect	finMaterial ()

IfcMaterialSelect	shellMaterial ()

double	getFinSpacing () const

void	setFinSpacing (double FinSpacing)

double	getTubeFoulingFactor () const

void	setTubeFoulingFactor (double TubeFoulingFactor)

int	getNumberOfTubeCircuits () const

void	setNumberOfTubeCircuits (int NumberOfTubeCircuits)

int	getNumberOfTubeRows () const

void	setNumberOfTubeRows (int NumberOfTubeRows)

void	getShellFluidLeavingTemperature (OdArray< double > &ShellFluidLeavingTemperature) const

OdDAI::ListOfDouble &	shellFluidLeavingTemperature ()

void	getShellFluidEnteringTemperature (OdArray< double > &ShellFluidEnteringTemperature) const

OdDAI::ListOfDouble &	shellFluidEnteringTemperature ()

	IfcTubeBundle ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcHeatTransferDevice
double	getHeatTransferRate () const

void	setHeatTransferRate (double HeatTransferRate)

double	getThermalEfficiency () const

void	setThermalEfficiency (double ThermalEfficiency)

IfcEnergySourceEnum	getPrimaryEnergySource () const

void	setPrimaryEnergySource (IfcEnergySourceEnum PrimaryEnergySource)

	IfcHeatTransferDevice ()

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_TubeSize

OdDAI::Select	m_TubeMaterial

IfcPositiveLengthMeasure	m_TubeLength

IfcPositiveLengthMeasure	m_TubeSpacing

OdDAI::ListOfDouble	m_TubeFluidEnteringTemperature

OdDAI::ListOfDouble	m_TubeFluidLeavingTemperature

OdDAI::Select	m_FinMaterial

OdDAI::Select	m_ShellMaterial

IfcPositiveLengthMeasure	m_FinSpacing

double	m_TubeFoulingFactor

int	m_NumberOfTubeCircuits

int	m_NumberOfTubeRows

OdDAI::ListOfDouble	m_ShellFluidLeavingTemperature

OdDAI::ListOfDouble	m_ShellFluidEnteringTemperature

Protected Attributes inherited from OdIfc2x_final::IfcHeatTransferDevice
double	m_HeatTransferRate

IfcPositiveRatioMeasure	m_ThermalEfficiency

OdDAI::Enum	m_PrimaryEnergySource

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A tube bundle is a device consisting of tubes and bundles of tubes used for heat transfer and contained typically within other energy conversion devices, such as a chiller or coil.

Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed.
Object Typing - This concept can be applied to the following resources: IfcTubeBundleType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType Inlet SINK NOTDEFINED Outlet SINK NOTDEFINED

Property Sets for Objects - This concept can be applied to the following resources: Pset_TubeBundleTypeCommon Pset_TubeBundleTypeFinned (only applies to FINNED)
Quantity Sets - This concept can be applied to the following resources: Qto_TubeBundleBaseQuantities

Definition at line 66 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTubeBundle()

OdIfc2x_final::IfcTubeBundle::IfcTubeBundle ( )

Default constructor for the IfcTubeBundle class.

Member Function Documentation

◆ finMaterial()

IfcMaterialSelect OdIfc2x_final::IfcTubeBundle::finMaterial ( )

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcTubeBundle::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcTubeBundle::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ getFinSpacing()

double OdIfc2x_final::IfcTubeBundle::getFinSpacing ( ) const

Returns the value of FinSpacing attribute. This attribute represents distance between fins on a tube in the TubeBundle.

Returns: Returns the value of FinSpacing attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcTubeBundle::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ getNumberOfTubeCircuits()

int OdIfc2x_final::IfcTubeBundle::getNumberOfTubeCircuits ( ) const

Returns the value of NumberOfTubeCircuits attribute. This attribute represents number of parallel fluid tube circuits.

Returns: Returns the value of NumberOfTubeCircuits attribute.

◆ getNumberOfTubeRows()

int OdIfc2x_final::IfcTubeBundle::getNumberOfTubeRows ( ) const

Returns the value of NumberOfTubeRows attribute. This attribute represents number of tube rows in the TubeBundle assembly.

Returns: Returns the value of NumberOfTubeRows attribute.

◆ getShellFluidEnteringTemperature()

void OdIfc2x_final::IfcTubeBundle::getShellFluidEnteringTemperature ( OdArray< double > & ShellFluidEnteringTemperature ) const

Returns the value of ShellFluidEnteringTemperature attribute. This attribute represents list of design temperatures of the fluid entering the shell or TubeBundle assembly; for air the list consists of dry bulb temperature followed by wet bulb temperature.

Returns: Returns the value of ShellFluidEnteringTemperature attribute.

◆ getShellFluidLeavingTemperature()

void OdIfc2x_final::IfcTubeBundle::getShellFluidLeavingTemperature ( OdArray< double > & ShellFluidLeavingTemperature ) const

Returns the value of ShellFluidLeavingTemperature attribute. This attribute represents list of design temperatures of the fluid leaving the shell or TubeBundle assembly; for air the list consists of dry bulb temperature followed by wet bulb temperature.

Returns: Returns the value of ShellFluidLeavingTemperature attribute.

◆ getTubeFluidEnteringTemperature()

void OdIfc2x_final::IfcTubeBundle::getTubeFluidEnteringTemperature ( OdArray< double > & TubeFluidEnteringTemperature ) const

Returns the value of TubeFluidEnteringTemperature attribute. This attribute represents list of design temperatures of the fluid entering the tubes; for air the list consists of dry bulb temperature followed by wet bulb temperature.

Returns: Returns the value of TubeFluidEnteringTemperature attribute.

◆ getTubeFluidLeavingTemperature()

void OdIfc2x_final::IfcTubeBundle::getTubeFluidLeavingTemperature ( OdArray< double > & TubeFluidLeavingTemperature ) const

Returns the value of TubeFluidLeavingTemperature attribute. This attribute represents list of design temperatures of the fluid leaving the tubes; for air the list consists of dry bulb temperature followed by wet bulb temperature.

Returns: Returns the value of TubeFluidLeavingTemperature attribute.

◆ getTubeFoulingFactor()

double OdIfc2x_final::IfcTubeBundle::getTubeFoulingFactor ( ) const

Returns the value of TubeFoulingFactor attribute. This attribute represents fouling factor of the tubes in the TubeBundle.

Returns: Returns the value of TubeFoulingFactor attribute.

◆ getTubeLength()

double OdIfc2x_final::IfcTubeBundle::getTubeLength ( ) const

Returns the value of TubeLength attribute. This attribute represents length of the tubes in the TubeBundle.

Returns: Returns the value of TubeLength attribute.

◆ getTubeSize()

double OdIfc2x_final::IfcTubeBundle::getTubeSize ( ) const

Returns the value of TubeSize attribute. This attribute represents nominal diameter or width of the tubes in the TubeBundle.

Returns: Returns the value of TubeSize attribute.

◆ getTubeSpacing()

double OdIfc2x_final::IfcTubeBundle::getTubeSpacing ( ) const

Returns the value of TubeSpacing attribute. This attribute represents spacing between tubes in the TubeBundle.

Returns: Returns the value of TubeSpacing attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcTubeBundle::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcTubeBundle::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcTubeBundle::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcTubeBundle::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcTubeBundle::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ setFinSpacing()

void OdIfc2x_final::IfcTubeBundle::setFinSpacing ( double FinSpacing )

Sets the value of FinSpacing attribute. This attribute represents distance between fins on a tube in the TubeBundle.

Parameters

FinSpacing [in] FinSpacing attribute to set.

◆ setNumberOfTubeCircuits()

void OdIfc2x_final::IfcTubeBundle::setNumberOfTubeCircuits ( int NumberOfTubeCircuits )

Sets the value of NumberOfTubeCircuits attribute. This attribute represents number of parallel fluid tube circuits.

Parameters

NumberOfTubeCircuits [in] NumberOfTubeCircuits attribute to set.

◆ setNumberOfTubeRows()

void OdIfc2x_final::IfcTubeBundle::setNumberOfTubeRows ( int NumberOfTubeRows )

Sets the value of NumberOfTubeRows attribute. This attribute represents number of tube rows in the TubeBundle assembly.

Parameters

NumberOfTubeRows [in] NumberOfTubeRows attribute to set.

◆ setTubeFoulingFactor()

void OdIfc2x_final::IfcTubeBundle::setTubeFoulingFactor ( double TubeFoulingFactor )

Sets the value of TubeFoulingFactor attribute. This attribute represents fouling factor of the tubes in the TubeBundle.

Parameters

TubeFoulingFactor [in] TubeFoulingFactor attribute to set.

◆ setTubeLength()

void OdIfc2x_final::IfcTubeBundle::setTubeLength ( double TubeLength )

Sets the value of TubeLength attribute. This attribute represents length of the tubes in the TubeBundle.

Parameters

TubeLength [in] Tube size to set.

◆ setTubeSize()

void OdIfc2x_final::IfcTubeBundle::setTubeSize ( double TubeSize )

Sets the value of TubeSize attribute. This attribute represents nominal diameter or width of the tubes in the TubeBundle.

Parameters

TubeSize [in] Tube size to set.

◆ setTubeSpacing()

void OdIfc2x_final::IfcTubeBundle::setTubeSpacing ( double TubeSpacing )

Sets the value of TubeSpacing attribute. This attribute represents spacing between tubes in the TubeBundle.

Parameters

TubeSpacing [in] Tube spacing to set.

◆ shellFluidEnteringTemperature()

OdDAI::ListOfDouble & OdIfc2x_final::IfcTubeBundle::shellFluidEnteringTemperature ( )

◆ shellFluidLeavingTemperature()

OdDAI::ListOfDouble & OdIfc2x_final::IfcTubeBundle::shellFluidLeavingTemperature ( )

◆ shellMaterial()

IfcMaterialSelect OdIfc2x_final::IfcTubeBundle::shellMaterial ( )

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcTubeBundle::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcTubeBundle::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ tubeFluidEnteringTemperature()

OdDAI::ListOfDouble & OdIfc2x_final::IfcTubeBundle::tubeFluidEnteringTemperature ( )

◆ tubeFluidLeavingTemperature()

OdDAI::ListOfDouble & OdIfc2x_final::IfcTubeBundle::tubeFluidLeavingTemperature ( )

◆ tubeMaterial()

IfcMaterialSelect OdIfc2x_final::IfcTubeBundle::tubeMaterial ( )

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcTubeBundle::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcTubeBundle::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcTubeBundle::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcHeatTransferDevice.

Member Data Documentation

◆ m_FinMaterial

OdDAI::Select OdIfc2x_final::IfcTubeBundle::m_FinMaterial

protected

Definition at line 346 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_FinSpacing

IfcPositiveLengthMeasure OdIfc2x_final::IfcTubeBundle::m_FinSpacing

protected

Definition at line 348 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_NumberOfTubeCircuits

int OdIfc2x_final::IfcTubeBundle::m_NumberOfTubeCircuits

protected

Definition at line 350 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_NumberOfTubeRows

int OdIfc2x_final::IfcTubeBundle::m_NumberOfTubeRows

protected

Definition at line 351 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_ShellFluidEnteringTemperature

OdDAI::ListOfDouble OdIfc2x_final::IfcTubeBundle::m_ShellFluidEnteringTemperature

protected

Definition at line 354 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_ShellFluidLeavingTemperature

OdDAI::ListOfDouble OdIfc2x_final::IfcTubeBundle::m_ShellFluidLeavingTemperature

protected

Definition at line 352 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_ShellMaterial

OdDAI::Select OdIfc2x_final::IfcTubeBundle::m_ShellMaterial

protected

Definition at line 347 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeFluidEnteringTemperature

OdDAI::ListOfDouble OdIfc2x_final::IfcTubeBundle::m_TubeFluidEnteringTemperature

protected

Definition at line 342 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeFluidLeavingTemperature

OdDAI::ListOfDouble OdIfc2x_final::IfcTubeBundle::m_TubeFluidLeavingTemperature

protected

Definition at line 344 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeFoulingFactor

double OdIfc2x_final::IfcTubeBundle::m_TubeFoulingFactor

protected

Definition at line 349 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeLength

IfcPositiveLengthMeasure OdIfc2x_final::IfcTubeBundle::m_TubeLength

protected

Definition at line 340 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeMaterial

OdDAI::Select OdIfc2x_final::IfcTubeBundle::m_TubeMaterial

protected

Definition at line 339 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeSize

IfcPositiveLengthMeasure OdIfc2x_final::IfcTubeBundle::m_TubeSize

protected

Definition at line 338 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

◆ m_TubeSpacing

IfcPositiveLengthMeasure OdIfc2x_final::IfcTubeBundle::m_TubeSpacing

protected

Definition at line 341 of file Ifc2x_Final/IfcTubeBundleAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcTubeBundleAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTubeBundle()

Member Function Documentation

◆ finMaterial()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getFinSpacing()

◆ getInstanceType()

◆ getNumberOfTubeCircuits()

◆ getNumberOfTubeRows()

◆ getShellFluidEnteringTemperature()

◆ getShellFluidLeavingTemperature()

◆ getTubeFluidEnteringTemperature()

◆ getTubeFluidLeavingTemperature()

◆ getTubeFoulingFactor()

◆ getTubeLength()

◆ getTubeSize()

◆ getTubeSpacing()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setFinSpacing()

◆ setNumberOfTubeCircuits()

◆ setNumberOfTubeRows()

◆ setTubeFoulingFactor()

◆ setTubeLength()

◆ setTubeSize()

◆ setTubeSpacing()

◆ shellFluidEnteringTemperature()

◆ shellFluidLeavingTemperature()

◆ shellMaterial()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ tubeFluidEnteringTemperature()

◆ tubeFluidLeavingTemperature()

◆ tubeMaterial()

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_FinMaterial

◆ m_FinSpacing

◆ m_NumberOfTubeCircuits

◆ m_NumberOfTubeRows

◆ m_ShellFluidEnteringTemperature

◆ m_ShellFluidLeavingTemperature

◆ m_ShellMaterial

◆ m_TubeFluidEnteringTemperature

◆ m_TubeFluidLeavingTemperature

◆ m_TubeFoulingFactor

◆ m_TubeLength

◆ m_TubeMaterial

◆ m_TubeSize

◆ m_TubeSpacing
