#include <IfcHydronicHeaterAutoImpl.h>

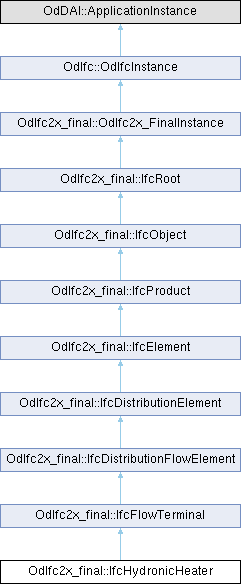

Inheritance diagram for OdIfc2x_final::IfcHydronicHeater:

Public Member Functions
IfcHydronicHeaterTypeEnum	getHydronicHeaterType () const

void	setHydronicHeaterType (IfcHydronicHeaterTypeEnum HydronicHeaterType)

double	getHeatOutput () const

void	setHeatOutput (double HeatOutput)

const OdAnsiString &	getEnclosure () const

void	setEnclosure (const OdAnsiString &Enclosure)

double	getBodyMass () const

void	setBodyMass (double BodyMass)

int	getNumberOfPanels () const

void	setNumberOfPanels (int NumberOfPanels)

int	getNumberOfSections () const

void	setNumberOfSections (int NumberOfSections)

	IfcHydronicHeater ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcDistributionFlowElement
IfcDistributionFlowElementTypeEnum	getFlowElementType () const

void	setFlowElementType (IfcDistributionFlowElementTypeEnum FlowElementType)

void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

	IfcDistributionFlowElement ()

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_HydronicHeaterType

double	m_HeatOutput

OdAnsiString	m_Enclosure

double	m_BodyMass

int	m_NumberOfPanels

int	m_NumberOfSections

Protected Attributes inherited from OdIfc2x_final::IfcDistributionFlowElement
OdDAI::Enum	m_FlowElementType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcHydronicHeater is a device which adds heat to a space utilizing a combination of radiation and natural convection. The heat source is typically steam or hot water. Examples of HydronicHeaters include radiators, convectors, baseboard and finned-tube heaters, etc. The physical dimensions and properties of the heating element can be defined by an aggregated coil element (IfcCoil).

Local Placement - The use of local placement is defined at the supertype IfcDistributionFlowElement.
Standard Geometric Representation - The use of Standard Geometric Representations is defined at the supertype IfcDistributionFlowElement.

Definition at line 48 of file IfcHydronicHeaterAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcHydronicHeater()

OdIfc2x_final::IfcHydronicHeater::IfcHydronicHeater ( )

Default constructor for the IfcHydronicHeater class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcHydronicHeater::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcHydronicHeater::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ getBodyMass()

double OdIfc2x_final::IfcHydronicHeater::getBodyMass ( ) const

Returns the value of BodyMass attribute. This attribute represents the overall body mass of a HydronicHeater.

Returns: Returns the value of BodyMass attribute.

◆ getEnclosure()

const OdAnsiString & OdIfc2x_final::IfcHydronicHeater::getEnclosure ( ) const

Returns the value of Enclosure attribute. This attribute represents the description of the the type of enclosure around the HydronicHeater.

Returns: Returns the value of Enclosure attribute.

◆ getHeatOutput()

double OdIfc2x_final::IfcHydronicHeater::getHeatOutput ( ) const

Returns the value of HeatOutput attribute. This attribute represents the total nominal heat output as listed by the manufacturer.

Returns: Returns the value of HeatOutput attribute.

◆ getHydronicHeaterType()

IfcHydronicHeaterTypeEnum OdIfc2x_final::IfcHydronicHeater::getHydronicHeaterType ( ) const

Returns the value of HydronicHeaterType attribute. This attribute represents possible hydronic heater types (e.g., baseboard heater, convector, radiator, etc.).

Returns: Returns the value of HydronicHeaterType attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcHydronicHeater::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ getNumberOfPanels()

int OdIfc2x_final::IfcHydronicHeater::getNumberOfPanels ( ) const

Returns the value of NumberOfPanels attribute. This attribute represents the number of panels (panel radiators only).

Returns: Returns the value of NumberOfPanels attribute.

◆ getNumberOfSections()

int OdIfc2x_final::IfcHydronicHeater::getNumberOfSections ( ) const

Returns the value of NumberOfSections attribute. This attribute represents the number of vertical sections, measured in the direction of flow.

Returns: Returns the value of NumberOfSections attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcHydronicHeater::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcHydronicHeater::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcHydronicHeater::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcHydronicHeater::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcHydronicHeater::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ setBodyMass()

void OdIfc2x_final::IfcHydronicHeater::setBodyMass ( double BodyMass )

Sets the value of BodyMass attribute. This attribute represents the overall body mass of a HydronicHeater.

Parameters

BodyMass [in] BodyMass attribute to set.

◆ setEnclosure()

void OdIfc2x_final::IfcHydronicHeater::setEnclosure ( const OdAnsiString & Enclosure )

Sets the value of Enclosure attribute. This attribute represents the description of the the type of enclosure around the HydronicHeater.

Parameters

Enclosure [in] Enclosure attribute to set.

◆ setHeatOutput()

void OdIfc2x_final::IfcHydronicHeater::setHeatOutput ( double HeatOutput )

Sets the value of HeatOutput attribute. This attribute represents the total nominal heat output as listed by the manufacturer.

Parameters

HeatOutput [in] HeatOutput attribute to set.

◆ setHydronicHeaterType()

void OdIfc2x_final::IfcHydronicHeater::setHydronicHeaterType ( IfcHydronicHeaterTypeEnum HydronicHeaterType )

Sets the value of HydronicHeaterType attribute. This attribute represents possible hydronic heater types (e.g., baseboard heater, convector, radiator, etc.).

Parameters

HydronicHeaterType [in] HydronicHeaterType attribute to set.

◆ setNumberOfPanels()

void OdIfc2x_final::IfcHydronicHeater::setNumberOfPanels ( int NumberOfPanels )

Sets the value of NumberOfPanels attribute. This attribute represents the number of panels (panel radiators only).

Parameters

NumberOfPanels [in] NumberOfPanels attribute to set.

◆ setNumberOfSections()

void OdIfc2x_final::IfcHydronicHeater::setNumberOfSections ( int NumberOfSections )

Sets the value of NumberOfSections attribute. This attribute represents the number of vertical sections, measured in the direction of flow.

Parameters

NumberOfSections [in] NumberOfSections attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcHydronicHeater::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcHydronicHeater::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcHydronicHeater::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcFlowTerminal.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcHydronicHeater::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcHydronicHeater::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcDistributionFlowElement.

Member Data Documentation

◆ m_BodyMass

double OdIfc2x_final::IfcHydronicHeater::m_BodyMass

protected

Definition at line 265 of file IfcHydronicHeaterAutoImpl.h.

◆ m_Enclosure

OdAnsiString OdIfc2x_final::IfcHydronicHeater::m_Enclosure

protected

Definition at line 264 of file IfcHydronicHeaterAutoImpl.h.

◆ m_HeatOutput

double OdIfc2x_final::IfcHydronicHeater::m_HeatOutput

protected

Definition at line 263 of file IfcHydronicHeaterAutoImpl.h.

◆ m_HydronicHeaterType

OdDAI::Enum OdIfc2x_final::IfcHydronicHeater::m_HydronicHeaterType

protected

Definition at line 262 of file IfcHydronicHeaterAutoImpl.h.

◆ m_NumberOfPanels

int OdIfc2x_final::IfcHydronicHeater::m_NumberOfPanels

protected

Definition at line 266 of file IfcHydronicHeaterAutoImpl.h.

◆ m_NumberOfSections

int OdIfc2x_final::IfcHydronicHeater::m_NumberOfSections

protected

Definition at line 267 of file IfcHydronicHeaterAutoImpl.h.

The documentation for this class was generated from the following file:

IfcHydronicHeaterAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcHydronicHeater()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBodyMass()

◆ getEnclosure()

◆ getHeatOutput()

◆ getHydronicHeaterType()

◆ getInstanceType()

◆ getNumberOfPanels()

◆ getNumberOfSections()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBodyMass()

◆ setEnclosure()

◆ setHeatOutput()

◆ setHydronicHeaterType()

◆ setNumberOfPanels()

◆ setNumberOfSections()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BodyMass

◆ m_Enclosure

◆ m_HeatOutput

◆ m_HydronicHeaterType

◆ m_NumberOfPanels

◆ m_NumberOfSections
