#include <IfcAssessoryAutoImpl.h>

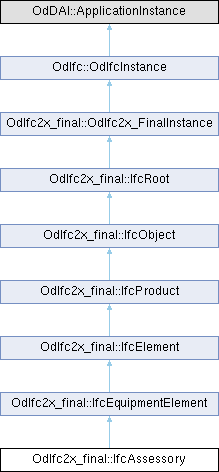

Inheritance diagram for OdIfc2x_final::IfcAssessory:

Public Member Functions
const OdAnsiString &	getMountingType () const

void	setMountingType (const OdAnsiString &MountingType)

	IfcAssessory ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_MountingType

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The assessory (IfcAssessory) describes hardware or attached occupant accessory, which is normally attached to one or more building elements. Examples of an assessory are: Door hardware Window hardware Restroom accessories

In case of a door or window hardware, the inherited attribute SELF\IfcProduct.ObjectType should have on of the following values (if applicable in the project context): Hingeset Lockset Handset Deadbolt Kickplate Pushplate Peephole Knocker DoorStop Passthrough

The assessory is attached to the IfcBuildingElement (or other subtypes of IfcElement) via the objectified relationship IfcRelAggregates.

Local placement - The local placement for IfcBuiltIn is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations. The PlacementRelTo relationship of IfcLocalPlacement points (if given) to the same IfcSpatialStructureElement, which is used in the ContainedInStructure inverse attribute, or to a spatial structure element at a higher level, referenced by that. If the relative placement is not used, the absolute placement is defined within the world coordinate system.
Geometric Representation - The BoundingBox, the SurfaceModel and the Brep geometric representation of IfcAssessory is defined at the supertype IfcEquipmentElement.

Definition at line 69 of file IfcAssessoryAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcAssessory()

OdIfc2x_final::IfcAssessory::IfcAssessory ( )

Default constructor for the IfcAssessory class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcAssessory::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcAssessory::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcAssessory::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcEquipmentElement.

◆ getMountingType()

const OdAnsiString & OdIfc2x_final::IfcAssessory::getMountingType ( ) const

Returns the value of MountingType attribute. This attribute represents description of the method for mounting.

Returns: Returns the value of MountingType attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcAssessory::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcAssessory::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcEquipmentElement.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcAssessory::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcAssessory::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcAssessory::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcElement.

◆ setMountingType()

void OdIfc2x_final::IfcAssessory::setMountingType ( const OdAnsiString & MountingType )

Sets the value of MountingType attribute. This attribute represents description of the method for mounting.

Parameters

MountingType [in] MountingType attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcAssessory::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcAssessory::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcAssessory::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcEquipmentElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcAssessory::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcAssessory::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcElement.

Member Data Documentation

◆ m_MountingType

OdAnsiString OdIfc2x_final::IfcAssessory::m_MountingType

protected

Definition at line 208 of file IfcAssessoryAutoImpl.h.

The documentation for this class was generated from the following file:

IfcAssessoryAutoImpl.h
