#include <IfcBoreholeAutoImpl.h>

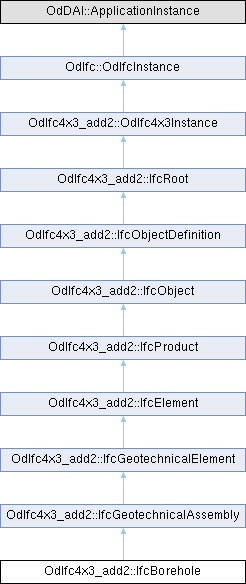

Inheritance diagram for OdIfc4x3_add2::IfcBorehole:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x3_add2::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasSurfaceFeatures (OdDAIObjectIds &HasSurfaceFeatures) const

	IfcElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x3_add2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x3_add2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x3_add2::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x3_add2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x3_add2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

Representation of the concept of a linear geological and geotechnical model, usually an interpretation but sometimes created direct from ground penetrating measurement. The assembly can contain one of more strata and other elements such as capping and lining. The contained subtypes of IfcGeotechnicalStratum will have shape representations made from straight or bent tubes reflecting the bore diameter, or discs if a 'Yabuki' top surface model is being used.

Remarks: This IfcElement subtype is an anomaly in the sense that it does not have a PredefinedType attribute. This is to be provided in subsequent versions of the standard.

Definition at line 47 of file Ifc4x3/IfcBoreholeAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcBorehole::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcGeotechnicalAssembly.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcBorehole::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcGeotechnicalAssembly.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcBorehole::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcGeotechnicalAssembly.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcBorehole::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcGeotechnicalAssembly.

The documentation for this class was generated from the following file:

Ifc4x3/IfcBoreholeAutoImpl.h
