OdIfc4x3_add2::IfcRoot Class Reference

#include <IfcRootAutoImpl.h>

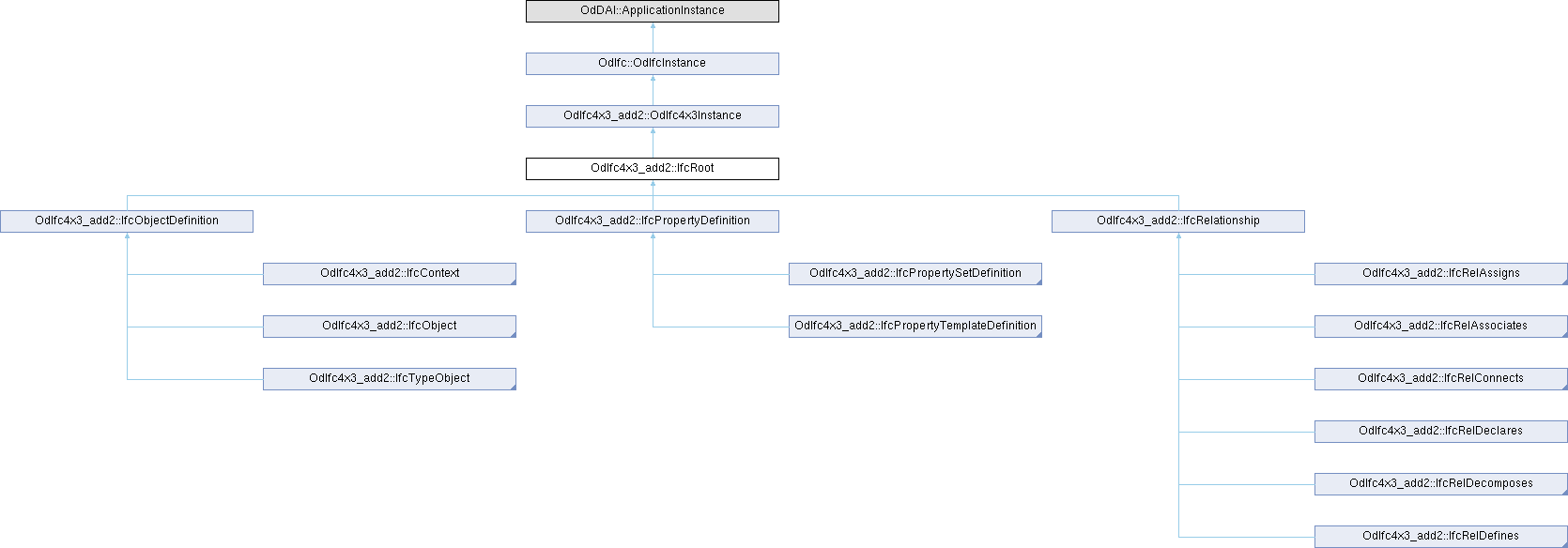

Inheritance diagram for OdIfc4x3_add2::IfcRoot:

Public Member Functions
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdDAI::Entity *	getInstanceType () const override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRoot is the most abstract and root class for all entity definitions that roots in the kernel or in subsequent layers of the IFC specification. It is therefore the common supertype of all IFC entities, beside those defined in an IFC resource schema. All entities that are subtypes of IfcRoot can be used independently, whereas resource schema entities, that are not subtypes of IfcRoot, are not supposed to be independent entities. The IfcRoot assigns the globally unique ID, and the ownership and history information to the entity. In addition it can provide for a name and a description about the concepts.

Remarks

View definitions and implementation agreement can impose additional restrictions on the use of the OwnerHistory to handle object versioning.

\changes

IFC4 changes: The attribute OwnerHistory has been made OPTIONAL.

Definition at line 56 of file Ifc4x3/IfcRootAutoImpl.h.

Constructor & Destructor Documentation

IfcRoot()

OdIfc4x3_add2::IfcRoot::IfcRoot

(

)

Default constructor for the IfcRoot class.

Member Function Documentation

comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcRoot::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther, OdRx::Ordering & ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns

true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses: Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltElementType, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCivilElementType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDeepFoundationType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionControlElementType, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionElementType, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionFlowElementType, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcElementComponentType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEnergyConversionDeviceType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowControllerType, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowFittingType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowMovingDeviceType, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowSegmentType, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowStorageDeviceType, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTerminalType, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFlowTreatmentDeviceType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurnishingElementType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcPreDefinedPropertySet, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProject, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectLibrary, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcPropertyTemplateDefinition, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcQuantitySet, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingElementType, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelationship, OdIfc4x3_add2::IfcRelConnects, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDecomposes, OdIfc4x3_add2::IfcRelDefines, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialStructureElementType, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportationDeviceType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcRoot::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName

[in] Name of an attribute to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcRoot::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getDescription()

const OdAnsiString & OdIfc4x3_add2::IfcRoot::getDescription

(

)

const

Returns the description of an object.

Returns

String that contains description of the object.

getGlobalId()

OdDAI::CompressedGUID OdIfc4x3_add2::IfcRoot::getGlobalId

(

)

const

Returns a globally unique identifier within the entire software world.

Returns

The globally unique identifier value.

getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcRoot::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltElementType, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCivilElementType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDeepFoundationType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionControlElementType, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionElementType, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionFlowElementType, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcElementComponentType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEnergyConversionDeviceType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowControllerType, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowFittingType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowMovingDeviceType, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowSegmentType, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowStorageDeviceType, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTerminalType, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFlowTreatmentDeviceType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurnishingElementType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcPreDefinedPropertySet, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProject, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectLibrary, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcPropertyTemplateDefinition, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcQuantitySet, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingElementType, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelationship, OdIfc4x3_add2::IfcRelConnects, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDecomposes, OdIfc4x3_add2::IfcRelDefines, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialStructureElementType, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportationDeviceType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getName()

const OdAnsiString & OdIfc4x3_add2::IfcRoot::getName

(

)

const

Returns a name that is used by the participating software systems or users.

Returns

A strings that contains a name of the object.

getOwnerHistory()

const OdDAIObjectId & OdIfc4x3_add2::IfcRoot::getOwnerHistory

(

)

const

Returns the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object.

Returns

The OdDAIObjectId object that contains information about ownership of that object.

inFields()

virtual OdResult OdIfc4x3_add2::IfcRoot::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

isKindOf()

virtual bool OdIfc4x3_add2::IfcRoot::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltElementType, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCivilElementType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDeepFoundationType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionControlElementType, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionElementType, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionFlowElementType, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcElementComponentType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEnergyConversionDeviceType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowControllerType, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowFittingType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowMovingDeviceType, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowSegmentType, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowStorageDeviceType, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTerminalType, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFlowTreatmentDeviceType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurnishingElementType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcPreDefinedPropertySet, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProject, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectLibrary, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcPropertyTemplateDefinition, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcQuantitySet, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingElementType, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelationship, OdIfc4x3_add2::IfcRelConnects, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDecomposes, OdIfc4x3_add2::IfcRelDefines, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialStructureElementType, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportationDeviceType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

outFields()

virtual OdResult OdIfc4x3_add2::IfcRoot::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcRoot::putAttr ( const char * explicitAttrName, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcRoot::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

setDescription()

void OdIfc4x3_add2::IfcRoot::setDescription

(

const OdAnsiString &

Description

)

Sets the object description.

Parameters

Description

String that contains comments that describe an object.

setGlobalId()

void OdIfc4x3_add2::IfcRoot::setGlobalId

(

OdDAI::CompressedGUID

GlobalId

)

Assigns a globally unique identifier within the entire software world.

Parameters

GlobalId

[in] Value that represents a globally unique identifier to assign.

setName()

void OdIfc4x3_add2::IfcRoot::setName

(

const OdAnsiString &

Name

)

Sets the name of the object.

Parameters

Name	String that contains name of the object.

setOwnerHistory()

void OdIfc4x3_add2::IfcRoot::setOwnerHistory

(

const OdDAIObjectId &

OwnerHistory

)

Assigns the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object.

Parameters

OwnerHistory

[in] Ownership information.

testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcRoot::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcRoot::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcRoot::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltElementType, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCivilElementType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDeepFoundationType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionControlElementType, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionElementType, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionFlowElementType, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcElementComponentType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEnergyConversionDeviceType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowControllerType, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowFittingType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowMovingDeviceType, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowSegmentType, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowStorageDeviceType, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTerminalType, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFlowTreatmentDeviceType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurnishingElementType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcPreDefinedPropertySet, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProject, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectLibrary, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcPropertyTemplateDefinition, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcQuantitySet, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingElementType, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelationship, OdIfc4x3_add2::IfcRelConnects, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDecomposes, OdIfc4x3_add2::IfcRelDefines, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialStructureElementType, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportationDeviceType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

unsetAttr() [1/2]

virtual void OdIfc4x3_add2::IfcRoot::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

unsetAttr() [2/2]

virtual void OdIfc4x3_add2::IfcRoot::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcActuatorType, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirTerminalBoxType, OdIfc4x3_add2::IfcAirTerminalType, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAirToAirHeatRecoveryType, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlarmType, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcAudioVisualApplianceType, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBeamType, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBearingType, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBoilerType, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementPartType, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingElementProxyType, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcBurnerType, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierFittingType, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableCarrierSegmentType, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableFittingType, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCableSegmentType, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcCaissonFoundationType, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChillerType, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcChimneyType, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcCoilType, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcColumnType, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCommunicationsApplianceType, OdIfc4x3_add2::IfcComplexPropertyTemplate, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCompressorType, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcCondenserType, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionEquipmentResourceType, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionMaterialResourceType, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionProductResourceType, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcConstructionResourceType, OdIfc4x3_add2::IfcContext, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcControllerType, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcConveyorSegmentType, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCooledBeamType, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCoolingTowerType, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCourseType, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCoveringType, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCrewResourceType, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcCurtainWallType, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDamperType, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDiscreteAccessoryType, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionBoardType, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionChamberElementType, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDoorLiningProperties, OdIfc4x3_add2::IfcDoorPanelProperties, OdIfc4x3_add2::IfcDoorType, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctFittingType, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSegmentType, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcDuctSilencerType, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricApplianceType, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricDistributionBoardType, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowStorageDeviceType, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDeviceType, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricGeneratorType, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricMotorType, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElectricTimeControlType, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementAssemblyType, OdIfc4x3_add2::IfcElementQuantity, OdIfc4x3_add2::IfcElementType, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEngineType, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporativeCoolerType, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvaporatorType, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcEventType, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFanType, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFastenerType, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFilterType, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFireSuppressionTerminalType, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowInstrumentType, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMeterType, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFootingType, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcFurnitureType, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeographicElementType, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHeatExchangerType, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcHumidifierType, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcImpactProtectionDeviceType, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInterceptorType, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcJunctionBoxType, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcKerbType, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLaborResourceType, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLampType, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLightFixtureType, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcLiquidTerminalType, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMechanicalFastenerType, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMedicalDeviceType, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMemberType, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMobileTelecommunicationsApplianceType, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMooringDeviceType, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcMotorConnectionType, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcNavigationElementType, OdIfc4x3_add2::IfcObject, OdIfc4x3_add2::IfcObjectDefinition, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcOutletType, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPavementType, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermeableCoveringProperties, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPileType, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeFittingType, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPipeSegmentType, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPlateType, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcedureType, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcPropertyDefinition, OdIfc4x3_add2::IfcPropertySet, OdIfc4x3_add2::IfcPropertySetDefinition, OdIfc4x3_add2::IfcPropertySetTemplate, OdIfc4x3_add2::IfcPropertyTemplate, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnitType, OdIfc4x3_add2::IfcProtectiveDeviceType, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcPumpType, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailingType, OdIfc4x3_add2::IfcRailType, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcRampFlightType, OdIfc4x3_add2::IfcRampType, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcementDefinitionProperties, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingBarType, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcReinforcingMeshType, OdIfc4x3_add2::IfcRelAdheresToElement, OdIfc4x3_add2::IfcRelAggregates, OdIfc4x3_add2::IfcRelAssigns, OdIfc4x3_add2::IfcRelAssignsToActor, OdIfc4x3_add2::IfcRelAssignsToControl, OdIfc4x3_add2::IfcRelAssignsToGroup, OdIfc4x3_add2::IfcRelAssignsToGroupByFactor, OdIfc4x3_add2::IfcRelAssignsToProcess, OdIfc4x3_add2::IfcRelAssignsToProduct, OdIfc4x3_add2::IfcRelAssignsToResource, OdIfc4x3_add2::IfcRelAssociates, OdIfc4x3_add2::IfcRelAssociatesApproval, OdIfc4x3_add2::IfcRelAssociatesClassification, OdIfc4x3_add2::IfcRelAssociatesConstraint, OdIfc4x3_add2::IfcRelAssociatesDocument, OdIfc4x3_add2::IfcRelAssociatesLibrary, OdIfc4x3_add2::IfcRelAssociatesMaterial, OdIfc4x3_add2::IfcRelAssociatesProfileDef, OdIfc4x3_add2::IfcRelConnectsElements, OdIfc4x3_add2::IfcRelConnectsPathElements, OdIfc4x3_add2::IfcRelConnectsPorts, OdIfc4x3_add2::IfcRelConnectsPortToElement, OdIfc4x3_add2::IfcRelConnectsStructuralActivity, OdIfc4x3_add2::IfcRelConnectsStructuralMember, OdIfc4x3_add2::IfcRelConnectsWithEccentricity, OdIfc4x3_add2::IfcRelConnectsWithRealizingElements, OdIfc4x3_add2::IfcRelContainedInSpatialStructure, OdIfc4x3_add2::IfcRelCoversBldgElements, OdIfc4x3_add2::IfcRelCoversSpaces, OdIfc4x3_add2::IfcRelDeclares, OdIfc4x3_add2::IfcRelDefinesByObject, OdIfc4x3_add2::IfcRelDefinesByProperties, OdIfc4x3_add2::IfcRelDefinesByTemplate, OdIfc4x3_add2::IfcRelDefinesByType, OdIfc4x3_add2::IfcRelFillsElement, OdIfc4x3_add2::IfcRelFlowControlElements, OdIfc4x3_add2::IfcRelInterferesElements, OdIfc4x3_add2::IfcRelNests, OdIfc4x3_add2::IfcRelPositions, OdIfc4x3_add2::IfcRelProjectsElement, OdIfc4x3_add2::IfcRelReferencedInSpatialStructure, OdIfc4x3_add2::IfcRelSequence, OdIfc4x3_add2::IfcRelServicesBuildings, OdIfc4x3_add2::IfcRelSpaceBoundary1stLevel, OdIfc4x3_add2::IfcRelSpaceBoundary2ndLevel, OdIfc4x3_add2::IfcRelSpaceBoundary, OdIfc4x3_add2::IfcRelVoidsElement, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcRoofType, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSanitaryTerminalType, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcSensorType, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcShadingDeviceType, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSignalType, OdIfc4x3_add2::IfcSignType, OdIfc4x3_add2::IfcSimplePropertyTemplate, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSlabType, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSolarDeviceType, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpaceHeaterType, OdIfc4x3_add2::IfcSpaceType, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialElementType, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcSpatialZoneType, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStackTerminalType, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStairFlightType, OdIfc4x3_add2::IfcStairType, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSubContractResourceType, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSwitchingDeviceType, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcSystemFurnitureElementType, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTankType, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTaskType, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonAnchorType, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTendonConduitType, OdIfc4x3_add2::IfcTendonType, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTrackElementType, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransformerType, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTransportElementType, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcTubeBundleType, OdIfc4x3_add2::IfcTypeObject, OdIfc4x3_add2::IfcTypeProcess, OdIfc4x3_add2::IfcTypeProduct, OdIfc4x3_add2::IfcTypeResource, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryControlElementType, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcUnitaryEquipmentType, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcValveType, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVehicleType, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationDamperType, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVibrationIsolatorType, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallType, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWasteTerminalType, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWindowLiningProperties, OdIfc4x3_add2::IfcWindowPanelProperties, OdIfc4x3_add2::IfcWindowType, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

Member Data Documentation

m_Description

OdAnsiString OdIfc4x3_add2::IfcRoot::m_Description

protected

Definition at line 254 of file Ifc4x3/IfcRootAutoImpl.h.

m_GlobalId

OdDAI::CompressedGUID OdIfc4x3_add2::IfcRoot::m_GlobalId

protected

Definition at line 251 of file Ifc4x3/IfcRootAutoImpl.h.

m_Name

OdAnsiString OdIfc4x3_add2::IfcRoot::m_Name

protected

Definition at line 253 of file Ifc4x3/IfcRootAutoImpl.h.

m_OwnerHistory

OdDAIObjectId OdIfc4x3_add2::IfcRoot::m_OwnerHistory

protected

Definition at line 252 of file Ifc4x3/IfcRootAutoImpl.h.

---

The documentation for this class was generated from the following file:

• Ifc4x3/IfcRootAutoImpl.h
