#include <IfcObjectDefinitionAutoImpl.h>

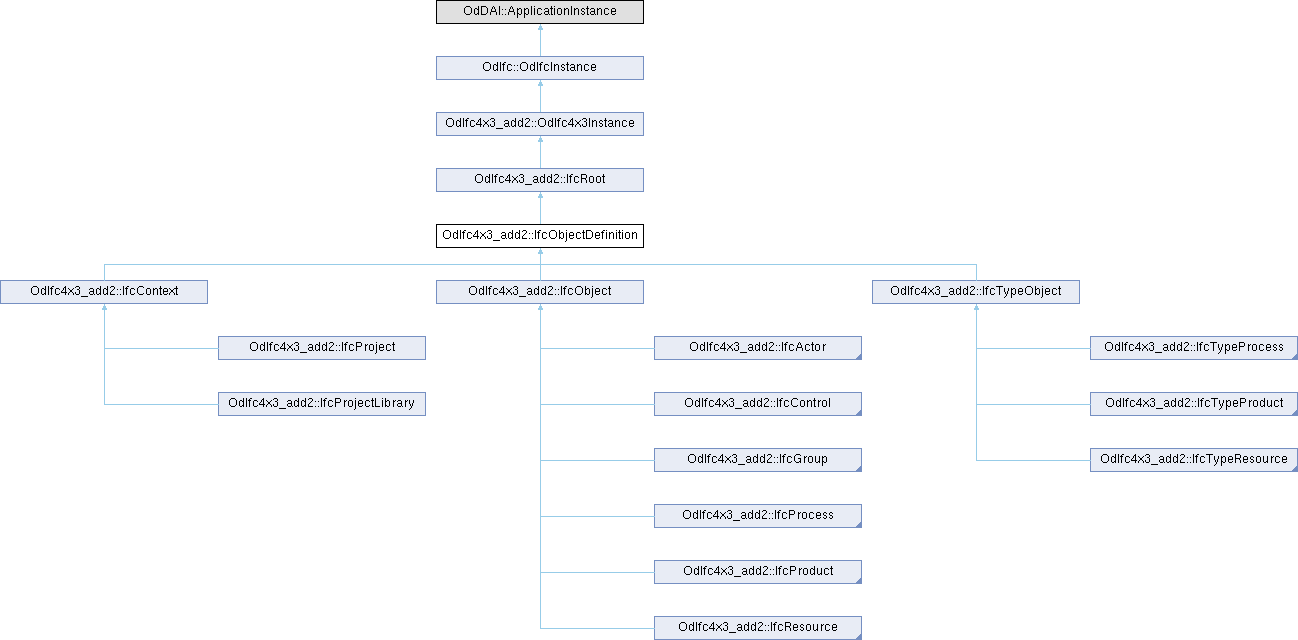

Inheritance diagram for OdIfc4x3_add2::IfcObjectDefinition:

Public Member Functions
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelAssigns

class	IfcRelNests

class	IfcRelDeclares

class	IfcRelAggregates

class	IfcRelAssociates

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An IfcObjectDefinition is the generalization of any semantically treated thing or process, either being a type or an occurrences. Object definitions can be named, using the inherited Name attribute, which should be a user recognizable label for the object occurrence. Further explanations to the object can be given using the inherited Description attribute. A context is a specific kind of object definition as it provides the project or library context in which object types and object occurrences are defined.

Objects are independent pieces of information that might contain or reference other pieces of information. There are four essential kinds of relationships in which object definitions (by their instantiable subtypes) can be involved:

Assignment of other objects - an assignment relationship (IfcRelAssigns) that refers to other types of objects and creates a bi-directional association. The semantic of the assignment is established at the level of the subtypes of the general IfcRelAssigns relationship. There is no dependency implied a priori by the assignment. Association to external resources - an association relationship (IfcRelAssociates) that refers to external sources of information (most notably a classification or document) and creates a uni-directional association. There is no dependency implied by the association. Aggregation of other objects - an aggregation relationship (IfcRelAggregates) that establishes an unordered, spatial whole/part relation and creates a bi-directional relation. There is an implied dependency established. Nesting of other objects - a nesting relationship (IfcRelNests) that establishes an ordered, non-spatial whole/part relation and creates a bi-directional relation. There is an implied dependency established. Declaration within a context - a relationship (IfcRelDeclares) of the uppermost object definition within the object definition tree (e.g. the summary object within an object nesting tree) to the context (a project or project library). It applies the units, representation context and other context information to this object definition and all dependent ones.

\changes

IFC4 changes: The new subtype IfcContext and the relationship to context HasContext has been added. The decomposition relationship is split into ordered nesting (Nests, IsNestedBy) and un-ordered aggregating (Decomposes, IsDecomposedBy). Name of the inverse attribute Decomposes changed to IsNestedBy. Type of the inverse attribute Decomposes changed from "SET OF [0:1] IfcRelDecomposes FOR RelatedObjects" to "SET OF [0:?] IfcRelNests FOR RelatingObject". Name of the inverse attribute IsDecomposedBy changed to Nests. Type of the inverse attribute IsDecomposedBy changed from "SET OF [0:?] IfcRelDecomposes FOR RelatingObject" to "SET OF [0:1] IfcRelNests FOR RelatedObjects".

Definition at line 69 of file Ifc4x3/IfcObjectDefinitionAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcObjectDefinition::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcRoot::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcObjectDefinition::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcObjectDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ getInvDecomposes()

void OdIfc4x3_add2::IfcObjectDefinition::getInvDecomposes ( OdDAIObjectIds & Decomposes ) const

Returns the value of Decomposes attribute. This attribute represents references to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical structures only).

Parameters

Decomposes [out] Receives the value of Decomposes attribute.

Remarks: IFC4 CHANGE: The inverse attribute data type has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.

◆ getInvHasAssignments()

void OdIfc4x3_add2::IfcObjectDefinition::getInvHasAssignments ( OdDAIObjectIds & HasAssignments ) const

Returns the value of HasAssignments attribute. This attribute represents reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.

Parameters

HasAssignments [out] Receives the value of HasAssignments attribute.

◆ getInvHasAssociations()

void OdIfc4x3_add2::IfcObjectDefinition::getInvHasAssociations ( OdDAIObjectIds & HasAssociations ) const

Returns the value of HasAssociations attribute. This attribute represents reference to the relationship objects, that associates external references or other resource definitions to the object. Examples are the association to library, documentation or classification.

Parameters

HasAssociations [out] Receives the value of HasAssociations attribute.

◆ getInvHasContext()

void OdIfc4x3_add2::IfcObjectDefinition::getInvHasContext ( OdDAIObjectIds & HasContext ) const

Returns the value of HasContext attribute. This attribute represents references to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.

Parameters

HasContext [out] Receives the value of HasContext attribute.

Remarks: IFC4 CHANGE: The inverse attribute data type has been added.

◆ getInvIsDecomposedBy()

void OdIfc4x3_add2::IfcObjectDefinition::getInvIsDecomposedBy ( OdDAIObjectIds & IsDecomposedBy ) const

Returns the value of IsDecomposedBy attribute. This attribute represents references to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).

Parameters

IsDecomposedBy [out] Receives the value of IsDecomposedBy attribute.

Remarks: IFC4 CHANGE: The inverse attribute data type has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.

◆ getInvIsNestedBy()

void OdIfc4x3_add2::IfcObjectDefinition::getInvIsNestedBy ( OdDAIObjectIds & IsNestedBy ) const

Returns the value of IsNestedBy attribute. This attribute represents references to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).

Parameters

IsNestedBy [out] Receives the value of IsNestedBy attribute.

Remarks: IFC4 CHANGE: The inverse attribute data type has been added and separated from Decomposes defined at IfcObjectDefinition.

◆ getInvNests()

void OdIfc4x3_add2::IfcObjectDefinition::getInvNests ( OdDAIObjectIds & Nests ) const

Returns the value of Nests attribute. This attribute represents references to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical structures only).

Parameters

Nests [out] Receives the value of Nests attribute.

Remarks: IFC4 CHANGE: The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.

◆ inFields()

virtual OdResult OdIfc4x3_add2::IfcObjectDefinition::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcObjectDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ outFields()

virtual OdResult OdIfc4x3_add2::IfcObjectDefinition::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcRoot::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObjectDefinition::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcObjectDefinition::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObjectDefinition::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcObjectDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcRoot.
