OdIfc4x3_add2::IfcObject Class Reference

#include <IfcObjectAutoImpl.h>

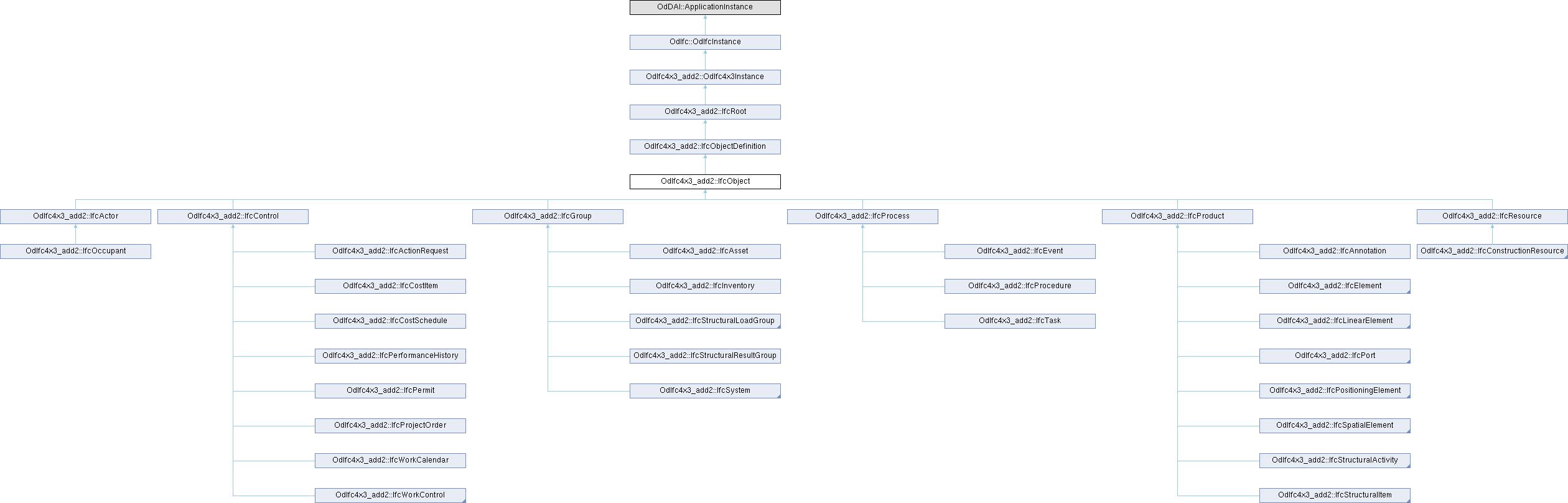

Inheritance diagram for OdIfc4x3_add2::IfcObject:

Public Member Functions
const OdAnsiString &	getObjectType () const
void	setObjectType (const OdAnsiString &ObjectType)
void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const
void	getInvDeclares (OdDAIObjectIds &Declares) const
void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const
void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const
	IfcObject ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdDAI::Entity *	getInstanceType () const override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x3_add2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const
void	getInvNests (OdDAIObjectIds &Nests) const
void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const
void	getInvHasContext (OdDAIObjectIds &HasContext) const
void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const
void	getInvDecomposes (OdDAIObjectIds &Decomposes) const
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const
Public Member Functions inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_ObjectType
Protected Attributes inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Friends
class	IfcRelDefinesByObject
class	IfcRelDefinesByType
class	IfcRelDefinesByProperties

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Member Functions inherited from OdIfc4x3_add2::IfcObjectDefinition
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

An IfcObject is the generalization of any semantically treated thing or process. Objects are things as they appear - i.e. occurrences.

Objects are independent pieces of information that might contain or reference other pieces of information. There are several relationships in which objects can be involved: Association to external/internal resource information - an association relationship that refers to external/internal sources of information. See supertype IfcObjectDefinition for more information. Assignment of other objects - an assignment relationship that refers to other types of objects. See supertype IfcObjectDefinition for more information. Aggregation of other objects - an aggregation relationship that establishes a whole/part relation. Objects can either be a whole, or a part, or both. See supertype IfcObjectDefinition for more information. Assignment of a type : IsTypedBy - a definition relationship IfcRelDefinesByType that uses a type definition to define the common characteristics of this occurrences, potentially including the common shape representation and common properties of all object occurrences assigned to this type. It is a specific - occurrence relationship with implied dependencies (as the occurrence properties depend on the properties of the type, but can override them). Assignment of a partial type : IsDeclaredBy, Declares - a definition relationship IfcRelDefinesByObject that uses a component of a type definition (a part of a type, called the "declaring part") to define a component of an occurrence (part of occurrence, called the "reflected part"). This is also referred to as a "deep copy". The common characteristics of all parts in the occurrence are defined by parts in the type. It is a specific - occurrence relationship with implied dependencies (as the occurrence properties depend on the properties of the type, but can override them). Assignment of property sets : IsDefinedBy - a definition relationship IfcRelDefinesByProperties that assigns property set definitions to the object occurrence.

\changes

IFC4 changes: Name of the inverse attribute IsDefinedBy changed to IsDeclaredBy. Type of the inverse attribute IsDefinedBy changed from "SET OF [0:?] IfcRelDefines FOR RelatedObjects" to "SET OF [0:1] IfcRelDefinesByObject FOR RelatedObjects"

Definition at line 64 of file Ifc4x3/IfcObjectAutoImpl.h.

Constructor & Destructor Documentation

IfcObject()

OdIfc4x3_add2::IfcObject::IfcObject

(

)

Default constructor for the IfcObject class.

Member Function Documentation

comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcObject::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther, OdRx::Ordering & ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns

true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses: Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcObject::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName

[in] Name of an attribute to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcRoot.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcObject::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcObject::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

getInvDeclares()

void OdIfc4x3_add2::IfcObject::getInvDeclares

(

OdDAIObjectIds &

Declares

)

const

Returns the value of Declares attribute. This attribute represents link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.

Parameters

Declares

[out] Receives the value of Declares attribute.

Remarks

IFC4 CHANGE: New inverse relationship, change made with upward compatibility for file-based exchange.

getInvIsDeclaredBy()

void OdIfc4x3_add2::IfcObject::getInvIsDeclaredBy

(

OdDAIObjectIds &

IsDeclaredBy

)

const

Returns the value of IsDeclaredBy attribute. This attribute represents link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.

Parameters

IsDeclaredBy

[out] Receives the value of IsDeclaredBy attribute.

Remarks

IFC4 CHANGE: New inverse relationship, change made with upward compatibility for file-based exchange.

getInvIsDefinedBy()

void OdIfc4x3_add2::IfcObject::getInvIsDefinedBy

(

OdDAIObjectIds &

IsDefinedBy

)

const

Returns the value of IsDefinedBy attribute. This attribute represents set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.

Parameters

IsDefinedBy

[out] Receives the value of IsDefinedBy attribute.

Remarks

IFC4 CHANGE: The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file-based exchange.

getInvIsTypedBy()

void OdIfc4x3_add2::IfcObject::getInvIsTypedBy

(

OdDAIObjectIds &

IsTypedBy

)

const

Returns the value of IsTypedBy attribute. This attribute represents set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.

Parameters

IsTypedBy

[out] Receives the value of IsTypedBy attribute.

Remarks

IFC4 CHANGE  New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file-based exchange.

getObjectType()

const OdAnsiString & OdIfc4x3_add2::IfcObject::getObjectType

(

)

const

Returns the value of ObjectType attribute. This attribute represents the type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.

Returns

Returns the value of ObjectType attribute.

inFields()

virtual OdResult OdIfc4x3_add2::IfcObject::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

isKindOf()

virtual bool OdIfc4x3_add2::IfcObject::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

outFields()

virtual OdResult OdIfc4x3_add2::IfcObject::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcObject::putAttr ( const char * explicitAttrName, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRoot.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObject::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

setObjectType()

void OdIfc4x3_add2::IfcObject::setObjectType

(

const OdAnsiString &

ObjectType

)

Sets the value of ObjectType attribute. This attribute represents the type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.

Parameters

ObjectType

[in] Object type to set.

testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcObject::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObject::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcObject::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentHorizontal, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAlignmentVertical, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBorehole, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltElement, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCivilElement, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDeepFoundation, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionCircuit, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksElement, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcElementComponent, OdIfc4x3_add2::IfcEnergyConversionDevice, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcExternalSpatialStructureElement, OdIfc4x3_add2::IfcFacility, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElement, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowController, OdIfc4x3_add2::IfcFlowFitting, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFlowMovingDevice, OdIfc4x3_add2::IfcFlowSegment, OdIfc4x3_add2::IfcFlowStorageDevice, OdIfc4x3_add2::IfcFlowTerminal, OdIfc4x3_add2::IfcFlowTreatmentDevice, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurnishingElement, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeomodel, OdIfc4x3_add2::IfcGeoslice, OdIfc4x3_add2::IfcGeotechnicalAssembly, OdIfc4x3_add2::IfcGeotechnicalElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLinearElement, OdIfc4x3_add2::IfcLinearPositioningElement, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveMemberVarying, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLinearAction, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPlanarAction, OdIfc4x3_add2::IfcStructuralPointAction, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralPointReaction, OdIfc4x3_add2::IfcStructuralReaction, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceConnection, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceMemberVarying, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportationDevice, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWallStandardCase, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

unsetAttr() [1/2]

virtual void OdIfc4x3_add2::IfcObject::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

unsetAttr() [2/2]

virtual void OdIfc4x3_add2::IfcObject::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcObjectDefinition.

Reimplemented in OdIfc4x3_add2::IfcActionRequest, OdIfc4x3_add2::IfcActor, OdIfc4x3_add2::IfcActuator, OdIfc4x3_add2::IfcAirTerminal, OdIfc4x3_add2::IfcAirTerminalBox, OdIfc4x3_add2::IfcAirToAirHeatRecovery, OdIfc4x3_add2::IfcAlarm, OdIfc4x3_add2::IfcAlignment, OdIfc4x3_add2::IfcAlignmentCant, OdIfc4x3_add2::IfcAlignmentSegment, OdIfc4x3_add2::IfcAnnotation, OdIfc4x3_add2::IfcAsset, OdIfc4x3_add2::IfcAudioVisualAppliance, OdIfc4x3_add2::IfcBeam, OdIfc4x3_add2::IfcBearing, OdIfc4x3_add2::IfcBoiler, OdIfc4x3_add2::IfcBridge, OdIfc4x3_add2::IfcBridgePart, OdIfc4x3_add2::IfcBuilding, OdIfc4x3_add2::IfcBuildingElementPart, OdIfc4x3_add2::IfcBuildingElementProxy, OdIfc4x3_add2::IfcBuildingStorey, OdIfc4x3_add2::IfcBuildingSystem, OdIfc4x3_add2::IfcBuiltSystem, OdIfc4x3_add2::IfcBurner, OdIfc4x3_add2::IfcCableCarrierFitting, OdIfc4x3_add2::IfcCableCarrierSegment, OdIfc4x3_add2::IfcCableFitting, OdIfc4x3_add2::IfcCableSegment, OdIfc4x3_add2::IfcCaissonFoundation, OdIfc4x3_add2::IfcChiller, OdIfc4x3_add2::IfcChimney, OdIfc4x3_add2::IfcCoil, OdIfc4x3_add2::IfcColumn, OdIfc4x3_add2::IfcCommunicationsAppliance, OdIfc4x3_add2::IfcCompressor, OdIfc4x3_add2::IfcCondenser, OdIfc4x3_add2::IfcConstructionEquipmentResource, OdIfc4x3_add2::IfcConstructionMaterialResource, OdIfc4x3_add2::IfcConstructionProductResource, OdIfc4x3_add2::IfcConstructionResource, OdIfc4x3_add2::IfcControl, OdIfc4x3_add2::IfcController, OdIfc4x3_add2::IfcConveyorSegment, OdIfc4x3_add2::IfcCooledBeam, OdIfc4x3_add2::IfcCoolingTower, OdIfc4x3_add2::IfcCostItem, OdIfc4x3_add2::IfcCostSchedule, OdIfc4x3_add2::IfcCourse, OdIfc4x3_add2::IfcCovering, OdIfc4x3_add2::IfcCrewResource, OdIfc4x3_add2::IfcCurtainWall, OdIfc4x3_add2::IfcDamper, OdIfc4x3_add2::IfcDiscreteAccessory, OdIfc4x3_add2::IfcDistributionBoard, OdIfc4x3_add2::IfcDistributionChamberElement, OdIfc4x3_add2::IfcDistributionControlElement, OdIfc4x3_add2::IfcDistributionElement, OdIfc4x3_add2::IfcDistributionFlowElement, OdIfc4x3_add2::IfcDistributionPort, OdIfc4x3_add2::IfcDistributionSystem, OdIfc4x3_add2::IfcDoor, OdIfc4x3_add2::IfcDuctFitting, OdIfc4x3_add2::IfcDuctSegment, OdIfc4x3_add2::IfcDuctSilencer, OdIfc4x3_add2::IfcEarthworksCut, OdIfc4x3_add2::IfcEarthworksFill, OdIfc4x3_add2::IfcElectricAppliance, OdIfc4x3_add2::IfcElectricDistributionBoard, OdIfc4x3_add2::IfcElectricFlowStorageDevice, OdIfc4x3_add2::IfcElectricFlowTreatmentDevice, OdIfc4x3_add2::IfcElectricGenerator, OdIfc4x3_add2::IfcElectricMotor, OdIfc4x3_add2::IfcElectricTimeControl, OdIfc4x3_add2::IfcElement, OdIfc4x3_add2::IfcElementAssembly, OdIfc4x3_add2::IfcEngine, OdIfc4x3_add2::IfcEvaporativeCooler, OdIfc4x3_add2::IfcEvaporator, OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcExternalSpatialElement, OdIfc4x3_add2::IfcFacilityPart, OdIfc4x3_add2::IfcFacilityPartCommon, OdIfc4x3_add2::IfcFan, OdIfc4x3_add2::IfcFastener, OdIfc4x3_add2::IfcFeatureElementAddition, OdIfc4x3_add2::IfcFeatureElementSubtraction, OdIfc4x3_add2::IfcFilter, OdIfc4x3_add2::IfcFireSuppressionTerminal, OdIfc4x3_add2::IfcFlowInstrument, OdIfc4x3_add2::IfcFlowMeter, OdIfc4x3_add2::IfcFooting, OdIfc4x3_add2::IfcFurniture, OdIfc4x3_add2::IfcGeographicElement, OdIfc4x3_add2::IfcGeotechnicalStratum, OdIfc4x3_add2::IfcGrid, OdIfc4x3_add2::IfcGroup, OdIfc4x3_add2::IfcHeatExchanger, OdIfc4x3_add2::IfcHumidifier, OdIfc4x3_add2::IfcImpactProtectionDevice, OdIfc4x3_add2::IfcInterceptor, OdIfc4x3_add2::IfcInventory, OdIfc4x3_add2::IfcJunctionBox, OdIfc4x3_add2::IfcKerb, OdIfc4x3_add2::IfcLaborResource, OdIfc4x3_add2::IfcLamp, OdIfc4x3_add2::IfcLightFixture, OdIfc4x3_add2::IfcLiquidTerminal, OdIfc4x3_add2::IfcMarineFacility, OdIfc4x3_add2::IfcMarinePart, OdIfc4x3_add2::IfcMechanicalFastener, OdIfc4x3_add2::IfcMedicalDevice, OdIfc4x3_add2::IfcMember, OdIfc4x3_add2::IfcMobileTelecommunicationsAppliance, OdIfc4x3_add2::IfcMooringDevice, OdIfc4x3_add2::IfcMotorConnection, OdIfc4x3_add2::IfcNavigationElement, OdIfc4x3_add2::IfcOccupant, OdIfc4x3_add2::IfcOpeningElement, OdIfc4x3_add2::IfcOutlet, OdIfc4x3_add2::IfcPavement, OdIfc4x3_add2::IfcPerformanceHistory, OdIfc4x3_add2::IfcPermit, OdIfc4x3_add2::IfcPile, OdIfc4x3_add2::IfcPipeFitting, OdIfc4x3_add2::IfcPipeSegment, OdIfc4x3_add2::IfcPlate, OdIfc4x3_add2::IfcPort, OdIfc4x3_add2::IfcPositioningElement, OdIfc4x3_add2::IfcProcedure, OdIfc4x3_add2::IfcProcess, OdIfc4x3_add2::IfcProduct, OdIfc4x3_add2::IfcProjectionElement, OdIfc4x3_add2::IfcProjectOrder, OdIfc4x3_add2::IfcProtectiveDevice, OdIfc4x3_add2::IfcProtectiveDeviceTrippingUnit, OdIfc4x3_add2::IfcPump, OdIfc4x3_add2::IfcRail, OdIfc4x3_add2::IfcRailing, OdIfc4x3_add2::IfcRailway, OdIfc4x3_add2::IfcRailwayPart, OdIfc4x3_add2::IfcRamp, OdIfc4x3_add2::IfcRampFlight, OdIfc4x3_add2::IfcReferent, OdIfc4x3_add2::IfcReinforcedSoil, OdIfc4x3_add2::IfcReinforcingBar, OdIfc4x3_add2::IfcReinforcingElement, OdIfc4x3_add2::IfcReinforcingMesh, OdIfc4x3_add2::IfcResource, OdIfc4x3_add2::IfcRoad, OdIfc4x3_add2::IfcRoadPart, OdIfc4x3_add2::IfcRoof, OdIfc4x3_add2::IfcSanitaryTerminal, OdIfc4x3_add2::IfcSensor, OdIfc4x3_add2::IfcShadingDevice, OdIfc4x3_add2::IfcSign, OdIfc4x3_add2::IfcSignal, OdIfc4x3_add2::IfcSite, OdIfc4x3_add2::IfcSlab, OdIfc4x3_add2::IfcSolarDevice, OdIfc4x3_add2::IfcSpace, OdIfc4x3_add2::IfcSpaceHeater, OdIfc4x3_add2::IfcSpatialElement, OdIfc4x3_add2::IfcSpatialStructureElement, OdIfc4x3_add2::IfcSpatialZone, OdIfc4x3_add2::IfcStackTerminal, OdIfc4x3_add2::IfcStair, OdIfc4x3_add2::IfcStairFlight, OdIfc4x3_add2::IfcStructuralAction, OdIfc4x3_add2::IfcStructuralActivity, OdIfc4x3_add2::IfcStructuralAnalysisModel, OdIfc4x3_add2::IfcStructuralConnection, OdIfc4x3_add2::IfcStructuralCurveAction, OdIfc4x3_add2::IfcStructuralCurveConnection, OdIfc4x3_add2::IfcStructuralCurveMember, OdIfc4x3_add2::IfcStructuralCurveReaction, OdIfc4x3_add2::IfcStructuralItem, OdIfc4x3_add2::IfcStructuralLoadCase, OdIfc4x3_add2::IfcStructuralLoadGroup, OdIfc4x3_add2::IfcStructuralMember, OdIfc4x3_add2::IfcStructuralPointConnection, OdIfc4x3_add2::IfcStructuralResultGroup, OdIfc4x3_add2::IfcStructuralSurfaceAction, OdIfc4x3_add2::IfcStructuralSurfaceMember, OdIfc4x3_add2::IfcStructuralSurfaceReaction, OdIfc4x3_add2::IfcSubContractResource, OdIfc4x3_add2::IfcSurfaceFeature, OdIfc4x3_add2::IfcSwitchingDevice, OdIfc4x3_add2::IfcSystem, OdIfc4x3_add2::IfcSystemFurnitureElement, OdIfc4x3_add2::IfcTank, OdIfc4x3_add2::IfcTask, OdIfc4x3_add2::IfcTendon, OdIfc4x3_add2::IfcTendonAnchor, OdIfc4x3_add2::IfcTendonConduit, OdIfc4x3_add2::IfcTrackElement, OdIfc4x3_add2::IfcTransformer, OdIfc4x3_add2::IfcTransportElement, OdIfc4x3_add2::IfcTubeBundle, OdIfc4x3_add2::IfcUnitaryControlElement, OdIfc4x3_add2::IfcUnitaryEquipment, OdIfc4x3_add2::IfcValve, OdIfc4x3_add2::IfcVehicle, OdIfc4x3_add2::IfcVibrationDamper, OdIfc4x3_add2::IfcVibrationIsolator, OdIfc4x3_add2::IfcVirtualElement, OdIfc4x3_add2::IfcVoidingFeature, OdIfc4x3_add2::IfcWall, OdIfc4x3_add2::IfcWasteTerminal, OdIfc4x3_add2::IfcWindow, OdIfc4x3_add2::IfcWorkCalendar, OdIfc4x3_add2::IfcWorkControl, OdIfc4x3_add2::IfcWorkPlan, OdIfc4x3_add2::IfcWorkSchedule, and OdIfc4x3_add2::IfcZone.

Friends And Related Symbol Documentation

IfcRelDefinesByObject

IfcRelDefinesByObject

friend

Definition at line 276 of file Ifc4x3/IfcObjectAutoImpl.h.

IfcRelDefinesByProperties

friend class IfcRelDefinesByProperties

friend

Definition at line 279 of file Ifc4x3/IfcObjectAutoImpl.h.

IfcRelDefinesByType

friend class IfcRelDefinesByType

friend

Definition at line 278 of file Ifc4x3/IfcObjectAutoImpl.h.

Member Data Documentation

m_ObjectType

OdAnsiString OdIfc4x3_add2::IfcObject::m_ObjectType

protected

Definition at line 273 of file Ifc4x3/IfcObjectAutoImpl.h.

---

The documentation for this class was generated from the following file:

• Ifc4x3/IfcObjectAutoImpl.h
