#include <IfcProcessAutoImpl.h>

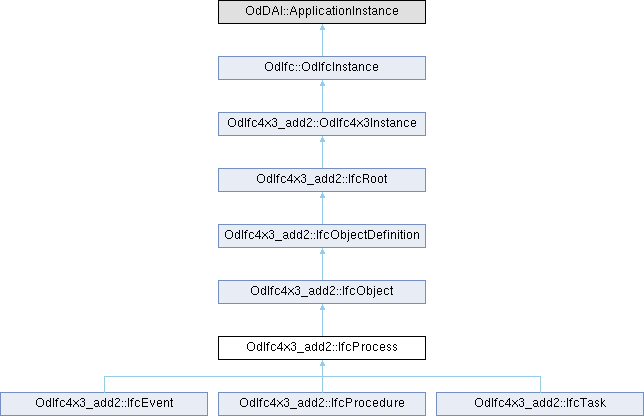

Inheritance diagram for OdIfc4x3_add2::IfcProcess:

Public Member Functions
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

void	getInvIsPredecessorTo (OdDAIObjectIds &IsPredecessorTo) const

void	getInvIsSuccessorFrom (OdDAIObjectIds &IsSuccessorFrom) const

void	getInvOperatesOn (OdDAIObjectIds &OperatesOn) const

	IfcProcess ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x3_add2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Identification

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4x3_add2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x3_add2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelSequence

class	IfcRelAssignsToProcess

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcProcess is defined as one individual activity or event, that is ordered in time, that has sequence relationships with other processes, which transforms input in output, and can connect to other other processes through input output relationships.

Details - An IfcProcess can be an activity (or task), or an event. It takes usually place in building construction with the intent of designing, costing, acquiring, constructing, or maintaining products or other and similar tasks or procedures. The next image illustrates process relationships.

Process information relates to other objects by establishing the following relationships: Nesting of processes : IfcRelNests - A process can contain sub processes and thereby be nested. Sequencing of processes : IfcRelSequence - Processes can be placed in sequence (including overlapping for parallel tasks), and have predecessors and successors. Assigning process to schedules : IfcRelAssignsToControl - Activities such as tasks, and predominately summary tasks, are assigned to a work schedule. Having a product assigned to the process as input : IfcRelAssignsToProcess - Products can be assigned as input to a process, such as for construction process planning. Having a product assigned to the process as output : IfcRelAssignsToProduct - Products can be assigned as output to a process, such as for construction process planning. Having a control assigned to the process as process control : IfcRelAssignsToProcess - Items that act as a control onto the process can be assigned to a process, such as for cost management (a cost item assigned to a work task). Having a resource assigned to the process as consumed by the process : IfcRelAssignsToProcess - Items that act as a mechanism to a process, such as labor, material and equipment in cost calculations.

Property Sets for Objects - The Property Sets for Objects concept template applies to this entity under Pset_Risk name as shown in the table below:

Template

PropertyName Value Single Value NatureOfRisk IfcLabel Single Value SubNatureOfRisk1 IfcLabel Single Value SubNatureOfRisk2 IfcLabel Single Value RiskCause IfcText Single Value AffectsSurroundings IfcBoolean Enumerated Value RiskType IfcLabel Enumerated Value AssessmentOfRisk IfcLabel Enumerated Value RiskConsequence IfcLabel Enumerated Value RiskRating IfcLabel Enumerated Value RiskOwner IfcLabel

Remarks: This definition may not be instantiated.

\changes

IFC4 changes: The attribute Identification has been promoted from subtypes IfcTask and others.

Definition at line 82 of file Ifc4x3/IfcProcessAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcProcess()

OdIfc4x3_add2::IfcProcess::IfcProcess ( )

Default constructor for the IfcProcess class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcProcess::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcProcess::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcProcess::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ getIdentification()

const OdAnsiString & OdIfc4x3_add2::IfcProcess::getIdentification ( ) const

Returns the value of Identification attribute. This attribute represents an identifying designation given to a process or activity. It is the identifier at the occurrence level.

Returns: Returns the value of Identification attribute.

Remarks: IFC4 CHANGE: Attribute promoted from subtypes.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcProcess::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ getInvIsPredecessorTo()

void OdIfc4x3_add2::IfcProcess::getInvIsPredecessorTo ( OdDAIObjectIds & IsPredecessorTo ) const

Returns the value of IsPredecessorTo attribute. This attribute represents dependency between two activities, it refers to the subsequent activity for which this activity is the predecessor. The link between two activities can include a link type and a lag time.

Parameters

IsPredecessorTo [out] Receives the value of IsPredecessorTo attribute.

◆ getInvIsSuccessorFrom()

void OdIfc4x3_add2::IfcProcess::getInvIsSuccessorFrom ( OdDAIObjectIds & IsSuccessorFrom ) const

Returns the value of IsSuccessorFrom attribute. This attribute represents dependency between two activities, it refers to the previous activity for which this activity is the successor. The link between two activities can include a link type and a lag time.

Parameters

IsSuccessorFrom [out] Receives the value of IsSuccessorFrom attribute.

◆ getInvOperatesOn()

void OdIfc4x3_add2::IfcProcess::getInvOperatesOn ( OdDAIObjectIds & OperatesOn ) const

Returns the value of OperatesOn attribute. This attribute represents set of relationships to other objects, e.g. products, processes, controls, resources or actors, that are operated on by the process.

Parameters

OperatesOn [out] Receives the value of OperatesOn attribute.

◆ getLongDescription()

const OdAnsiString & OdIfc4x3_add2::IfcProcess::getLongDescription ( ) const

Returns the value of LongDescription attribute. This attribute represents an extended description or narrative that can be provided.

Returns: Returns the value of LongDescription attribute.

◆ inFields()

virtual OdResult OdIfc4x3_add2::IfcProcess::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcProcess::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ outFields()

virtual OdResult OdIfc4x3_add2::IfcProcess::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcProcess::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcProcess::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ setIdentification()

void OdIfc4x3_add2::IfcProcess::setIdentification ( const OdAnsiString & Identification )

Sets the value of Identification attribute. This attribute represents an identifying designation given to a process or activity. It is the identifier at the occurrence level.

Parameters

Identification [in] Identification to set.

Remarks: IFC4 CHANGE: Attribute promoted from subtypes.

◆ setLongDescription()

void OdIfc4x3_add2::IfcProcess::setLongDescription ( const OdAnsiString & LongDescription )

Sets the value of LongDescription attribute. This attribute represents an extended description or narrative that can be provided.

Parameters

LongDescription [in] Long description to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcProcess::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcProcess::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcProcess::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcObject.

Reimplemented in OdIfc4x3_add2::IfcEvent, OdIfc4x3_add2::IfcProcedure, and OdIfc4x3_add2::IfcTask.
