#include <GiLayerTraitsData.h>

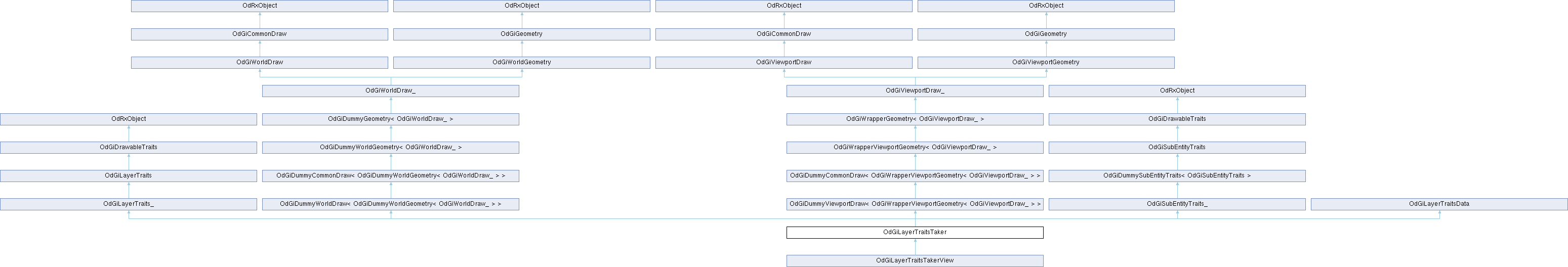

Inheritance diagram for OdGiLayerTraitsTaker:

Public Member Functions
	OdGiLayerTraitsTaker ()

	OdGiLayerTraitsTaker (const OdGiBaseVectorizer pRefView, OdGiContext pContext=NULL)

void	addRef ()

void	release () ODRX_NOEXCEPT

void	setRefView (const OdGiBaseVectorizer *pRefView)

void	reset (const OdGiLayerTraitsData &ltData=OdGiLayerTraitsData())

OdDb::LineWeight	lineweight () const

OdDbStub *	linetype () const

OdDb::PlotStyleNameType	plotStyleNameType () const

OdDbStub *	plotStyleNameId () const

OdDbStub *	materialId () const

void	setColor (const OdCmEntityColor &color)

void	setLineweight (OdDb::LineWeight lineweight)

void	setLinetype (OdDbStub *pLinetypeId)

void	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbStub *pPlotStyleNameId=0)

bool	isOff () const

void	setOff (bool bVal)

bool	isPlottable () const

void	setPlottable (bool bVal)

bool	isLocked () const

void	setLocked (bool bVal)

OdCmEntityColor	trueColor () const

OdDbStub *	layer () const

OdDbStub *	lineType () const

OdGiFillType	fillType () const

OdDb::LineWeight	lineWeight () const

double	lineTypeScale () const

double	thickness () const

OdDbStub *	material () const

const OdGiMapper *	mapper () const

OdDbStub *	visualStyle () const

OdCmTransparency	transparency () const

OdUInt32	drawFlags () const

bool	selectionGeom () const

ShadowFlags	shadowFlags () const

bool	sectionable () const

SelectionFlags	selectionFlags () const

void	setTrueColor (const OdCmEntityColor &color)

void	setColor (OdUInt16 color)

void	setLineType (OdDbStub *lineTypeId)

void	setLineWeight (OdDb::LineWeight lineWeight)

void	setMaterial (OdDbStub *pMaterialId)

void	setTransparency (const OdCmTransparency &transparency)

OdCmEntityColor	secondaryTrueColor () const

const OdGiDgLinetypeModifiers *	lineStyleModifiers () const

const OdGiFill *	fill () const

OdGiRegenType	regenType () const

bool	regenAbort () const

OdGiSubEntityTraits &	subEntityTraits () const

OdGiGeometry &	rawGeometry () const

bool	isDragging () const

double	deviation (const OdGiDeviationType deviationType, const OdGePoint3d &pointOnCurve) const

OdUInt32	numberOfIsolines () const

OdGiContext *	context () const

void	setContext (OdGiContext *pContext)

OdGiViewport &	viewport () const

OdUInt32	sequenceNumber () const

bool	isValidId (const OdUInt32 viewportId) const

OdDbStub *	viewportObjectId () const

OdGeMatrix3d	getModelToWorldTransform () const

OdGeMatrix3d	getWorldToModelTransform () const

virtual OdGiAuxiliaryDataPtr	auxData () const

virtual void	setAuxData (const OdGiAuxiliaryDataPtr &pAuxData)

Public Member Functions inherited from OdGiLayerTraits
	ODRX_DECLARE_MEMBERS (OdGiLayerTraits)

Public Member Functions inherited from OdGiDrawableTraits
	ODRX_DECLARE_MEMBERS (OdGiDrawableTraits)

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Public Member Functions inherited from OdGiDummyWorldGeometry< OdGiWorldDraw_ >
virtual void	setExtents (const OdGePoint3d *newExtents)

virtual void	startAttributesSegment ()

Public Member Functions inherited from OdGiDummyGeometry< OdGiWorldDraw_ >
void	circle (const OdGePoint3d &center, double radius, const OdGeVector3d &normal)

void	circle (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint)

void	circularArc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple)

void	circularArc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple)

void	polyline (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, OdGsMarker baseSubEntMarker=-1)

void	polygon (OdInt32 numVertices, const OdGePoint3d *vertexList)

void	polygon (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal)

void	pline (const OdGiPolyline &polylPine, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	shape (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, int shapeNumber, const OdGiTextStyle *pTextStyle)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, double height, double width, double oblique, const OdString &msg)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, const OdChar msg, OdInt32 length, bool raw, const OdGiTextStyle pTextStyle)

void	xline (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	ray (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	nurbs (const OdGeNurbCurve3d &nurbsCurve)

void	ellipArc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d *endPointsOverrides=0, OdGiArcType arcType=kOdGiArcSimple)

void	mesh (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shell (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	worldLine (const OdGePoint3d points[2])

void	image (const OdGiImageBGRA32 &img, const OdGePoint3d &origin, const OdGeVector3d &uVec, const OdGeVector3d &vVec, OdGiRasterImage::TransparencyMode trpMode=OdGiRasterImage::kTransparency8Bit)

virtual void	edge (const OdGiEdge2dArray &edges)

void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency, const OdGeVector3d pNormals, const OdGsMarker *pSubEntMarkers, OdInt32 nPointSize)

virtual void	polyPolygon (OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency pFillTransparencies=NULL)

void	rowOfDots (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloud (const OdGiPointCloud &pCloud)

void	pushClipBoundary (OdGiClipBoundary *pBoundary)

void	popClipBoundary ()

void	draw (const OdGiDrawable *pDrawable)

void	pushModelTransform (const OdGeMatrix3d &xMat)

void	pushModelTransform (const OdGeVector3d &normal)

void	popModelTransform ()

bool	brep (const OdGiBrep &)

Public Member Functions inherited from OdGiWorldDraw_
OdGiWorldGeometry &	geometry () const

const OdGiPathNode *	currentGiPath () const

Public Member Functions inherited from OdGiWorldDraw
	ODRX_DECLARE_MEMBERS (OdGiWorldDraw)

Public Member Functions inherited from OdGiCommonDraw
	ODRX_DECLARE_MEMBERS (OdGiCommonDraw)

virtual bool	displayModelerSilhouettes () const

Public Member Functions inherited from OdGiWorldGeometry
	ODRX_DECLARE_MEMBERS (OdGiWorldGeometry)

Public Member Functions inherited from OdGiGeometry
	ODRX_DECLARE_MEMBERS (OdGiGeometry)

virtual void	pushClipBoundary (OdGiClipBoundary pBoundary, OdGiAbstractClipBoundary pClipInfo)

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdGeVector3d pNormals=NULL, const OdGsMarker pSubEntMarkers=NULL) ODRX_FINAL

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormals=NULL, const OdGsMarker *pSubEntMarkers=NULL) ODRX_FINAL

Public Member Functions inherited from OdGiWrapperViewportGeometry< OdGiViewportDraw_ >
virtual void	polylineEye (OdUInt32 numVertices, const OdGePoint3d *vertexList)

virtual void	polygonEye (OdUInt32 numVertices, const OdGePoint3d *vertexList)

virtual void	polylineDc (OdUInt32 numVertices, const OdGePoint3d *vertexList)

virtual void	polygonDc (OdUInt32 numVertices, const OdGePoint3d *vertexList)

virtual void	rasterImageDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiRasterImage pImage, const OdGePoint2d uvBoundary, OdUInt32 numBoundPts, bool transparency=false, double brightness=50.0, double contrast=50.0, double fade=0.0)

virtual void	metafileDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiMetafile *pMetafile, bool dcAligned=true, bool allowClipping=false)

virtual void	ownerDrawDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiSelfGdiDrawable *pDrawable, bool dcAligned=true, bool allowClipping=false)

Public Member Functions inherited from OdGiWrapperGeometry< OdGiViewportDraw_ >
virtual void	pline (const OdGiPolyline &p, OdUInt32 i, OdUInt32 n)

virtual void	pushModelTransform (const OdGeVector3d &vNormal)

virtual void	pushModelTransform (const OdGeMatrix3d &xMat)

virtual void	popModelTransform ()

virtual void	circle (const OdGePoint3d &center, double radius, const OdGeVector3d &normal)

virtual void	circle (const OdGePoint3d &p1, const OdGePoint3d &p2, const OdGePoint3d &p3)

virtual void	circularArc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple)

virtual void	circularArc (const OdGePoint3d &start, const OdGePoint3d &point, const OdGePoint3d &end, OdGiArcType arcType=kOdGiArcSimple)

virtual void	polyline (OdInt32 nbPoints, const OdGePoint3d pVertexList, const OdGeVector3d pNormal=NULL, OdGsMarker lBaseSubEntMarker=-1)

virtual void	polygon (OdInt32 nbPoints, const OdGePoint3d *pVertexList)

virtual void	polygon (OdInt32 nbPoints, const OdGePoint3d pVertexList, const OdGeVector3d pNormal)

virtual void	mesh (OdInt32 rows, OdInt32 columns, const OdGePoint3d pVertexList, const OdGiEdgeData pEdgeData=NULL, const OdGiFaceData pFaceData=NULL, const OdGiVertexData pVertexData=NULL)

virtual void	shell (OdInt32 nbVertex, const OdGePoint3d pVertexList, OdInt32 faceListSize, const OdInt32 pFaceList, const OdGiEdgeData pEdgeData=NULL, const OdGiFaceData pFaceData=NULL, const OdGiVertexData *pVertexData=NULL)

virtual void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, double height, double width, double oblique, const OdString &msg)

virtual void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, const OdChar msg, OdInt32 length, bool raw, const OdGiTextStyle pTextStyle)

void	ray (const OdGePoint3d &first, const OdGePoint3d &second)

virtual void	nurbs (const OdGeNurbCurve3d &nurbs)

virtual void	xline (const OdGePoint3d &p1, const OdGePoint3d &p2)

virtual void	ellipArc (const OdGeEllipArc3d &arc, const OdGePoint3d *pEndPointsOverrides=0, OdGiArcType arcType=kOdGiArcSimple)

virtual void	draw (const OdGiDrawable *pD)

virtual void	pushClipBoundary (OdGiClipBoundary *pBoundary)

virtual void	popClipBoundary ()

virtual void	worldLine (const OdGePoint3d pnts[2])

virtual void	image (const OdGiImageBGRA32 &img, const OdGePoint3d &origin, const OdGeVector3d &uVec, const OdGeVector3d &vVec, OdGiRasterImage::TransparencyMode trpMode=OdGiRasterImage::kTransparency8Bit)

virtual void	edge (const OdGiEdge2dArray &edges)

virtual void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency, const OdGeVector3d pNormals, const OdGsMarker *pSubEntMarkers, OdInt32 nPointSize)

virtual void	polyPolygon (OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency pFillTransparencies=NULL)

virtual void	rowOfDots (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

virtual void	pointCloud (const OdGiPointCloud &pCloud)

virtual bool	brep (const OdGiBrep &giBrep)

Public Member Functions inherited from OdGiViewportDraw_
OdGiViewportGeometry &	geometry () const

const OdGiPathNode *	currentGiPath () const

Public Member Functions inherited from OdGiViewportDraw
	ODRX_DECLARE_MEMBERS (OdGiViewportDraw)

Public Member Functions inherited from OdGiViewportGeometry
	ODRX_DECLARE_MEMBERS (OdGiViewportGeometry)

Public Member Functions inherited from OdGiDummySubEntityTraits< OdGiSubEntityTraits >
void	setLayer (OdDbStub *layerId)

void	setSelectionMarker (OdGsMarker selectionMarker)

void	setFillType (OdGiFillType fillType)

void	setFillPlane (const OdGeVector3d *pNormal=0)

void	setLineTypeScale (double lineTypeScale=1.0)

void	setThickness (double thickness)

void	setMapper (const OdGiMapper *pMapper)

void	setVisualStyle (const OdDbStub *visualStyleId)

void	setDrawFlags (OdUInt32 drawFlags)

void	setLockFlags (OdUInt32 lockFlags)

void	setSelectionGeom (bool bSelectionFlag)

void	setShadowFlags (OdGiSubEntityTraits::ShadowFlags shadowFlags)

void	setSectionable (bool bSectionableFlag)

void	setSelectionFlags (OdGiSubEntityTraits::SelectionFlags selectionFlags)

bool	fillPlane (OdGeVector3d &normal)

void	addLight (const OdDbStub *)

OdUInt32	lockFlags () const

Public Member Functions inherited from OdGiSubEntityTraits
	ODRX_DECLARE_MEMBERS (OdGiSubEntityTraits)

virtual void	setSecondaryTrueColor (const OdCmEntityColor &color)

virtual void	setLineStyleModifiers (const OdGiDgLinetypeModifiers *pLSMod)

virtual void	setFill (const OdGiFill *pFill)

virtual bool	pushLineweightOverride (const OdGiLineweightOverride *pOverride)

virtual void	popLineweightOverride ()

virtual bool	pushPaletteOverride (const OdGiPalette *pOverride)

virtual void	popPaletteOverride ()

virtual OdUInt32	setupForEntity () const

Public Member Functions inherited from OdGiLayerTraitsData
	OdGiLayerTraitsData ()

OdGiLayerTraitsData &	operator= (const OdGiLayerTraitsData &other)=default

OdUInt32	flags () const

OdDb::LineWeight	lineweight () const

OdDbStub *	linetype () const

OdDb::PlotStyleNameType	plotStyleNameType () const

OdDbStub *	plotStyleNameId () const

const OdCmEntityColor &	trueColor () const

OdDbStub *	materialId () const

OdCmTransparency	transparency () const

void	setTrueColor (const OdCmEntityColor &cl)

void	setLineweight (OdDb::LineWeight lw)

void	setLinetype (OdDbStub *id)

void	setMaterial (OdDbStub *id)

void	setTransparency (const OdCmTransparency &transparency)

bool	isOff () const

void	setOff (bool bVal)

bool	isPlottable () const

void	setPlottable (bool bVal)

bool	isLocked () const

void	setLocked (bool bVal)

bool	isFrozen () const

bool	isByBlock () const

Protected Member Functions
	ODRX_USING_HEAP_OPERATORS (OdGiDummyWorldDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >)

Protected Member Functions inherited from OdGiLayerTraits_
OdCmEntityColor	color () const

Protected Member Functions inherited from OdGiWorldDraw_
	ODRX_USING_HEAP_OPERATORS (OdGiWorldDraw)

Protected Member Functions inherited from OdGiWrapperGeometry< OdGiViewportDraw_ >
void	setGeom (OdGiGeometry &Geom)

OdGiGeometry &	getGeom ()

Protected Member Functions inherited from OdGiViewportDraw_
	ODRX_USING_HEAP_OPERATORS (OdGiViewportDraw)

Protected Member Functions inherited from OdGiSubEntityTraits_
OdUInt16	color () const

Additional Inherited Members
Public Types inherited from OdGiLayerTraits
enum	{ kByBlock = (OdGiDrawable::kLastFlag << 1) , kFrozen = (OdGiDrawable::kLastFlag << 2) , kOff = (OdGiDrawable::kLastFlag << 3) , kPlottable = (OdGiDrawable::kLastFlag << 4) , kLocked = (OdGiDrawable::kLastFlag << 5) }

Public Types inherited from OdGiSubEntityTraits
enum	DrawFlags { kNoDrawFlags = 0x0000 , kDrawBackfaces = 0x0001 , kDrawHatchGroup = 0x0002 , kDrawFrontfacesOnly = 0x0004 , kDrawGradientFill = 0x0008 , kDrawSolidFill = 0x0010 , kDrawNoLineWeight = 0x0020 , kDrawNoPlotstyle = 0x0080 , kDrawContourFill = 0x08000 , kDisableLayoutCache = 0x10000 , kDrawBoundaryForClipping = 0x20000 , kDrawBoundaryForClippingDrw = 0x40000 , kClipSetIsEmpty = 0x80000 , kDrawPolygonFill = 0x100000 , kExcludeFromViewExt = 0x200000 , kDrawDgLsPolyWithoutBreaks = 0x400000 , kPolygonProcessing = 0x800000 , kDisableAutoGenerateNormals = 0x1000000 , kDisableFillModeCheck = 0x2000000 , kDrawUnderlayReference = 0x4000000 , kLineStyleScaleOverride = 0x8000000 , kDisableDisplayClipping = 0x10000000 , kRegenTypeDependent2dDraw = 0x20000000 , kInternalDrawFlags = kDisableLayoutCache \| kClipSetIsEmpty \| kRegenTypeDependent2dDraw , kDrawGeometryForExtents = 0x04000 , kFxNoFillOnSelect = 0x40000000 , kInheritableDrawFlags }

enum	LockFlags { kNoLockFlags = 0x00000000 , kLockColors = 0x00000001 , kLockLineWeight = 0x00000002 , kLockLineType = 0x00000004 , kLockLineTypeScale = 0x00000008 , kLockLayer = 0x00000010 , kLockByBlockLayer = 0x00000020 , kKeepAuxDataAndLockFlags = 0x00000040 , kInheritableLockFlags = kLockColors \| kLockLineWeight \| kLockLineType \| kLockLineTypeScale \| kLockLayer \| kKeepAuxDataAndLockFlags }

enum	ShadowFlags { kShadowsCastAndReceive = 0 , kShadowsDoesNotCast = 1 , kShadowsDoesNotReceive = 2 , kShadowsIgnore = kShadowsDoesNotCast \| kShadowsDoesNotReceive }

enum	SelectionFlags { kNoSelectionFlags = 0 , kSelectionIgnore = 1 , kHighlightingGeometry = 2 , kHiddenInHighlight = 4 , kFxSubentitySelection = 0x80 }

enum	SubEntityHints { kHint2DAttributes = 1 , kHint3DAttributes = 2 , kHintAllAttributes = kHint2DAttributes \| kHint3DAttributes , kHintSnapModeOn = 4 , kHintDefaultState = kHintAllAttributes }

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Public Attributes inherited from OdGiLayerTraitsData
OdUInt32	m_flags

OdDb::LineWeight	m_lineweight

OdDb::PlotStyleNameType	m_plotStyleNameType

OdCmEntityColor	m_color

OdDbStub *	m_linetypeId

OdDbStub *	m_plotStyleNameId

OdDbStub *	m_materialId

OdCmTransparency	m_cmTransparency

Detailed Description

This class implements OdGiLayerTraits, OdGiWorldDraw, and OdGIViewportDraw together as a single class that uses the OdDbLayerTableRecord::subSetAttributes(), OdDbLayerTableRecord::subWorldDraw(), and OdDbLayerTableRecord::subViewportDraw() functions to return layer trait values and store them temporarily.

See also: <link tv_working_with_attributes_layers, Work with Layers>

Definition at line 285 of file GiLayerTraitsData.h.

Constructor & Destructor Documentation

◆ OdGiLayerTraitsTaker() [1/2]

OdGiLayerTraitsTaker::OdGiLayerTraitsTaker ( )

inline

Default constructor for the OdGiLayerTraitsTaker class. Sets underlaying view and GI context to NULL.

Definition at line 753 of file GiLayerTraitsData.h.

◆ OdGiLayerTraitsTaker() [2/2]

OdGiLayerTraitsTaker::OdGiLayerTraitsTaker	(	const OdGiBaseVectorizer *	pRefView,
		OdGiContext *	pContext = NULL )

inline

Constructor for the OdGiLayerTraitsTaker class. Sets the object with the vectorizer and GI context.

Parameters

pRefView	[in] Pointer to a vectorizer.
pContext	[in] Pointer to GI context.

Definition at line 760 of file GiLayerTraitsData.h.

Member Function Documentation

◆ addRef()

void OdGiLayerTraitsTaker::addRef ( )

virtual

Adds one reference to this object.

Implements OdRxObject.

Reimplemented in OdGiLayerTraitsTakerView.

◆ auxData()

virtual OdGiAuxiliaryDataPtr OdGiLayerTraitsTaker::auxData ( ) const

inlinevirtual

Retrieves smart pointer to the auxiliary data for this object.

Reimplemented from OdGiSubEntityTraits.

Definition at line 730 of file GiLayerTraitsData.h.

◆ context()

OdGiContext * OdGiLayerTraitsTaker::context ( ) const

virtual

Retrieves context associated with this object.

Implements OdGiCommonDraw.

Reimplemented in OdGiLayerTraitsTakerView.

◆ deviation()

double OdGiLayerTraitsTaker::deviation	(	const OdGiDeviationType	deviationType,
		const OdGePoint3d &	pointOnCurve ) const

virtual

Retrieves the recommended maximum deviation of the current vectorization for the specified point on a curve.

Parameters

deviationType	[in] Deviation type.
pointOnCurve	[in] Point on a curve.

Returns: recommended maximum difference (with respect to the current active viewport) between the actual curve or surface, and the tessellated curve or surface.

Remarks: deviationType must be one of the following:

Value kOdGiMaxDevForCircle 0
kOdGiMaxDevForCurve 1
kOdGiMaxDevForBoundary 2
kOdGiMaxDevForIsoline 3 kOdGiMaxDevForFacet 4

Remarks: This method uses circle zoom percent as appropriate.

Reimplemented from OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ drawFlags()

OdUInt32 OdGiLayerTraitsTaker::drawFlags ( ) const

virtual

Retrieves draw flags for this layer.

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ fill()

const OdGiFill * OdGiLayerTraitsTaker::fill ( ) const

virtual

Retrieves pointer to the fill for this layer.

Reimplemented from OdGiSubEntityTraits.

◆ fillType()

OdGiFillType OdGiLayerTraitsTaker::fillType ( ) const

virtual

Retrieves fill type for a layer.

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ getModelToWorldTransform()

OdGeMatrix3d OdGiLayerTraitsTaker::getModelToWorldTransform ( ) const

virtual

Retrieves the model to world transformation matrix.

Reimplemented from OdGiDummyGeometry< OdGiWorldDraw_ >.

◆ getWorldToModelTransform()

OdGeMatrix3d OdGiLayerTraitsTaker::getWorldToModelTransform ( ) const

virtual

Retrieves the world to model transformation matrix.

Reimplemented from OdGiDummyGeometry< OdGiWorldDraw_ >.

◆ isDragging()

bool OdGiLayerTraitsTaker::isDragging ( ) const

virtual

Checks whether the associated vectorization process is the result of a "drag" operation.

Returns: true if vectorization process is the result of a "drag" operation, false otherwise.

Reimplemented from OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >.

◆ isLocked()

bool OdGiLayerTraitsTaker::isLocked ( ) const

inline

Checks whether this layer is locked.

Returns: true if this layer is locked, false otherwise.

Definition at line 421 of file GiLayerTraitsData.h.

◆ isOff()

bool OdGiLayerTraitsTaker::isOff ( ) const

inline

Checks whether this layer is turned off.

Returns: true if this layer is off, false otherwise.

Definition at line 395 of file GiLayerTraitsData.h.

◆ isPlottable()

bool OdGiLayerTraitsTaker::isPlottable ( ) const

inline

Checks whether this layer is plottable.

Returns: true if this layer is plottable, false otherwise.

Definition at line 408 of file GiLayerTraitsData.h.

◆ isValidId()

bool OdGiLayerTraitsTaker::isValidId ( const OdUInt32 viewportId ) const

virtual

Checks whether the identifier of an associated viewport is valid.

Parameters

viewportId [in] Identifier of a viewport to check.

Returns: true if the viewport identifier is valid, false otherwise.

Reimplemented from OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ layer()

OdDbStub * OdGiLayerTraitsTaker::layer ( ) const

virtual

Retrieves persistent layer identifier of the underlaying layer.

See also: <link tv_working_with_attributes_layers, Work with Layers>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ lineStyleModifiers()

const OdGiDgLinetypeModifiers * OdGiLayerTraitsTaker::lineStyleModifiers ( ) const

virtual

Retrieves pointer to linetype modifiers for this layer.

Reimplemented from OdGiSubEntityTraits.

◆ lineType()

OdDbStub * OdGiLayerTraitsTaker::lineType ( ) const

virtual

Retrieves persistent linetype identifier.

See also: <exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ linetype()

OdDbStub * OdGiLayerTraitsTaker::linetype ( ) const

virtual

Retrieves a pointer to persistent linetype identifier associated with the layer.

See also: <exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Implements OdGiLayerTraits.

◆ lineTypeScale()

double OdGiLayerTraitsTaker::lineTypeScale ( ) const

virtual

Retrieves linetype scale for a layer.

See also: <exref target="https://docs.opendesign.com/td/db_linetype_properties.html">Specific Properties of Linetypes</exref>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ lineWeight()

OdDb::LineWeight OdGiLayerTraitsTaker::lineWeight ( ) const

virtual

Retrieves lineweight for a layer.

See also: <link tv_working_with_attributes_lineweights, Work with Lineweights>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ lineweight()

OdDb::LineWeight OdGiLayerTraitsTaker::lineweight ( ) const

virtual

Retrieves lineweight associated with this layer.

See also: <link tv_working_with_attributes_lineweights, Work with Lineweights>

Implements OdGiLayerTraits.

◆ mapper()

const OdGiMapper * OdGiLayerTraitsTaker::mapper ( ) const

virtual

Retrieves pointer a mapper for this layer.

See also: <link tv_working_with_attributes_materials_mapping, Work with Mapping Properties>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ material()

OdDbStub * OdGiLayerTraitsTaker::material ( ) const

virtual

Retrieves persistent material identifier.

See also: <link tv_working_with_attributes_materials, Work with Materials>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ materialId()

OdDbStub * OdGiLayerTraitsTaker::materialId ( ) const

virtual

Retrieves pointer to persistent material identifier associated with the layer.

See also: <link tv_working_with_attributes_materials, Work with Materials>

Implements OdGiLayerTraits.

◆ numberOfIsolines()

OdUInt32 OdGiLayerTraitsTaker::numberOfIsolines ( ) const

virtual

Retrieves count of isolines that are used to represent an entity.

Remarks: Isolines are lines or curves which are used to represent the entity. For example, if an entity is a sphere and this method returns 3, the sphere should be displayed as 3 circles with a common center and planes that are perpendicular to each other.

Reimplemented from OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ ODRX_USING_HEAP_OPERATORS()

OdGiLayerTraitsTaker::ODRX_USING_HEAP_OPERATORS ( OdGiDummyWorldDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > > )

protected

◆ plotStyleNameId()

OdDbStub * OdGiLayerTraitsTaker::plotStyleNameId ( ) const

virtual

Retrieves pointer to persistent plot style name identifier associated with the layer.

Implements OdGiLayerTraits.

◆ plotStyleNameType()

OdDb::PlotStyleNameType OdGiLayerTraitsTaker::plotStyleNameType ( ) const

virtual

Retrieves plot style name type of this layer.

Implements OdGiLayerTraits.

◆ rawGeometry()

OdGiGeometry & OdGiLayerTraitsTaker::rawGeometry ( ) const

virtual

Retrieves geometry data for this layer.

Implements OdGiCommonDraw.

◆ regenAbort()

bool OdGiLayerTraitsTaker::regenAbort ( ) const

virtual

Checks whether the vectorization process should be aborted.

Returns: true if vectorization process should be aborted, false otherwise.

Reimplemented from OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ regenType()

OdGiRegenType OdGiLayerTraitsTaker::regenType ( ) const

virtual

Retrieves regeneration type for this layer.

Reimplemented from OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ release()

void OdGiLayerTraitsTaker::release ( )

virtual

Removes one reference from this object.

Implements OdRxObject.

Reimplemented in OdGiLayerTraitsTakerView.

◆ reset()

void OdGiLayerTraitsTaker::reset ( const OdGiLayerTraitsData & ltData = OdGiLayerTraitsData() )

inline

Resets layer traits to default.

Definition at line 325 of file GiLayerTraitsData.h.

◆ secondaryTrueColor()

OdCmEntityColor OdGiLayerTraitsTaker::secondaryTrueColor ( ) const

virtual

Retrieves secondary color for this layer.

Reimplemented from OdGiSubEntityTraits.

◆ sectionable()

bool OdGiLayerTraitsTaker::sectionable ( ) const

virtual

Checks whether content of this layer is sectionable.

Returns: true if content of this layer is sectionable, false otherwise.

See also: <link tv_planarClip_sample, Planar Clipping Section Generation for a Custom Entity>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ selectionFlags()

SelectionFlags OdGiLayerTraitsTaker::selectionFlags ( ) const

virtual

Retrieves shadow flags of for this layer.

Returns: true if geometry of this layer can be selected, false otherwise.

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ selectionGeom()

bool OdGiLayerTraitsTaker::selectionGeom ( ) const

virtual

Checks whether geometry of this layer can be selected.

Returns: true if geometry of this layer can be selected, false otherwise.

See also: <link tv_working_with_features_selections, Work with Selections>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ sequenceNumber()

OdUInt32 OdGiLayerTraitsTaker::sequenceNumber ( ) const

virtual

Returns the number of viewports that have been deleted from the current database during this editing session.

Reimplemented from OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ setAuxData()

virtual void OdGiLayerTraitsTaker::setAuxData ( const OdGiAuxiliaryDataPtr & pAuxData )

inlinevirtual

Sets the auxiliary data for this object.

Parameters

pAuxData [in] Smart pointer to the auxiliary data.

Reimplemented from OdGiSubEntityTraits.

Definition at line 737 of file GiLayerTraitsData.h.

◆ setColor() [1/2]

void OdGiLayerTraitsTaker::setColor ( const OdCmEntityColor & color )

virtual

Sets color for this layer.

Parameters

color [in] Color to set.

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Implements OdGiLayerTraits.

◆ setColor() [2/2]

void OdGiLayerTraitsTaker::setColor ( OdUInt16 color )

virtual

Sets color for this layer.

Parameters

color [in] Color to set.

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ setContext()

void OdGiLayerTraitsTaker::setContext ( OdGiContext * pContext )

inline

Sets GI context for this object.

Parameters

pContext [in] Pointer to GI context.

Definition at line 747 of file GiLayerTraitsData.h.

◆ setLineType()

void OdGiLayerTraitsTaker::setLineType ( OdDbStub * lineTypeId )

virtual

Sets linetype identifier for this layer.

Parameters

lineTypeId [in] Linetype identifier to set.

See also: <exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ setLinetype()

void OdGiLayerTraitsTaker::setLinetype ( OdDbStub * pLinetypeId )

virtual

Sets linetype for this layer.

Parameters

pLinetypeId [in] Pointer to persistent identifier of a linetype to set.

See also: <exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Implements OdGiLayerTraits.

◆ setLineWeight()

void OdGiLayerTraitsTaker::setLineWeight ( OdDb::LineWeight lineWeight )

virtual

Sets lineweight for this layer.

Parameters

lineWeight [in] Lineweight to set.

See also: <link tv_working_with_attributes_lineweights, Work with Lineweights>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ setLineweight()

void OdGiLayerTraitsTaker::setLineweight ( OdDb::LineWeight lineweight )

virtual

Sets lineweight associated for this layer.

Parameters

lineweight [in] LineWeight to set.

See also: <link tv_working_with_attributes_lineweights, Work with Lineweights>

Implements OdGiLayerTraits.

◆ setLocked()

void OdGiLayerTraitsTaker::setLocked ( bool bVal )

inline

Specifies whether this layer is locked.

Parameters

bVal	[in] Flag that specifies whether this layer should be locked.

Definition at line 427 of file GiLayerTraitsData.h.

◆ setMaterial()

void OdGiLayerTraitsTaker::setMaterial ( OdDbStub * pMaterialId )

virtual

Sets material for this layer.

Parameters

pMaterialId [in] Pointer to persistent material identifier.

See also: <link tv_working_with_attributes_materials, Work with Materials>

Implements OdGiLayerTraits.

◆ setOff()

void OdGiLayerTraitsTaker::setOff ( bool bVal )

inline

Switches the layer on or off.

Parameters

bVal	[in] Layer state.

Definition at line 401 of file GiLayerTraitsData.h.

◆ setPlotStyleName()

void OdGiLayerTraitsTaker::setPlotStyleName	(	OdDb::PlotStyleNameType	plotStyleNameType,
		OdDbStub *	pPlotStyleNameId = 0 )

virtual

Sets plot style name for this layer.

Parameters

plotStyleNameType	[in] Plot style name type.
pPlotStyleNameId	[in] Pointer to persistent plot style name identifier.

Implements OdGiLayerTraits.

◆ setPlottable()

void OdGiLayerTraitsTaker::setPlottable ( bool bVal )

inline

Specifies whether this layer is plottable.

Parameters

bVal	[in] Flag that specifies whether this layer should be plottable.

Definition at line 414 of file GiLayerTraitsData.h.

◆ setRefView()

void OdGiLayerTraitsTaker::setRefView ( const OdGiBaseVectorizer * pRefView )

inline

Definition at line 741 of file GiLayerTraitsData.h.

◆ setTransparency()

void OdGiLayerTraitsTaker::setTransparency ( const OdCmTransparency & transparency )

virtual

Sets transparency for this layer.

Parameters

transparency [in] Transparency to set.

See also: <exref target="https://docs.opendesign.com/td/cm_transparency_alpha.html">Transparency Functionality as an Alpha-value</exref>; <exref target="https://docs.opendesign.com/td/cm_transparency_integer.html">Transparency Functionality as an Integer-value</exref>

Implements OdGiLayerTraits.

◆ setTrueColor()

void OdGiLayerTraitsTaker::setTrueColor ( const OdCmEntityColor & color )

virtual

Sets color for this layer.

Parameters

color [in] Color to set.

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ shadowFlags()

ShadowFlags OdGiLayerTraitsTaker::shadowFlags ( ) const

virtual

Retrieves shadow flags for this layer.

Returns: true if geometry of this layer can be selected, false otherwise.

See also: <link gi_shadows_rendering, Shadows Visualization>

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ subEntityTraits()

OdGiSubEntityTraits & OdGiLayerTraitsTaker::subEntityTraits ( ) const

virtual

Retrieves subentity traits associated with this layer.

Implements OdGiCommonDraw.

◆ thickness()

double OdGiLayerTraitsTaker::thickness ( ) const

virtual

Retrieves thickness for a layer.

Reimplemented from OdGiDummySubEntityTraits< OdGiSubEntityTraits >.

◆ transparency()

OdCmTransparency OdGiLayerTraitsTaker::transparency ( ) const

virtual

Retrieves transparency for this layer.

See also: <exref target="https://docs.opendesign.com/td/cm_transparency_alpha.html">Transparency Functionality as an Alpha-value</exref>; <exref target="https://docs.opendesign.com/td/cm_transparency_integer.html">Transparency Functionality as an Integer-value</exref>

Implements OdGiLayerTraits.

◆ trueColor()

OdCmEntityColor OdGiLayerTraitsTaker::trueColor ( ) const

virtual

Retrieves color for this layer.

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Implements OdGiLayerTraits_.

◆ viewport()

OdGiViewport & OdGiLayerTraitsTaker::viewport ( ) const

virtual

Retrieves a reference to a viewport.

Reimplemented from OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ viewportObjectId()

OdDbStub * OdGiLayerTraitsTaker::viewportObjectId ( ) const

virtual

Retrieves the persistent identifier of an associated viewport.

Reimplemented from OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >.

Reimplemented in OdGiLayerTraitsTakerView.

◆ visualStyle()

OdDbStub * OdGiLayerTraitsTaker::visualStyle ( ) const

virtual

Retrieves persistent visual style identifier.

See also: <link tv_working_with_attributes_visual_styles, Work with Visual Styles>

Reimplemented from OdGiSubEntityTraits.

The documentation for this class was generated from the following file:

GiLayerTraitsData.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OdGiLayerTraitsTaker() [1/2]

◆ OdGiLayerTraitsTaker() [2/2]

Member Function Documentation

◆ addRef()

◆ auxData()

◆ context()

◆ deviation()

◆ drawFlags()

◆ fill()

◆ fillType()

◆ getModelToWorldTransform()

◆ getWorldToModelTransform()

◆ isDragging()

◆ isLocked()

◆ isOff()

◆ isPlottable()

◆ isValidId()

◆ layer()

◆ lineStyleModifiers()

◆ lineType()

◆ linetype()

◆ lineTypeScale()

◆ lineWeight()

◆ lineweight()

◆ mapper()

◆ material()

◆ materialId()

◆ numberOfIsolines()

◆ ODRX_USING_HEAP_OPERATORS()

◆ plotStyleNameId()

◆ plotStyleNameType()

◆ rawGeometry()

◆ regenAbort()

◆ regenType()

◆ release()

◆ reset()

◆ secondaryTrueColor()

◆ sectionable()

◆ selectionFlags()

◆ selectionGeom()

◆ sequenceNumber()

◆ setAuxData()

◆ setColor() [1/2]

◆ setColor() [2/2]

◆ setContext()

◆ setLineType()

◆ setLinetype()

◆ setLineWeight()

◆ setLineweight()

◆ setLocked()

◆ setMaterial()

◆ setOff()

◆ setPlotStyleName()

◆ setPlottable()

◆ setRefView()

◆ setTransparency()

◆ setTrueColor()

◆ shadowFlags()

◆ subEntityTraits()

◆ thickness()

◆ transparency()

◆ trueColor()

◆ viewport()

◆ viewportObjectId()

◆ visualStyle()
