#include <GiBaseVectorizer.h>

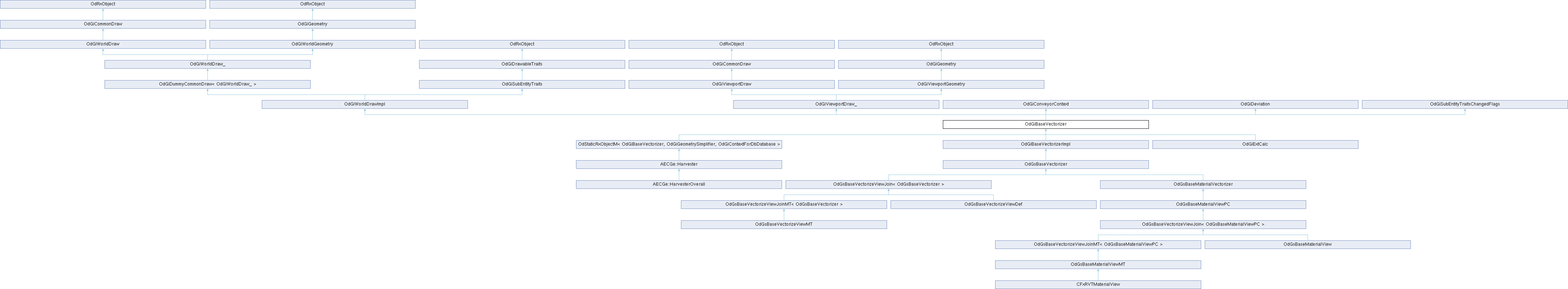

Inheritance diagram for OdGiBaseVectorizer:

Classes
struct	LayerTraitsCache

Public Member Functions
bool	isEntityTraitsDataChanged (int bit=kSomeChanged) const

virtual void	setEntityTraitsDataChanged ()

virtual void	setEntityTraitsDataChanged (int bit, bool value=true)

void	clearEntityTraitsDataChanged () const

bool	effectivelyVisible () const

OdGiContext &	giContext () const

const OdGiDrawableDesc *	currentDrawableDesc () const

const OdGiDrawable *	currentDrawable () const

const OdGiViewport *	giViewport () const

const OdGsView *	gsView () const

const OdGiDrawableDesc *	drawableDesc () const

virtual const OdGiSubEntityTraitsData &	effectiveTraits () const

virtual void	setEffectiveTraits (const OdGiSubEntityTraitsData &traits, const OdGeVector3d *fillNormal=NULL)

	OdGiBaseVectorizer ()

virtual	~OdGiBaseVectorizer ()

OdRxClass *	isA () const

OdRxObject *	queryX (const OdRxClass *pProtocolClass) const

virtual OdGiConveyorOutput &	output ()

void	setEyeToOutputTransform (const OdGeMatrix3d &xfm)

const OdGeMatrix3d &	eyeToOutputTransform () const

void	eyeToOutputTransform (OdGeMatrix3d &xfm) const

OdGiConveyorContext *	drawContext ()

const OdGiConveyorContext *	drawContext () const

virtual void	beginViewVectorization ()

virtual void	endViewVectorization ()

void	setTrueColor (const OdCmEntityColor &trueColor)

void	setPlotStyleNameType (OdDb::PlotStyleNameType plotStyleNameType)

void	setPlotStyleNameId (OdDbStub *plotStyleNameId)

void	setColor (OdUInt16 color)

void	setLayer (OdDbStub *layerId)

void	setLineType (OdDbStub *lineTypeId)

void	setFillType (OdGiFillType fillType)

void	setLineWeight (OdDb::LineWeight lineWeight)

void	setLineTypeScale (double lineTypeScale)

void	setThickness (double thickness)

void	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbStub *pPlotStyleNameId=0)

void	setSelectionMarker (OdGsMarker selectionMarker)

void	setMaterial (OdDbStub *pMaterialId)

void	setMapper (const OdGiMapper *pMapper)

void	setVisualStyle (const OdDbStub *pVisualStyleId)

void	setTransparency (const OdCmTransparency &transparency)

void	setDrawFlags (OdUInt32 drawFlags)

void	setLockFlags (OdUInt32 lockFlags)

void	setSelectionGeom (bool bSelectionFlag)

void	setShadowFlags (ShadowFlags shadowFlags)

void	setSectionable (bool bSectionableFlag)

void	setSelectionFlags (SelectionFlags selectionFlags)

void	setSecondaryTrueColor (const OdCmEntityColor &color)

void	setLineStyleModifiers (const OdGiDgLinetypeModifiers *pLSMod)

void	setFill (const OdGiFill *pFill)

void	setAuxData (const OdGiAuxiliaryDataPtr &pAuxData)

OdGiContext *	context () const

bool	regenAbort () const

OdGiSubEntityTraits &	subEntityTraits () const

double	deviation (const OdGiDeviationType deviationType, const OdGePoint3d &pointOnCurve) const

OdGiRegenType	regenType () const

OdUInt32	numberOfIsolines () const

OdGiGeometry &	rawGeometry () const

bool	isDragging () const

OdUInt32	drawContextFlags () const

void	setDrawContextFlags (OdUInt32 flags, bool bFlag)

OdUInt32	sequenceNumber () const

bool	isValidId (const OdUInt32 viewportId) const

OdDbStub *	viewportObjectId () const

OdGiViewport &	viewport () const

void	circle (const OdGePoint3d &center, double radius, const OdGeVector3d &normal)

void	circle (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint)

void	circularArc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple)

void	circularArc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple)

void	polyline (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, OdGsMarker baseSubEntMarker=-1)

void	polygon (OdInt32 numVertices, const OdGePoint3d *vertexList)

void	polygon (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal)

void	pline (const OdGiPolyline &polyline, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	shape (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, int shapeNumber, const OdGiTextStyle *pTextStyle)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, double height, double width, double oblique, const OdString &msg)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, const OdChar msg, OdInt32 length, bool raw, const OdGiTextStyle pTextStyle)

void	xline (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	ray (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	nurbs (const OdGeNurbCurve3d &nurbsCurve)

void	ellipArc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d *endPointsOverrides=0, OdGiArcType arcType=kOdGiArcSimple)

void	mesh (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shell (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	worldLine (const OdGePoint3d points[2])

void	image (const OdGiImageBGRA32 &img, const OdGePoint3d &origin, const OdGeVector3d &uVec, const OdGeVector3d &vVec, OdGiRasterImage::TransparencyMode trpMode=OdGiRasterImage::kTransparency8Bit)

void	edge (const OdGiEdge2dArray &edges)

void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency, const OdGeVector3d pNormals, const OdGsMarker *pSubEntMarkers, OdInt32 nPointSize)

virtual void	polyPolygon (OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency pFillTransparencies=NULL)

void	rowOfDots (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloud (const OdGiPointCloud &pCloud)

void	pushClipBoundary (OdGiClipBoundary *pBoundary)

void	pushClipBoundary (OdGiClipBoundary pBoundary, OdGiAbstractClipBoundary pClipInfo)

void	drawClipBoundary (OdGiClipBoundary pBoundary, OdGiAbstractClipBoundary pClipInfo)

void	popClipBoundary ()

bool	isClipping () const

void	pushModelTransform (const OdGeMatrix3d &xfm)

void	pushModelTransform (const OdGeVector3d &normal)

void	popModelTransform ()

OdGeMatrix3d	getModelToWorldTransform () const

OdGeMatrix3d	getWorldToModelTransform () const

bool	isXrefOverride () const

void	setXrefOverride (bool bSet)

void	draw (const OdGiDrawable *pDrawable)

const OdGiPathNode *	currentGiPath () const

virtual OdUInt32	setAttributes (const OdGiDrawable *pDrawable)

OdUInt32	drawableAttributes () const

bool	needDraw (OdUInt32 drawableFlags)

virtual bool	doDraw (OdUInt32 drawableFlags, const OdGiDrawable *pDrawable)

void	setExtents (const OdGePoint3d *newExtents)

void	startAttributesSegment ()

bool	isAttributesSegmentEnabled ()

void	rasterImageDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiRasterImage pImage, const OdGePoint2d uvBoundary, OdUInt32 numBoundPts, bool transparency=false, double brightness=50.0, double contrast=50.0, double fade=0.0)

void	metafileDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiMetafile *pMetafile, bool bDcAligned=true, bool bAllowClipping=false)

void	polylineEye (OdUInt32 numVertices, const OdGePoint3d *vertexList)

void	polygonEye (OdUInt32 numVertices, const OdGePoint3d *vertexList)

void	polylineDc (OdUInt32 numVertices, const OdGePoint3d *vertexList)

void	polygonDc (OdUInt32 numVertices, const OdGePoint3d *vertexList)

void	polylineCs (OdGiContext::CoordinatesSystem cs, OdUInt32 numVertices, const OdGePoint3d *vertexList)

void	polygonCs (OdGiContext::CoordinatesSystem cs, OdUInt32 numVertices, const OdGePoint3d *vertexList)

virtual void	onTraitsModified ()

const OdGiDeviation &	modelDeviation () const

const OdGiDeviation &	worldDeviation () const

const OdGiDeviation &	eyeDeviation () const

const OdGiMaterialTraitsData &	effectiveMaterialTraitsData () const

void	effectiveMaterialTraitsData (OdGiMaterialTraitsData &data) const

void	setEffectiveMaterialTraitsData (OdDbStub *materialId, const OdGiMaterialTraitsData &data, bool bForce=false)

OdGsMarker	selectionMarker () const

const OdGiSubEntityTraitsData *	byBlockTraits () const

void	setByBlockTraits (const OdGiSubEntityTraitsData *pByBlock)

OdRxObjectPtr	saveByBlockTraits ()

Public Member Functions inherited from OdGiWorldDrawImpl
virtual void	setContext (OdGiContext *pUserContext)

OdUInt16	color () const

OdCmEntityColor	trueColor () const

OdDbStub *	layer () const

OdDbStub *	lineType () const

OdGiFillType	fillType () const

OdDb::LineWeight	lineWeight () const

double	lineTypeScale () const

double	thickness () const

OdDb::PlotStyleNameType	plotStyleNameType () const

OdDbStub *	plotStyleNameId () const

OdDbStub *	material () const

const OdGiMapper *	mapper () const

OdDbStub *	visualStyle () const

OdCmTransparency	transparency () const

OdUInt32	drawFlags () const

OdUInt32	lockFlags () const

bool	selectionGeom () const

ShadowFlags	shadowFlags () const

bool	sectionable () const

SelectionFlags	selectionFlags () const

OdCmEntityColor	secondaryTrueColor () const

const OdGiDgLinetypeModifiers *	lineStyleModifiers () const

const OdGiFill *	fill () const

OdGiAuxiliaryDataPtr	auxData () const

void	setTrueColor (const OdCmEntityColor &color)

void	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbStub *pPlotStyleNameId=0)

void	setColor (OdUInt16 color)

void	setLayer (OdDbStub *layerId)

void	setLineType (OdDbStub *lineTypeId)

void	setFillType (OdGiFillType fillType)

void	setLineWeight (OdDb::LineWeight lineWeight)

void	setLineTypeScale (double lineTypeScale)

void	setThickness (double thickness)

void	setSelectionMarker (OdGsMarker selectionMarker)

void	setMaterial (OdDbStub *pMaterialId)

void	setMapper (const OdGiMapper *pMapper)

void	setVisualStyle (const OdDbStub *visualStyleId)

void	setTransparency (const OdCmTransparency &transparency)

void	setDrawFlags (OdUInt32 drawFlags)

void	setLockFlags (OdUInt32 lockFlags)

void	setSelectionGeom (bool bSelectionFlag)

void	setShadowFlags (ShadowFlags shadowFlags)

void	setSectionable (bool bSectionableFlag)

void	setSelectionFlags (SelectionFlags selectionFlags)

void	setSecondaryTrueColor (const OdCmEntityColor &color)

void	setLineStyleModifiers (const OdGiDgLinetypeModifiers *pLSMod)

void	setFill (const OdGiFill *pFill)

void	setAuxData (const OdGiAuxiliaryDataPtr &pAuxData)

OdGiContext *	context () const

OdGiSubEntityTraits &	subEntityTraits () const

OdGiGeometry &	rawGeometry () const

OdUInt32	numberOfIsolines () const

Public Member Functions inherited from OdGiWorldDraw_
OdGiWorldGeometry &	geometry () const

const OdGiPathNode *	currentGiPath () const

Public Member Functions inherited from OdGiWorldDraw
	ODRX_DECLARE_MEMBERS (OdGiWorldDraw)

Public Member Functions inherited from OdGiCommonDraw
	ODRX_DECLARE_MEMBERS (OdGiCommonDraw)

virtual bool	displayModelerSilhouettes () const

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual void	addRef ()=0

virtual void	release ()=0

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Public Member Functions inherited from OdGiWorldGeometry
	ODRX_DECLARE_MEMBERS (OdGiWorldGeometry)

Public Member Functions inherited from OdGiGeometry
	ODRX_DECLARE_MEMBERS (OdGiGeometry)

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdGeVector3d pNormals=NULL, const OdGsMarker pSubEntMarkers=NULL) ODRX_FINAL

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormals=NULL, const OdGsMarker *pSubEntMarkers=NULL) ODRX_FINAL

virtual bool	brep (const OdGiBrep &giBrep)

Public Member Functions inherited from OdGiSubEntityTraits
	ODRX_DECLARE_MEMBERS (OdGiSubEntityTraits)

virtual void	setFillPlane (const OdGeVector3d *pNormal=0)

virtual bool	fillPlane (OdGeVector3d &normal)

virtual bool	pushLineweightOverride (const OdGiLineweightOverride *pOverride)

virtual void	popLineweightOverride ()

virtual bool	pushPaletteOverride (const OdGiPalette *pOverride)

virtual void	popPaletteOverride ()

virtual OdUInt32	setupForEntity () const

virtual void	addLight (const OdDbStub *lightId)

Public Member Functions inherited from OdGiDrawableTraits
	ODRX_DECLARE_MEMBERS (OdGiDrawableTraits)

Public Member Functions inherited from OdGiViewportDraw_
OdGiViewportGeometry &	geometry () const

const OdGiPathNode *	currentGiPath () const

Public Member Functions inherited from OdGiViewportDraw
	ODRX_DECLARE_MEMBERS (OdGiViewportDraw)

Public Member Functions inherited from OdGiViewportGeometry
	ODRX_DECLARE_MEMBERS (OdGiViewportGeometry)

virtual void	ownerDrawDc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiSelfGdiDrawable *pDrawable, bool dcAligned=true, bool allowClipping=false)

Public Member Functions inherited from OdGiConveyorContext
virtual	~OdGiConveyorContext ()

virtual void	onTextProcessing (const OdGePoint3d &, const OdGeVector3d &, const OdGeVector3d &)

virtual const OdGiLineweightOverride *	currentLineweightOverride () const

virtual double	annotationScale () const

Public Member Functions inherited from OdGiDeviation
virtual	~OdGiDeviation ()

Public Attributes
OdGiDrawableDesc *	m_pDrawableDesc

OdUInt32	m_nDrawableAttributes

Protected Types
enum	Flags { kFirstFlag = 1 , kSuppressViewportDraw = kFirstFlag << 0 , kDrawInvisibleEnts = kFirstFlag << 1 , kDrawLayerOff = kFirstFlag << 2 , kDrawLayerFrozen = kFirstFlag << 3 , kIgnoreFillPlane = kFirstFlag << 4 , kSelectionMode = kFirstFlag << 5 , kAttributesSegment = kFirstFlag << 6 , kXrefOverride = kFirstFlag << 7 , kPlotLayerNonPlottable = kFirstFlag << 8 , kLastFlag = kPlotLayerNonPlottable }

typedef std::map< OdDbStub *, LayerTraitsCache >	LayerTraitsCacheMap

typedef OdGiTraitsCache< OdGiMaterialTraitsData, OdGiMaterialTraitsTaker, OdGiMaterialTraits::kByBlock\|OdGiMaterialTraits::kByLayer >	OdGiMaterialTraitsCache

Protected Member Functions
	ODRX_HEAP_OPERATORS ()

void	actualizeMaterialAttributes (OdDbStub *materialId) const

virtual OdDbStub *	switchLayer (OdDbStub *layerId) const

virtual const OdGiLayerTraitsData &	effectiveLayerTraits () const

virtual bool	layerVisible (OdDbStub *layerId) const

void	updateLayerTraits (OdGiSubEntityTraitsData &subEntityTraits) const

const OdGeVector3d *	extrusion (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint)

const OdGeVector3d *	extrusion (const OdGeVector3d &normal)

const OdGeVector3d *	extrusion (const OdGeVector3d *pNormal)

const OdGeVector3d *	extrusion (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v)

virtual void	affectTraits (const OdGiSubEntityTraitsData *pSource, OdGiSubEntityTraitsData &destination) const

virtual double	linetypeGenerationCriteria () const

void	resetEntityTraitsDataKeepAuxData ()

void	resetEntityTraitsData ()

void	updateTraitsDataByBlockTraits (const OdGiSubEntityTraitsData *pBlockTraits)

virtual void	selectionMarkerOnChange (OdGsMarker nSelectionMarker)

virtual bool	updateExtentsOnly () const

Protected Member Functions inherited from OdGiWorldDrawImpl
	ODRX_USING_HEAP_OPERATORS (OdGiDummyCommonDraw< OdGiWorldDraw_ >)

	OdGiWorldDrawImpl ()

Protected Member Functions inherited from OdGiWorldDraw_
	ODRX_USING_HEAP_OPERATORS (OdGiWorldDraw)

Protected Member Functions inherited from OdGiViewportDraw_
	ODRX_USING_HEAP_OPERATORS (OdGiViewportDraw)

Static Protected Member Functions
static OdRxClass *	desc ()

Protected Attributes
OdGiSubEntityTraitsData	m_effectiveEntityTraitsData

OdDbStub *	m_layerId

OdGiLayerTraitsTaker	m_effectiveLayerTraits

LayerTraitsCacheMap	m_layerTraitsCache

OdDbStub *	m_materialId

OdDbStub *	m_byLayerMaterialId

OdDbStub *	m_byBlockMaterialId

OdUInt32	m_materialAttributes

OdGiMaterialTraitsCache	m_effectiveMaterialTraitsData

OdDbStub *	m_effectiveMaterialId

OdDbStub *	m_effectiveLayerId

OdGsMarker	m_nSelectionMarker

OdGsMarker	m_nPrevSelectionMarker

OdGiMapper	m_materialMapper

OdGiMapper *	m_pCurMaterialMapper

OdGiDgLinetypeModifiers	m_lsModifiers

OdGiDgLinetypeModifiers *	m_pCurLSModifiers

OdGiFillPtr	m_pFill

OdGiAuxiliaryDataPtr	m_pAuxData

OdRxObjectPtr	m_pGiReserved

OdUInt32	m_entityTraitsDataChanged

OdGiConveyorConnector	m_eyeEntryPoint

OdGiConveyorConnector	m_modelEntryPoint

OdGiConveyorConnector *	m_pActiveEntryPoint

OdGiModelToViewProcPtr	m_pModelToEyeProc

OdGiConveyorConnector	m_output

OdUInt32	m_flags

OdUInt32	m_drawContextFlags

const OdGiSubEntityTraitsData *	m_pByBlock

Protected Attributes inherited from OdGiWorldDrawImpl
OdGiSubEntityTraitsData	m_entityTraitsData

OdGiContext *	m_pContext

Static Protected Attributes
static ODGI_EXPORT_STATIC const OdGiSubEntityTraitsData	g_entityTraitsDataReset

Additional Inherited Members
Public Types inherited from OdGiSubEntityTraits
enum	DrawFlags { kNoDrawFlags = 0x0000 , kDrawBackfaces = 0x0001 , kDrawHatchGroup = 0x0002 , kDrawFrontfacesOnly = 0x0004 , kDrawGradientFill = 0x0008 , kDrawSolidFill = 0x0010 , kDrawNoLineWeight = 0x0020 , kDrawNoPlotstyle = 0x0080 , kDrawContourFill = 0x08000 , kDisableLayoutCache = 0x10000 , kDrawBoundaryForClipping = 0x20000 , kDrawBoundaryForClippingDrw = 0x40000 , kClipSetIsEmpty = 0x80000 , kDrawPolygonFill = 0x100000 , kExcludeFromViewExt = 0x200000 , kDrawDgLsPolyWithoutBreaks = 0x400000 , kPolygonProcessing = 0x800000 , kDisableAutoGenerateNormals = 0x1000000 , kDisableFillModeCheck = 0x2000000 , kDrawUnderlayReference = 0x4000000 , kLineStyleScaleOverride = 0x8000000 , kDisableDisplayClipping = 0x10000000 , kRegenTypeDependent2dDraw = 0x20000000 , kInternalDrawFlags = kDisableLayoutCache \| kClipSetIsEmpty \| kRegenTypeDependent2dDraw , kDrawGeometryForExtents = 0x04000 , kFxNoFillOnSelect = 0x40000000 , kInheritableDrawFlags }

enum	LockFlags { kNoLockFlags = 0x00000000 , kLockColors = 0x00000001 , kLockLineWeight = 0x00000002 , kLockLineType = 0x00000004 , kLockLineTypeScale = 0x00000008 , kLockLayer = 0x00000010 , kLockByBlockLayer = 0x00000020 , kKeepAuxDataAndLockFlags = 0x00000040 , kInheritableLockFlags = kLockColors \| kLockLineWeight \| kLockLineType \| kLockLineTypeScale \| kLockLayer \| kKeepAuxDataAndLockFlags }

enum	ShadowFlags { kShadowsCastAndReceive = 0 , kShadowsDoesNotCast = 1 , kShadowsDoesNotReceive = 2 , kShadowsIgnore = kShadowsDoesNotCast \| kShadowsDoesNotReceive }

enum	SelectionFlags { kNoSelectionFlags = 0 , kSelectionIgnore = 1 , kHighlightingGeometry = 2 , kHiddenInHighlight = 4 , kFxSubentitySelection = 0x80 }

enum	SubEntityHints { kHint2DAttributes = 1 , kHint3DAttributes = 2 , kHintAllAttributes = kHint2DAttributes \| kHint3DAttributes , kHintSnapModeOn = 4 , kHintDefaultState = kHintAllAttributes }

Public Types inherited from OdGiConveyorContext
enum	ConveyorContextFlags { kSpatialFilterSimplPline = 1 , kSpatialFilterSimplNurbs = 2 , kSpatialFilterSimplText = 4 , kSpatialFilterSimplShape = 8 , kSpatialFilterSimplAll , kEmbranchmentSimplText = 16 , kEmbranchmentSimplNurbs = 32 , kEmbranchmentSimplAll = (kEmbranchmentSimplText \| kEmbranchmentSimplNurbs) , kConveyorSimplAll = (kSpatialFilterSimplAll \| kEmbranchmentSimplAll) , kPlineMarkers = 64 , kForceMarkersOnModified = 128 , kPolylineMarkers = 256 , kPlineAllowArcProc = 512 , kTestMode = 1024 , kLineTyperAfterMetafile = 2048 }

Public Types inherited from OdGiSubEntityTraitsChangedFlags
enum	ChangedTraits { kFirstChangedFlag = 1 , kColorChanged = kFirstChangedFlag << 0 , kLayerChanged = kFirstChangedFlag << 1 , kLineTypeChanged = kFirstChangedFlag << 2 , kFillTypeChanged = kFirstChangedFlag << 3 , kLineWeightChanged = kFirstChangedFlag << 4 , kLineTypeScaleChanged = kFirstChangedFlag << 5 , kThicknessChanged = kFirstChangedFlag << 6 , kPlotStyleChanged = kFirstChangedFlag << 7 , kMaterialChanged = kFirstChangedFlag << 8 , kMapperChanged = kFirstChangedFlag << 9 , kVisualStyleChanged = kFirstChangedFlag << 10 , kTransparencyChanged = kFirstChangedFlag << 11 , kDrawFlagsChanged = kFirstChangedFlag << 12 , kSelectionGeomChanged = kFirstChangedFlag << 13 , kShadowFlagsChanged = kFirstChangedFlag << 14 , kSectionableChanged = kFirstChangedFlag << 15 , kSelectionFlagsChanged = kFirstChangedFlag << 16 , kSecColorChanged = kFirstChangedFlag << 17 , kLSModifiersChanged = kFirstChangedFlag << 18 , kFillChanged = kFirstChangedFlag << 19 , kAwareFlagChanged = kFirstChangedFlag << 20 , kLockFlagsChanged = kFirstChangedFlag << 21 , kAuxDataChanged = kFirstChangedFlag << 22 , kAllChanged = 0x7FFFFF , kSomeChanged = kAllChanged }

Static Public Member Functions inherited from OdGiWorldDrawImpl
static OdGiContext *	dummyGiContext ()

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Detailed Description

This class is a base implementation of the OdGiWorldDraw and OdGiViewportDraw interfaces. Corresponding C++ library: TD_Gi

Remarks: This class takes a drawable graphics and passes it into OdGiConveyorGeometry.

It is the base class for specialized frameworks such as OdGiExtCalc. <group OdGi_Classes>

Definition at line 634 of file GiBaseVectorizer.h.

Member Typedef Documentation

◆ LayerTraitsCacheMap

typedef std::map<OdDbStub*, LayerTraitsCache> OdGiBaseVectorizer::LayerTraitsCacheMap

protected

Definition at line 653 of file GiBaseVectorizer.h.

◆ OdGiMaterialTraitsCache

typedef OdGiTraitsCache<OdGiMaterialTraitsData, OdGiMaterialTraitsTaker, OdGiMaterialTraits::kByBlock | OdGiMaterialTraits::kByLayer> OdGiBaseVectorizer::OdGiMaterialTraitsCache

protected

Definition at line 656 of file GiBaseVectorizer.h.

Member Enumeration Documentation

◆ Flags

enum OdGiBaseVectorizer::Flags

protected

Enumerator
kFirstFlag
kSuppressViewportDraw
kDrawInvisibleEnts
kDrawLayerOff
kDrawLayerFrozen
kIgnoreFillPlane
kSelectionMode
kAttributesSegment
kXrefOverride
kPlotLayerNonPlottable
kLastFlag

Definition at line 846 of file GiBaseVectorizer.h.

Constructor & Destructor Documentation

◆ OdGiBaseVectorizer()

OdGiBaseVectorizer::OdGiBaseVectorizer ( )

Default constructor for the OdGiBaseVectorizer class. Initializes data members in the member initializer list:

member Value
m_layerId 0
m_materialId NULL
m_byLayerMaterialId NULL
m_byBlockMaterialId NULL
m_materialAttributes OdGiMaterialTraitsCache::kCacheByMask m_effectiveMaterialTraitsData 0 m_effectiveMaterialId 0 m_effectiveLayerId 5 m_nSelectionMarker kNullSubentIndex m_nPrevSelectionMarker kNullSubentIndex m_pDrawableDesc 0 m_nDrawableAttributes 0 m_flags kSuppressViewportDraw m_drawContextFlags 0 m_pByBlock 0 m_bResetEntityTraitsData* true

Additionally some other data members are set in the constructor body.

◆ ~OdGiBaseVectorizer()

virtual OdGiBaseVectorizer::~OdGiBaseVectorizer ( )

virtual

Destructor for the OdGiBaseVectorizer class.

Member Function Documentation

◆ actualizeMaterialAttributes()

void OdGiBaseVectorizer::actualizeMaterialAttributes ( OdDbStub * materialId ) const

protected

◆ affectTraits()

virtual void OdGiBaseVectorizer::affectTraits	(	const OdGiSubEntityTraitsData *	pSource,
		OdGiSubEntityTraitsData &	destination ) const

protectedvirtual

Sets the specfied EntityTraitsData data from the specified EntityTraitsData.

Parameters

pSource	[in] Pointer to the source SubEntityTraitsData.
destination	[out] Receives the SubEntityTraitsData.

Remarks: If pSource is NULL, default SubEntityTraitsData is used.

Reimplemented in OdGiBaseVectorizerImpl, and OdGiExtCalc.

◆ beginViewVectorization()

virtual void OdGiBaseVectorizer::beginViewVectorization ( )

virtual

Begins the ViewVectorization process for this Vectorizer object.

Reimplemented in CFxRVTMaterialView, OdGiBaseVectorizerImpl, OdGsBaseMaterialVectorizer, and OdGsBaseVectorizer.

◆ byBlockTraits()

const OdGiSubEntityTraitsData * OdGiBaseVectorizer::byBlockTraits ( ) const

inline

Retrieves traits that are defined by the owning block.

Returns: Pointer to OdGiSubEntityTraitsData class that stores the traits defined by the owning block.

Definition at line 2171 of file GiBaseVectorizer.h.

◆ circle() [1/2]

void OdGiBaseVectorizer::circle	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal )

virtual

Introduces a circle into this vectorization context.

Parameters

center	[in] Center point.
radius	[in] Radius.
normal	[in] Normal vector.

See also: <link tv_geometry_circles, Work with Circles>

Implements OdGiGeometry.

◆ circle() [2/2]

void OdGiBaseVectorizer::circle	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint )

virtual

Introduces a circle into this vectorization context.

Parameters

firstPoint	[in] First point.
secondPoint	[in] Second point.
thirdPoint	[in] Third point.

See also: <link tv_geometry_circles, Work with Circles>

Implements OdGiGeometry.

◆ circularArc() [1/2]

void OdGiBaseVectorizer::circularArc	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	startVector,
		double	sweepAngle,
		OdGiArcType	arcType = kOdGiArcSimple )

virtual

Introduces a circular arc into this vectorization context.

Parameters

center	[in] Center point.
radius	[in] Radius.
normal	[in] Normal to a plane on which a circular arc lies.
startVector	[in] Defines the start of this arc.
sweepAngle	[in] Angle that defines the arc.
arcType	[in] Arc type.

Remarks: arcType must be one of the following:

Value Description kOdGiArcSimple 0 Unfilled. kOdGiArcSector 1 Filled area bounded by the arc and its center. kOdGiArcChord 2 Filled area bounded by the arc and its end points

See also: <link tv_geometry_arcs, Work with Arcs>

Implements OdGiGeometry.

◆ circularArc() [2/2]

void OdGiBaseVectorizer::circularArc	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint,
		OdGiArcType	arcType = kOdGiArcSimple )

virtual

Introduces a circular arc into this vectorization context.

Parameters

firstPoint	[in] First point.
secondPoint	[in] Second point.
thirdPoint	[in] Third point.
arcType	[in] Arc type.

Remarks: arcType must be one of the following:

Value Description kOdGiArcSimple 0 Unfilled. kOdGiArcSector 1 Filled area bounded by the arc and its center. kOdGiArcChord 2 Filled area bounded by the arc and its end points

See also: <link tv_geometry_arcs, Work with Arcs>

Implements OdGiGeometry.

◆ clearEntityTraitsDataChanged()

void OdGiBaseVectorizer::clearEntityTraitsDataChanged ( ) const

inline

Marks as unchanged the EntityTraitsData data for this Vectorizer object.

Definition at line 715 of file GiBaseVectorizer.h.

◆ context()

OdGiContext * OdGiBaseVectorizer::context ( ) const

virtual

Retrieves context associated with this object.

Returns: Pointer to the associated context.

Implements OdGiCommonDraw.

◆ currentDrawable()

const OdGiDrawable * OdGiBaseVectorizer::currentDrawable ( ) const

virtual

Retrieves current drawable object.

Returns: Pointer to the current drawable.

Implements OdGiConveyorContext.

◆ currentDrawableDesc()

const OdGiDrawableDesc * OdGiBaseVectorizer::currentDrawableDesc ( ) const

virtual

Retrieves description for a drawable associated with this object.

Returns: Pointer to the OdGiDrawableDesc object that represents a description of a drawable.

Implements OdGiConveyorContext.

◆ currentGiPath()

const OdGiPathNode * OdGiBaseVectorizer::currentGiPath ( ) const

virtual

Retrieves the current drawable nesting graph.

Returns: current drawable nesting graph.

Reimplemented from OdGiCommonDraw.

◆ desc()

static OdRxClass * OdGiBaseVectorizer::desc ( )

inlinestaticprotected

Retrieves the a pointer to the OdRxClass object that contains a description of this object type, for objects of known class type.

Remarks: This function is for use only when the class type of this object is known. If the class type of this object is unknown, use instead isA().

Definition at line 922 of file GiBaseVectorizer.h.

◆ deviation()

double OdGiBaseVectorizer::deviation	(	const OdGiDeviationType	deviationType,
		const OdGePoint3d &	pointOnCurve ) const

virtual

Retrieves the recommended maximum deviation of the current vectorization for the specified point on a curve.

Parameters

deviationType	[in] Deviation type.
pointOnCurve	[in] Point on a curve.

Returns: recommended maximum difference (with respect to the current active viewport) between the actual curve or surface, and the tessellated curve or surface.

Remarks: deviationType must be one of the following:

Value kOdGiMaxDevForCircle 0
kOdGiMaxDevForCurve 1
kOdGiMaxDevForBoundary 2
kOdGiMaxDevForIsoline 3 kOdGiMaxDevForFacet 4

Remarks: This method uses circle zoom percent or FacetRes as appropriate.

Reimplemented from OdGiDummyCommonDraw< OdGiWorldDraw_ >.

Reimplemented in OdGiBaseVectorizerImpl, and OdGsBaseVectorizer.

◆ doDraw()

virtual bool OdGiBaseVectorizer::doDraw	(	OdUInt32	drawableFlags,
		const OdGiDrawable *	pDrawable )

virtual

Vectorizes the specified OdGiDrawable object.

Parameters

drawableFlags	[in] Drawable flags.
pDrawable	[in] Pointer to the Drawable object.

Remarks: Called by draw() after subSetAttributes().

Returns pDrawable->subWorldDraw(this). If pDrawable->subWorldDraw returns false, and kSuppressViewportDraw is not set, this function evokes pDrawable->subViewportDraw(this).

Reimplemented in OdGsBaseMaterialVectorizer, and OdGsBaseVectorizer.

◆ draw()

void OdGiBaseVectorizer::draw ( const OdGiDrawable * pDrawable )

virtual

Draws the specified drawable.

Parameters

pDrawable [in] pointer to the drawable to draw.

Implements OdGiGeometry.

Reimplemented in OdGiExtCalc.

◆ drawableAttributes()

OdUInt32 OdGiBaseVectorizer::drawableAttributes ( ) const

inline

Retrieves the drawable flags of the last vectorized OdGiDrawable object.

Definition at line 1947 of file GiBaseVectorizer.h.

◆ drawableDesc()

const OdGiDrawableDesc * OdGiBaseVectorizer::drawableDesc ( ) const

inline

Retrieves drawable description.

Returns: pointer to the OdGiDrawableDesc object.

Definition at line 843 of file GiBaseVectorizer.h.

◆ drawClipBoundary()

void OdGiBaseVectorizer::drawClipBoundary	(	OdGiClipBoundary *	pBoundary,
		OdGiAbstractClipBoundary *	pClipInfo )

Draws the specified clipping boundary.

Parameters

pBoundary	[in] Pointer to a clipping boundary.
pClipInfo	[in] Clipping details.

See also: <link gi_clipping_engine, Work with the Clipping Engine>

◆ drawContext() [1/2]

OdGiConveyorContext * OdGiBaseVectorizer::drawContext ( )

inline

Retrieves the OdGiConveyorContext associated with this object.

Returns: "this"

Remarks: Since OdGiConveyorContext is a parent class, this function always returns "this".

Definition at line 1036 of file GiBaseVectorizer.h.

◆ drawContext() [2/2]

const OdGiConveyorContext * OdGiBaseVectorizer::drawContext ( ) const

inline

Retrieves the OdGiConveyorContext associated with this object.

Returns: "this"

Remarks: Since OdGiConveyorContext is a parent class, this function always returns "this".

Definition at line 1047 of file GiBaseVectorizer.h.

◆ drawContextFlags()

OdUInt32 OdGiBaseVectorizer::drawContextFlags ( ) const

virtual

Retrieves draw context flags of this vectorizer.

Returns: draw context flags of this vectorizer as OdUInt32 value.

Reimplemented from OdGiConveyorContext.

◆ edge()

void OdGiBaseVectorizer::edge ( const OdGiEdge2dArray & edges )

virtual

Introduces a hatch boundary into this vectorization context.

Parameters

edges [in] Array of 2d points that define a boundary.

Implements OdGiGeometry.

◆ effectiveLayerTraits()

virtual const OdGiLayerTraitsData & OdGiBaseVectorizer::effectiveLayerTraits ( ) const

protectedvirtual

Reimplemented in OdGsBaseVectorizer.

◆ effectivelyVisible()

bool OdGiBaseVectorizer::effectivelyVisible ( ) const

inlinevirtual

Checks whether the layer of this Vectorizer object is effectively visible.

Remarks

true if the following expression succeeds:

            (GETBIT(m_flags, kDrawLayerOff   ) || !traits.isLayerOff()) &&
            (GETBIT(m_flags, kDrawLayerFrozen) || !traits.isLayerFrozen())

Reimplemented from OdGiConveyorContext.

Definition at line 726 of file GiBaseVectorizer.h.

◆ effectiveMaterialTraitsData() [1/2]

const OdGiMaterialTraitsData & OdGiBaseVectorizer::effectiveMaterialTraitsData ( ) const

Retrieves the material traits data from the effective entity traits. If no material is assigned before the call, then default material is created and assigned to the entity inside the method.

Returns: material traits data.

◆ effectiveMaterialTraitsData() [2/2]

void OdGiBaseVectorizer::effectiveMaterialTraitsData ( OdGiMaterialTraitsData & data ) const

Retrieves the material traits data from the effective entity traits. If no material is assigned before the call, then default material is created and assigned to the entity inside the method.

Parameters

data	[out] Receives material traits data.

◆ effectiveTraits()

virtual const OdGiSubEntityTraitsData & OdGiBaseVectorizer::effectiveTraits ( ) const

virtual

Retrieves the EntityTraitsData in effect for this Vectorization object.

Returns: entity traits that are in effect for this vectorizer.

Implements OdGiConveyorContext.

Reimplemented in OdGiBaseVectorizerImpl, and OdGiExtCalc.

◆ ellipArc()

void OdGiBaseVectorizer::ellipArc	(	const OdGeEllipArc3d &	ellipArc,
		const OdGePoint3d *	endPointsOverrides = 0,
		OdGiArcType	arcType = kOdGiArcSimple )

virtual

Introduces an elliptical arc into this vectorization context.

Parameters

ellipArc	[in] Elliptical arc.
endPointOverrides	[in] Array of points to be used as the first and last points of the vectorized arc.
arcType	[in] Arc type.

Remarks: arcType must be one of the following:

Value Description kOdGiArcSimple 0 Unfilled. kOdGiArcSector 1 Filled area bounded by the arc and its center. kOdGiArcChord 2 Filled area bounded by the arc and its end points

See also: <link tv_geometry_arcs, Work with Arcs>

Implements OdGiGeometry.

◆ endViewVectorization()

virtual void OdGiBaseVectorizer::endViewVectorization ( )

virtual

Ends the ViewVectorization process for this Vectorizer object.

Reimplemented in OdGiBaseVectorizerImpl, OdGsBaseMaterialVectorizer, and OdGsBaseVectorizer.

◆ extrusion() [1/4]

const OdGeVector3d * OdGiBaseVectorizer::extrusion	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint )

protected

Retrieves an extrusion vector normal to the specified plane.

Parameters

firstPoint	[in] First point in the plane.
secondPoint	[in] Second point in the plane.
thirdPoint	[in] Third point in the plane.
origin	[in] Origin of the plane.
u	[in] U-vector in the plane.
v	[in] V-vector in the plane.
normal	[in] Normal to the plane.
pNormal	[in] Pointer to the normal to the plane.

Remarks: The magnitude of the extrusion vector is effectiveTraits().thickness().

◆ extrusion() [2/4]

const OdGeVector3d * OdGiBaseVectorizer::extrusion	(	const OdGePoint3d &	origin,
		const OdGeVector3d &	u,
		const OdGeVector3d &	v )

protected

◆ extrusion() [3/4]

const OdGeVector3d * OdGiBaseVectorizer::extrusion ( const OdGeVector3d & normal )

protected

◆ extrusion() [4/4]

const OdGeVector3d * OdGiBaseVectorizer::extrusion ( const OdGeVector3d * pNormal )

inlineprotected

Definition at line 817 of file GiBaseVectorizer.h.

◆ eyeDeviation()

const OdGiDeviation & OdGiBaseVectorizer::eyeDeviation ( ) const

virtual

Retrieves the maximum EyeSpace (ECS) deviation for this VectorizeView object.

Returns: maximum eye space (ECS) deviation as the OdGiDeviation instance.

Implements OdGiConveyorContext.

◆ eyeToOutputTransform() [1/2]

const OdGeMatrix3d & OdGiBaseVectorizer::eyeToOutputTransform ( ) const

Retrieves the Eye to Output transformation matrix for this Vectorizer object.

Returns: transformation matrix.

◆ eyeToOutputTransform() [2/2]

void OdGiBaseVectorizer::eyeToOutputTransform ( OdGeMatrix3d & xfm ) const

Retrieves the Eye to Output transformation matrix for this Vectorizer object.

Parameters

xfm	[out] Receives the transformation matrix.

◆ getModelToWorldTransform()

OdGeMatrix3d OdGiBaseVectorizer::getModelToWorldTransform ( ) const

virtual

Retrieves the block insert transform, which is the model-to-world coordinate transform.

Returns: model-to-world transform matrix.

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl.

◆ getWorldToModelTransform()

OdGeMatrix3d OdGiBaseVectorizer::getWorldToModelTransform ( ) const

virtual

Retrieves model-to-world coordinate transform which is inverse of the retrieved matrix from the getModelToWorldTransform() method. The retrieved matrix can transform an entity's world coordinate representation back into the original model coordinates.

Returns: world-to-model transform matrix.

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl.

◆ giContext()

OdGiContext & OdGiBaseVectorizer::giContext ( ) const

virtual

Retrieves context associated with this object.

Returns: Pointer to the associated context.

Implements OdGiConveyorContext.

◆ giViewport()

const OdGiViewport * OdGiBaseVectorizer::giViewport ( ) const

virtual

Retrieves gi viewport associated with this object.

Returns: Pointer to the OdGiViewport object.

Implements OdGiConveyorContext.

Reimplemented in OdGiBaseVectorizerImpl.

◆ gsView()

const OdGsView * OdGiBaseVectorizer::gsView ( ) const

virtual

Retrieves gs view associated with this object.

Returns: Pointer to the OdGsView object.

See also: <link tv_working_with_base_classes_view, Work with Visualize Graphical Views>

Implements OdGiConveyorContext.

Reimplemented in OdGiBaseVectorizerImpl.

◆ image()

void OdGiBaseVectorizer::image	(	const OdGiImageBGRA32 &	img,
		const OdGePoint3d &	origin,
		const OdGeVector3d &	uVec,
		const OdGeVector3d &	vVec,
		OdGiRasterImage::TransparencyMode	trpMode = OdGiRasterImage::kTransparency8Bit )

virtual

Introduces a raster image into this vectorization context.

Parameters

img	[in] Reference to a raster image.
origin	[in] Lower-left corner of an image.
uVec	[in] Image width vector.
vVec	[in] Image height vector.
trpMode	[in] Image transparency mode.

See also: <link tv_geometry_raster_images, Work with Raster Image Geometry Data>

Implements OdGiGeometry.

◆ isA()

OdRxClass * OdGiBaseVectorizer::isA ( ) const

virtual

Retrieves the a pointer to the OdRxClass object that contains a description of this object type, for objects of unknown class type.

Returns: pointer to the OdRxClass object.

Remarks: This function may be used only when the class type of this object is unknown. If the class type of this object is known, use instead desc().

See also: <exref target="https://docs.opendesign.com/tkernel/rtti.html">Run-Time Type Identification</exref>

Reimplemented from OdRxObject.

◆ isAttributesSegmentEnabled()

bool OdGiBaseVectorizer::isAttributesSegmentEnabled ( )

Checks whether this vectorizer has the OdGiBaseVectorizer::kAttributesSegment flag set to true.

Returns: true if this vectorizer has the OdGiBaseVectorizer::kAttributesSegment flag set to true, false otherwise.

◆ isClipping()

bool OdGiBaseVectorizer::isClipping ( ) const

Checks whether the vectorizer is currently clipping, i.e. clipping stage chain is not empty.

Returns: true if clipping stage chain is not empty, false otherwise.

◆ isDragging()

bool OdGiBaseVectorizer::isDragging ( ) const

virtual

Checks whether this vectorization process is the result of a "drag" operation.

Returns: true if this vectorization process is the result of a "drag" operation, false otherwise.

Reimplemented from OdGiDummyCommonDraw< OdGiWorldDraw_ >.

Reimplemented in OdGsBaseVectorizer.

◆ isEntityTraitsDataChanged()

bool OdGiBaseVectorizer::isEntityTraitsDataChanged ( int bit = kSomeChanged ) const

inline

Checks whether EntityTraitsData for this Vectorizer object have been changed.

Parameters

bit	[in] Bit that represents an entity traits to check.

Returns: true if the EntityTraitsData for this Vectorizer object have been changed.

Definition at line 698 of file GiBaseVectorizer.h.

◆ isValidId()

bool OdGiBaseVectorizer::isValidId ( const OdUInt32 viewportId ) const

virtual

Checks whether the specified identifier of a viewport is valid. The default implementation of this function always returns 0.

Parameters

viewportId [in] Identifier of a viewport to check.

Returns: false

Implements OdGiViewportDraw.

Reimplemented in OdGiBaseVectorizerImpl.

◆ isXrefOverride()

bool OdGiBaseVectorizer::isXrefOverride ( ) const

inline

Definition at line 1916 of file GiBaseVectorizer.h.

◆ layerVisible()

virtual bool OdGiBaseVectorizer::layerVisible ( OdDbStub * layerId ) const

protectedvirtual

Reimplemented in OdGiBaseVectorizerImpl.

◆ linetypeGenerationCriteria()

virtual double OdGiBaseVectorizer::linetypeGenerationCriteria ( ) const

protectedvirtual

Retrieves the dash length below which linetypes are not generated by this Vectorizer object.

Reimplemented in OdGiBaseVectorizerImpl.

◆ mesh()

void OdGiBaseVectorizer::mesh	(	OdInt32	numRows,
		OdInt32	numColumns,
		const OdGePoint3d *	vertexList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

virtual

Introduces a mesh into this vectorization context.

Parameters

numRows	[in] Number of rows.
numColumns	[in] Number of columns.
vertexList	[in] Array of vertices.
pEdgeData	[in] Pointer to additional edge data.
pFaceData	[in] Pointer to additional face data.
pVertexData	[in] Pointer to additional vertex data.

See also: <link tv_geometry_meshes, Work with Meshes>

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl.

◆ metafileDc()

void OdGiBaseVectorizer::metafileDc	(	const OdGePoint3d &	origin,
		const OdGeVector3d &	u,
		const OdGeVector3d &	v,
		const OdGiMetafile *	pMetafile,
		bool	bDcAligned = true,
		bool	bAllowClipping = false )

virtual

Introduces a metafile into this vectorization context in device coordinate system.

Parameters

origin	[in] Origin of a metafile content.
u	[in] Metafile content u-parameter.
v	[in] Metafile content v-parameter.
pMetafile	[in] Pointer to a metafile.
bDcAligned	[in] Flag that specifies whether metafile content should be aligned to device coordinate system.
bAllowClipping	[in] Flag that specifies whether clipping should be allowed for a metafile.

Implements OdGiViewportGeometry.

◆ modelDeviation()

const OdGiDeviation & OdGiBaseVectorizer::modelDeviation ( ) const

virtual

Retrieves the maximum ModelSpace (UCS) deviation for this VectorizeView object.

Returns: maximum ModelSpace (UCS) deviation as the OdGiDeviation instance.

Implements OdGiConveyorContext.

◆ needDraw()

bool OdGiBaseVectorizer::needDraw ( OdUInt32 drawableFlags )

Returnes true if and only the Drawable object associated with this Vectorizer is visible.

Parameters

drawableFlags [in] Drawable flags.

Remarks: Called by draw().

◆ numberOfIsolines()

OdUInt32 OdGiBaseVectorizer::numberOfIsolines ( ) const

virtual

Retrieves count of isolines that are used to represent an entity.

Returns: number of isolines.

Remarks: Isolines are lines or curves which are used to represent the entity. For example, if an entity is a sphere and this method returns 3, the sphere should be displayed as 3 circles with a common center and planes that are perpendicular to each other.

Reimplemented from OdGiDummyCommonDraw< OdGiWorldDraw_ >.

◆ nurbs()

void OdGiBaseVectorizer::nurbs ( const OdGeNurbCurve3d & nurbsCurve )

virtual

Introduces nurbs into this vectorization context.

Parameters

nurbsCurve [in] NURBS curve data.

See also: <link tv_geometry_nurbs, Work with NURBS>

Implements OdGiGeometry.

◆ ODRX_HEAP_OPERATORS()

OdGiBaseVectorizer::ODRX_HEAP_OPERATORS ( )

protected

◆ onTraitsModified()

virtual void OdGiBaseVectorizer::onTraitsModified ( )

virtual

This method can be called whenever entity traits are changed. Default implementation does nothing.

Implements OdGiConveyorContext.

Reimplemented in OdGiBaseVectorizerImpl, OdGsBaseMaterialVectorizer, and OdGsBaseVectorizer.

◆ output()

virtual OdGiConveyorOutput & OdGiBaseVectorizer::output ( )

virtual

Retrieves a reference to the output of this Vectorizer object.

Returns: reference to the output.

Reimplemented in OdGsBaseVectorizer.

◆ pline()

void OdGiBaseVectorizer::pline	(	const OdGiPolyline &	polyline,
		OdUInt32	fromIndex = 0,
		OdUInt32	numSegs = 0 )

virtual

Introduces a pline into this vectorization context.

Parameters

polyline	[in] Polyline data to be processed.
fromIndex	[in] Index of the first segment to be processed.
numSegs	[in] Number of segments to be processed.

See also: <link tv_geometry_lines, Work with Lines>

Implements OdGiGeometry.

◆ pointCloud()

void OdGiBaseVectorizer::pointCloud ( const OdGiPointCloud & pCloud )

virtual

Introduces a Point Clound object into this vectorization context.

Parameters

pCloud [in] Point Cloud object.

Reimplemented from OdGiGeometry.

◆ polygon() [1/2]

void OdGiBaseVectorizer::polygon	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList )

virtual

Introduces a polygon into this vectorization context.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Pointer to an array of vertices.

See also: <link tv_geometry_polygons, Work with Polygons>

Implements OdGiGeometry.

◆ polygon() [2/2]

void OdGiBaseVectorizer::polygon	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		const OdGeVector3d *	pNormal )

virtual

Introduces a polygon into this vectorization context.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Pointer to an array of vertices.
pNormal	[in] Pointer to the normal vector.

See also: <link tv_geometry_polygons, Work with Polygons>

Reimplemented from OdGiGeometry.

◆ polygonCs()

void OdGiBaseVectorizer::polygonCs	(	OdGiContext::CoordinatesSystem	cs,
		OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

Introduces a new polygon in selected coordinates system.

Parameters

cs	[in] Coordinates system.
numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

◆ polygonDc()

void OdGiBaseVectorizer::polygonDc	(	OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

virtual

Introduces a new polygon but in device coordinate system.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

Implements OdGiViewportGeometry.

◆ polygonEye()

void OdGiBaseVectorizer::polygonEye	(	OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

virtual

Introduces a new polygon but in eye coordinate system.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

Implements OdGiViewportGeometry.

◆ polyline()

void OdGiBaseVectorizer::polyline	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		const OdGeVector3d *	pNormal = 0,
		OdGsMarker	baseSubEntMarker = -1 )

virtual

Introduces a polyline into this vectorization context.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Pointer to an array of vertices.
pNormal	[in] Pointer to the normal vector.
baseSubEntMarker	[in] Base sub-entity marker.

See also: <link tv_geometry_lines, Work with Lines>

Implements OdGiGeometry.

◆ polylineCs()

void OdGiBaseVectorizer::polylineCs	(	OdGiContext::CoordinatesSystem	cs,
		OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

Introduces a new polyline in selected coordinates system.

Parameters

cs	[in] Coordinates system.
numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

◆ polylineDc()

void OdGiBaseVectorizer::polylineDc	(	OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

virtual

Introduces a new polyline but in device coordinate system.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

Implements OdGiViewportGeometry.

◆ polylineEye()

void OdGiBaseVectorizer::polylineEye	(	OdUInt32	numVertices,
		const OdGePoint3d *	vertexList )

virtual

Introduces a new polyline but in eye coordinate system.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Pointer to an array of vertices.

Implements OdGiViewportGeometry.

◆ polypoint()

void OdGiBaseVectorizer::polypoint	(	OdInt32	numPoints,
		const OdGePoint3d *	vertexList,
		const OdCmEntityColor *	pColors,
		const OdCmTransparency *	pTransparency,
		const OdGeVector3d *	pNormals,
		const OdGsMarker *	pSubEntMarkers,
		OdInt32	nPointSize )

virtual

Introduces an array of points into this vectorization context.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Pointer to an array of vertices.
pColors	[in] Pointer to point colors.
pTransparency	[in] Pointer to point transparency.
pNormals	[in] Array of normal vectors.
pSubEntMarkers	[in] Array of sub-entity markers.
nPointSize	[in] Points size.

Reimplemented from OdGiGeometry.

◆ polyPolygon()

virtual void OdGiBaseVectorizer::polyPolygon	(	OdUInt32	numIndices,
		const OdUInt32 *	pNumPositions,
		const OdGePoint3d *	pPositions,
		const OdUInt32 *	pNumPoints,
		const OdGePoint3d *	pPoints,
		const OdCmEntityColor *	pOutlineColors = NULL,
		const OdUInt32 *	pOutlinePsLinetypes = NULL,
		const OdCmEntityColor *	pFillColors = NULL,
		const OdCmTransparency *	pFillTransparencies = NULL )

virtual

Introduces set of polygons to this vectorization context.

Parameters

numIndices	[in] Number of polgon indices.
pNumPositions	[in] Number of positions per polygon.
pPositions	[in] Array of polygon offsets for all polygon invocations.
pNumPoint	[in] Number of points per polygon.
pPoints	[in] Array of polygon points.
pOutlineColors	[in] Colors of polygon outlines.
pOutlinePsLinetypes	[in] Linetypes of polygon outlines (see OdPs::LineType enumeration).
pFillColors	[in] Polygon fill colors.
pFillTransparencies	[in] Polygon fill transparencies.

Reimplemented from OdGiGeometry.

◆ popClipBoundary()

void OdGiBaseVectorizer::popClipBoundary ( )

virtual

Pops a top clipping boundary from the stack. This method should be used after a successful pushClipBoundary() method call from the worldDraw or viewportDraw of a drawable object.

See also: <link gi_clipping_engine, Work with the Clipping Engine>

Implements OdGiGeometry.

Reimplemented in OdGsBaseVectorizer.

◆ popModelTransform()

void OdGiBaseVectorizer::popModelTransform ( )

virtual

Pops a transformation from the stack. This method should be used after a successful pushModelTransform() method call to restore previous model transform state.

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl, and OdGsBaseVectorizer.

◆ pushClipBoundary() [1/2]

void OdGiBaseVectorizer::pushClipBoundary ( OdGiClipBoundary * pBoundary )

virtual

Pushes a clipping boundary onto the stack, which can possibly affect the display of subsequent primitives. Use the popClipBoundary() to remove this clipping boundary from the stack.

Parameters

pBoundary [in] Pointer to a clipping boundary.

See also: <link gi_clipping_engine, Work with the Clipping Engine>

Implements OdGiGeometry.

Reimplemented in OdGsBaseVectorizer.

◆ pushClipBoundary() [2/2]

void OdGiBaseVectorizer::pushClipBoundary	(	OdGiClipBoundary *	pBoundary,
		OdGiAbstractClipBoundary *	pClipInfo )

virtual

Pushes a clipping boundary onto the stack, which can possibly affect the display of subsequent primitives. Use the popClipBoundary() to remove this clipping boundary from the stack.

Parameters

pBoundary	[in] Pointer to a clipping boundary.
pClipInfo	[in] Clipping details.

See also: <link gi_clipping_engine, Work with the Clipping Engine>

Reimplemented from OdGiGeometry.

Reimplemented in OdGsBaseVectorizer.

◆ pushModelTransform() [1/2]

void OdGiBaseVectorizer::pushModelTransform ( const OdGeMatrix3d & xfm )

virtual

Pushes a transformation matrix onto the stack. The resulting transformation will be created by multiplying the specified transform matrix by the existing one. This allows you to easily adjust an entity coordinate system. Use the popModelTransform() to remove this transform matrix from the stack when you are finished with this transformation.

Parameters

xfm	[in] Transformation matrix.

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl, and OdGsBaseVectorizer.

◆ pushModelTransform() [2/2]

void OdGiBaseVectorizer::pushModelTransform ( const OdGeVector3d & normal )

virtual

Pushes a transformation vector onto the stack. The resulting transformation will be created by using the arbitrary axis algorithm and the specified vector. This allows you to easily adjust an entity coordinate system. Use the popModelTransform() to remove this transform vector from the stack when you are finished with this transformation.

Parameters

normal [in] Transformation matrix.

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl, and OdGsBaseVectorizer.

◆ queryX()

OdRxObject * OdGiBaseVectorizer::queryX ( const OdRxClass * pProtocolClass ) const

virtual

Retrieves the Protocol Extension object for this object.

Returns: pointer to the OdRxClass object.

Remarks: Returns NULL if no protocol extension class exists.

See also: <exref target="https://docs.opendesign.com/tkernel/rtti.html">Run-Time Type Identification</exref>

Reimplemented from OdRxObject.

◆ rasterImageDc()

void OdGiBaseVectorizer::rasterImageDc	(	const OdGePoint3d &	origin,
		const OdGeVector3d &	u,
		const OdGeVector3d &	v,
		const OdGiRasterImage *	pImage,
		const OdGePoint2d *	uvBoundary,
		OdUInt32	numBoundPts,
		bool	transparency = false,
		double	brightness = 50.0,
		double	contrast = 50.0,
		double	fade = 0.0 )

virtual

Introduces a raster image into this vectorization context in device coordinate system.

Parameters

origin	[in] Image origin.
u	[in] Image width vector.
v	[in] Image height vector.
pImage	[in] pointer to a raster image.
uvBoundary	[in] pointer to an array of boundary points.
numBoundPts	[in] number of boundary points.
transparency	[in] Flag that specifies image transparency.
brightness	[in] Brightness of an image in range of [0..100].
contrast	[in] Contrast of an image in range of [0..100].
fade	[in] Fade of an image in range of [0..100].

See also: <link tv_geometry_raster_images, Work with Raster Image Geometry Data>

Implements OdGiViewportGeometry.

◆ rawGeometry()

OdGiGeometry & OdGiBaseVectorizer::rawGeometry ( ) const

virtual

Retrieves raw geometry associated with this object.

Returns: raw geometry.

Remarks: The method cannot return NULL.

Implements OdGiCommonDraw.

◆ ray()

void OdGiBaseVectorizer::ray	(	const OdGePoint3d &	basePoint,
		const OdGePoint3d &	throughPoint )

virtual

Introduces a ray into this vectorization context.

Parameters

basePoint	[in] Base point.
throughPoint	[in] Through point

See also: <link tv_geometry_lines, Work with Lines>

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl.

◆ regenAbort()

bool OdGiBaseVectorizer::regenAbort ( ) const

virtual

Checks whether this vectorization process should be aborted.

Returns: true if this vectorization process should be aborted, false otherwise.

Reimplemented from OdGiDummyCommonDraw< OdGiWorldDraw_ >.

Reimplemented in OdGiExtCalc, and OdGsBaseVectorizer.

◆ regenType()

OdGiRegenType OdGiBaseVectorizer::regenType ( ) const

virtual

Returns the regeneration type of the current vectorization process.

Remarks: regenType() returns one of the following:

Value eOdGiRegenTypeInvalid 0 kOdGiStandardDisplay 2 kOdGiHideOrShadeCommand 3 kOdGiRenderCommand 4 kOdGiForExplode 5 kOdGiSaveWorldDrawForProxy 6 kOdGiForExtents 7

Reimplemented from OdGiDummyCommonDraw< OdGiWorldDraw_ >.

Reimplemented in OdGiBaseVectorizerImpl, and OdGiExtCalc.

◆ resetEntityTraitsData()

void OdGiBaseVectorizer::resetEntityTraitsData ( )

inlineprotected

Resets all entity traits.

Definition at line 2303 of file GiBaseVectorizer.h.

◆ resetEntityTraitsDataKeepAuxData()

void OdGiBaseVectorizer::resetEntityTraitsDataKeepAuxData ( )

inlineprotected

Resets entity traits but keeps auxiliary data.

Definition at line 2286 of file GiBaseVectorizer.h.

◆ rowOfDots()

void OdGiBaseVectorizer::rowOfDots	(	OdInt32	numPoints,
		const OdGePoint3d &	startPoint,
		const OdGeVector3d &	dirToNextPoint )

virtual

Introduces a row of points into this vectorization context.

Parameters

numPoints	[in] Number of points.
startPoint	[in] First point to draw.
dirToNextPoint	[in] Offset to next point.

Reimplemented from OdGiGeometry.

◆ saveByBlockTraits()

OdRxObjectPtr OdGiBaseVectorizer::saveByBlockTraits ( )

Saves the traits that are defined by the owning block.

Returns: Pointer to the saved traits.

◆ selectionMarker()

OdGsMarker OdGiBaseVectorizer::selectionMarker ( ) const

Retrieves current selection marker state.

Returns: current selection marker state as an OdGsMarker instance.

◆ selectionMarkerOnChange()

virtual void OdGiBaseVectorizer::selectionMarkerOnChange ( OdGsMarker nSelectionMarker )

protectedvirtual

Called when selection marker is being to be changed.

Parameters

nSelectionMarker [in] New selection marker.

Remarks: Previous selection marker accessible through selectionMarker method inside override. This method should be called for base class from override to change selection marker.

Reimplemented in OdGsBaseVectorizer.

◆ sequenceNumber()

OdUInt32 OdGiBaseVectorizer::sequenceNumber ( ) const

virtual

Retrieves sequence number. The default implementation of this function always returns 0.

Returns: 0

Implements OdGiViewportDraw.

Reimplemented in OdGiBaseVectorizerImpl.

◆ setAttributes()

virtual OdUInt32 OdGiBaseVectorizer::setAttributes ( const OdGiDrawable * pDrawable )

virtual

Sets the default drawable traits for this Vectorizer object, and sets the drawable flags for the specified OdGiDrawable object.

Parameters

pDrawable [in] Pointer to the Drawable object.

Reimplemented in OdGsBaseVectorizer.

◆ setAuxData()

void OdGiBaseVectorizer::setAuxData ( const OdGiAuxiliaryDataPtr & pAuxData )

virtual

Sets pointer to auxiliary data context.

Parameters

pAuxData [in] pointer to auxiliary data context.

Reimplemented from OdGiSubEntityTraits.

◆ setByBlockTraits()

void OdGiBaseVectorizer::setByBlockTraits ( const OdGiSubEntityTraitsData * pByBlock )

inline

Sets the traits that are defined by the owning block.

Parameters

pByBlock [in] Pointer to the traits defined by the owning block.

Definition at line 2178 of file GiBaseVectorizer.h.

◆ setColor()

void OdGiBaseVectorizer::setColor ( OdUInt16 color )

virtual

Sets the current color index (ACI).

Parameters

color [in] Color index.

Remarks: color must be one of the following:

Value Description kACIbyBlock 0 ByBlock. kACIforeground 7 Foreground color. kACIbyLayer 256 ByLayer. kACIRed 1 Red. kACIYellow 2 Yellow. kACIGreen 3 Green. kACICyan 4 Cyan. kACIBlue 5 Blue. kACIMagenta 6 Magenta. .. 8-255 Defined by AcadPalette.h

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Implements OdGiSubEntityTraits.

◆ setDrawContextFlags()

void OdGiBaseVectorizer::setDrawContextFlags	(	OdUInt32	flags,
		bool	bFlag )

Sets draw context flags for this vectorizer.

Parameters

flags	[in] Draw context flags.
bFlag	[in] Enables or disables specified flags.

◆ setDrawFlags()

void OdGiBaseVectorizer::setDrawFlags ( OdUInt32 drawFlags )

virtual

Sets the drawing flags.

Parameters

drawFlags [in] Input bitmask with DrawFlags.

Reimplemented from OdGiSubEntityTraits.

◆ setEffectiveMaterialTraitsData()

void OdGiBaseVectorizer::setEffectiveMaterialTraitsData	(	OdDbStub *	materialId,
		const OdGiMaterialTraitsData &	data,
		bool	bForce = false )

Sets the specified material traits data.

Parameters

materialId	[in] Material identifier.
data	[in] Material traits data to set.
bForce	[in] Flag that specifies whether to force material traits setting. This flag is needed to set traits even if the specified material identifier is the same as material identifier of this vectorizer.

◆ setEffectiveTraits()

virtual void OdGiBaseVectorizer::setEffectiveTraits	(	const OdGiSubEntityTraitsData &	traits,
		const OdGeVector3d *	fillNormal = NULL )

virtual

Sets entity traits that should be in effect for this Vectorization object.

Parameters

traits	[in] Entity traits to set.
fillNormal	[in] Normal for a fill plane. Reserves for future use.

Implements OdGiConveyorContext.

◆ setEntityTraitsDataChanged() [1/2]

virtual void OdGiBaseVectorizer::setEntityTraitsDataChanged ( )

inlinevirtual

Marks as changed the EntityTraitsData data for this Vectorizer object.

Reimplemented in OdGsBaseVectorizer.

Definition at line 703 of file GiBaseVectorizer.h.

◆ setEntityTraitsDataChanged() [2/2]

virtual void OdGiBaseVectorizer::setEntityTraitsDataChanged	(	int	bit,
		bool	value = true )

inlinevirtual

Marks the specfied trait as changed (or not) the EntityTraitsData data for this Vectorizer object.

Parameters

bit	[in] Bit that represents an entity traits to set.
value	[in] Flag that specifies whether trait should be set to the state "changed" or "unchanged".

Reimplemented in OdGsBaseVectorizer.

Definition at line 710 of file GiBaseVectorizer.h.

◆ setExtents()

void OdGiBaseVectorizer::setExtents ( const OdGePoint3d * newExtents )

virtual

Sets geometrical extents for this vectorizer. Currently not implemented.

Parameters

newExtents [in] New geometrical extents to set.

Implements OdGiWorldGeometry.

Reimplemented in OdGiBaseVectorizerImpl, and OdGiExtCalc.

◆ setEyeToOutputTransform()

void OdGiBaseVectorizer::setEyeToOutputTransform ( const OdGeMatrix3d & xfm )

Sets the Eye to Output transformation matrix for this Vectorizer object.

Parameters

xfm	[in] Transformation matrix.

◆ setFill()

void OdGiBaseVectorizer::setFill ( const OdGiFill * pFill )

virtual

Sets boundary filling.

Parameters

pFill [in] Boundary filling parameters.

Reimplemented from OdGiSubEntityTraits.

◆ setFillType()

void OdGiBaseVectorizer::setFillType ( OdGiFillType fillType )

virtual

Sets the current fill type.

Parameters

fillType [in] Fill type.

Remarks: fillType must be one of the following:

Value Description kOdGiFillAlways 1 Fill closed graphic primitives. kOdGiFillNever 2 Don't fill closed graphic primitives.

Closed graphic primitives consist of the following: arcs with (OdGiArcType == kOdGiArcSector) || (OdGiArcType == kOdGiArcChord) circles meshes polygons shells

Implements OdGiSubEntityTraits.

Reimplemented in OdGiBaseVectorizerImpl.

◆ setLayer()

void OdGiBaseVectorizer::setLayer ( OdDbStub * layerId )

virtual

Sets the current layer.

Parameters

layerId [in] Object ID of the LayerTableRecord.

See also: <link tv_working_with_attributes_layers, Work with Layers>

Implements OdGiSubEntityTraits.

◆ setLineStyleModifiers()

void OdGiBaseVectorizer::setLineStyleModifiers ( const OdGiDgLinetypeModifiers * pLSMod )

virtual

Sets Dgn Line Style modifiers.

Parameters

pLSMod [in] Pointer to structure with Dgn Line Style modifiers.

Reimplemented from OdGiSubEntityTraits.

◆ setLineType()

void OdGiBaseVectorizer::setLineType ( OdDbStub * lineTypeId )

virtual

Sets the current linetype.

Parameters

lineTypeId [in] Object ID of the LinetypeTableRecord.

See also: <exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Implements OdGiSubEntityTraits.

◆ setLineTypeScale()

void OdGiBaseVectorizer::setLineTypeScale ( double lineTypeScale )

virtual

Sets the current linetype scale.

Parameters

lineTypeScale [in] Linetype scale factor.

See also: <exref target="https://docs.opendesign.com/td/db_linetype_properties.html">Specific Properties of Linetypes</exref>

Implements OdGiSubEntityTraits.

◆ setLineWeight()

void OdGiBaseVectorizer::setLineWeight ( OdDb::LineWeight lineWeight )

virtual

Sets the current lineweight.

Parameters

lineWeight [in] Lineweight.

See also: <link tv_working_with_attributes_lineweights, Work with Lineweights>

Implements OdGiSubEntityTraits.

◆ setLockFlags()

void OdGiBaseVectorizer::setLockFlags ( OdUInt32 lockFlags )

virtual

Sets the lock flags.

Parameters

lockFlags [in] Input bitmask with LockFlags.

Reimplemented from OdGiSubEntityTraits.

◆ setMapper()

void OdGiBaseVectorizer::setMapper ( const OdGiMapper * pMapper )

virtual

Sets the current material mapper.

Parameters

pMapper [in] Pointer to the GI mapper object.

See also: <link tv_working_with_attributes_materials_mapping, Work with Mapping Properties>

Implements OdGiSubEntityTraits.

◆ setMaterial()

void OdGiBaseVectorizer::setMaterial ( OdDbStub * pMaterialId )

virtual

Sets the current material.

Parameters

materialId [in] Object ID of the material.

See also: <link tv_working_with_attributes_materials, Work with Materials>

Implements OdGiSubEntityTraits.

◆ setPlotStyleName()

void OdGiBaseVectorizer::setPlotStyleName	(	OdDb::PlotStyleNameType	plotStyleNameType,
		OdDbStub *	pPlotStyleNameId = 0 )

virtual

Sets the current PlotStyleName.

Parameters

plotStyleNameType	[in] Plot Style Name Type.
pPlotStyleNameId	[in] Object ID of the Plot Style Name.

Remarks: plotStyleNameId is used only when plotStyleNameType == kPlotStyleNameById.

plotStyleNameType must be one of the following:

Value
kPlotStyleNameByLayer 0 kPlotStyleNameByBlock 1 kPlotStyleNameIsDictDefault 2 kPlotStyleNameById 3

Implements OdGiSubEntityTraits.

◆ setPlotStyleNameId()

void OdGiBaseVectorizer::setPlotStyleNameId ( OdDbStub * plotStyleNameId )

Sets the PlotStyleName for this Vectorizer object.

Parameters

plotStyleNameId [in] Pointer to the Object ID of the plot style name.

◆ setPlotStyleNameType()

void OdGiBaseVectorizer::setPlotStyleNameType ( OdDb::PlotStyleNameType plotStyleNameType )

Sets the Plot Style Name Type for this Vectorizer object.

Parameters

plotStyleNameType [in] Plot Style Name Type.

Remarks: plotStyleNameType must be one of the following:

Value
OdDb::kPlotStyleNameByLayer 0 OdDb::kPlotStyleNameByBlock 1 OdDb::kPlotStyleNameIsDictDefault 2 OdDb::kPlotStyleNameById 3

◆ setSecondaryTrueColor()

void OdGiBaseVectorizer::setSecondaryTrueColor ( const OdCmEntityColor & color )

virtual

Sets the current secondary color from an OdCmEntityColor instance.

Parameters

color [in] OdCmEntityColor object.

Reimplemented from OdGiSubEntityTraits.

◆ setSectionable()

void OdGiBaseVectorizer::setSectionable ( bool bSectionableFlag )

virtual

Sets sectionable flag.

Parameters

bSectionableFlag [in] New sectionable flag.

See also: <link tv_planarClip_sample, Planar Clipping Section Generation for a Custom Entity>

Reimplemented from OdGiSubEntityTraits.

◆ setSelectionFlags()

void OdGiBaseVectorizer::setSelectionFlags ( SelectionFlags selectionFlags )

virtual

Sets the selection flags.

Parameters

selectionFlags [in] Input SelectionFlags.

Reimplemented from OdGiSubEntityTraits.

◆ setSelectionGeom()

void OdGiBaseVectorizer::setSelectionGeom ( bool bSelectionFlag )

virtual

Sets selection geometry flag.

Parameters

bSelectionFlag [in] New selection geometry flag.

See also: <link tv_working_with_features_selections, Work with Selections>

Reimplemented from OdGiSubEntityTraits.

◆ setSelectionMarker()

void OdGiBaseVectorizer::setSelectionMarker ( OdGsMarker selectionMarker )

virtual

Sets the current selection marker.

Parameters

selectionMarker [in] Selection marker.

Implements OdGiSubEntityTraits.

Reimplemented in OdGsBaseVectorizer.

◆ setShadowFlags()

void OdGiBaseVectorizer::setShadowFlags ( ShadowFlags shadowFlags )

virtual

Sets the shadow flags.

Parameters

shadowFlags [in] Input ShadowFlags.

See also: <link gi_shadows_rendering, Shadows Visualization>

Reimplemented from OdGiSubEntityTraits.

◆ setThickness()

void OdGiBaseVectorizer::setThickness ( double thickness )

virtual

Sets the current thickness.

Parameters

thickness [in] Thickness.

Implements OdGiSubEntityTraits.

◆ setTransparency()

void OdGiBaseVectorizer::setTransparency ( const OdCmTransparency & transparency )

virtual

Sets the current transparency.

Parameters

transparency [in] OdCmTransparency object.

See also: <exref target="https://docs.opendesign.com/td/cm_transparency_alpha.html">Transparency Functionality as an Alpha-value</exref>; <exref target="https://docs.opendesign.com/td/cm_transparency_integer.html">Transparency Functionality as an Integer-value</exref>

Reimplemented from OdGiSubEntityTraits.

◆ setTrueColor()

void OdGiBaseVectorizer::setTrueColor ( const OdCmEntityColor & trueColor )

virtual

Sets the current color from an OdCmEntityColor instance.

Parameters

color [in] OdCmEntityColor object.

See also: <exref target="https://docs.opendesign.com/td/cm.html">Working with Colors</exref>

Implements OdGiSubEntityTraits.

◆ setVisualStyle()

void OdGiBaseVectorizer::setVisualStyle ( const OdDbStub * pVisualStyleId )

virtual

Sets the current visual style.

Parameters

visualStyleId [in] Object ID of the visual style.

See also: <link tv_working_with_attributes_visual_styles, Work with Visual Styles>

Reimplemented from OdGiSubEntityTraits.

◆ setXrefOverride()

void OdGiBaseVectorizer::setXrefOverride ( bool bSet )

inline

Definition at line 1917 of file GiBaseVectorizer.h.

◆ shape()

void OdGiBaseVectorizer::shape	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		int	shapeNumber,
		const OdGiTextStyle *	pTextStyle )

Introduces a shape into this vectorization context.

Parameters

position	[in] Position of the shape.
shapeNumber	[in] Shape number.
pTextStyle	[in] Pointer to the TextStyle for the shape.
direction	[in] Baseline direction for the shape.
normal	[in] Normal vector.

◆ shell()

void OdGiBaseVectorizer::shell	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		OdInt32	faceListSize,
		const OdInt32 *	faceList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

virtual

Introduces a shell into this vectorization context.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Array of vertices.
faceListSize	[in] Number of entries in faceList.
faceList	[in] Array of numbers that define the faces.
pEdgeData	[in] Pointer to additional edge data.
pFaceData	[in] Pointer to additional face data.
pVertexData	[in] Pointer to additional vertex data.

See also: <link tv_geometry_shells, Work with Shells>

Implements OdGiGeometry.

Reimplemented in OdGiBaseVectorizerImpl.

◆ startAttributesSegment()

void OdGiBaseVectorizer::startAttributesSegment ( )

virtual

Sets the OdGiBaseVectorizer::kAttributesSegment flag for this vectorizer to true.

Reimplemented from OdGiWorldGeometry.

◆ subEntityTraits()

OdGiSubEntityTraits & OdGiBaseVectorizer::subEntityTraits ( ) const

virtual

Provides access to this object's subentity traits.

Remarks: This allows the modification of the vectorization attributes such as color, linetype, etc.

Implements OdGiCommonDraw.

◆ switchLayer()

virtual OdDbStub * OdGiBaseVectorizer::switchLayer ( OdDbStub * layerId ) const

protectedvirtual

Reimplemented in OdGsBaseVectorizer.

◆ text() [1/2]

void OdGiBaseVectorizer::text	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		const OdChar *	msg,
		OdInt32	length,
		bool	raw,
		const OdGiTextStyle *	pTextStyle )

virtual

Introduces a text into this vectorization context.

Parameters

position	[in] Position of the text.
normal	[in] Normal to a plane where text lies. Used to define v parameter as normal.crossProduct(direction).
direction	[in] Direction vector that is interpreted as u parameter.
msg	[in] Pointer to a message string.
length	[in] String length.
raw	[in] Flag that specifies whether escape sequences, such as %P, will not be converted to special characters.
pTextStyle	[in] Pointer to a text style.

See also: <link tv_geometry_text, Work with Text>

Implements OdGiGeometry.

◆ text() [2/2]

void OdGiBaseVectorizer::text	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		double	height,
		double	width,
		double	oblique,
		const OdString &	msg )

virtual

Introduces a text into this vectorization context.

Parameters

position	[in] Position of the text.
normal	[in] Normal to a plane where text lies. Used to define v parameter as normal.crossProduct(direction).
direction	[in] Direction vector that is interpreted as u parameter.
height	[in] Height of the text.
width	[in] Width of the text.
oblique	[in] Oblique angle. Must not exceed an equivalent of 85 degrees in radians in both directions.
msg	[in] Message string.

See also: <link tv_geometry_text, Work with Text>

Implements OdGiGeometry.

◆ updateExtentsOnly()

virtual bool OdGiBaseVectorizer::updateExtentsOnly ( ) const

inlineprotectedvirtual

Reimplemented in OdGsBaseVectorizer.

Definition at line 935 of file GiBaseVectorizer.h.

◆ updateLayerTraits()

void OdGiBaseVectorizer::updateLayerTraits ( OdGiSubEntityTraitsData & subEntityTraits ) const

protected

Updates the layer traits for this Vectorizer object from the specified subentity traits.

Parameters

subEntityTraits [in] Subentity traits.

◆ updateTraitsDataByBlockTraits()

void OdGiBaseVectorizer::updateTraitsDataByBlockTraits ( const OdGiSubEntityTraitsData * pBlockTraits )

inlineprotected

Updates entity traits with the traits of the owning block.

Definition at line 2322 of file GiBaseVectorizer.h.

◆ viewport()

OdGiViewport & OdGiBaseVectorizer::viewport ( ) const

virtual

Retrieves a reference to a viewport. The default implementation of this function returns a reference to a dummy viewport.

Returns: reference to a viewport.

Implements OdGiViewportDraw.

Reimplemented in OdGiBaseVectorizerImpl.

◆ viewportObjectId()

OdDbStub * OdGiBaseVectorizer::viewportObjectId ( ) const

virtual

Retrieves identifier of a viewport. The default implementation of this function always returns 0.

Returns: viewport identifier when implemented, currently returns 0.

Implements OdGiViewportDraw.

Reimplemented in OdGiBaseVectorizerImpl.

◆ worldDeviation()

const OdGiDeviation & OdGiBaseVectorizer::worldDeviation ( ) const

virtual

Retrieves the maximum world (WCS) deviation for this VectorizeView object.

Returns: maximum world space (WCS) deviation as the OdGiDeviation instance.

Implements OdGiConveyorContext.

◆ worldLine()

void OdGiBaseVectorizer::worldLine ( const OdGePoint3d points[2] )

virtual

Introduces a world line into this vectorization context.

Parameters

points [in] Points of the world line.

See also: <link tv_geometry_lines, Work with Lines>

Implements OdGiGeometry.

◆ xline()

void OdGiBaseVectorizer::xline	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint )

virtual

Introduces an xline into this vectorization context.

Parameters

firstPoint	[in] First point.
secondPoint	[in] Second point.

See also: <link tv_geometry_lines, Work with Lines>

OdGiFillPtr OdGiBaseVectorizer::m_pFill

protected

Definition at line 678 of file GiBaseVectorizer.h.

◆ m_pGiReserved

OdRxObjectPtr OdGiBaseVectorizer::m_pGiReserved

protected

Definition at line 797 of file GiBaseVectorizer.h.

◆ m_pModelToEyeProc

OdGiModelToViewProcPtr OdGiBaseVectorizer::m_pModelToEyeProc

protected

Definition at line 828 of file GiBaseVectorizer.h.

The documentation for this class was generated from the following file:

GiBaseVectorizer.h
