#include <IfcRampFlightAutoImpl.h>

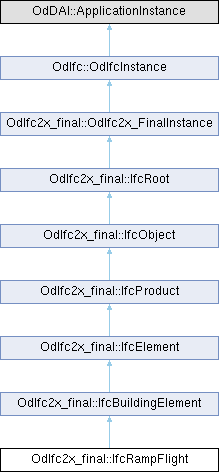

Inheritance diagram for OdIfc2x_final::IfcRampFlight:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x_final::IfcBuildingElement
void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x_final::IfcBuildingElement
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Protected Attributes inherited from OdIfc2x_final::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

A ramp comprises a single inclined segment, or several inclined segments that are connected by a horizontal segment, referred to as a landing. A ramp flight is the single inclined segment and part of the ramp construction. In case of single flight ramps, the ramp flight and the ramp are identical.

An IfcRampFlight is an aggregated part of an IfcRamp realized through the IfcRelAggregates relationship, the ramp flight is therefore included in the set of IfcRelAggregates.RelatedObjects. An IfcRampFlight connects the floor slab of zero to two different storeys (or partial storeys or landings) within a building. The connection relationship between the IfcRampFlight and the IfcSlab can be expressed using the IfcRelConnectsElements relationship.

Axis 2D Geometry - The walking line is represented by a two-dimensional open curve as the axis. The curve is directed into the upward direction (direction has to be interpreted as specified at the subtypes of IfcCurve). The image below illustrates the axis representation which has the following constraints: In case of straight flights the curve is a single item of type IfcPolyline In case of winding flights the curve is a single item of type IfcCompositeCurve In case of a curved flight or a spiral flight the curve is a single item of type IfcTrimmedCurve

Body SweptSolid Geometry - The following additional constraints apply to the 'SweptSolid' representation type: Solid: IfcExtrudedAreaSolid is required Profile: IfcRectangleProfileDef and IfcArbitraryClosedProfileDef is supported Extrusion: The profile is extruded in any direction relative to the XY plane of the position coordinate system of the IfcExtrudedAreaSolid. Therefore non-perpendicular sweep operation has to be supported. It might be further constrained to be in the direction of the global z-axis in implementers agreements

The image below illustrates the body representation.

FootPrint Geometry - The flight foot print, including the flight boundary is represented by a two-dimensional geometric curve set. The image below illustrates the footprint representation which has the following constraints: In case of straight flights the curve set consists of a single item of type IfcPolyline In case of winding flights or curved flights the curve set consists of a single item of type IfcCompositeCurve In case of a spiral flight the curve set consists of a single item of type IfcConic or IfcPolyline

Material Single - The material of the IfcRampFlight is defined by the IfcMaterial and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship.
Object Typing - This concept can be applied to the following resources: IfcRampFlightType
Property Sets for Objects - This concept can be applied to the following resources: Pset_ConcreteElementGeneral Pset_PrecastConcreteElementFabrication Pset_PrecastConcreteElementGeneral Pset_RampFlightCommon
Quantity Sets - This concept can be applied to the following resources: Qto_RampFlightBaseQuantities
Spatial Containment - The IfcRampFlight, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition

Definition at line 102 of file Ifc2x_Final/IfcRampFlightAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRampFlight::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcBuildingElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcRampFlight::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcBuildingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRampFlight::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcBuildingElement.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcRampFlightAutoImpl.h
